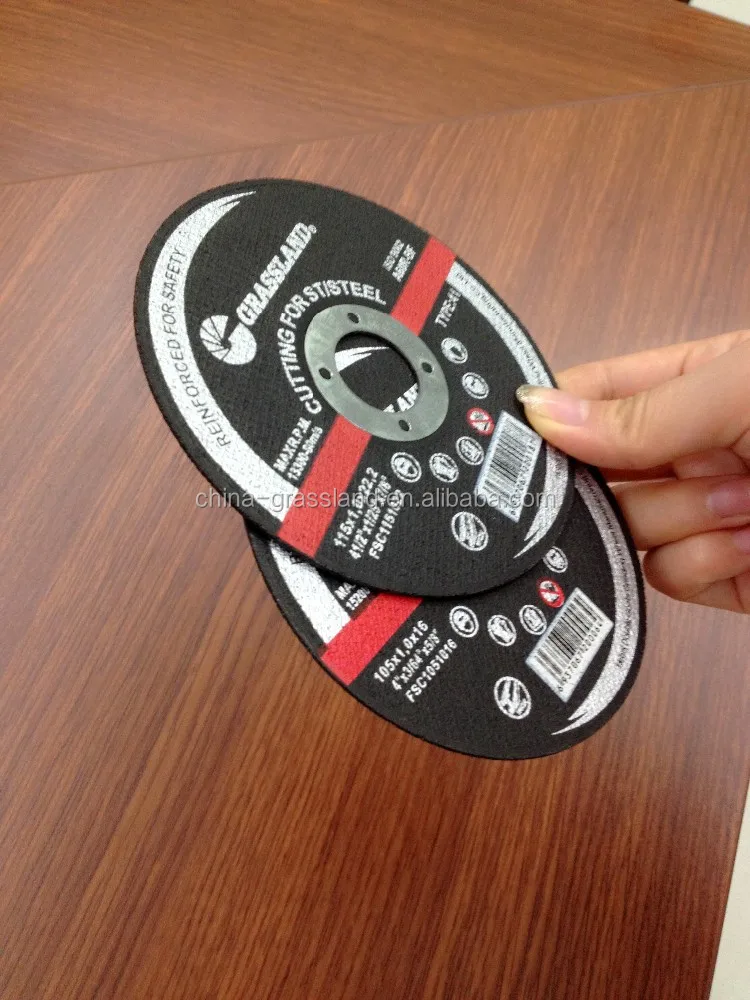

Saudi Arabia resin bond cutting disc for metal and inox
Product Description
1.Advantage
1)-We have branch in Guangzhou,Beijing,shanghai,Los Angeles,Dubai.
2)-High quality,each product through 5times test,sure product 100% qualified
3)-Germany MPA, Europe EN12413,ISO 9001 certificate
4)-Independent research and development
5)-We made import&export rights.
2.Specification
1)T27 Depressed center Grinding Wheels for metal
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DAG1156016H | 115X6.0X16 | 4 1/2X1/4X5/8-11* | 15200 | 80 | 25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DAG1256016H | 125X6.0X16 | 5X1/4X5/8-11* | 13300 | 80 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DAG1506016H | 150X6.0X16 | 6X1/4X5/8-11* | 12200 | 80 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DAG1806016H | 180X6.0X16 | 7X1/4X5/8-11* | 10200 | 80 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DAG2306016H | 230X6.0X16 | 9X1/4X5/8-11* | 8500 | 80 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2)T42 Depressed center Cutting Wheels for metal
Item number | Dimension DxTxH (mm) | Dimension DxTxH(inch) | Speed(RPM) | Speed(m/s) | Box Qty(pcs) | |
DAC1002516 | 100X2.5X16 | 4X3/32X5/8 | 15200 | 80 | 25 | |
DAC1003016 | 100X3.0X16 | 4X1/8X5/8 | 15200 | 80 | 25 | |
DAC1152522 | 115X2.5X22.2 | 4 1/2X3/32X7/8 | 13300 | 80 | 25 | |
DAC1153022 | 115X3.0X22.2 | 4 1/2X1/8X7/8 | 13300 | 80 | 25 | |
DAC1252522 | 125X2.5X22.2 | 5X3/32X7/8 | 12200 | 80 | 25 | |
DAC1253022 | 125X3.0X22.2 | 5X1/8X7/8 | 12200 | 80 | 25 | |
DAC1502522 | 150X2.5X22.2 | 6X3/32X7/8 | 10200 | 80 | 25 | |
DAC1503022 | 150X3.0X22.2 | 6X1/8X7/8 | 10200 | 80 | 25 | |
DAC1802522 | 180X2.5X22.2 | 7X3/32X7/8 | 8600 | 80 | 25 | |
DAC1803022 | 180X3.0X22.2 | 7X1/8X7/8 | 8600 | 80 | 25 | |
DAC2302522 | 230X2.5X22.2 | 9X3/32X7/8 | 6600 | 80 | 25 | |
DAC2303022 | 230X3.0X22.2 | 9X1/8X7/8 | 6600 | 80 | 25 | |
1)After customer confirm order with us ,then purchasing department buy raw material including Ring,Label,Fibre Glass,Abrasive Grits,Black paper
2)When raw material ready in stock then production department arrange production ,
3)After harden then burning
4)Then Quality Assurance Center Operations spot check grinding wheels from each car.,testing including physic test (outside,thickness,weight, static balance and so on )and performance test (cutting material 12mm/18mm/25mm round steel and iron pipe and 40*40*4 angle iron ,grinding 200*200*25 iron plate and steel plate)
5)all the grinding wheels will put in pick and choose area , check the grinding wheels one by one
6)How to packing according to customer requirement , such as 180*6.0*22-T27 grinding wheels, 5pcs by heating shrink film ---5set(25pcs)in one box(size180*6.0*22mm)---two box in one carton
(carton size37.5*19*19mm)
Packaging & Shipping
4.Packing & Storage Conditions
1. Using the airproof packing with the moistureproof bead in each carton so that can keep the cutting and grinding performance well.
2. Using the three layer corrugated carton for inner box and five layer corrugated carton for outer carton.
For the cymbals-shape cutter or grinder dish we using the pearl-cotton packing material to block off for protecting the production appearance.
3. Storage Conditions: keeping dryness for the finished product warehouse and storing the product on the
tray with sorting. It will be propitious to the production storage and production quality protection.
Company Information
Our Services
1.We have branch in Dubai, Los Angeles ,also have company in Beijing,Guangzhou and Shanghai
2.Our company is Joint ventures with Turkey customer
3.If quality have problem we will free give you new one .
4.Our factory are the third of china , quality very good .
FAQ
Q1: Are you a trading company or manufacturer?
A1: we are manufacturer, professional manufacture cutting & grinding wheel over 20 years, located in hardware
capital --------GRASSLAND,CANGZHOU ,HEBEI,CHINA
Q2: do you have any safe certifications?
A2: yes, we have ISO 9001, MPA EN12413.
Q3: What’s your application for cutting & grinding discs?
A3: Used for metal, stone, stainless steel, carbon steel, cast iron and so on.
Q4: What package do you use? Can accept OEM order.
A4: usually, packing as shrink + neutral inner box + standard export carton, we also accept OEM order, label
and package as customers’ requirements.
Q5: Can you provide free samples?
A5: Yes, we can provide free samples, but samples freight belongs to clients.
Q6: What’s your daily output? How long is delivery time?
A6:250000 pcs per day for daily products output, 15-25 days after confirmed order.
Q7:If I want to visit your company, which is the nearest airport?
A7:TIANJINairport is the nearnest airport.
