Долговечная Бездымная печь для производства угля

Product Overview

Description

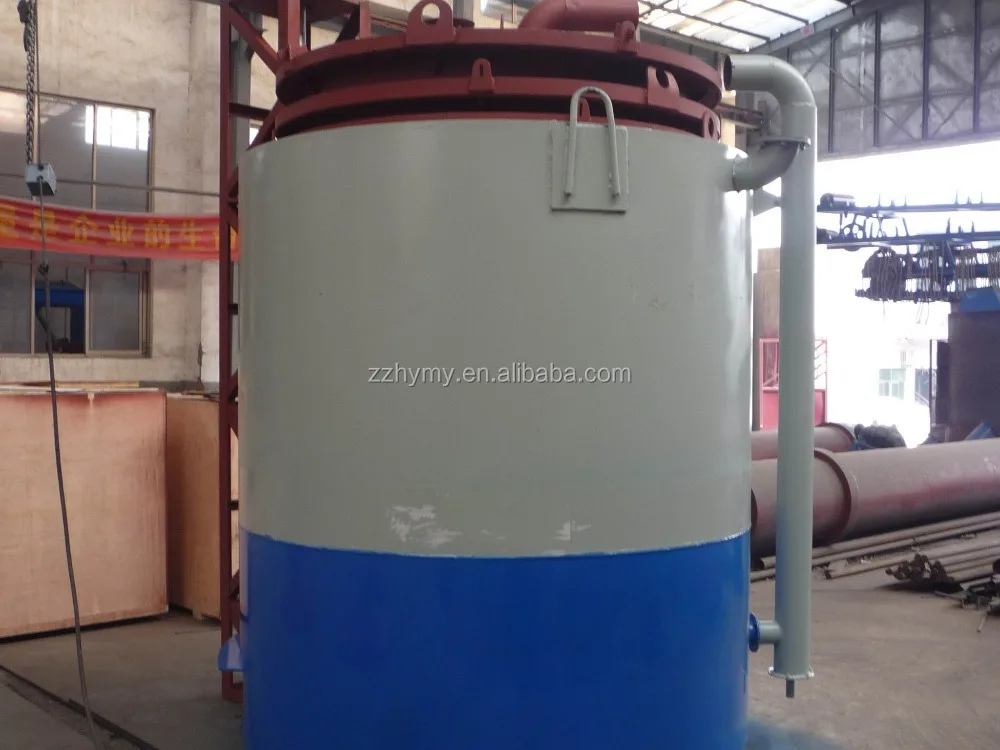

Durable quality smokeless charcoal making kiln

Email: demizhang01 at hotmail.com    Website: www.ghengyuan.com

Cell/whatsapp: +86 13837191642



Brief introduction of smokeless charcoal making kiln

1.<High carbonization rate and high output;

2.<Energy-saving, 1000kg charcoal just need 30kg firewood or 15kg liquid gas;

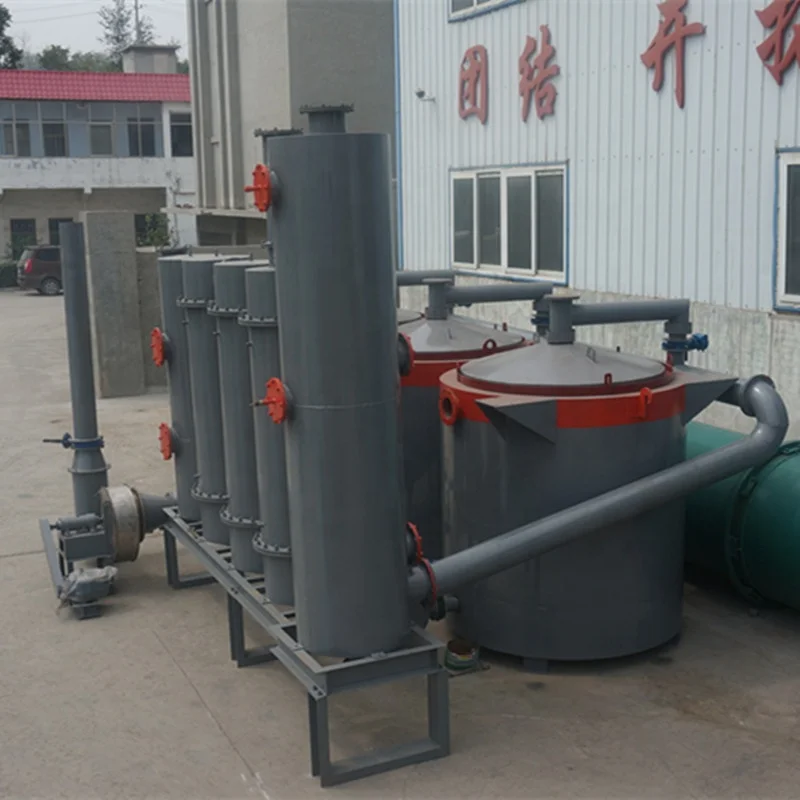

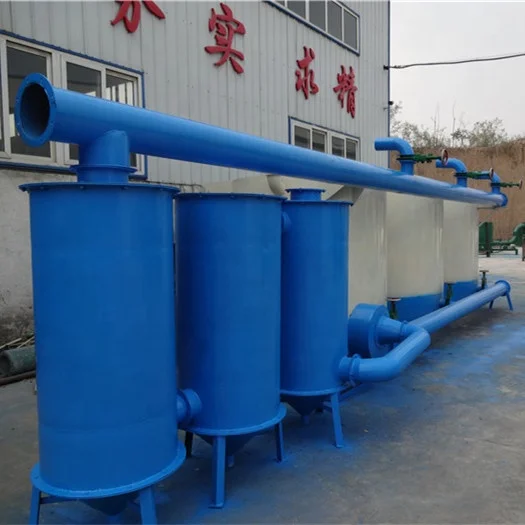

3.<Smokeless. Little pollution; we have two important system to recycle and purify the smoking

and gas flow, and the 95% smoking will be reused for heating the stove again, and the heating

resource can use the liquid gas, so no pollution;

4.<Easy for loading and unloading, we will send steel basket for you to loading the wood and

keep the lgood look of the charcoal;

5.<Easy for transport, save much transport charge,the inner stove can be stack, together when

loading, it will save almost 50% space, it will save much money;

6.<Suitable for all kinds of raw material, especially for the coconut shell, palm shell.



Main technology parameter for smokeless charcoal making kiln

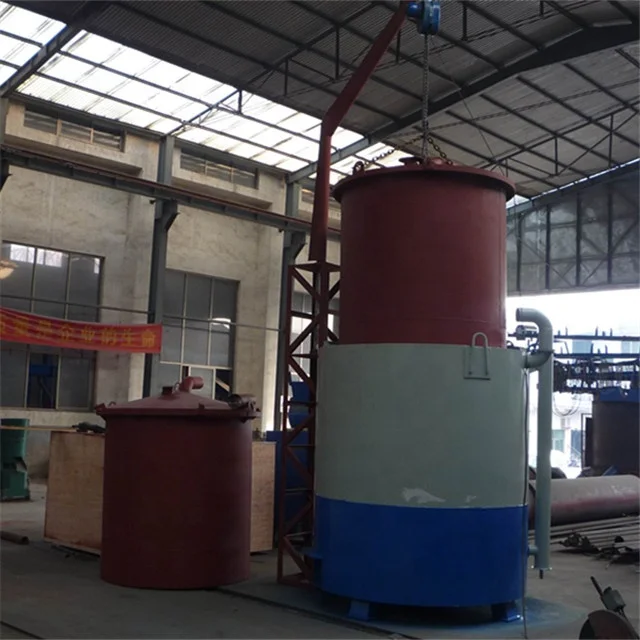

Main structure	One main furnace and three inner basket, and necessary hoisting tool.
Carbonization furnace	Different raw material have different carbonization time about is 8-10  hours.
Cooling time	5-8 hours with the cooling time increase the carbonization effect  more better.
Capacity	Deal with 4.5-6 ton raw material, get 3-3.5 ton charcoal.
Weight	One set furnace is 4 tons.
Inner stove	The around steel thickness is 6mm, the bottom steel is boiler steel 8mm.
Three Inner baske iameter	1460mm,1430mm and 1400 mm, height 1.52mm
Three inner basket stove volume	2.54CBM 2.43CMB and 2.34CBM









What is smokeless charcoal making kiln working process?

1.<Heating process: after putting the inner basket into the furnace, we need to hest furnace up

to 80-120mins, we could use gas or biomass waste as fuel, when the temperature get around

280-300℃, we stop heating.

2.<Carbonzaiton process: after doing the sealing works, the raw material inside beagin to

pyrolysis, it will produce gas at this period, so we need heating in this process, the carbonization time about 8-10 hours.

3.<Cooling process: after arbonization, we need to take the inside furnace out, let it cool by

natural way, cooling time longer, it is better for charcoal quality.

4.<After taking the inner basket out, we need to put other basket inside, this is cycling process.

Raw materials for smokeless charcoal making kiln

Including: wood logs, bamboo, wood briqutte, coconut shell, boimass waste, cashew shell,

macadianut shell and so on.



Final products for smokeless charcoal making kiln

Increase the net calorific value per unit volume after charring.

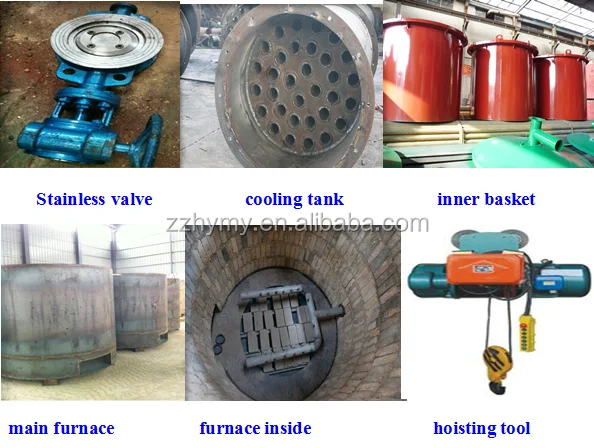

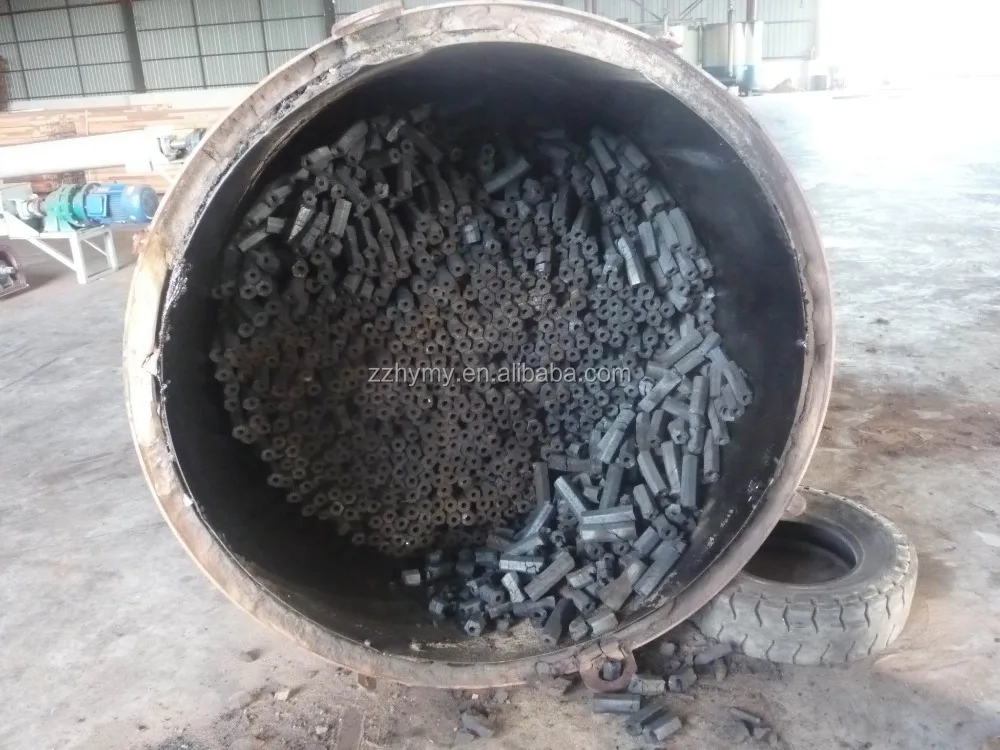

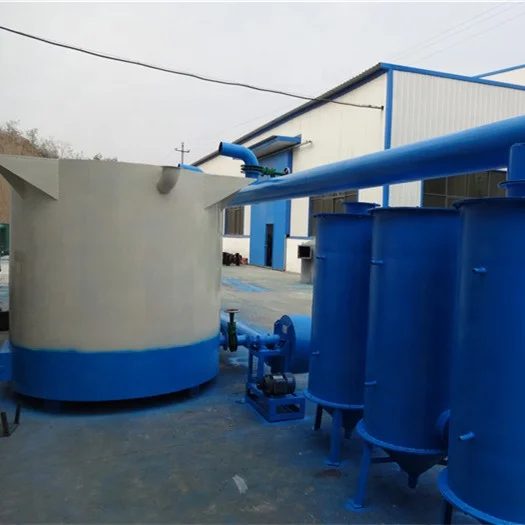

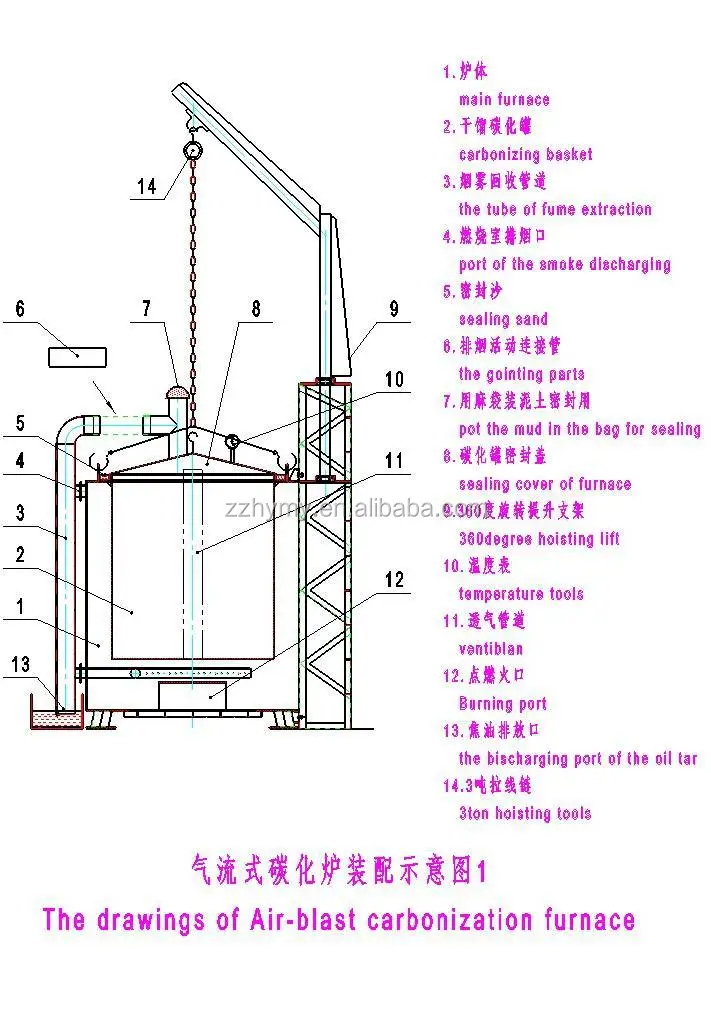

Main parts for smokeless charcoal making kiln

Smokeless charcoal making kiln main parts is main furnace, inner basket, cooling tank, valves, hoisting tools and etc.



 Features of smokeless charcoal making kiln

1.Widespread and common raw materials;

2.Wide application;

3.High density, small volume, good flammability;

4.Energy saving, no smoke, no additive, environment friendly;

5.High capacity.



Clients visited our factory for smokeless charcoal making kiln

We welcome our client to visit, we will arrage the business car pick up you at airport or railway

station, the nearest airport to our company is Zhengzhou Xinzheng International airport, railway

station is Zhengzhou railway station.

If you are interested in this smokeless charcoal making kiln, please contact with me freely as the followings:
