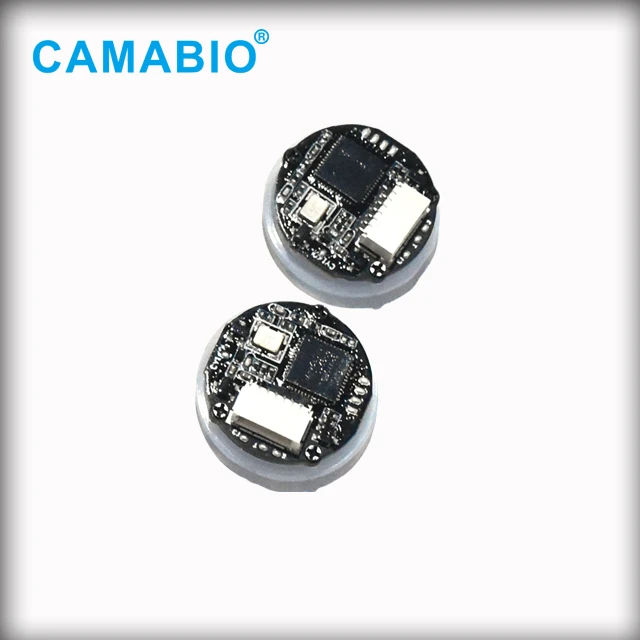

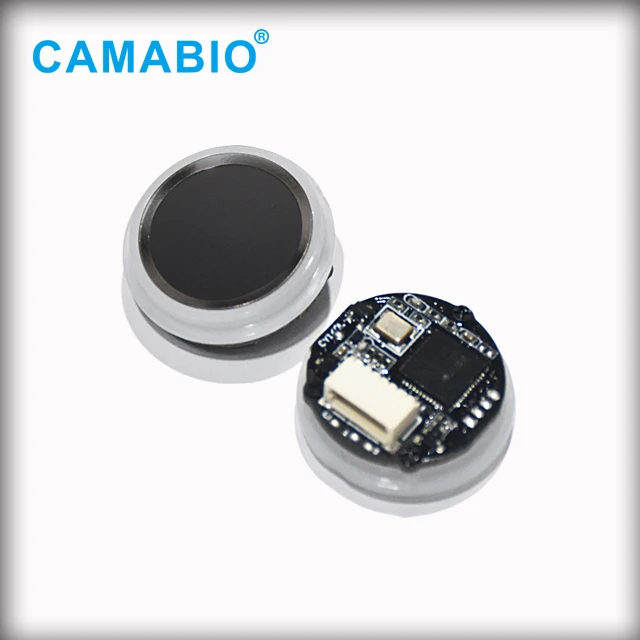

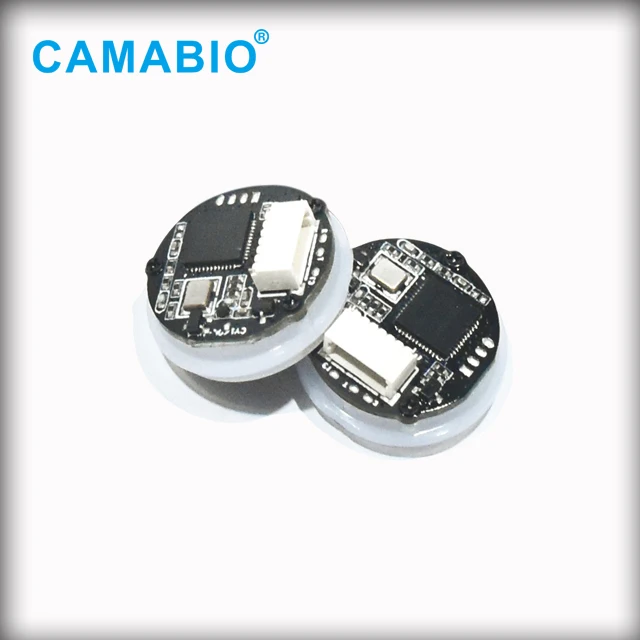

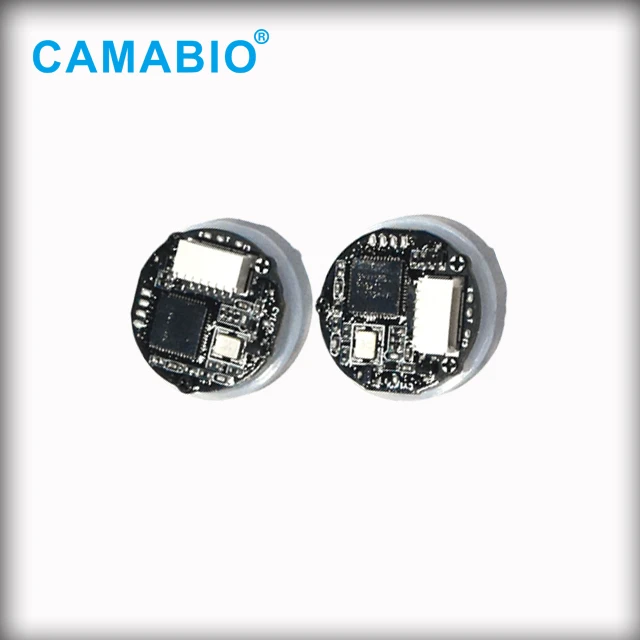

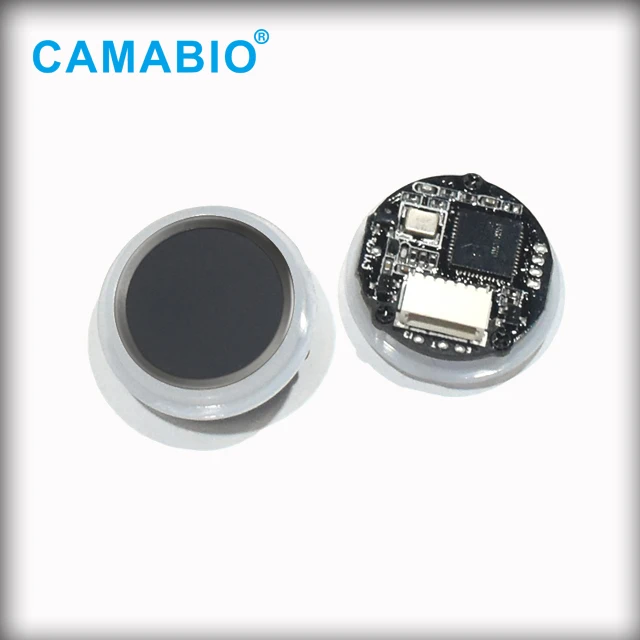

CAMA CRM160L Circular Shape Capacitive Biometric Fingerprint Sensor Module
- Category: Other Access Control Products >>>
- Supplier: Shenzhen CAMA Biometrics Co. Ltd.
Share on (60123477406):
Product Overview
Description
Product Description
CAMA-CRM160L is newest round shape capacitive fingerprint sensor module which released by CAMABIO . It is ideal fingerprint sensor module for developers and manufacturers to design their own competitive products. It has the functions like fingerprint image processing, fingerprint template creating, fingerprint matching, fingerprint search, fingerprint templates storage etc. Compare to similar fingerprint sensor module in the market, it got following features.
Product Features
# 100 fingerprints capacity
# 360 degree identification
# Live scan function ( identify fake finger)
# Auto-learning function
# Fast identification speed
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Round shape fingerprint sensor
# All-in-one design with super slim size
# 360 degree identification
# Live scan function ( identify fake finger)
# Auto-learning function
# Fast identification speed
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Round shape fingerprint sensor
# All-in-one design with super slim size
Specification
Item Name | Decriptions |
Module Size | R10.5mm |
Sensor Size | R7.5mm |
DPI Resolution | 500 DPI |
Gray Level | 256 Level |
Frame Rate | 30FPS |
Work Voltage | +3.3V |
Work Current | Capture Mode:120 mA ; Standby Mode:4.5 uA |
Fingerprint Capacity | 100 Fingerprints |
Identify Time (1:N) | <1s |
Auto on Time | <100ms |
Interface Pin | 6pin, 1.0mm pitch |
Baud Rate | 115200 bps |
Work Temperature | -20℃ - 55℃ |
Humidity | 0% - 85% |
FAR | <0.001% |
FRR | <0.1% |
Fingerprint Identification Mode | 1:1 and 1:N |
Identification Speed | Capture Fingerprint < 480ms; 1:N Identification < 520 ms |
Touch Sensing Activation ( Auto-On Function) | Supported |

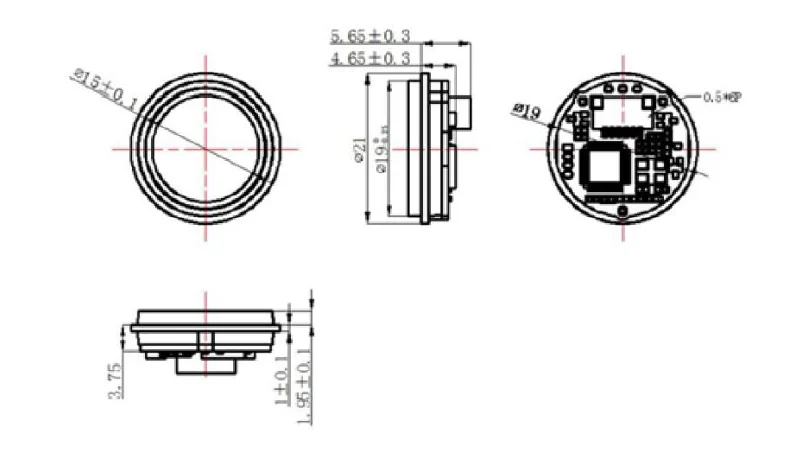

Product Size

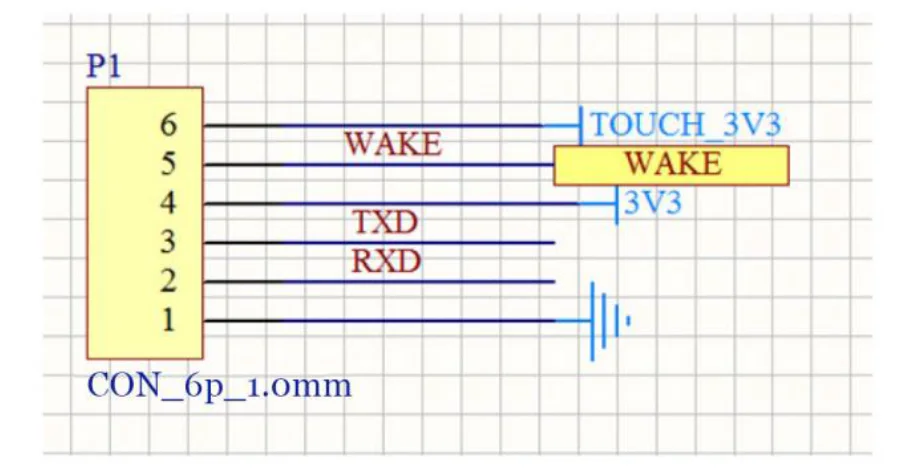

Interface Details
Pin No. | Item Name | Description | Notes | ||
Pin 6 | Touch 3.3V | Touch Power Supply 3.3V | +3.3V | ||
Pin 5 | Wake | Touch Sensing Signal Ouput | High Level Valid | ||
Pin 4 | 3V3 | 3.3V Power supply of module | +3.3V | ||
Pin 3 | TXD | TXD send port | |||
Pin 2 | RXD | RXD send port | |||
Pin 1 | GND | Ground | |||
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. User Manual of CAMA-CRM160L ( Command Protocols Included)
2. DEMO Software For Testing Purpose
1. User Manual of CAMA-CRM160L ( Command Protocols Included)
2. DEMO Software For Testing Purpose
Product Applications
CAMA-CRM160L Round shape capacitive fingerprint module can be widely used for products below
1. Fingerprint door lock system
2. Biometric access control system
3. Fingerprint car starter
4. Fingerprint safe box lock
5. Fingerprint Padlock
1. Fingerprint door lock system
2. Biometric access control system
3. Fingerprint car starter
4. Fingerprint safe box lock
5. Fingerprint Padlock
