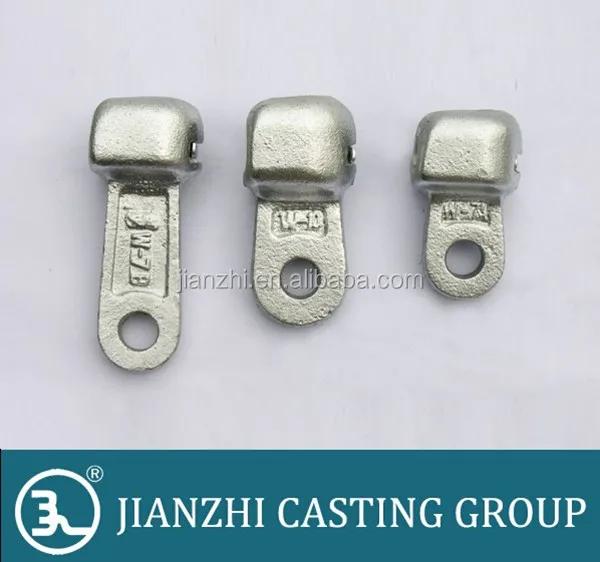

WS type Socket clevis eye / transmission line hardware
Product Description
The socket-clevis eyes are malleable iron or casting steel,
these spring clips are bronze or stainless steel,split pins are stainless steel.
All ferrous parts are hot dip galvanized
Catalog No
Dimensions(mm)
Designated size of coupling
Rated Failure Load(KN)
Weight(kg)
b
C1
C2
h
φ
W-7A
16
19.2
34.5
70
20
16
70
0.80
W-7B
16
19.2
34.5
115
20
16
70
0.92
W1-10
18
19.2
34.5
85
20
16
100
0.90
W1-12
20
19.2
34.5
90
24
16
120
1.30
W-12
20
23
42.5
90
24
20
120
1.40
W-30
32
27.5
51.0
110
39
24
300
3.50
Catalog No
Suitable Insulator
Dimensions(mm)
Rated Failure Load(KN)
Weight(kg)
L
L1
B
D
φ
W1-7K
XP-7 XP-4.5
120
70
20
18
14
70
1.0
W1-12K
XP-12
120
70
22
24
14
120
1.3
Packaging & Shipping
1.Payment : Irrevocable L/C at sight or TT 30% deposit in advance and the balance against copy of B/L.
2.Delivery time and methord : Usually within 30 days after receving L/C at sight or TT 30% deposit of the total value by sea.
3.Port of loading: xin’gang Tianjin,CHINA
4.MOQ: 1000PCS
5.Package: Standard export packing or as your requirement
6.OEM/ODM : can be acceptable by us
Company Information
1. We have about 500 employees, among which about 60 are professional technicians, and 1/4 of them has experience of casting field of over 10 years .(Technical power)
We have a throughput of 3000tons a year with a complete set of production line and testing equipments.(Production capacity)
2. More than 12 years experience
3. 100% inspection on critical dimensions with high accuracy +/-0.01-0.05mm
4. Factory direct price and on time delivery
5. Sample available
6. OEM workable
