Semi Automatic Food Vacuum Packing Machine Price

Model

FJL-700/1200ZK-A

FJL-700/1200ZK-B

Sheet Width

510~740mm

Sheet Thickness

0.1~1.2mm

Forming Length

700~1200mm

Forming Width

480~700mm

 Max. Forming Depth

Negative Mould ≤ 180 mm

Positive Mould ≤ 200mm

 Used Sheet

PP, PS, HIPS, PVC,P ET  Sheet Roll

 Running Speed

3-12 Moulds/Min

Mode of cutting arrangement.

Off Mould

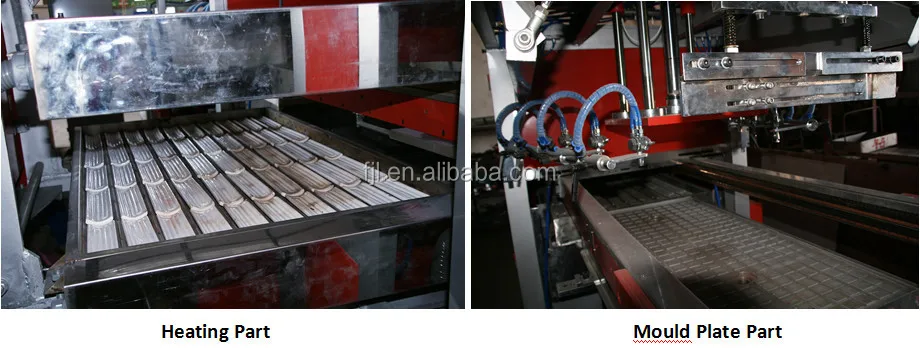

Heating arrangement

Top Heating with IR

Ceramic Heaters

Top + Bottom
Heating with IR Ceramic Heaters

Heating Power

20KW

35KW

Vacuum Ration

100 m3/h

Air Consumption

1.2 m3/h

Water Consumption

0.6 ~ 0.8 m3/h

Power Supply

380/220V,50Hz, Tri-phase, Four Wire

Overall Dimension

7.8mX1.4 mX2.2m

Weight

3.0T

3.2T
