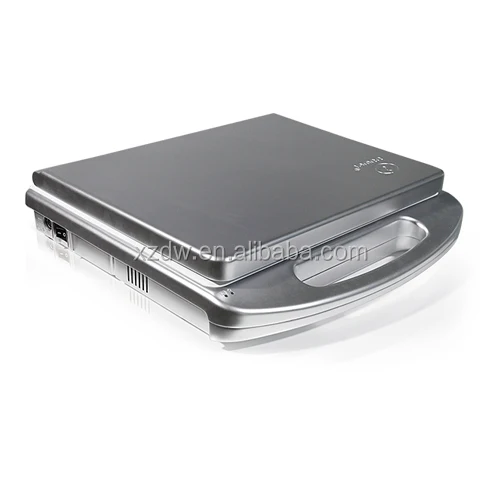

portable vascular doppler & color ultrasound doppler system DW L3

Product Overview

Description

portable vascular doppler & color ultrasound doppler system DW-C60 plus (DW-

L5)



Based on windows 7 operating platform, solid-state hard drive data storage, fast switch machine

Using the international standard 18650 lithium battery

standby time ≥ 2H.

Battery capacity 173wh.

1. the display: 15-inch LED medical display

2. scanning: convex array / linear array / micro convex

3. the probe interface: ≥ 1

the probe automatically identify,

support: abdomen, superficial, cavity, convex, phased array, volume, rectum and so on.

4.the user interface:Chinese/English/ Spanish/ Portuguese/ French/ Russian/ Arabic/ Vietnamese/ Portuguese/ Indonesian/ German/ Persian/ Thai

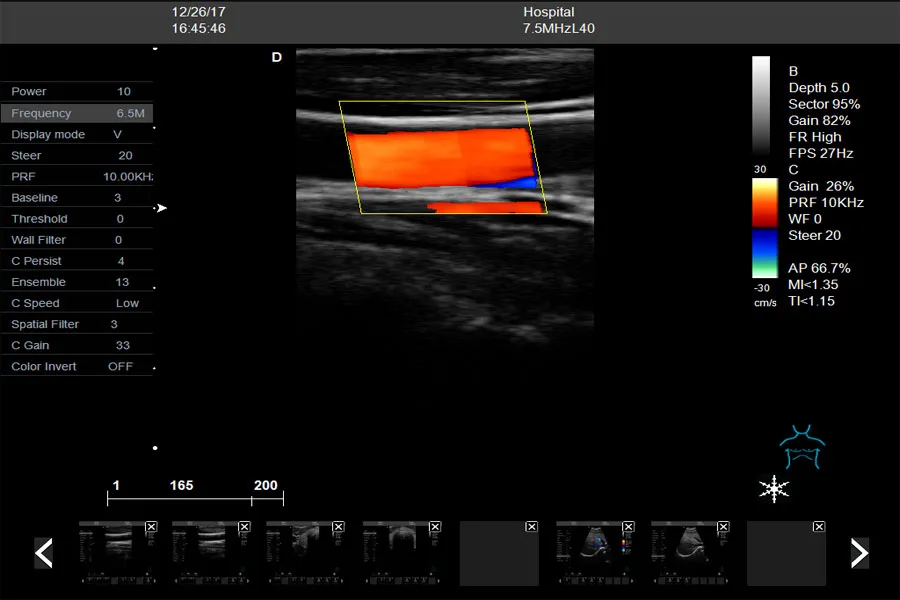

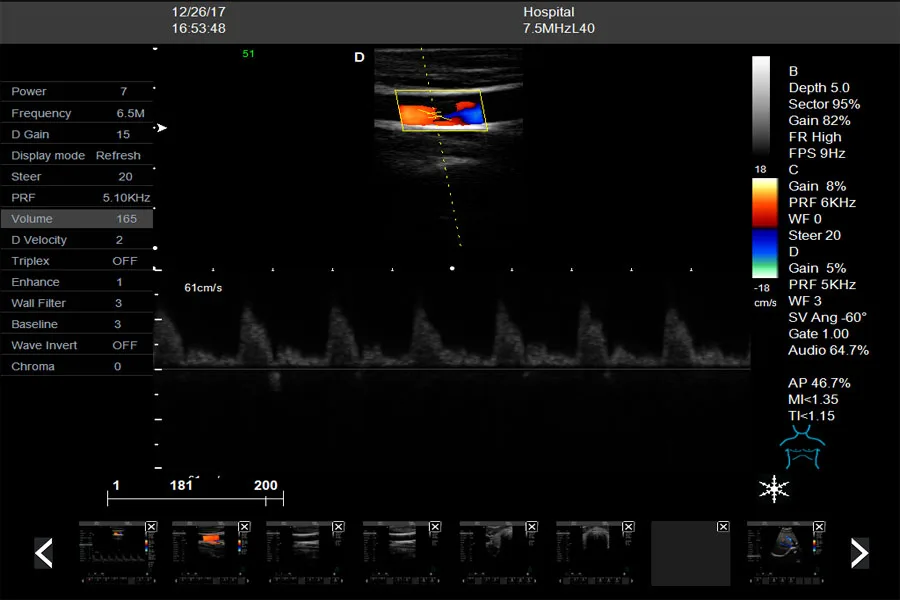

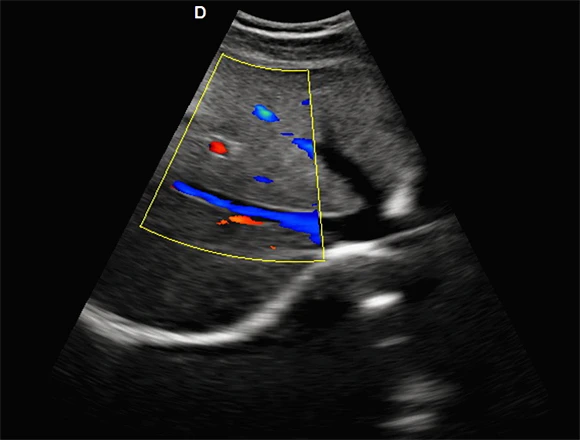

5. display mode: B mode (B, B + B, 4B, B + M, M), C mode, PW mode, CW mode, real-time three-dimensional mode (4D), B / C, B / C / PW, B / PW, B + M, M mode: 4 files scanning speed adjustable

6. electronic focus: four electronic focus

7. Body marks: ≥ 57 kinds

8. the transmission frequency: with 2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz frequency conversion;

Probe frequency:

convex array probe frequency range 2.0,3.0,3.5,4.0,5.5MHz

Endo Cavity probe: 5.0, 6.0, 6.5, 7.5, 9.0 MHz

Phased array probe: 2.1, 3.0, 3.5, 4.0, 5.0 MHz

Linear array probe: 6.0, 6.5, 7.5, 10.0, 12.0 MHz

Micro convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0 MHz

Micro convex probe R11: 2.0,3.0,3.5,4.0,5.5,6.5,7.5,10.0MHz

4D probe: 2.0,3.0,3.5,4.0,5.5,6.5,7.5,10.0MHz (10.0MHz later may be removed)

9. image processing: from top to bottom mirror, left and right mirror, angle changes, blood flow.

10. measurement: distance, circumference, area, volume, heart rate, stenosis rate, area stenosis rate, angle, distance, rhythm, speed, abdomen, heart, routine, skeletal muscle, early obstetrics, middle and late obstetrics (Uterine attachment), small organs, urology, peripheral blood vessels, gestational age and expected date of birth, fetal weight and so on. Obstetric measurement formula. Dimensional distance, perimeter, volume measurement.

11. character display: date, clock, name, gender, age, doctor, hospital, note (full screen character editing)

12. movie cineloop: ≥ 1200 frames, can be continuous playback or view by frame and frame (preset 1280, the current 600, after the hard disk updated can be achieved)

13. storage: in the storage display interface can be sent directly to the mobile device, image storage path (can be stored directly to the U disk and other external storage devices), probe parameter storage, cineloop storage, measurement results storage, report storage.

14. gray level: 256 level

16.with a puncture guide function, puncture line position can be adjusted

17. with gravel positioning, dynamic target tracking function

19. dynamic range: 0-270dB

20. intelligent TGC control: 8 paragraphs.

22.pre-processing: variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, tissue harmonics imaging.

23. post-processing: dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, tissue harmonics, sound power, wall filter, cumulative number, baseline adjustment, sampling Frame adjustment, spectrum sampling volume, spectral sampling volume angle, PRF (pulse repetition frequency) and so on.

24.blind area: ≤ 4mm

25. the maximum display depth: 320mm;

27. geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%

28. resolution: lateral ≤ 2mm, axial ≤ 1mm

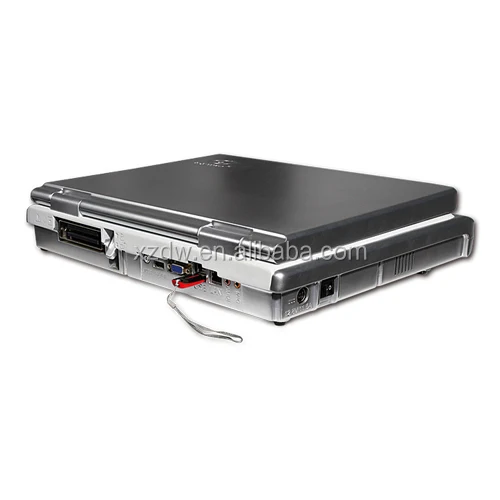

29. external interface: VIDEO video, USB interface, DICOM3.0

30. display magnification: 16 kinds of display mode; lesion diagnosis more accurate.

31.frame rate: 5-1016fps (can be adjusted according to customer needs)

32. scanning range: 5% - 100%

33. gain adjustment: the total gain of 0 ~ 127dB, PW gain 0-15, CFM gain: 0-15

34.image optimization: 6 adjustable

35.smoothing: 8 adjustable

36. edge enhancement: 8 adjustable

37.pulse repetition rate (PRF): 16 adjustable

38. gray level curve: 16 adjustable

39. sound power: 15 adjustable

40.net weight: 6.3 kg

41. the host size: 375x350x80mm (long x high x wide);

42. the package carton size: 46 * 32.5 * 54cm,18kgs

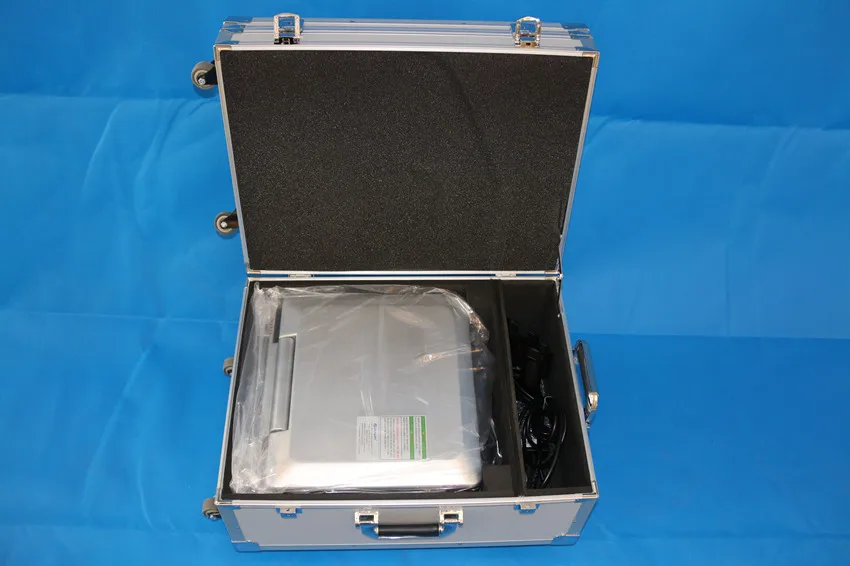

packing details for the portable vascular doppler :







Delivery details:



Brand	DAWEI
Origin	China
MOQ	1 set
Delivery	3(THREE) working days after receiving the payment
Payment	TT,Western Union,Paypal,Escrow, L/C,Credit Sale
Package	Packed double cartons,bound with four plastic belts externally
Warranty	TWO years warranty .  After TWO years the cost of providing paid services to maintenance
Validity	7 working days
