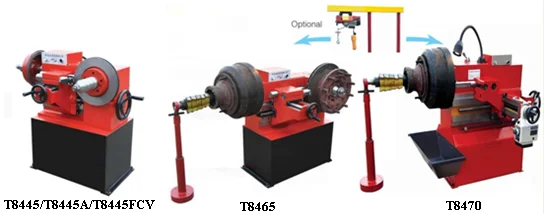

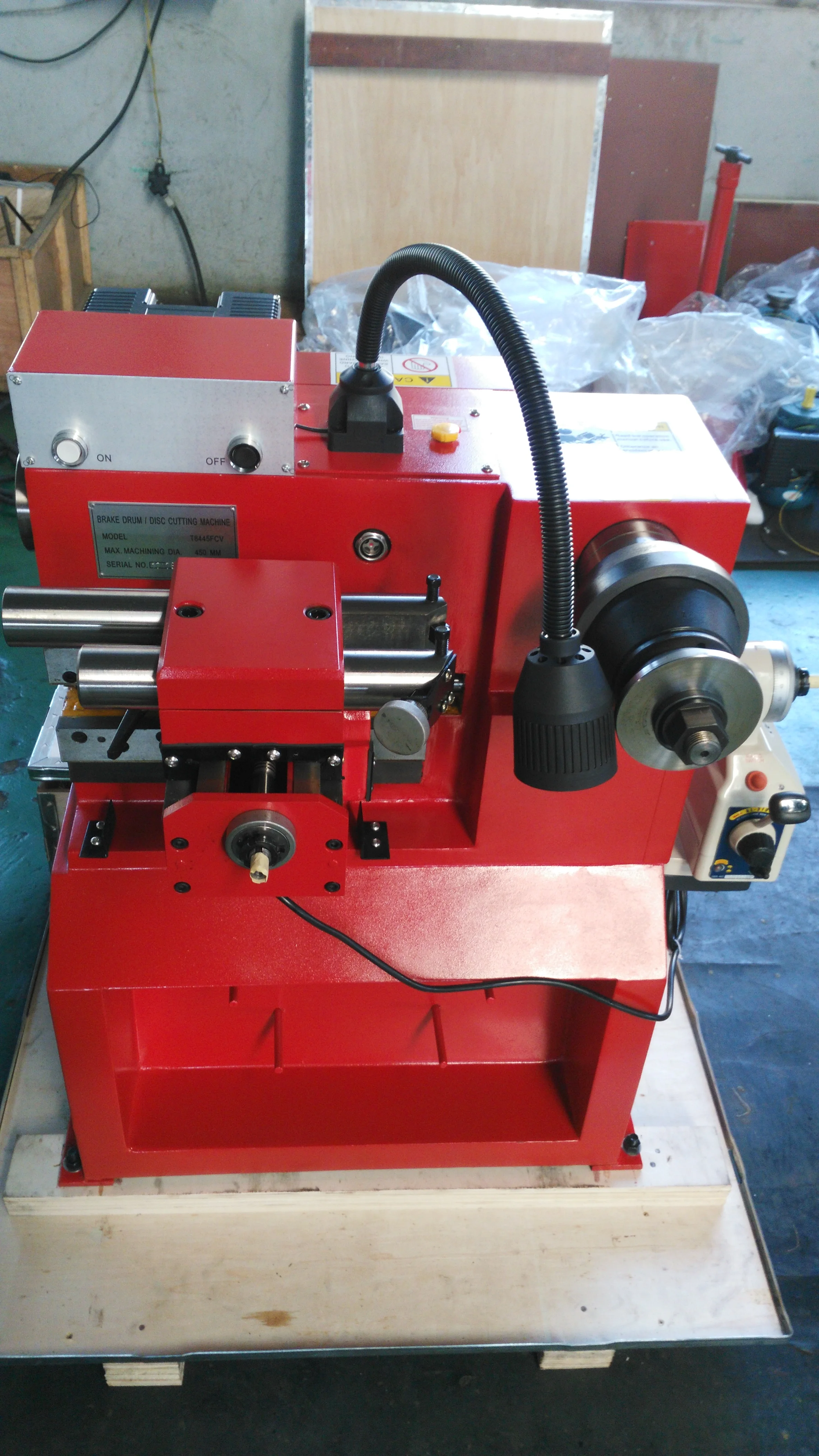

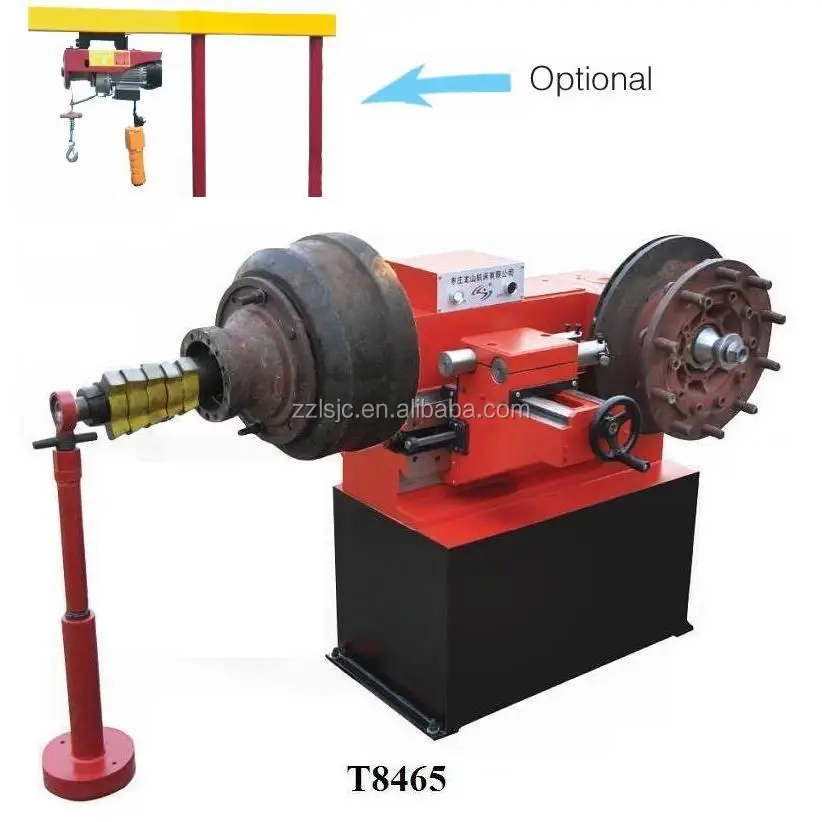

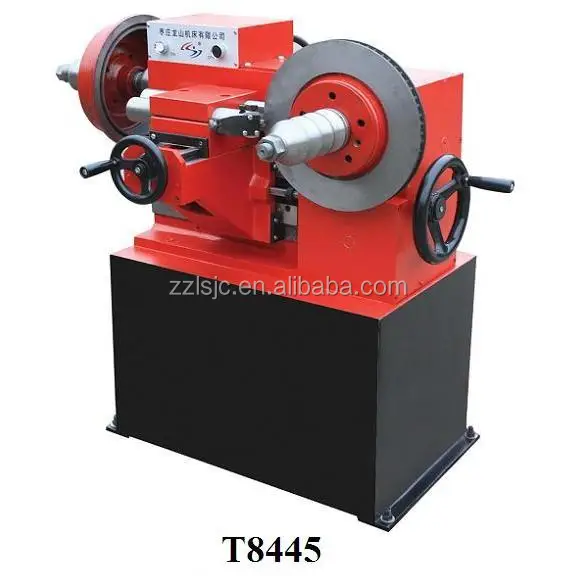

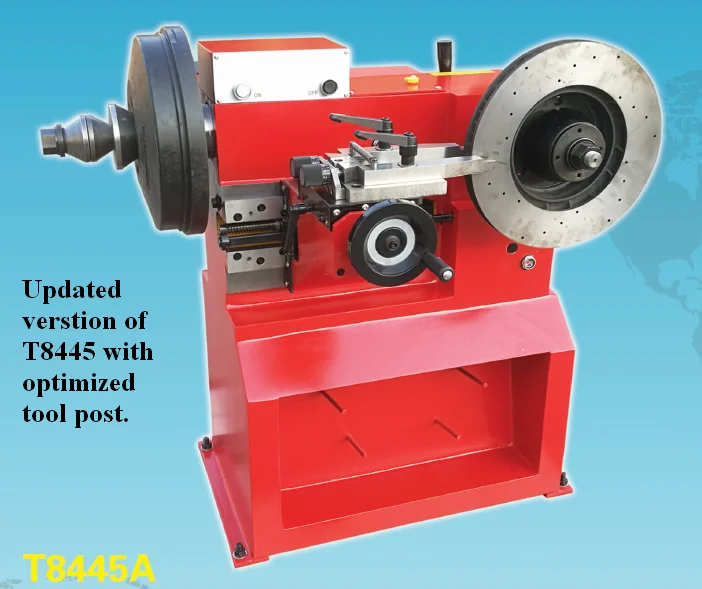

T8470 T8465 T8445/T8445A/T8445FCV brake lathe
- Category: Other Vehicle Equipment >>>
- Supplier: Zaozhuang Longshan Machine Tool Co. Ltd.
Share on (60124048804):
Product Overview
Description

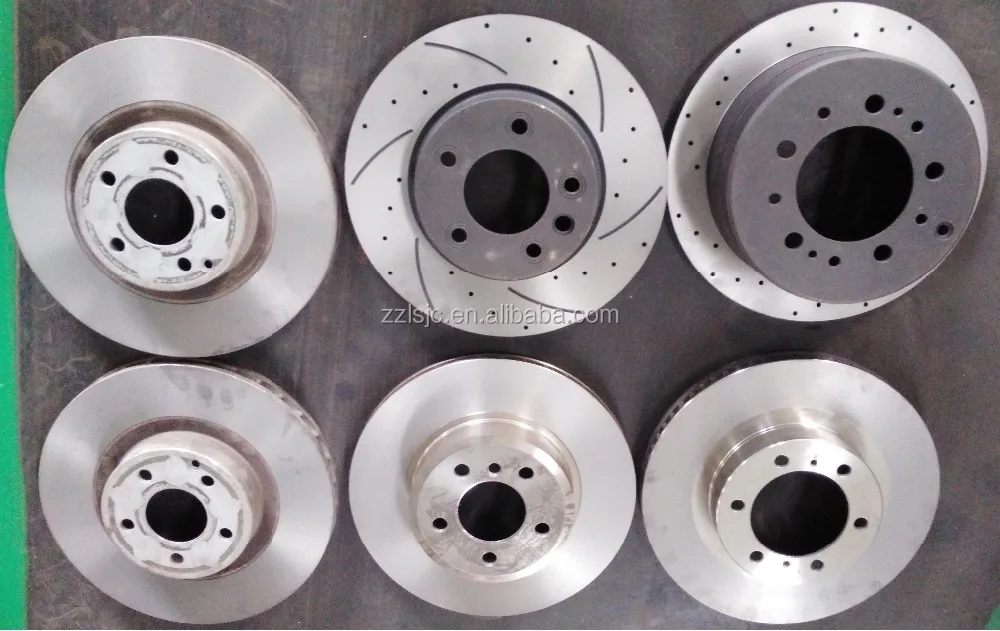

1. Ideal machine for repairing brake disc/drum.
2. High cost performance.
3. Easy operation.
Main Specifications | T8445/T8445A/T8445FCV | T8465 | T8470 | |
Processing Diameter mm | Brake Drum | 180-450(Optional for medium drum) | <650(Optional for small drum) | <700(Optional for small drum) |
Brake Disc | <420 | <500 | <550 | |
Rotating Speed of Work-piece r/min | 30/52/85 | 30/52/85 | 30/54/80 | |
Max. Travel of Tool mm | 170/170/150 | 250 | 300 | |
Feeding Rate mm/r | 0.16/0.16/Variable | 0.16 | Variable | |
Standard Packing Dimensions (L/W/H) mm | 900/870/1060 | 980/980/1160 | 1350/1150/1230 | |
N.W/G.W kg | 290/320 | 440/490 | 510/570 | |
Motor Power kw | 1.1/1.5 | 1.5 | ||
