YUMO LS-D-D27L40 Couplings Flexible Shaft Encoder Coupling
US $28.50-$30.00

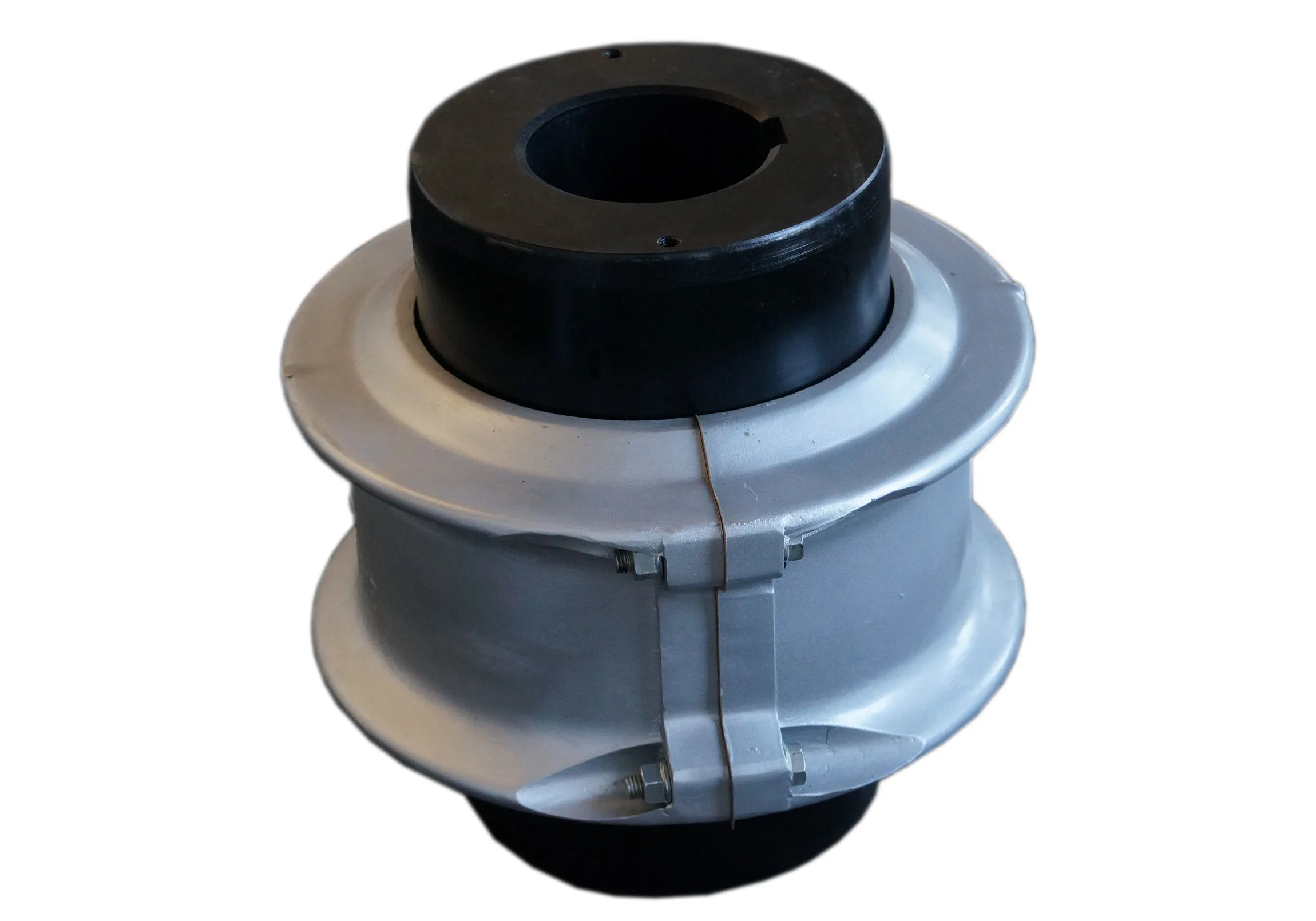

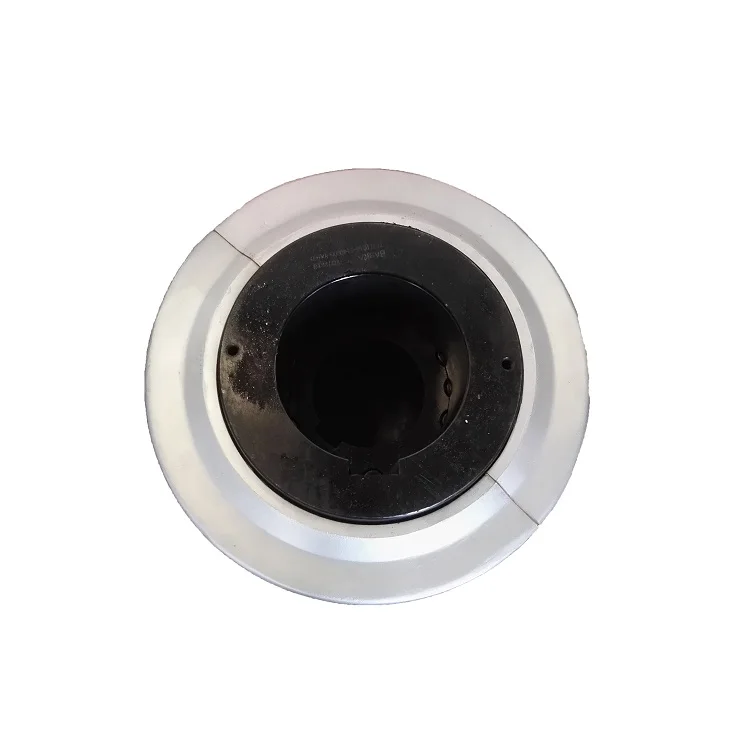

China factory retail flexible grid coupling for power transmission
- Category: Shaft Couplings >>>
- Supplier: Beijing Baska Technology Co. Ltd.
Share on (60124078525):
Product Overview
Description
Product Description
Superior Cushioning Performance:
According to actual working data, BASKA flexible coupling can dampen vibration and reduce shocks as much as 30%, and therefore protect the host equipment
Long Service Life:

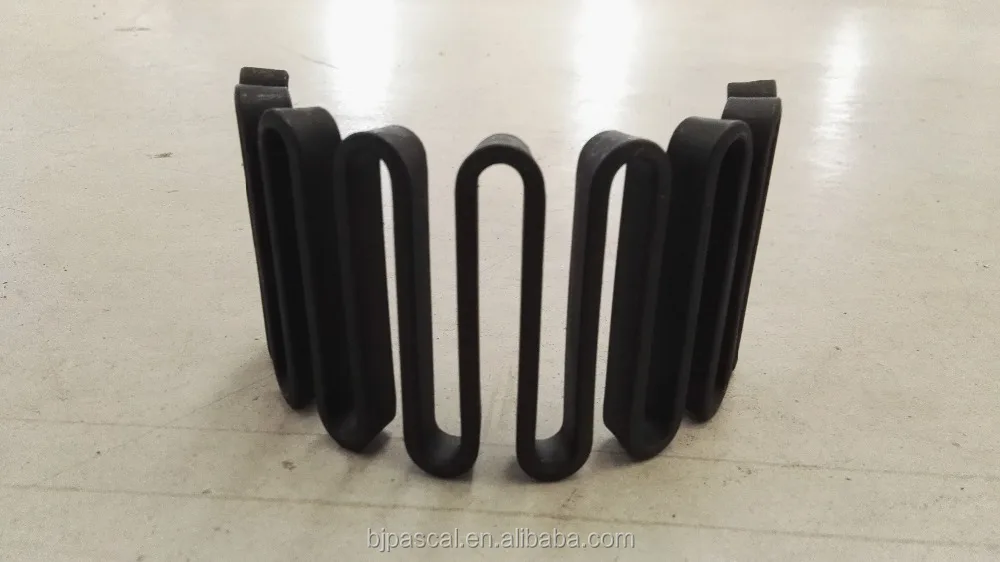

The BASKA spring is made of high quality alloy steel. After strict heat treatment and special processing, it reaches the best performance in both strength and resilience
Convenient Installation:

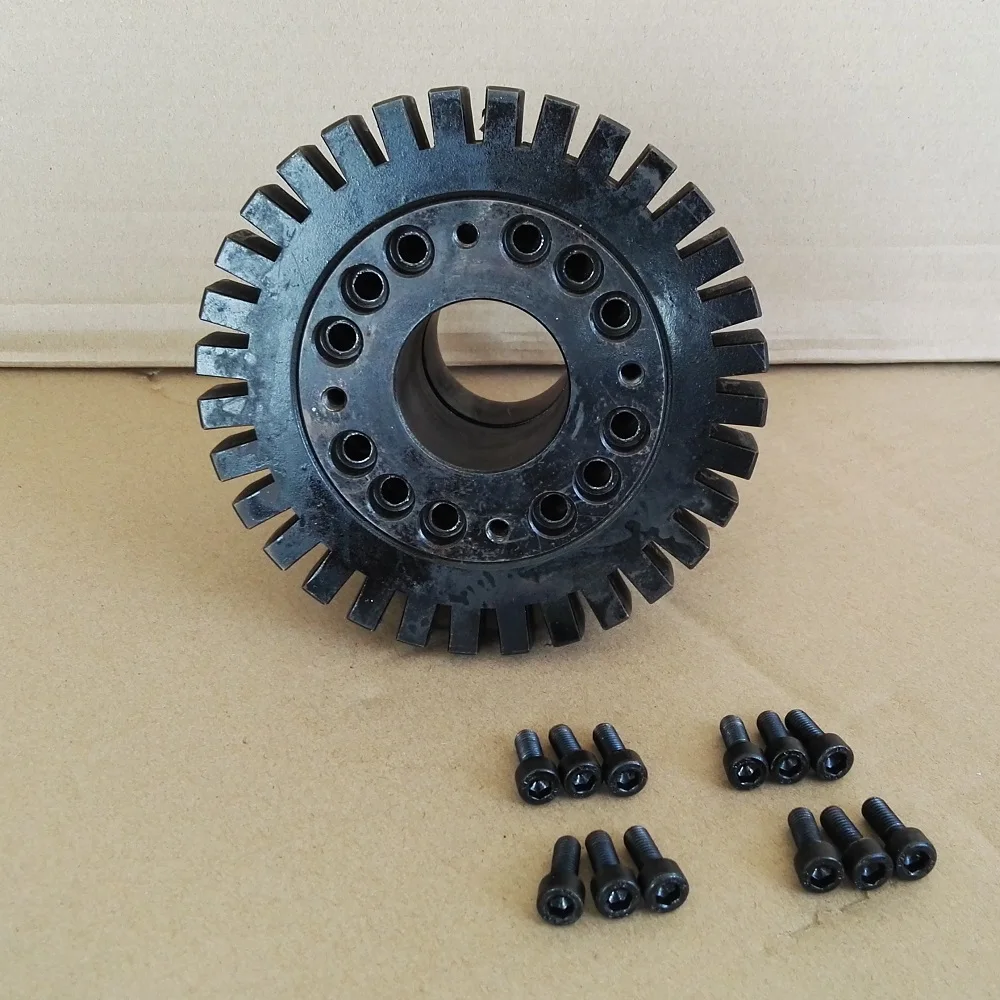

The coupling can be installed quickly by selecting keyless connection method. A tapered sleeve is assembled with the hub with high strength bolts to create holding force. Just wrench bolts to required torque without heating
Easy Maintenance

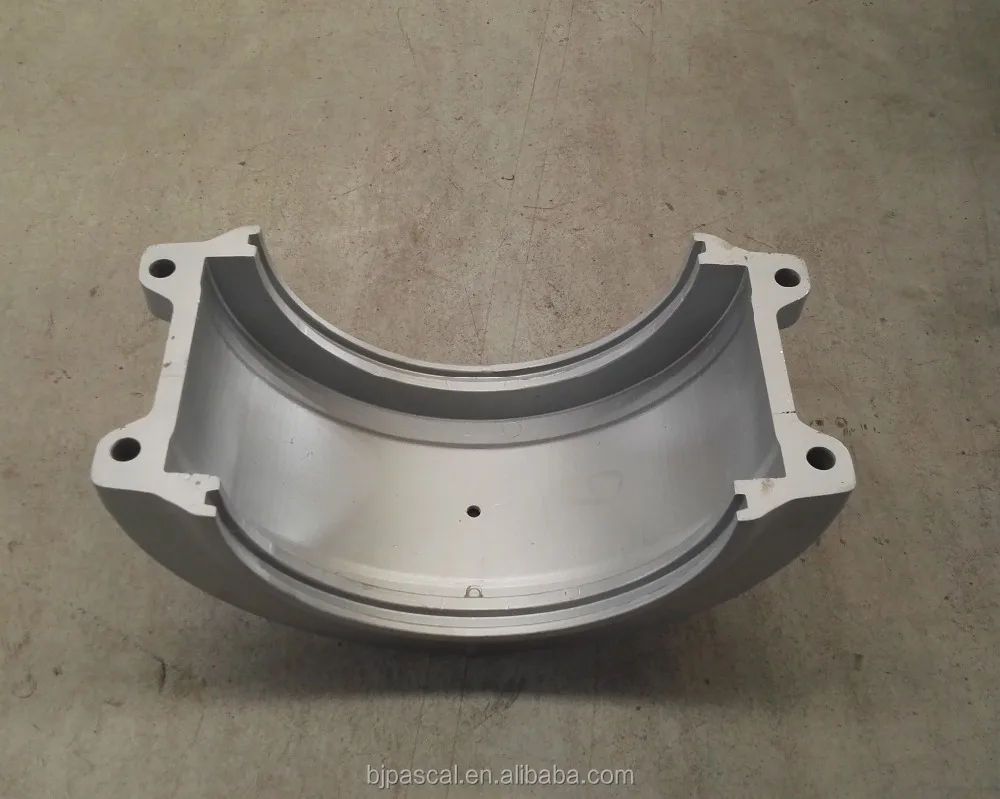

Simply remove the cover with ordinary tools, and replace the worn spring with a new one. There is no need to replacing shaft hub, nor repositioning or realignment. Under normal working condition, change the grease after longtime use
High Safety Level:
BASKA flexible coupling is able to undertake a wide range of torsional load, which will benefit the connected equipment especially when the machine starts or imparts an impact load
Allowing Misalignment:
BASKA flexible coupling can work normally under the condition of angular, radial and axial clearance misalignments

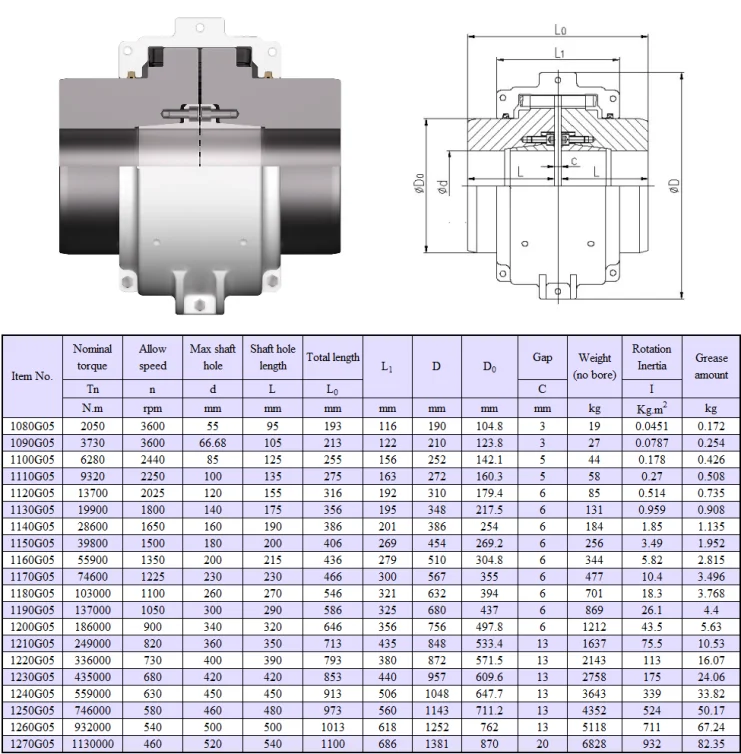

Specification
Technical Agreement
1. Application to: (e.g. conveyor, crusher, compressor, etc.)
2. Driving end related parameters:
Motor power(KW):
Motor rotation speed(rpm):
Reducer speed ratio:
2. Driving end related parameters:
Motor power(KW):
Motor rotation speed(rpm):
Reducer speed ratio:
For cylindrical shaft, please provide:
Shaft end gap length B(mm): Center height H(mm):
High speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Low speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Shaft end gap length B(mm): Center height H(mm):
High speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Low speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Notice:
1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.
2. If your requirement is different from this drawing, please provide your technical drawing.
2. If your requirement is different from this drawing, please provide your technical drawing.
Packing & Delivery
All Baska packing cases along with pallet are made of fumigation-free composite material for export.
Product is packaged with plastic cloth before being put in a case
Product is packaged with plastic cloth before being put in a case
