Electronics full color led 8x8 dot matrix display rgb 8x8 led matrix

Product Overview

Description

Electonics full color led 8x8 dot matrix display rgb 8x8 led matrix

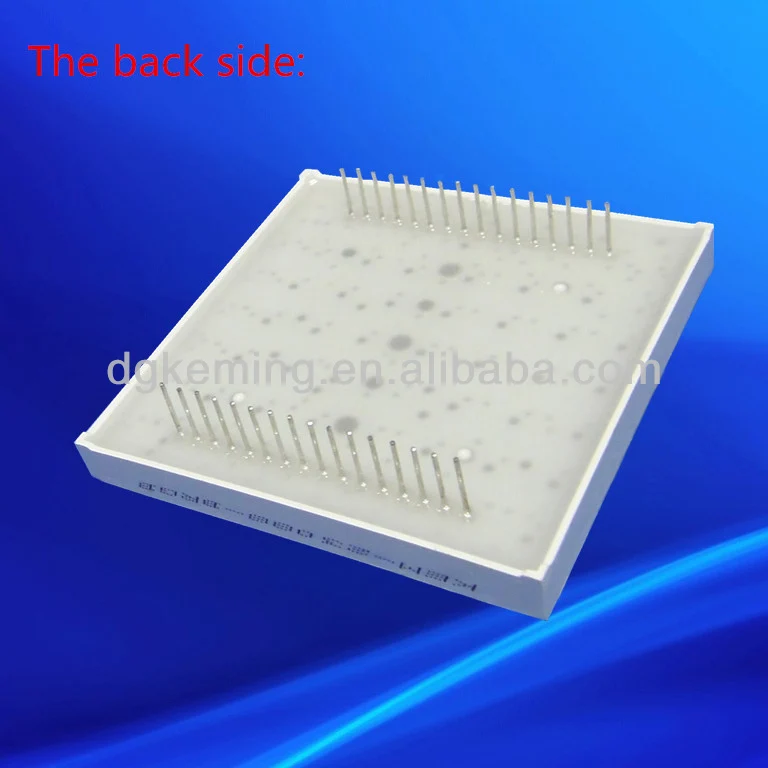

Pictures of product :



More range also are available:

Spec of Electonics full color led 8x8 dot matrix display rgb 8x8 led matrix dot dot dot dot:

Array	8x8
Diameter	5mm
Size	60.2 x 60.2mm
Surface color	black/Grey
Emitting color	RGB (Full color)
Polarity	Common anode/cathode



Dimension and Internal Circuit Diagram:



 Note: If above dimension & PCB layout not meet your requirements, please come to me for other choices.



Overview:

1. We can supply you all kinds of Dot Matrix Display:

---Dot Dia. from 1.9mm to 10mm

---Array type: 5x7 dots, 5x8 dots, 8x8 dots

2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc

3. Available surface color: black and grey

4. Dot exposy color: milky white, water clear or same as emitting color



Other size for you choice:

model	dot diameter	array	length*width
KEM-7057-AB	1.9mm	5*7 dot	12.7*17.8mm
KEM-7088-AB	1.9mm	8*8 dot	20*20mm
KEM-10057-AB	2.54mm	5*7 dot	19.96*27.94mm
KEM-11057-AB	3.0mm	5*7 dot	22.75*31.8mm
KEM-12057-AB	3.0mm	5*7 dot	22.80*39.1mm
KEM-12088-AB	3.0mm	8*8 dot	32.0*32.0mm
KEM-12288-AB	square 3.0*3.0mm	8*8 dot	31.7*31.7mm
KEM-15088-AB	3.7mm	8*8 dot	37.9*37.9mm
KEM16057-AB	4.5mm	5*7 dot	29.4*44.9mm
KEM-19088-AB	4.8mm	8*8 dot	47.8*44.9mm
KEM-20057-AB	5.0mm	5*7 dot	37.8*53.1mm
KEM-20088-AB	5.0mm	8*8 dot	50.7*50.7mm
KEM-23058-AB	5.0mm	5*8 dot	37.8*60.6mm
KEM-2488-AB	square6.0*6.0mm	8*8 dot	60.2*60.2mm
KEM-40057-AB	10.0mm	5*7 dot	76.0*106.5mm
KEM-46058-AB	5.0mm	5*8 dot	76.0*121.5mm



Payment ways:

1, T/T

2, Western Union

3, Ali Express Escrow

4, L/C



All shipment way is available:

Application:

 Main Processes of Our Segment Display & Matrix Display(Factory pictures):



With over 11 years experience in this field, we do believe we can become your reliable supplier!
