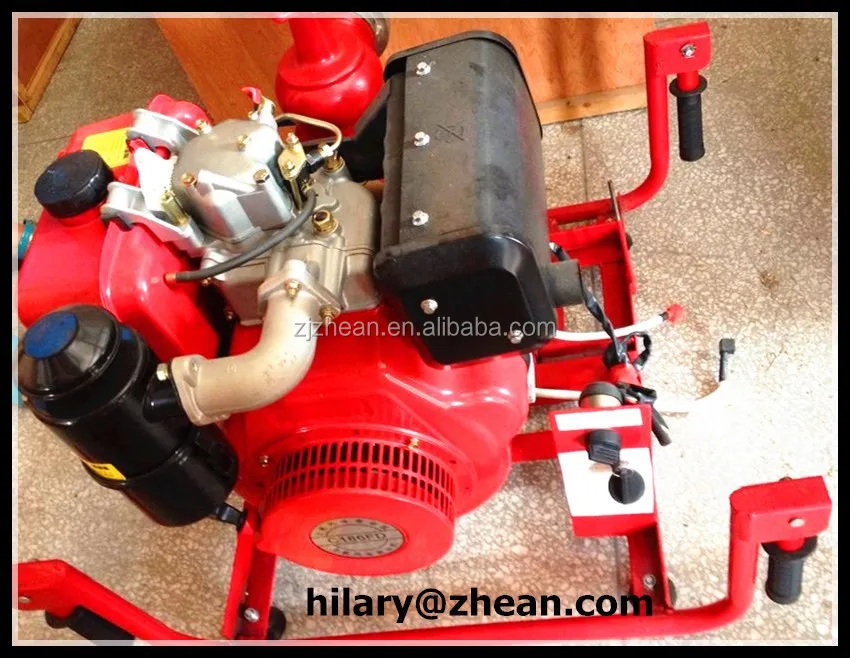

Portable Diesel Fire Water Pump/Diesel Fire Pump With Engine For 13 HP

Product Overview

Description

Portable Diesel Fire Water Pump/Diesel Fire Pump With Engine For 13 HP



1.Light weight

2.low noise
3.low fuel consumption
4.low emission
5.Portable design



Portable fire pump with engine is consist of gasoline engine and single-stage centrifugal pump.

it is convenient, simple structure, light weight . compact structure and high efficiency.

Rational layout, compact structure, small in size, light in weight, excellent dynamic characteristics, high efficiency and short priming time.







9HP/11HP/13HP/15HP SAME APPARANCE, DIFFERENCE ENGINE(LIFAN EGINE)

13HP, HONDA ENGIN AVAILABLE

22HP AVAILABLE

10HP DIESEL PUMP AVAILABLE





Model:177FD(9HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)     Bore*Stroke:77*58mm



3)     Max.Output KW(r/min):6.6kw(9ps)/3600r/min



4)     Max.Torque N.M(r/min):16.4N.m/2500r/min



5)     Ignition System:T.C.I



6)     Starting System:Recoil starter,electric starter



7)      Oil Consumption:374g/kwh

8)     Pump Lift: 42M

9)     Rated Flow: 420L/Min



10)    Water pump output:  65mm



          Water pump inlet:      65mm





Model:182FD(11HP)(Petrol)



1)    Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:82*64mm



3)    Max.Output KW(r/min):8.1kw(11ps)/3600r/min



4)    Max.Torque N.M(r/min):21.0N.m/2500r/min



5)    Ignition System:T.C.I



6)    Starting System:Recoil starter,electric starter



 7)     Oil Consumption:374g/kwh

8)     Pump Lift: 45M

9)     Rated Flow:468L/Min



10)   Water pump output:  65mm



         Water pump inlet:      65mm





Model:188FD(13HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:88*64mm



3)    Max.Output KW(r/min):9.6kw(13ps)/3600r/min



4)    Max.Torque N.M(r/min):23.0N.m/2500r/min



5)    Ignition System:T.C.I



6)   Starting System:Recoil starter,electric starter



7)     Oil Consumption:374g/kwh

8)     Pump Lift: 50M

9)     Rated Flow:570L/Min



10)   Water pump output:  65mm



        Water pump inlet:      65mm



Model:190FD(15HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:90*66mm



3)    Max.Output KW(r/min):11kw(9ps)/3600r/min



4)    Max.Torque N.M(r/min):25.0N.m/2500r/min



5)    Ignition System:T.C.I



6)    Starting System:Recoil starter,electric starter



7)     Oil Consumption:374g/kwh

8)     Pump Lift: 53M

9)     Rated Flow:600L/Min



10)   Water pump output:  65mm



        Water pump inlet:      65mm

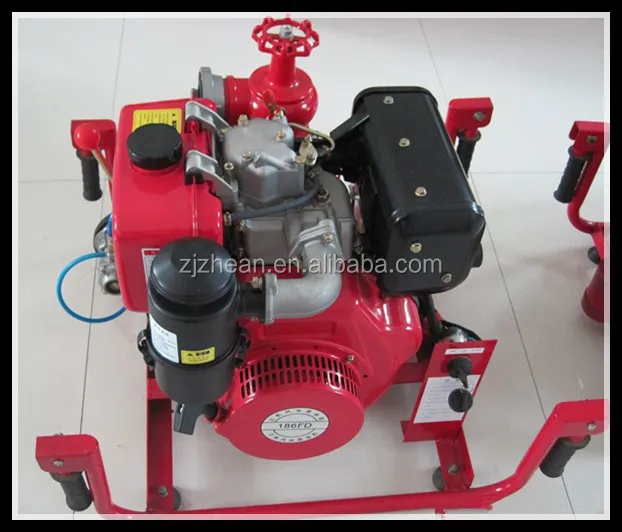

JSD186FD(13HP)(Diesel)



1)    Water pump output:  65mm

       Water pump inlet:      65mm

 2)   Max.Output KW(r/min):13kw/3600r/min

3)   Weight: <=83kgs

4)   Starting System:Recoil starter,electric starter

5)   Rated Flow:>=550L/Min

6)   Size:510*510*450cm
