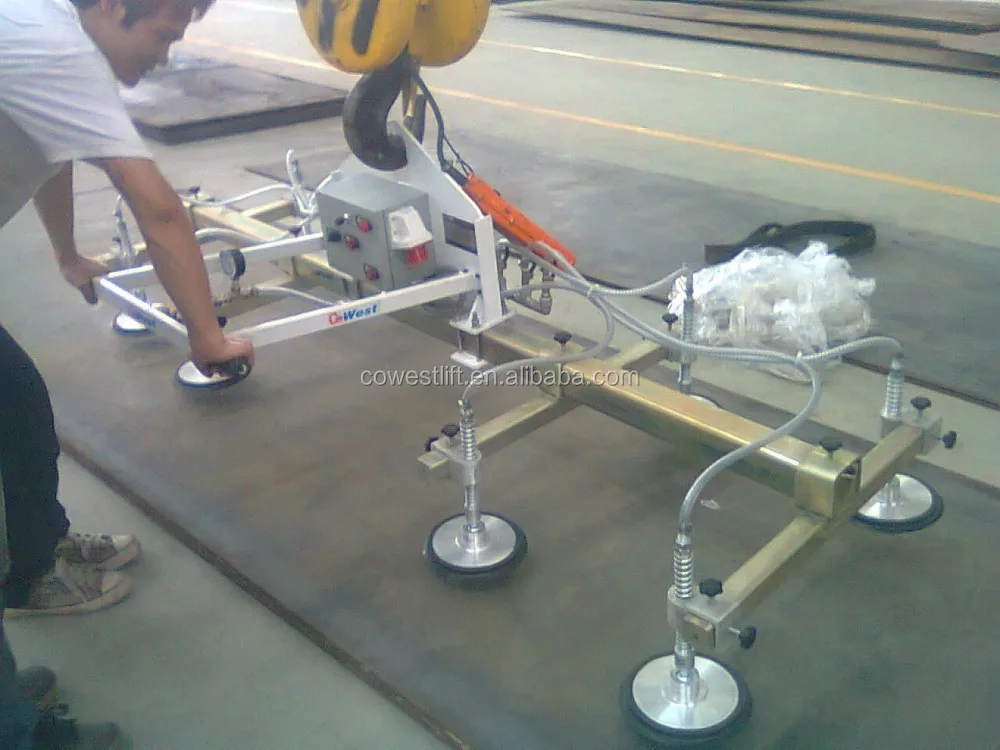

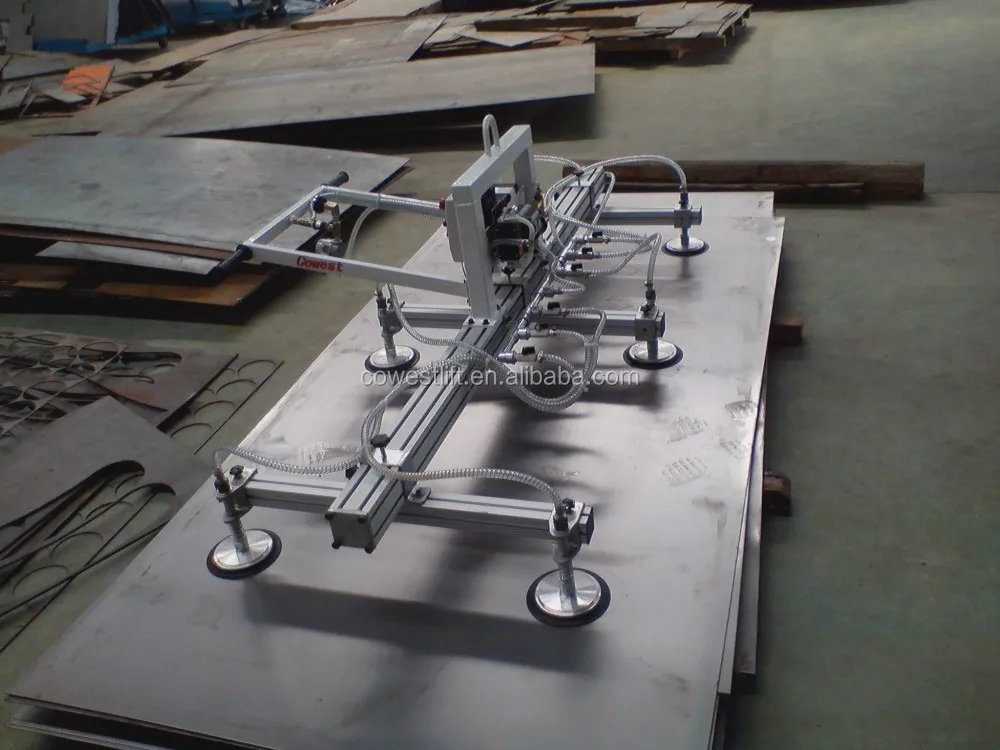

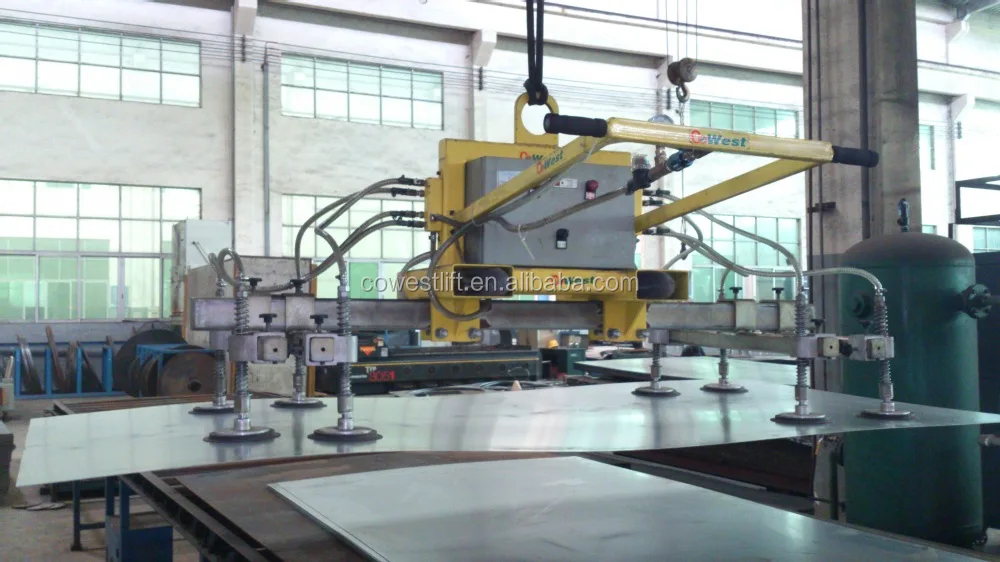

sheet metal vacuum lifter

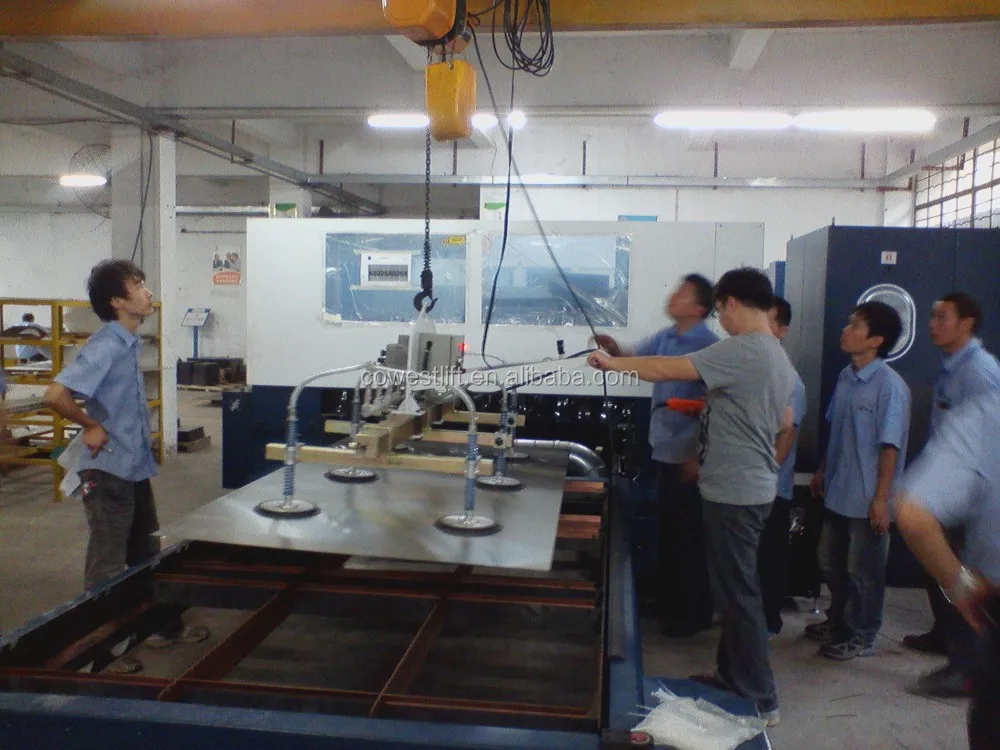

EPD series forlaser cutting machine was powered by AC or DC power, for this application, the load capacity was from 300kg to 500kg,suited for the cutting table size of 3M*1.5M, multiple suction pads ensure that the sheets would not distorted and never damaged by clamps or chains.

 Features:

1.  AC or DC powered for pump uninterrupted ruuning, which insure handling safer and more stable

2.  6 or 8 suction pads in cross shape to insure the sheets not distorted

3.  flexible touch with work piece without damage

4.  suction pads could be adjustable for all size sheets

5.  light and accustic warning.

6.  manual release valve with safety spring nob to prevent the accident from fault operations during the working process

7.  safety keeping time more than 5 minutes while power lost, which fully conformed with  EU CE 13155 regulations

8.  2.0 safety factors conformed to   EU CE 13155 regulations

9.  imported high-quanlity pumps and valves offered stable working

10.various option and customized design available for request

Speicifications:

1. Maximum loads: 500kg

2. suction pads:8 of dia.160mm for thin sheets or 6 of dia.230mm with spring buffer

3. cardanic retainer for uneven surface on each suction pad

4. standard dimensions 1800*800*650mm

5. integrated safety tank for long time safety keep in case power lost.

6. Low-pressure and power lost warning with light and sight

7.option for spare power source available

8.option for spare parking ranks

9.option for remote control available
