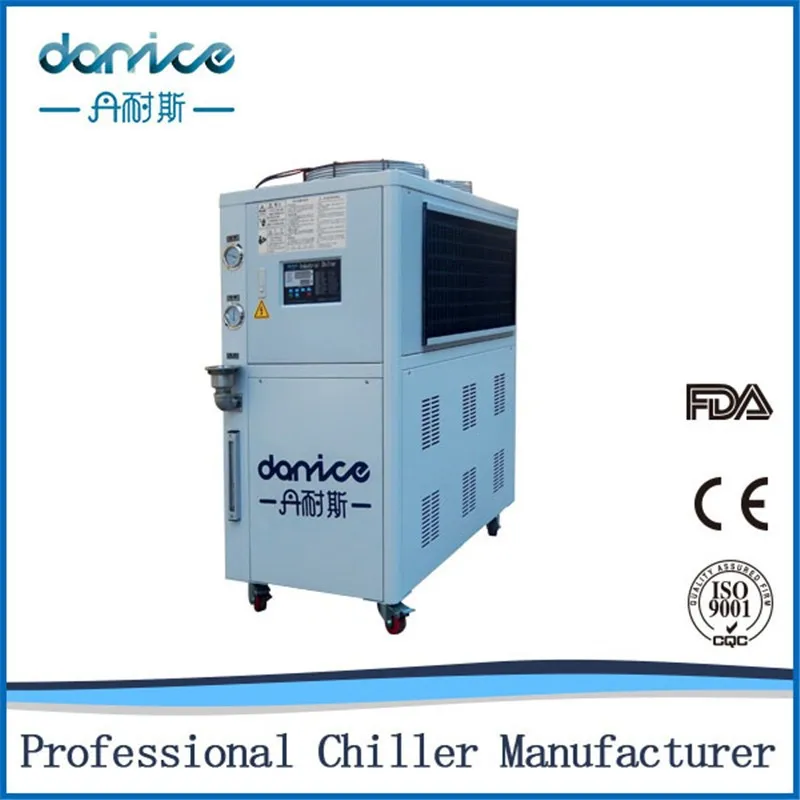

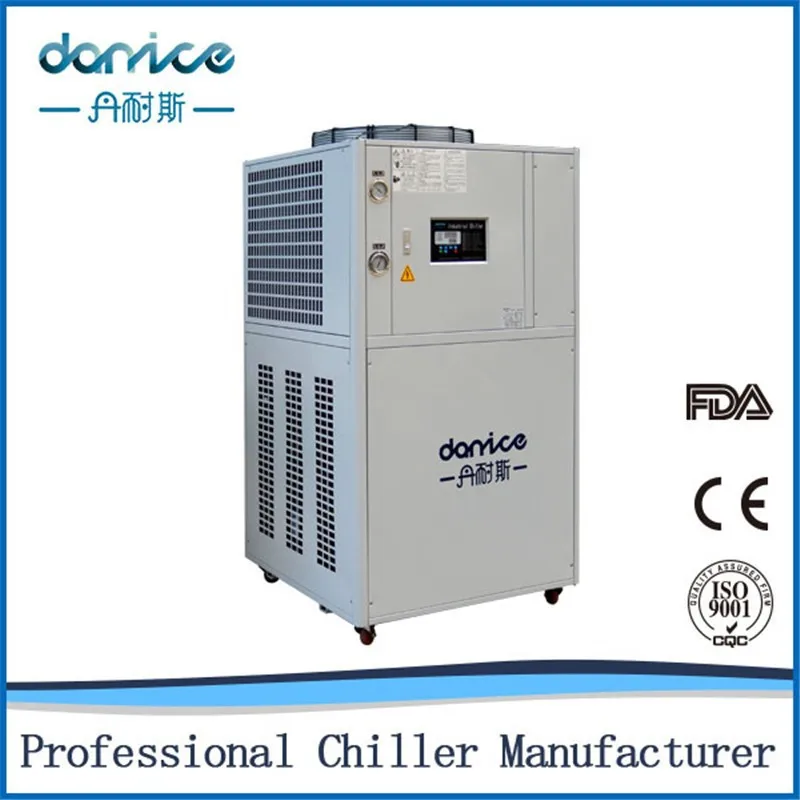

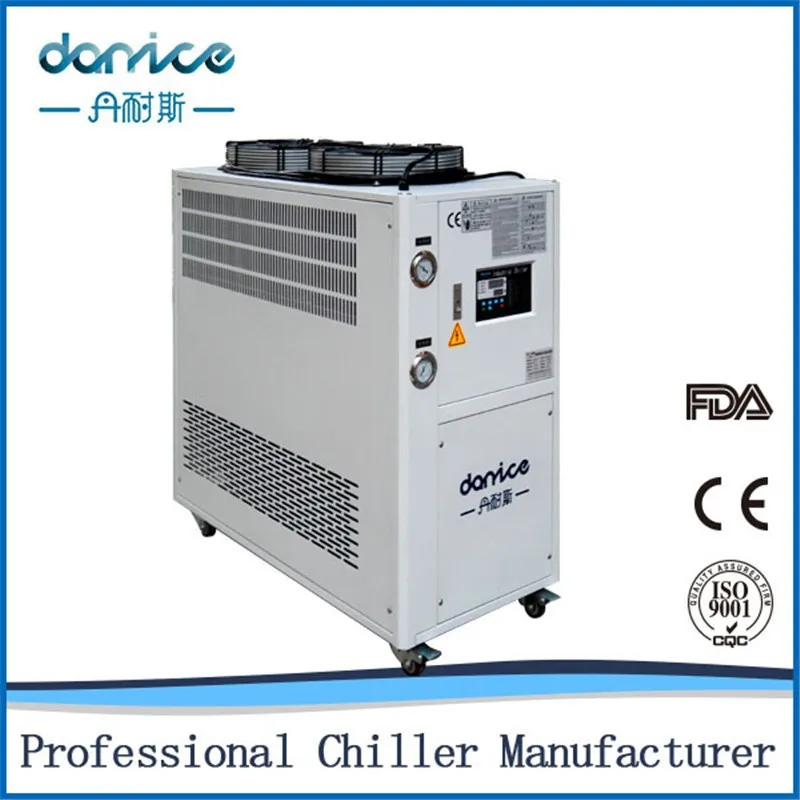

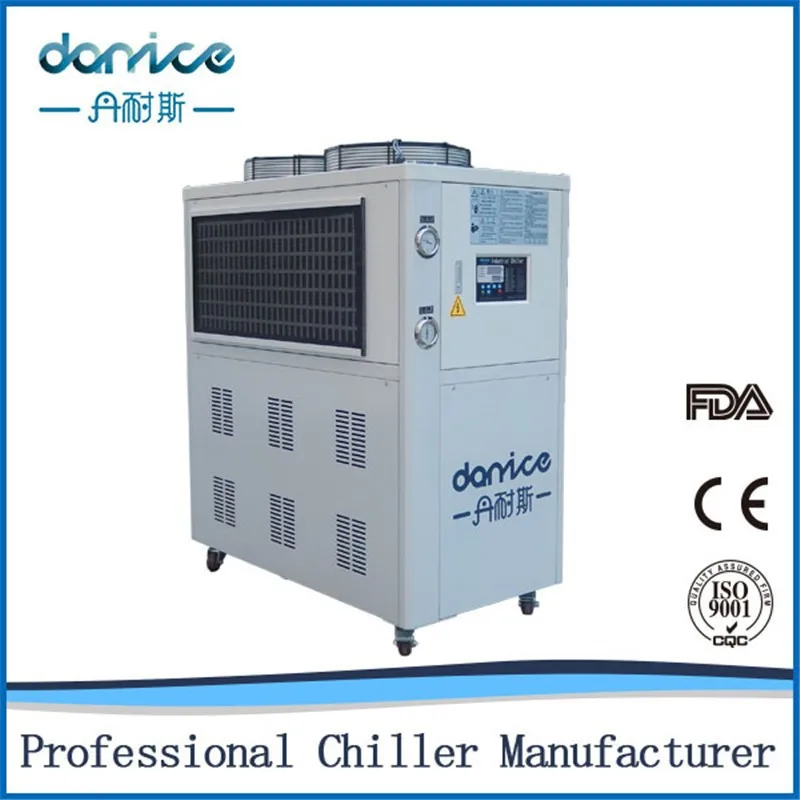

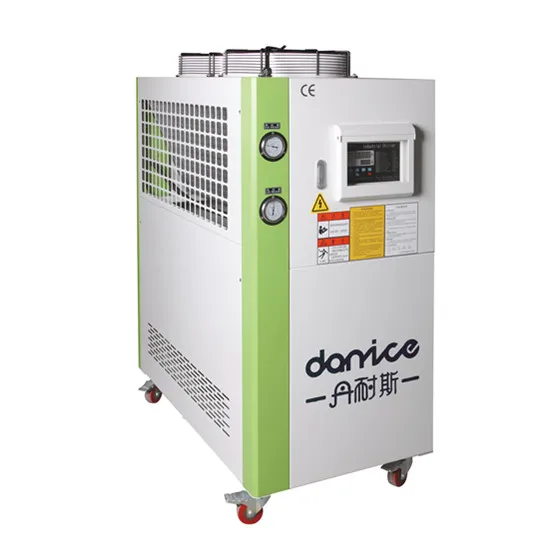

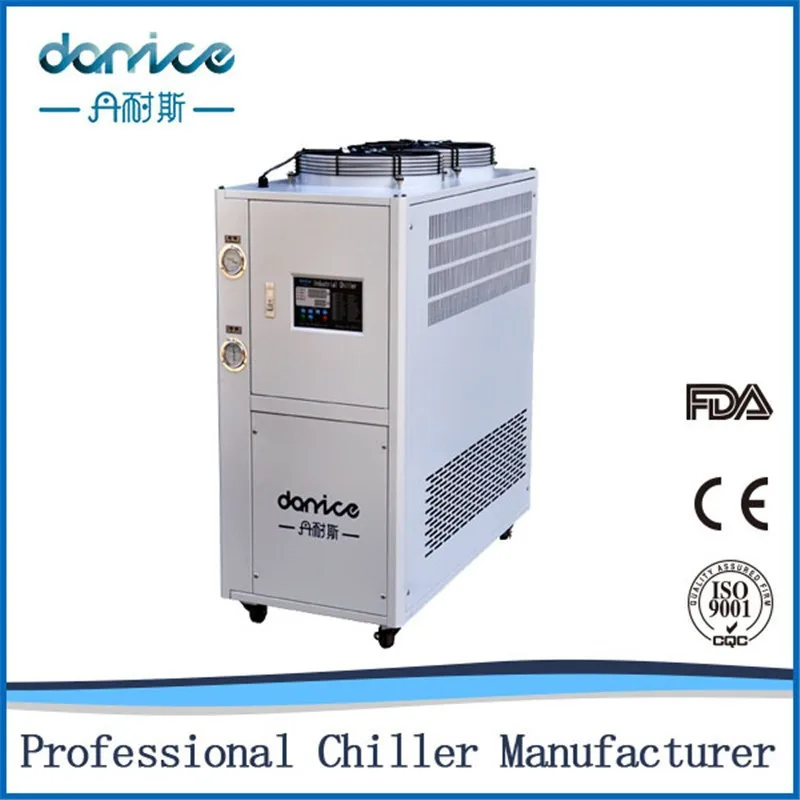

CE Package Sanyo Compressor Industrial Air Cooled Chiller for Electronic Industry
Product Description
1.Cooling capacity:5848kcal/h(6.8kw)
2.R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
3.Our air cooled chillers can be made for 2KW
170KW cooling capacity for different customers' requirements, the air cooled chiller with the air fans for
cooling, they are easy to install and operate, there is no need for a cooling tower.
4.We are industrial chillers manufacturer, but we also welcome OEM.
Model
DNC-2.5A
nominal cooling capacity
kcal/h
50HZ/60HZ
5848/7018
Kw
50HZ/60HZ
6.8/8.2
Max power consumption
kw
2.66
Full load
Amp
6.6
power source
3PH-380V/415V-50HZ/60NZ
3PH-200V/220V-50HZ/60NZ
refrigerant
type
R22/R407c/134a/404A/410A
control
Capillary/external balance of
thermal expansion valve
compressor
type
hermetic scroll/Piston
power
kw
2.1
condenser
type
Efficient aluminum finned
copper sleeve+low noise external rotor fan
air volume
m3/h
2500
fan motor
kw
0.19
evaporator
type
Tank coil/
Dry shell and tube /
Stainless steel plate evaporate
Tank volume
L
50
coolant flow
m3/h
1.12
inlet and outlet connection(BSP)
inch
1
Pump
Power
Kw
0.37
Max flow rate
m3/h
5.4
Max head
M
22
safety devices
Compressor overheating protection,over-current protection,high and low
sequence/phase loss protection,low level protection,frost protection
dimension
mm
720*550*1350
weight
kg
125
Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of 12℃/7℃,the cooling water inlet and outlet water temperature of 30℃/35℃
2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the watertemperature:3℃to8℃
The cooling temperature is not higher than 35℃ environment
The above can be customized according to customer requirements to produce
Workshop
Sales Process
Packaging & Shipping
Exhibition
After-Sales Service
Pre-sale service:
1.Professional sales and technical service team to provide comprehensive consultation and communication services;
2.Chiller selection by professional engineers after negotiation;
3.Recommend appropriate solutions.
After-sale service:
(1)Service during warranty period
1.After you purchased our equipment,the free remote guidance of installation and necessary technical drawing can be provided;
2.12 months guarantee is our standard warranty time for all products,within warranty time,any problem caused by the defects of the chiller itself,we’ll provide free service until the problem be solved;
3.If parts breakdown,provide free replacement of parts.
(2)Service beyond warranty period
1.Tracking maintenance;
2.Provide chiller spare parts with cost price;
3.Chiller maintenance charge cost only;
4.All chiller model spare parts,special reserves support;
5.Customer’s information are permanently archived,regular track and re-tracking services.
