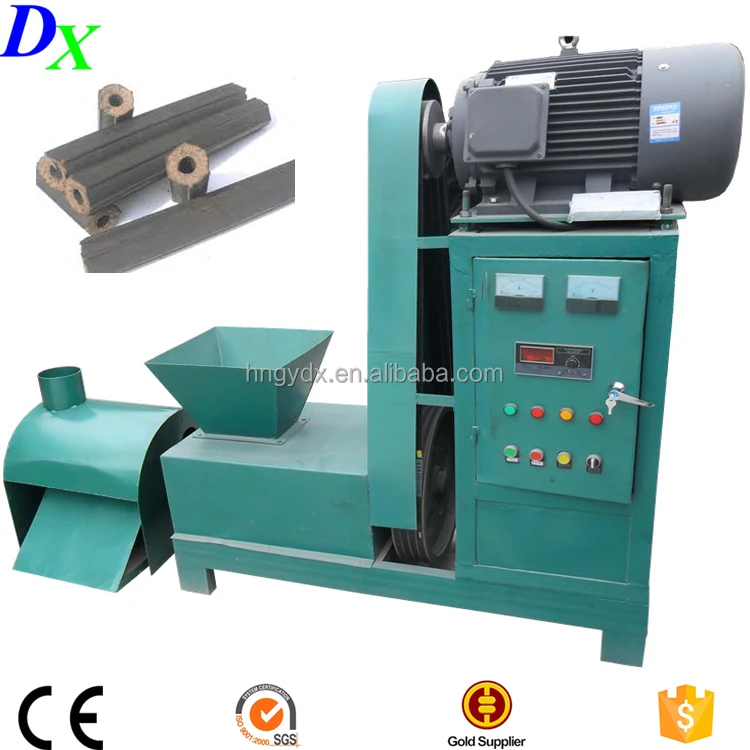

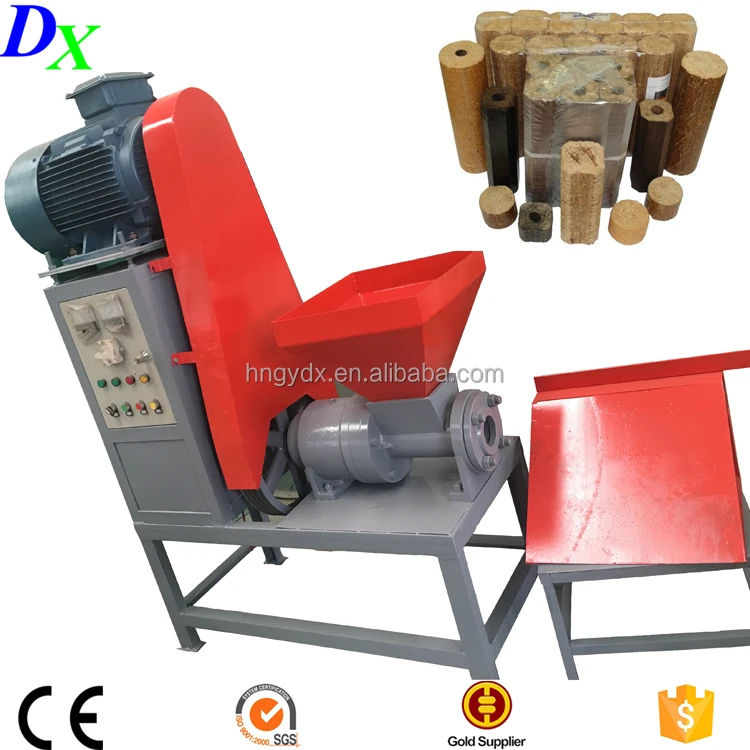

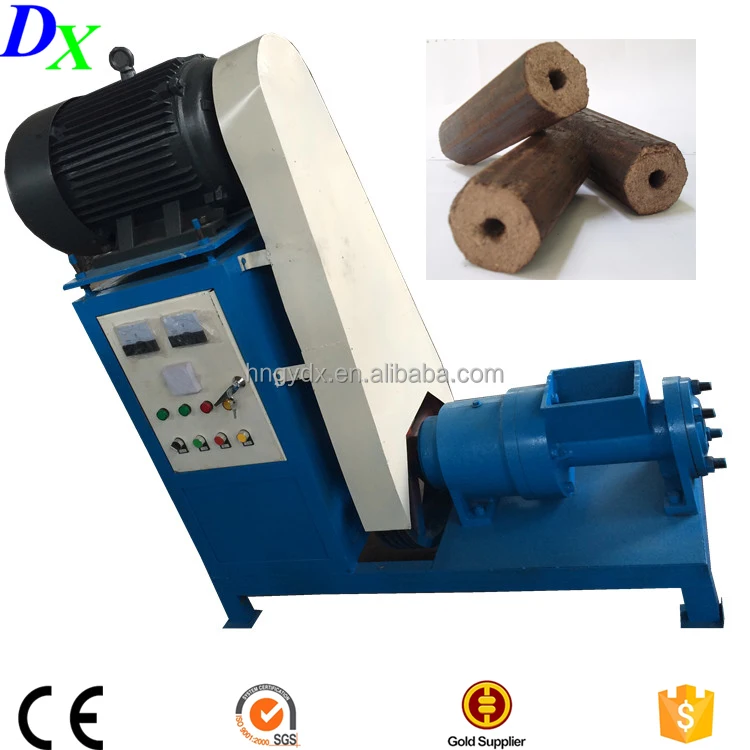

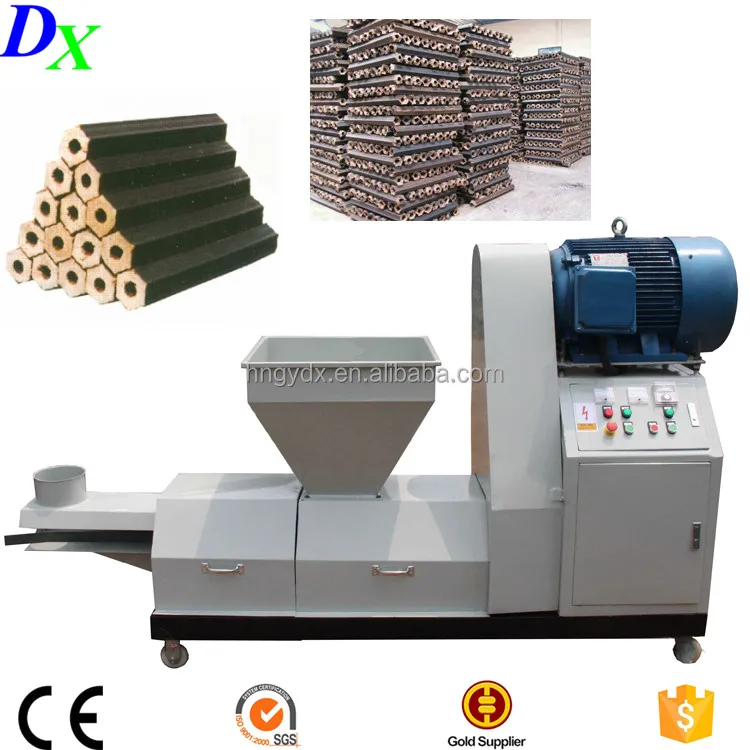

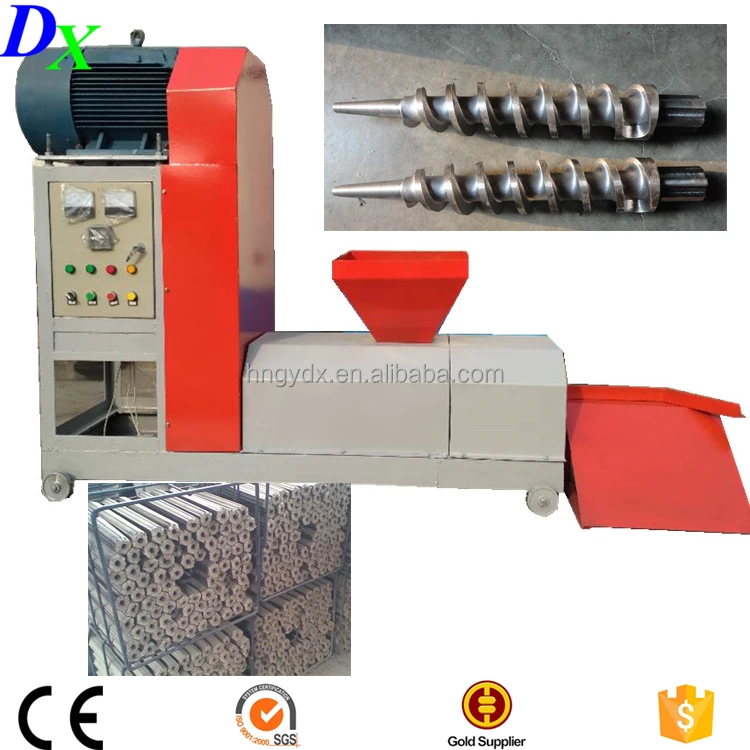

Competitive price pine sawdust briquettes making press/saw dust making machine

Product Overview

Description

Competitive price briquette press manufacturers/briquetting plant manufacturer







 Raw material

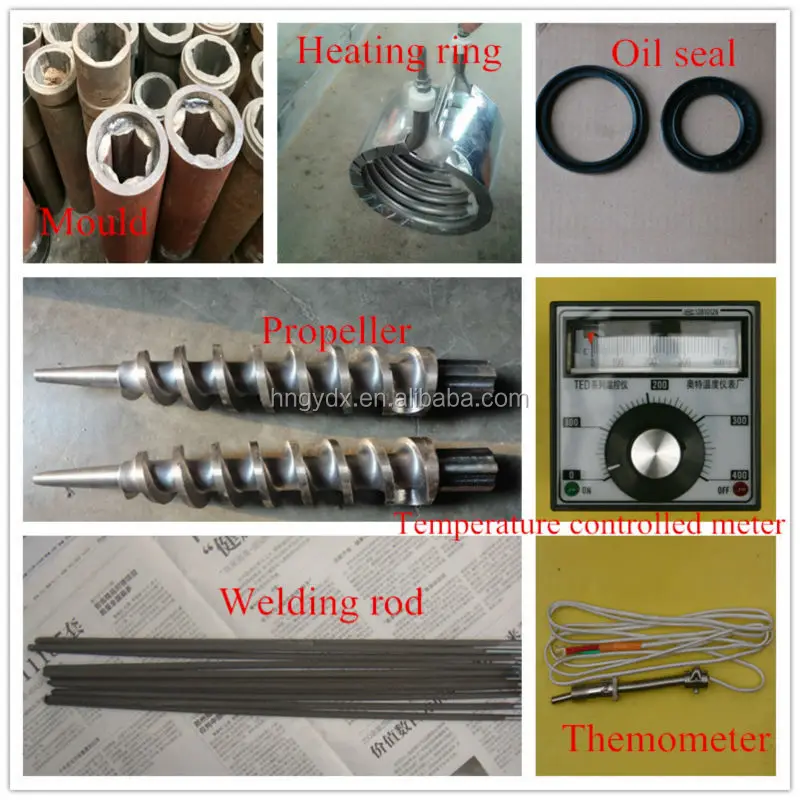

The spare parts of wood briquette machine:



The parts of our wood briquette machine have been improved quality which are durable and long time using.

1. Heating ring:

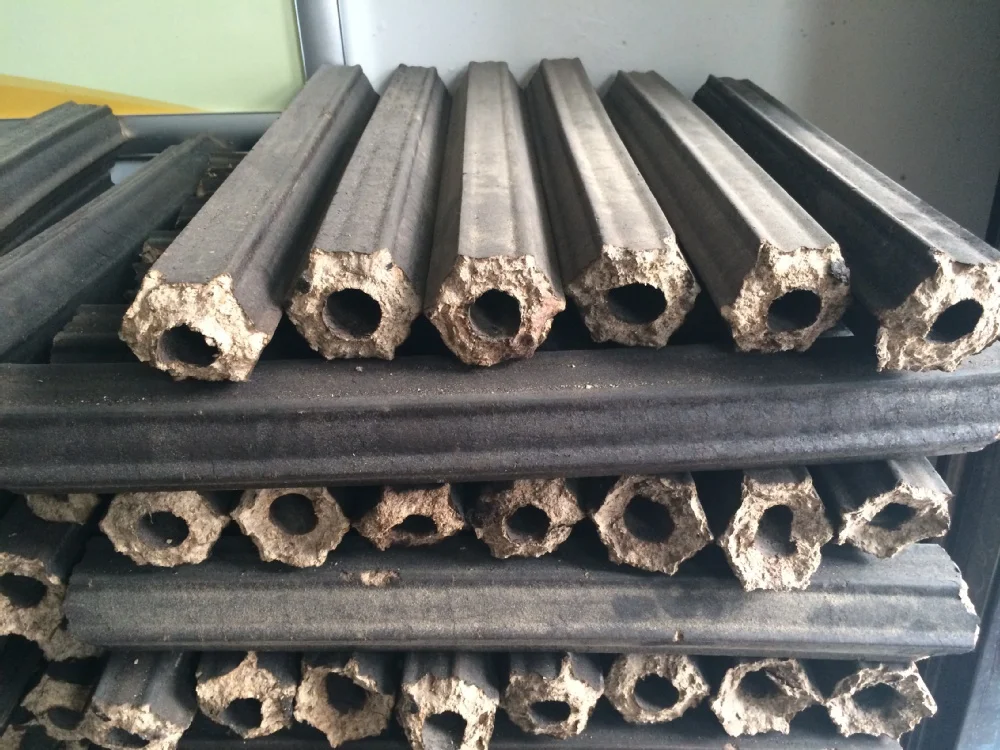

    The quality material of heating ring is the stainless steel, and inner is the electric heating wire. The role of heating ring is to make the surface of briquette rods hardening. Each wood briquette machine has three heating rings, and its working temperature is more than 350 celsius degree.

2. Propeller:

    Propeller of wood briquette machine is to propel the raw materials for briquetting.

3. Shaping Drum:

    Each wood briquette machine has one shaping drum

The parameters of wood briquette machine:





Model	Power	Inlet size	Capacity	Outlet diameter	Dimension
ZBJ-50	15 kw	≤ 5mm	180-220 kg/h	50 mm	1700x660x1500mm
ZBJ-80	18.5 kw	≤ 5mm	280-350 kg/h	70mm or 80 mm	1700x800x1300mm
ZBJ-22	22 kw	≤ 5mm	350-400 kg/h	50-80mm	1800x700x1500mm

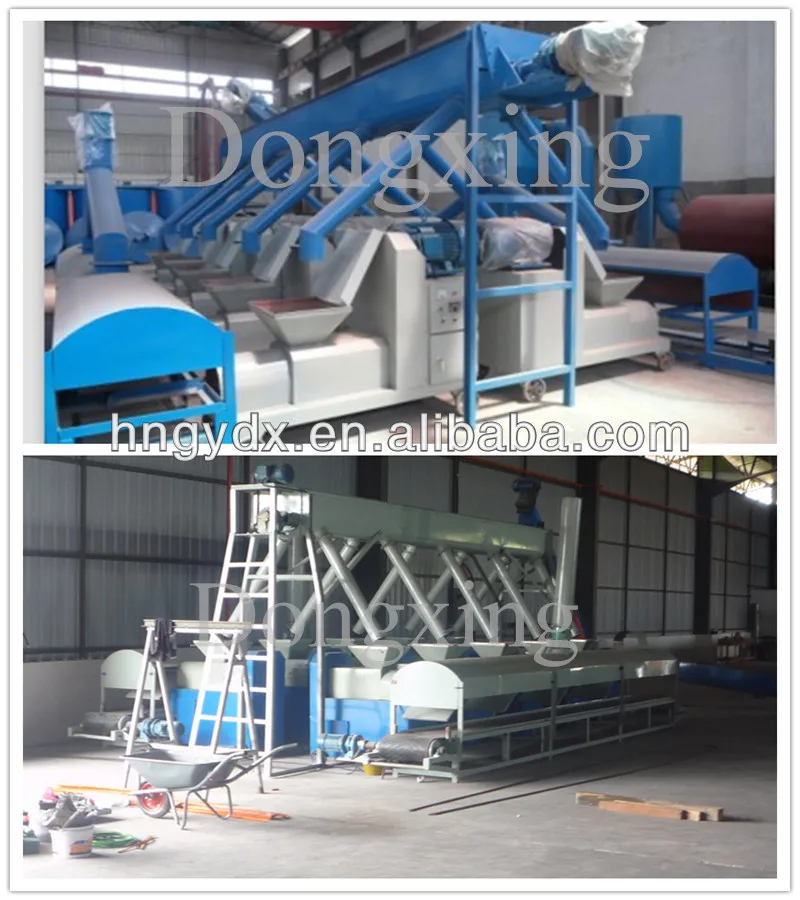

The production line related to wood briquette machine:

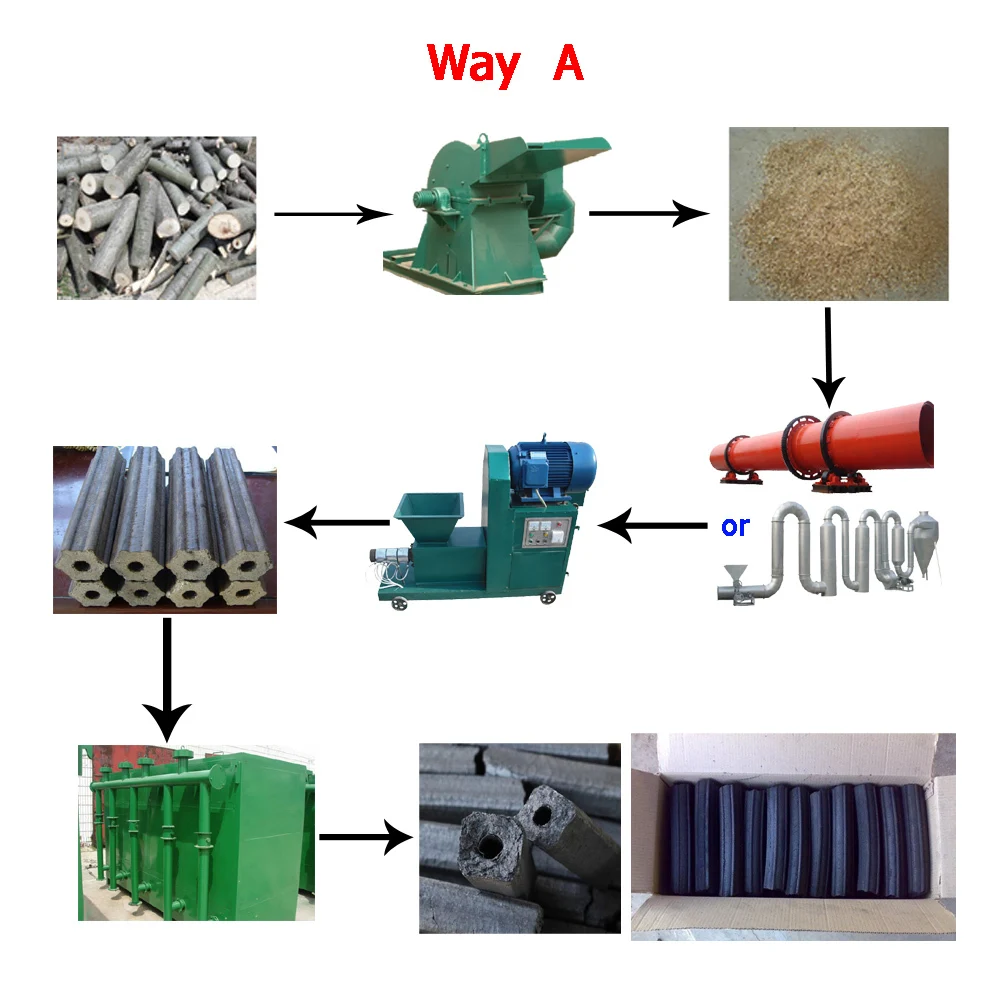

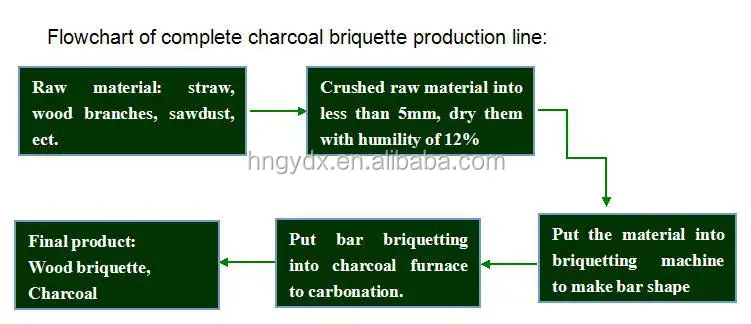

The production line of wood briquette machine to make charcoal is: Crusher (crush the wood into less than 5mm particles) --> Dryer (the dryer can be rotary dryer or sawdust dryer which are drying the small particles to less than 12% moisture) --> Wood briquette machine (make the small dry particles into wood briquettes) --> Carbonization furnace (carbonize the wood briquettes into charcoal briquettes).
