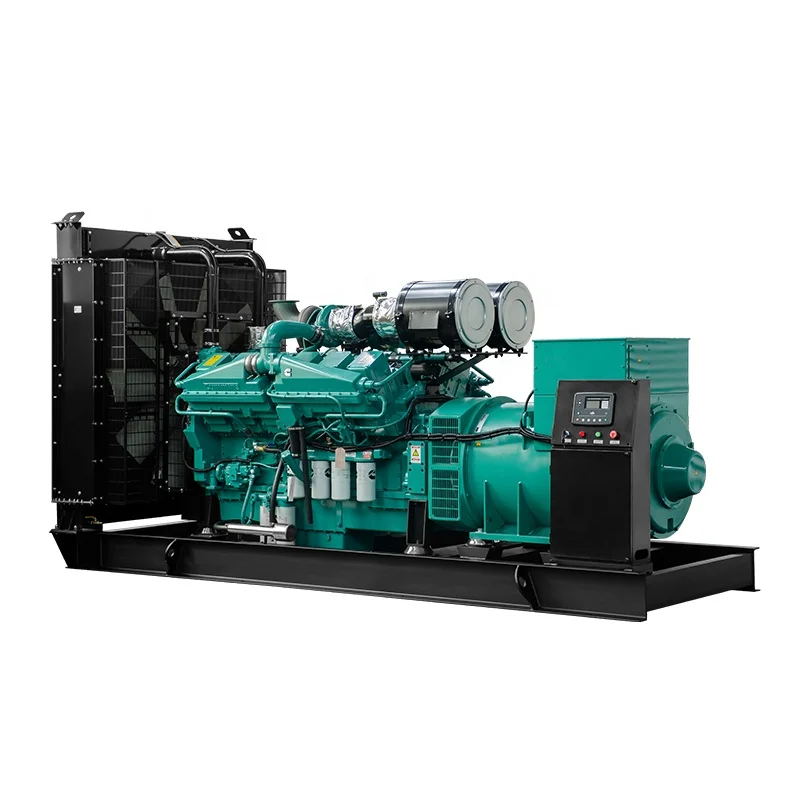

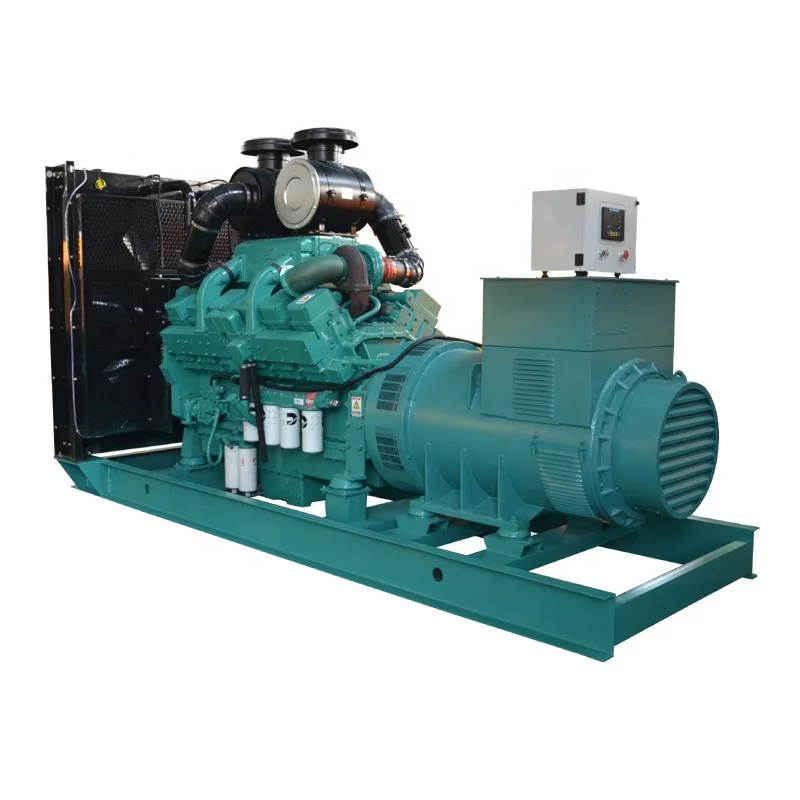

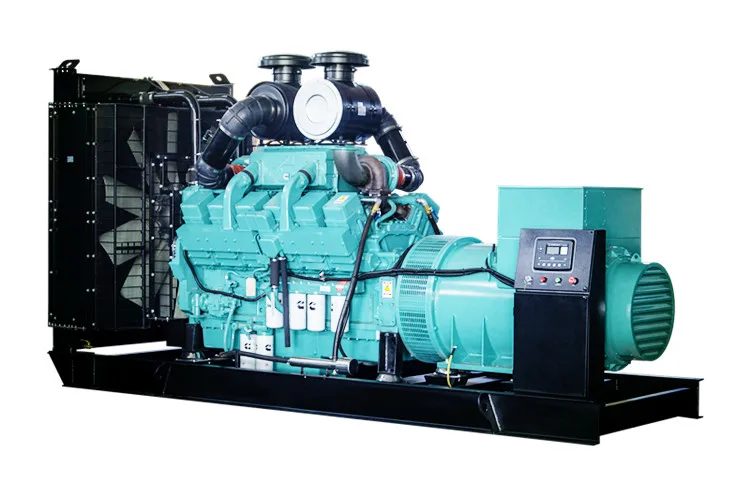

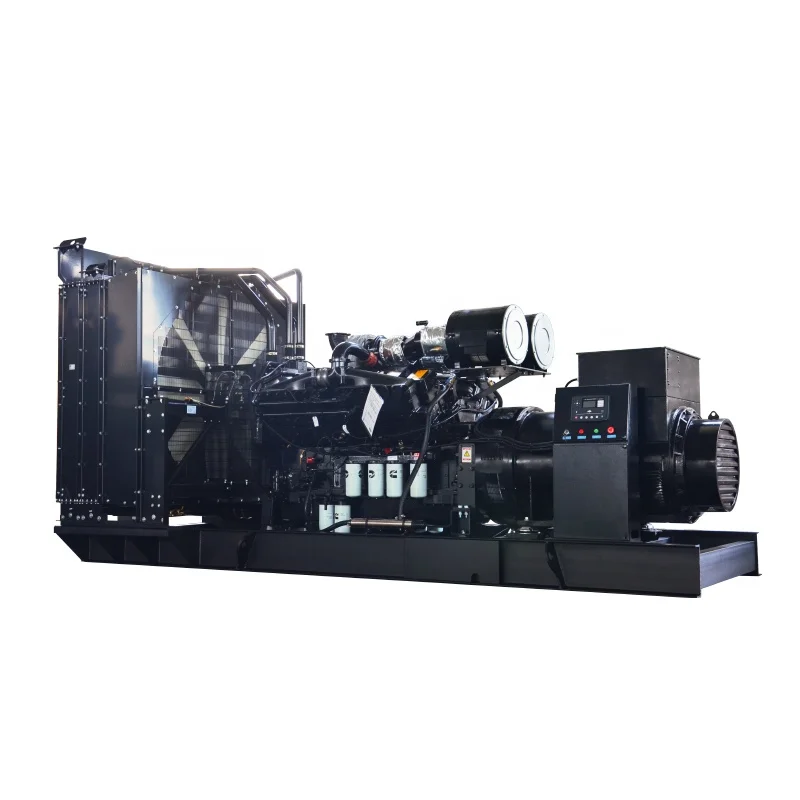

Large power 1000 KVA power generation manufacturer price 800KW diesel generator set

Technical data

Genset Model

JHK-800GF

 Prime Power

800KW/1000KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

2900*1000*1800

Genset weight (kg)

2000

Diesel Engine

Brand

Model

KTA38-G2A

Number of Cylinders

12

Rotating Speed

1500/1800RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

159*159

Displacement(L)

38

Lubricating Capacity(L)

120

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

208g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Hengsheng

Model

HSJ404F

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP22

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

The components of the genset

(1) Cummins Diesel Engine;        (2)Hengsheng Alternator;     (3) Control Panel with ATS

Control Panel

The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
