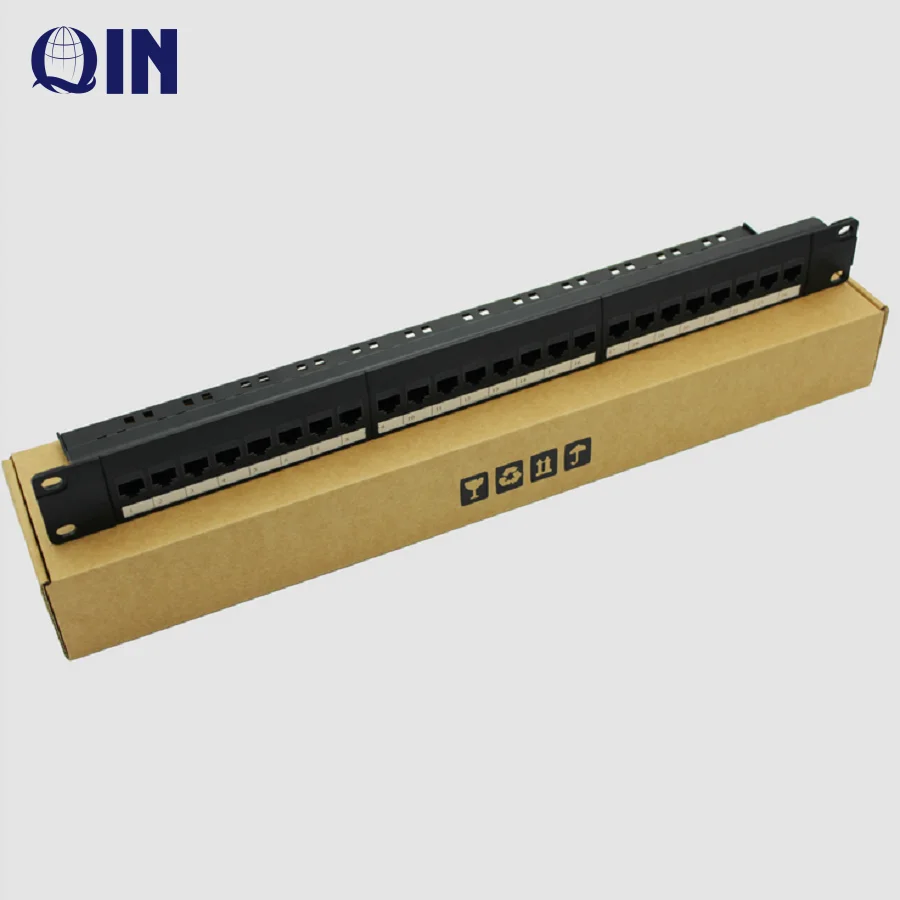

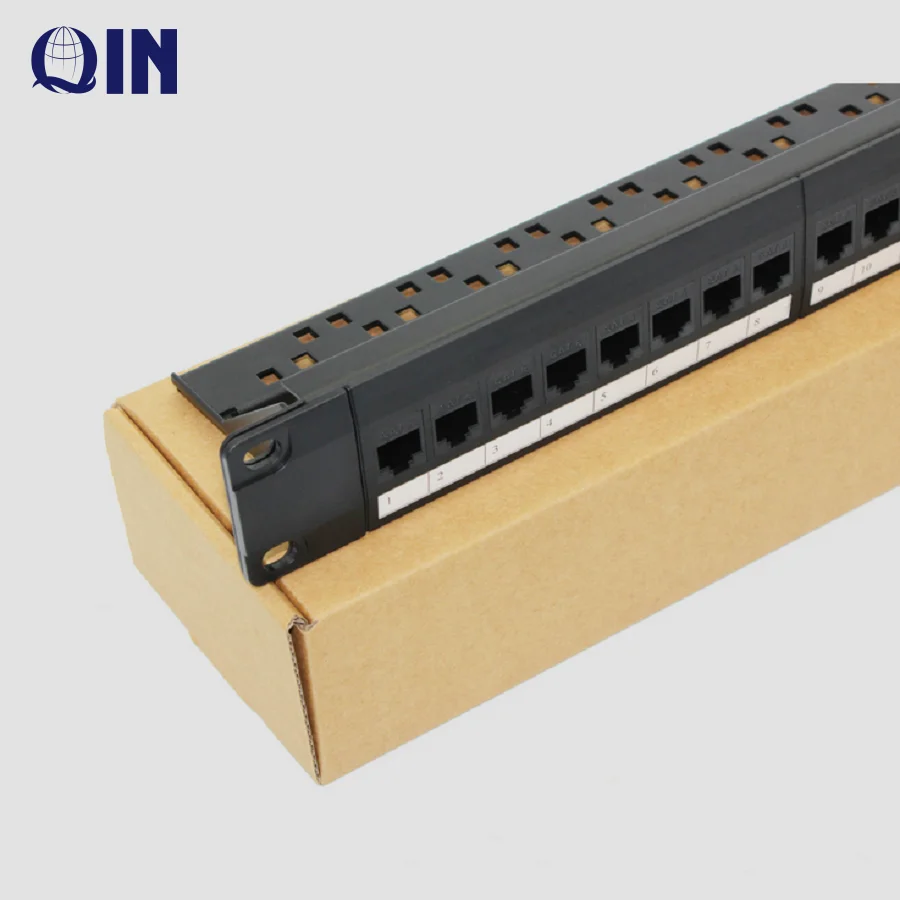

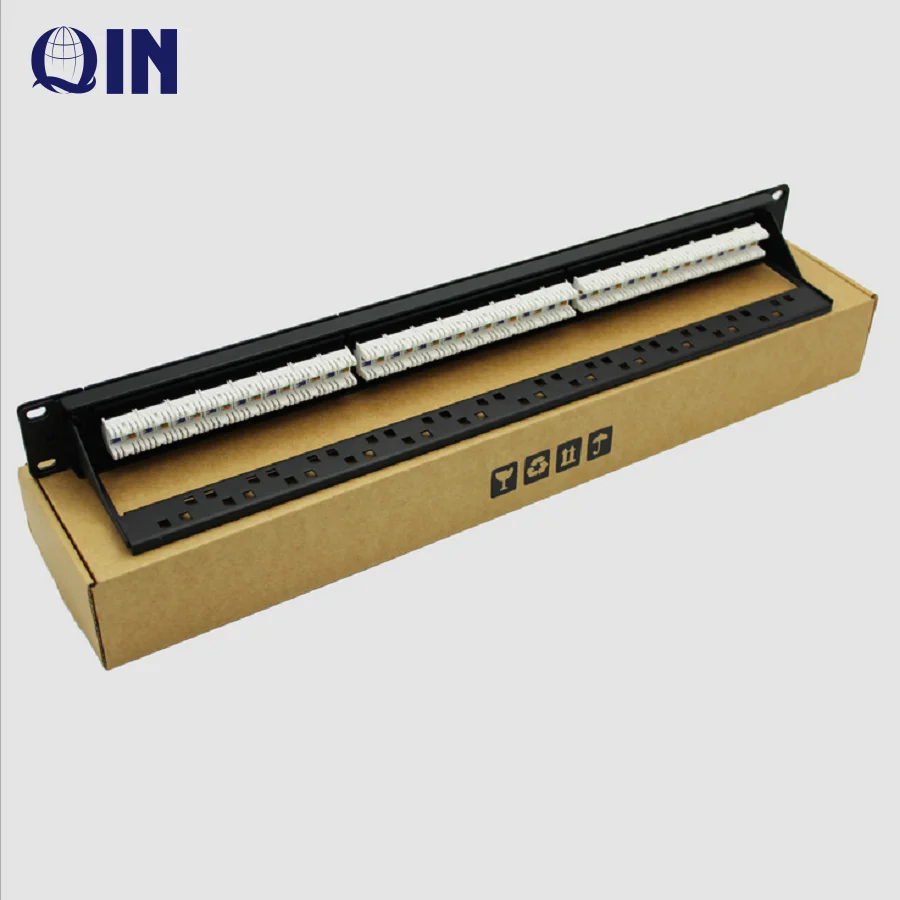

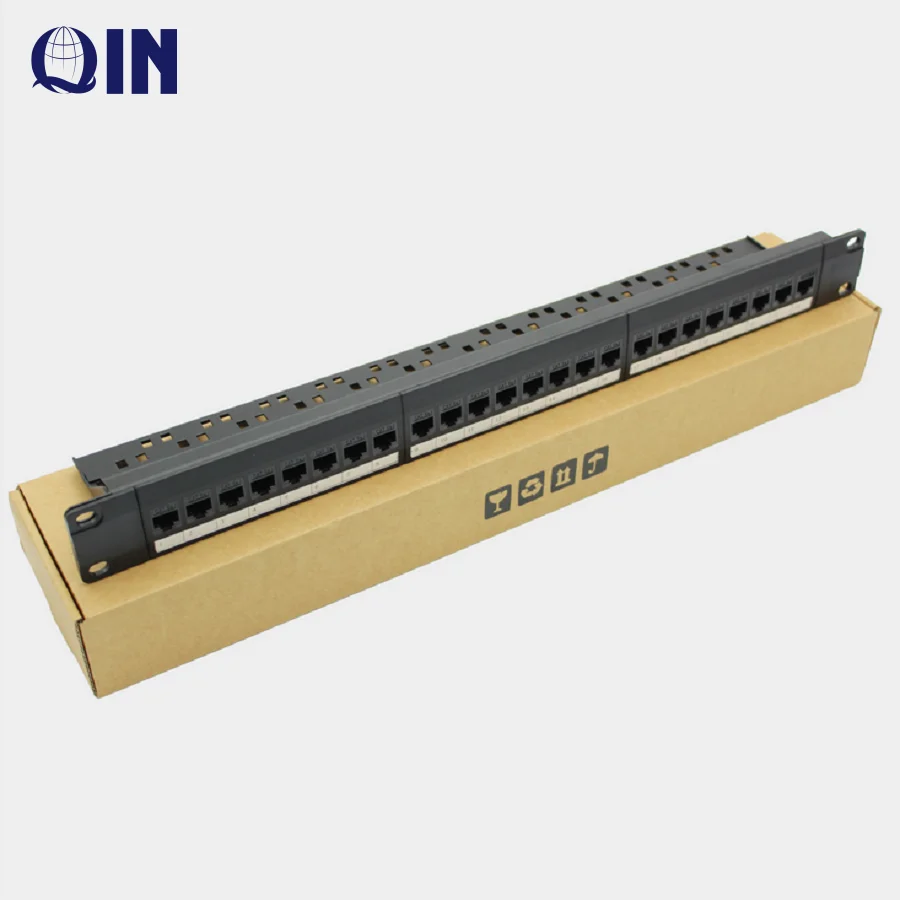

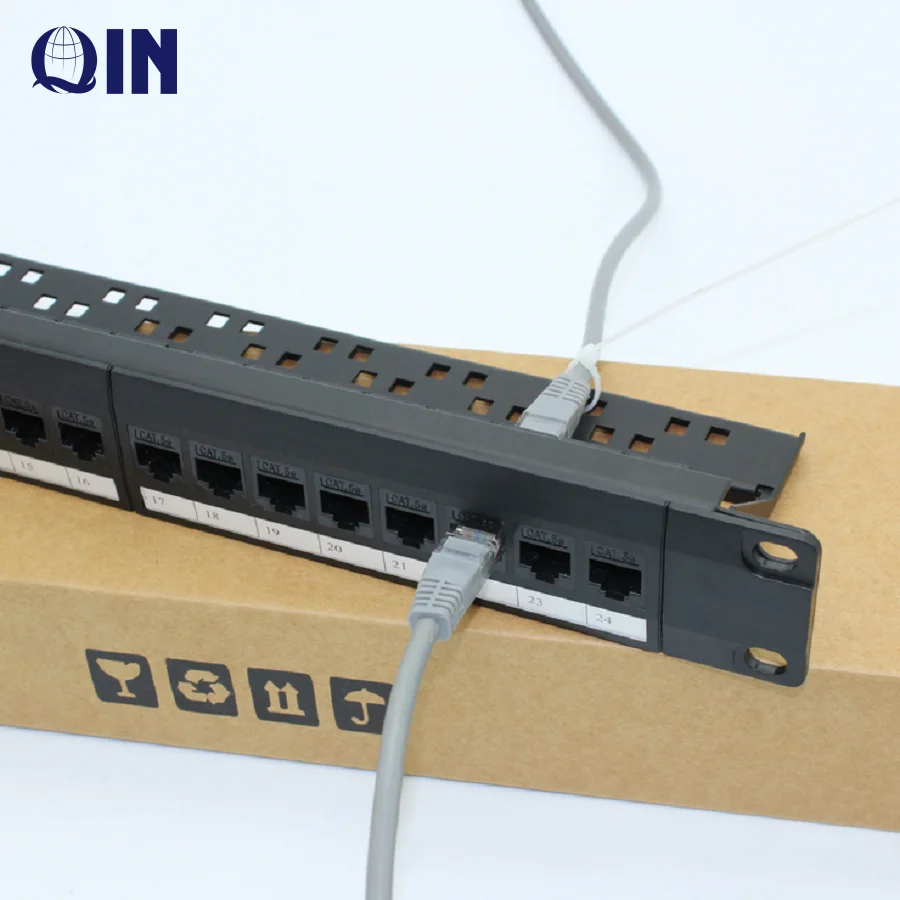

cat6 24port 24 port full loaded 1U 19in RJ45 Inline Coupler keystone patch panel

Product Overview

Description

In an enterprise network, a patch panel serves as a sort of static switchboard, using cables to interconnect network computers within a LAN and to outside lines including the internet or other wide area networks (WANs).



Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173



Electrical:

Full loaded cat5e inline coupler

Angle:180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" Gold plating on contact area.









Our Services:
1) Warranty year is 1 year under normal use! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
3) All message will be replied within 48 hours.





Shenzhen Creative Ruby Co., Limited is a professional network products manufacturer with 6 years R&D production experience. We design and produce fiber optic cables,  industrial cables, special cables, electronic cables and cable accessories. We have two factories for production and one design team for product integration.

 Our products can meet different market demands in Europe, Southeast Asia and many other countries and regions around the world. Our products can reach and exceed National Standards, such as TIA/EIA 568B and EIV50173. We have got ISO9001, CE, RoHS and other certificates. We have our own design department, production lines, quality inspection, marketing integration and OEM/ODM Center. More and more worldwide partners have joined us.
