Metal rod shrinking mold pellet tungsten carbide dies, long life cemented carbide mould
- Category: >>>
- Supplier: Zhuzhou Jintai Cemented Carbide Co. Ltd.Zhuzhou Ltd.
Share on (60126067490):
Product Overview
Description
Product Description

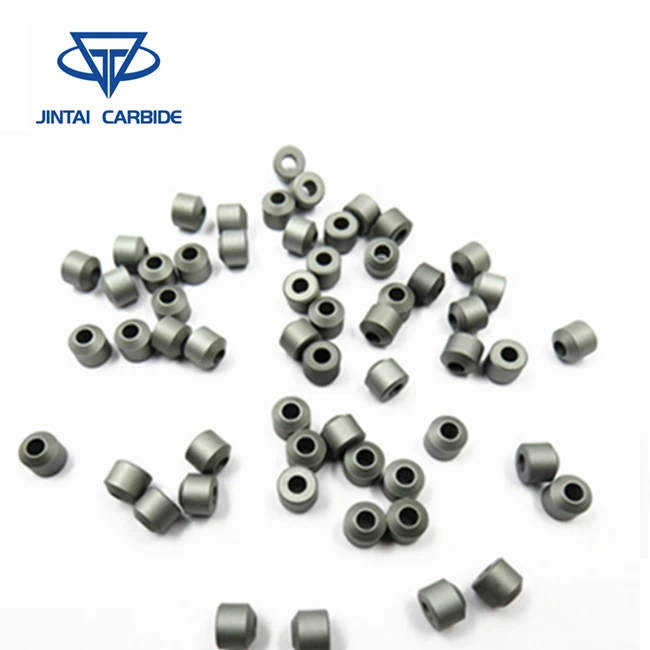

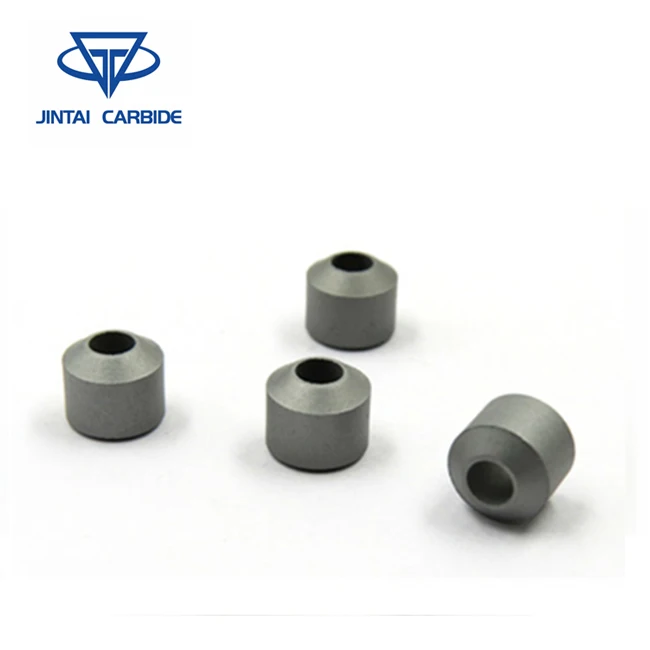

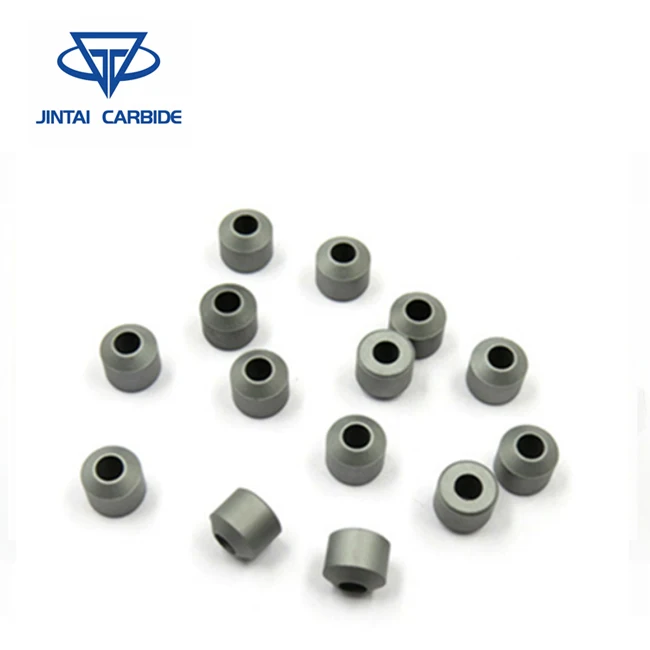

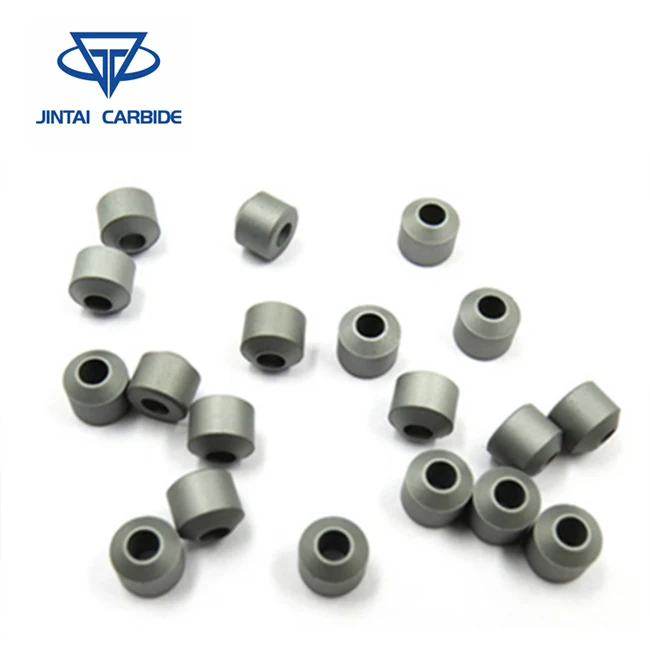

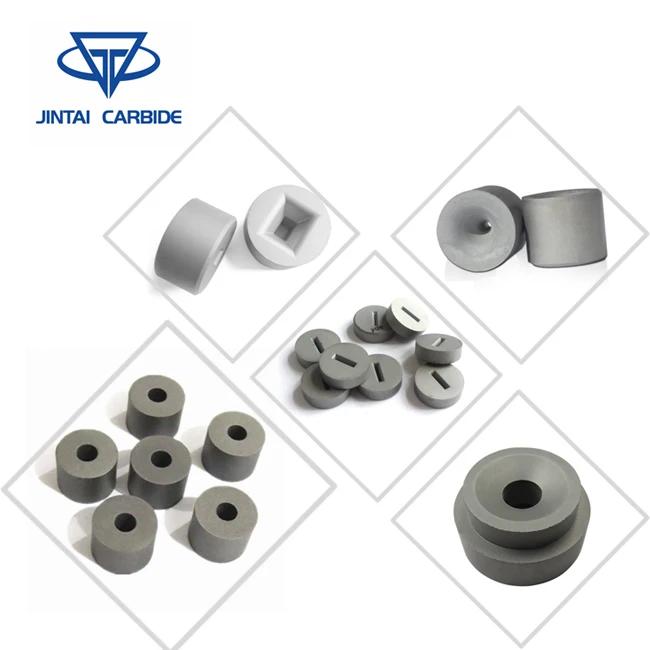

More Photos about Cemented Carbie Mould
Size about Cemented Carbide Mould, and Customization is available.
Existing Size: Dia.5* dia. 2* 2.5mm
Grade & Application of Cemented Carbide Mould
Grand | Physical and mechanical properties | ||
Density g/cm3 | Hardness No Less Than HRA(HV) | TRS No Less Than (Mpa) | |
YG6X | 14.8-15.1 | 91 | 1420 |
YG6 | 14.7-15.1 | 89.5 | 1520 |
YG8 | 14.6-14.9 | 89 | 1470 |
YG15 | 13.9-14.2 | 86.5 | 2060 |
HK12 | 14.2-14.7 | 87.5 | 2100 |
HY10 | 14.1-14.5 | 87.5 | 2060 |
YG20 | 13.4-13.8 | 83.5 | 2480 |
JL50 | 13.8-14.2 | 85 | 2300 |
TL40.5 | 13.0-13.6 | 81 | 2480 |
YG20C | 13.4-13.8 | 82 | 2480 |
YG20D | 13.4-13.8 | 82 | 2300 |
YSN30 | 13.9-14.9 | 87 | 1900 |
Zhuzhou Jintai Cemented Carbide make tungsten carbide as per customers' specific requirement and application.
Customer NOTICE:
To save your value time, please inform us of the following information:
1, Grade
2, Type
3, Dimension for each type
4, Blanks or finished products
5, If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
Company Information
About Zhuzhou Jintai
Except for Cemented Carbide Mould, we are supplying following other items:
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Disc Cutter
Tungsten Carbide Balls
Tungsten Carbide Inserts
Tungsten Carbide Tips
Tungsten Carbide Rods
Tungsten Carbide Cutter Blades
Tungsten Carbide Coal Drilling Blades
Tungsten Carbide Teeth Balls
Tungsten Carbide Road-digging Teeth
Tungsten Carbide Drawing Dies
Tungsten Carbide Rollers
Tungsten Carbide Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Non-standard Special-shaped Moulds
Packaging & Shipping
