1.High power,Motorized lift on Z axis 2.Processing range widely 3.Automatic feeds on two axes 4.hardened treatment 5.CE
Product Description
Vertical Knee-Type Milling Machine VM5036
Main Characteristics & Application
Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular, cuttres, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter,helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ±45°. Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Tool bar
Reducing sleeve
Tools
Manuals
Optional Accessories
Machine vice
Rotary table
Dividing head
Spring collect
Tool box
Iron wedge
DRO
Transmission box (X53K/1)
Model
VM5036
Worktable size
1600*360mm
T-slot of table(number-width-length)
3-18-80mm
Max load bearing of worktable
500kg
Longitudinal travel (Manual/ Power) X
1020/1000mm
Cross travel (Manual/ Power) Y
300/280mm
Vertical travel (Manual/ Power) Z
410/400mm
Max rotary angle of vertical milling head
±45°
Arbor diameter
φ32, φ40mm
Distance from spindle center to vertical guide way
380mm
Distance from worktable center to vertical guide way
235-535mm
Distance from spindle nose to worktable surface
60-460mm
Spindle taper
7:24 No.50
Spindle quill travel
75mm
Spindle speed steps
18 steps
Spindle speed range
30-1500r/min
Feed speed steps
18 steps
Feed speed range: Longitudinal X
15-750mm/min
Feed speed range: Cross Y
15-750mm/min
Feed speed range: Vertical Z
5.7-280mm/min
Rapid feed speed range: Longitudinal X
2250mm/min
Rapid feed speed range: Cross Y
2250mm/min
Rapid feed speed range: Vertical Z
844mm/min
Main motor power
7.5kw
Feed motor power
1.5KW
Machine dimension (L*W*H)
2307*2067*2096mm
Package dimension (L*W*H)
2200*1770*2270mm
Machine weight
3370kg
Voltage/Frequency
380V 50Hz
Our Services

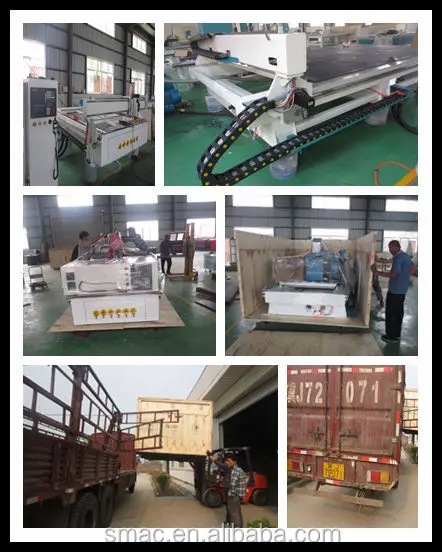

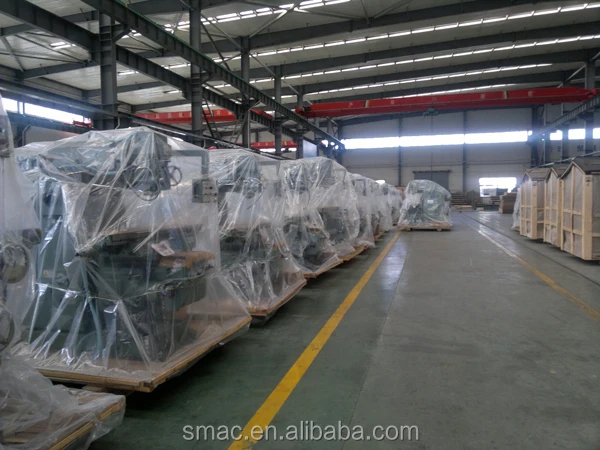

All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment. More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted. On time delivery, in general 30 days. Multimode payment:T/T,L/C. Special dimensions available according to request. We have many certificates of our Products.
Accessories replacement if our product itself has quality problems during one year after receiving.
Company Information

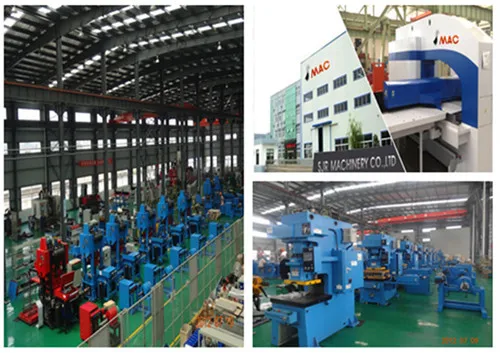

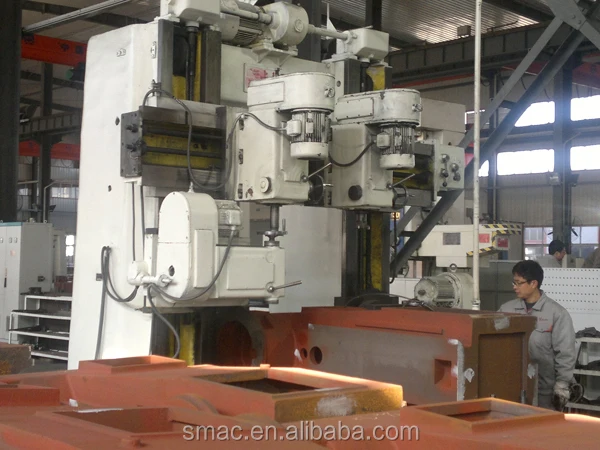

Found in 1984 Our SMAC/Jmech Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas. SMAC/Jmech Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competitive prices and quick & thoughtful after-sale service to cooperate with you.
