Aogao 30 series compact hpl solid phenolic toilet partitions

Product Overview

Description



Square design, it is high end solid phenolic toilet partitions  system,the whole package of accessories 's material is  stainless steel 304, it can use together with 12mm compact board , 18mm moisture-proof board PVC board,metal board etc.

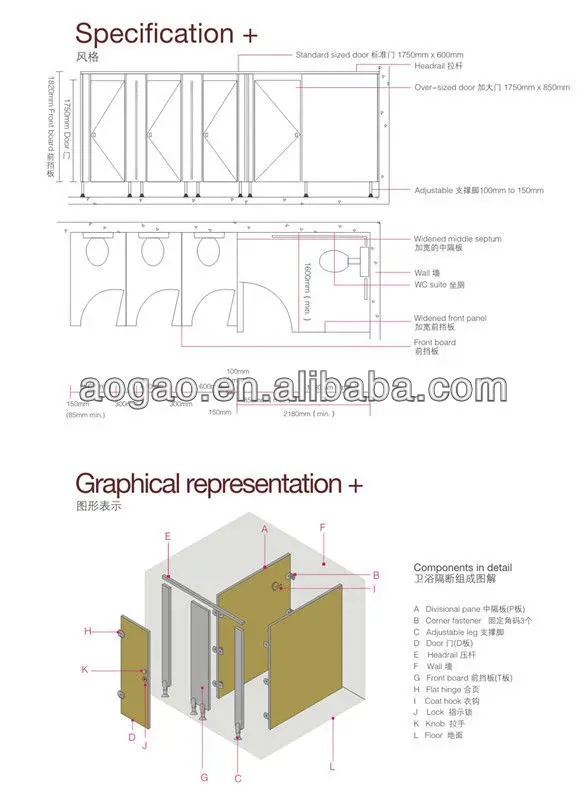

solid phenolic toilet partitions   the overall effect diagram:





solid phenolic toilet partitions Advantages:

Product name	solid phenolic toilet partitions
Material	12mm thick Aogao Compact Grade, black core material damp-proof, collision resistant. endures Stains, easily Cleaned
Paytition Material	Uses large size Compact Grade, no joint, complete and consistent
Edging	In finished form, edges needn’t be worked on, black core routed aesthetically
Privacy	Overlap system is used between door and door post assuring a high level of concealment
Accessories	Aluminium alloy powder body coating or heavy duty nylon or stainless steel
Convenience	Construction site clean
Durabiliey	Long term
Economical Solution	It’s highly durable and long-lasting which makes it worth its price



Aogao solid phenolic toilet partitions  use the compact laminate as the partition wall panel



Compact laminate introduction:

The Compact Grade laminate is a high pressure laminate, which at 2-25mm, is much

thicker than conventional laminates(0.8-1.0mm). The Compact Grade laminate is intended
for application as interior horizontal or vertical surface where high strength, impact, water
and humidity resistance are required . Because of its inherently high strength, Compact
Grade laminate may be used as a structural material. It may be drilled, tapped, sanded,
shaped, and cut with standard carbide tipped tools, Aogao brand Compact Grade
laminate is a unique structural material which is available in panels with one or both sides
faced with decorative surfaces and meeting or exceeding AS mechanical performance
specifications in all categories, particularly in such cntical areas as impact strength and liquid
absorption. In addition, it also meets and exceeds EN438 physical properties. Compact
Grade and Aogao hardware system can be used to make a series of cubicles system,
lockers system and wall system.



Compact laminate features:

• Solid, low water absorption
• strong, impact-resistant, damp-resistant, heat-resistant and cigarette burn-resistant
• Easily dean, lifetime durability
• Integrated curved shape, showing the beauty of streamline
• Remarkable processing technology: By drilling, screwing, cutting to form different shapes
• Versatile color matches

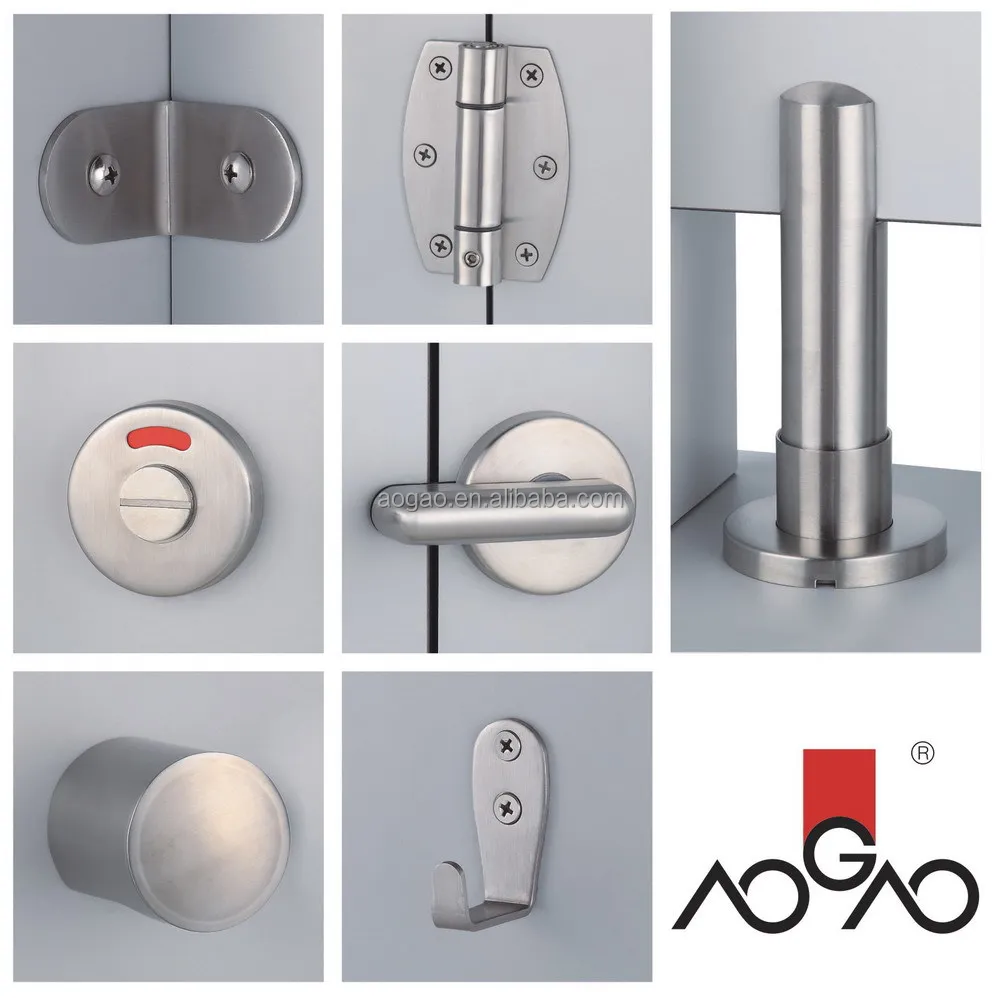

solid phenolic toilet partitions  hardware introduction:

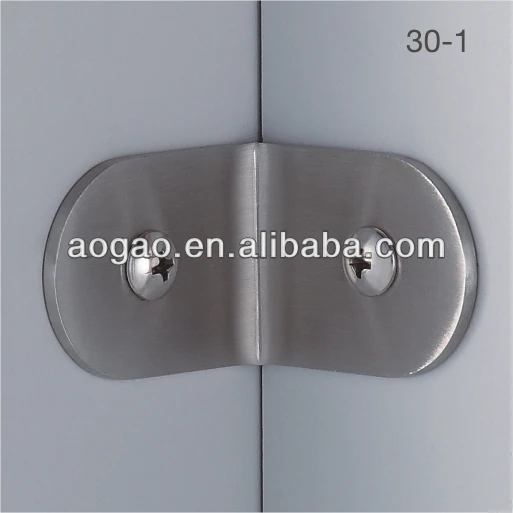

solid phenolic toilet partitions Corner fastener:

304 stainless steel material , long life

It can be used to fix the division plate to create a solid and steady structure

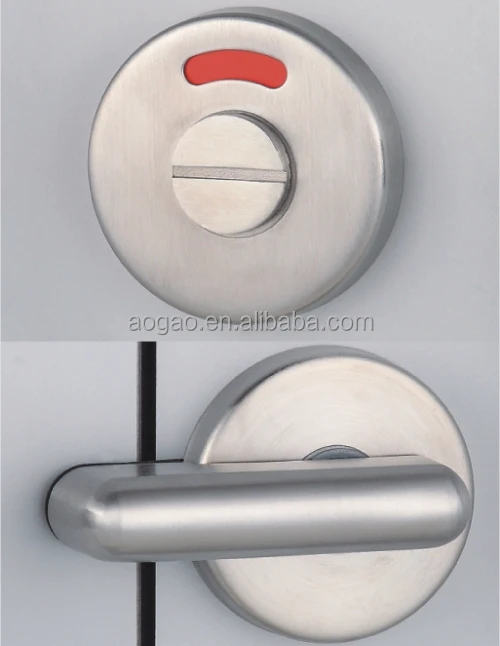

solid phenolic toilet partitions Indicator lock:

Stainless steel 304,with handle

The display plate on the upper side of the locker can show whether there is a user inside.
The locker is also designed specially and safety which could be opened from the outside
when there's a emergency.

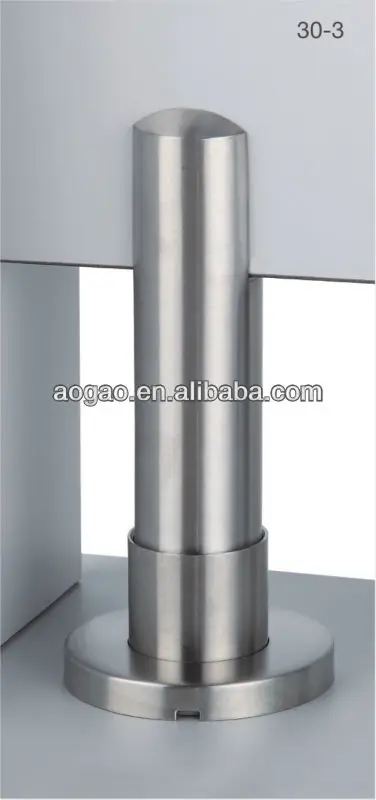

solid phenolic toilet partitions Adjustable leg:

304 stainless steel , diameter:32mm, height 100mm

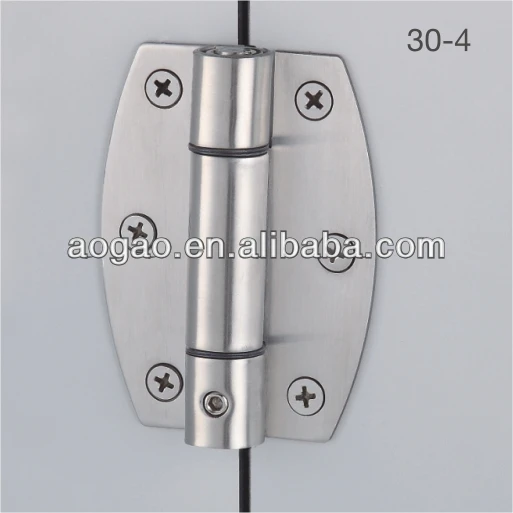

solid phenolic toilet partitions Hinge:

304 stainless steel , spring-type hinge , regardless of the right and left directions .

It is thus designed with the function of auto closing,thus enabling the door plank naturally to stay ajar or wide-open,demonstrating our delicate consideration for the customers convenience.



solid phenolic toilet partitions Handle:

Stainless steel 304 , handle diameter 45mm.



solid phenolic toilet partitions Coat hook:

304 stainless steel material.
