Circular cutting machine paper roll,paper roll converters,paper roll winding machine

Product Overview

Description

XMY-SFQ900  Circular cutting machine paper roll,paper roll converters,paper roll winding machine



 Application:

It is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films and so on.

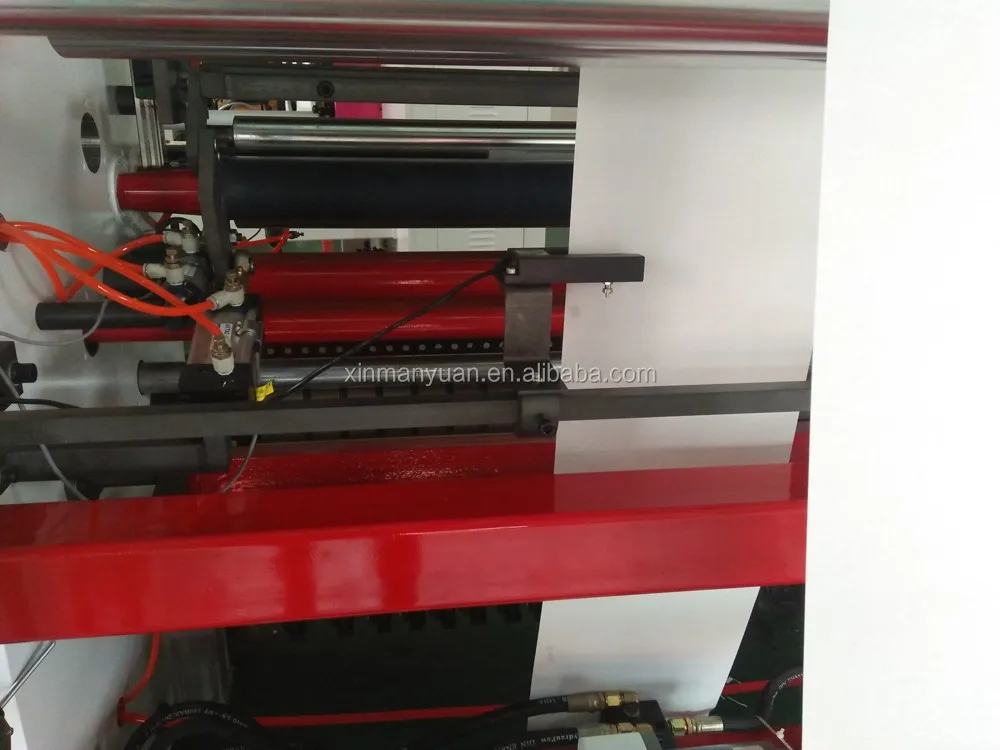

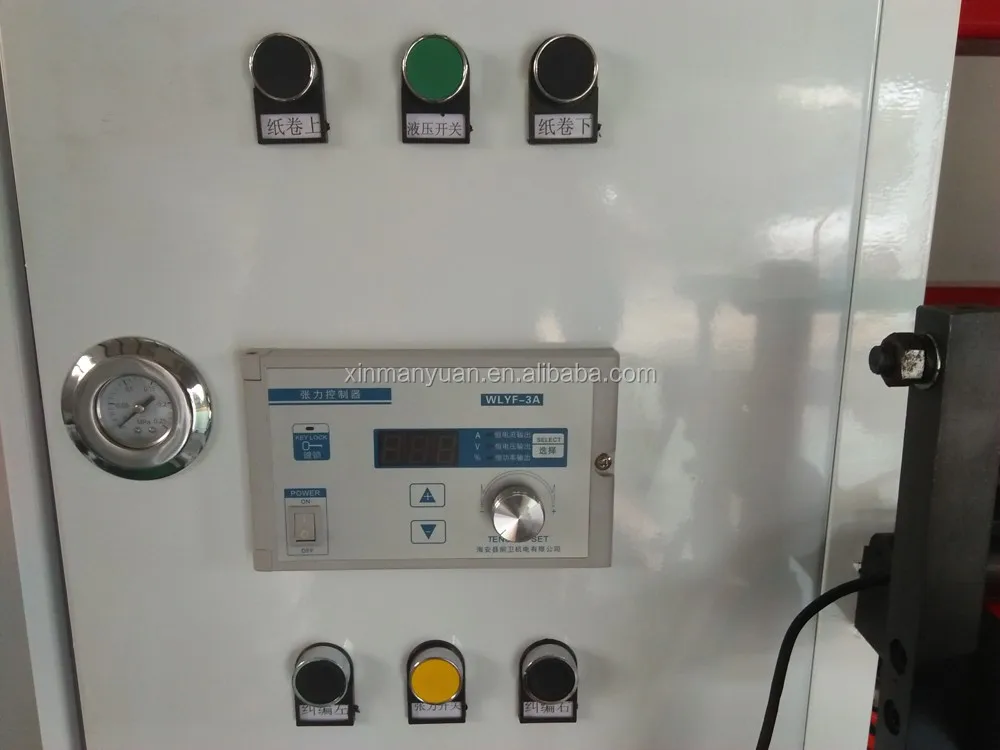

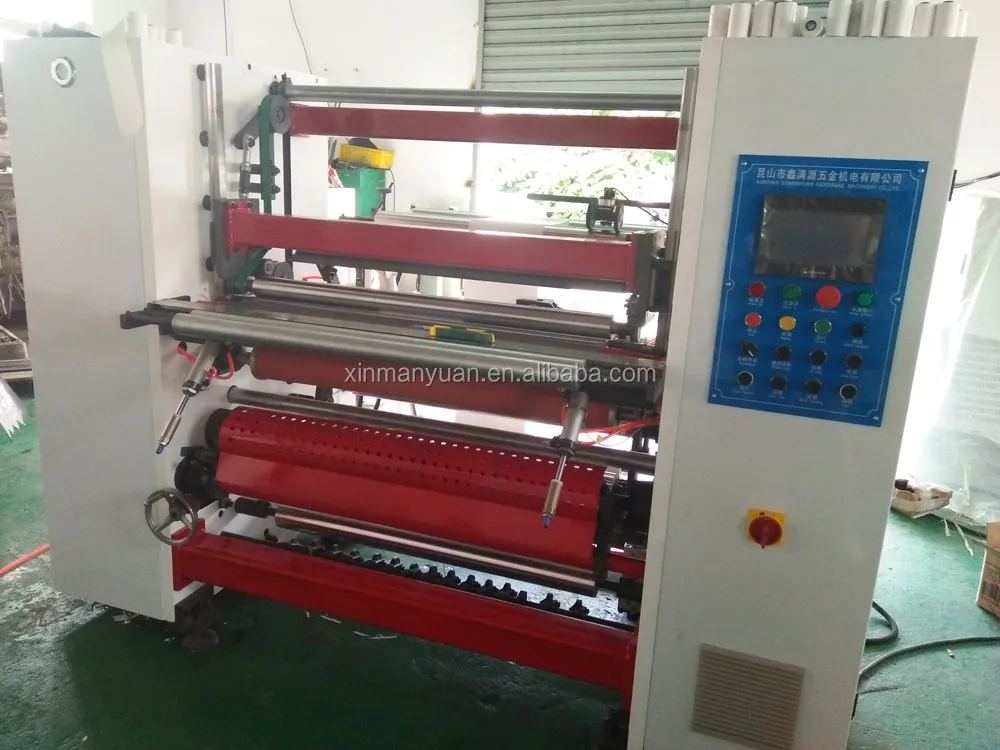

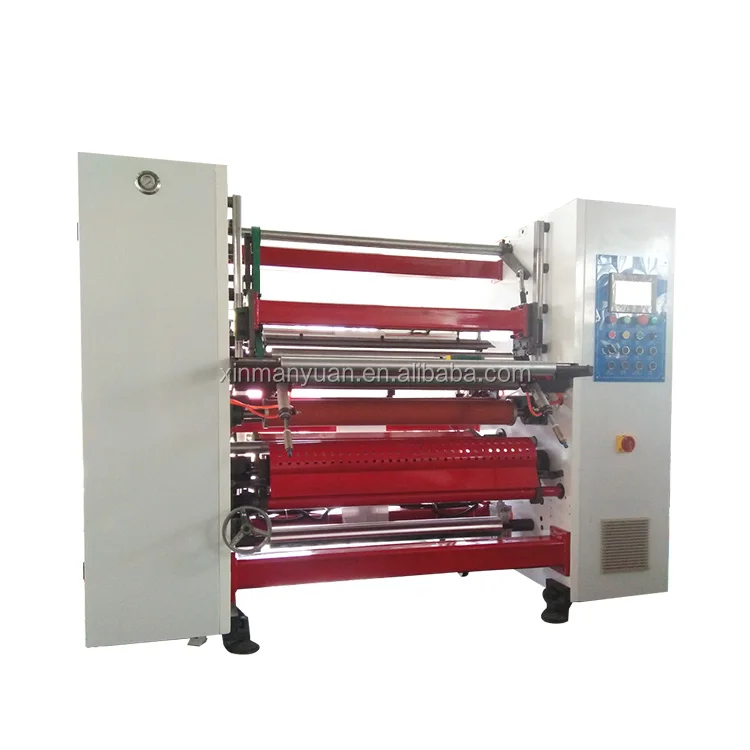

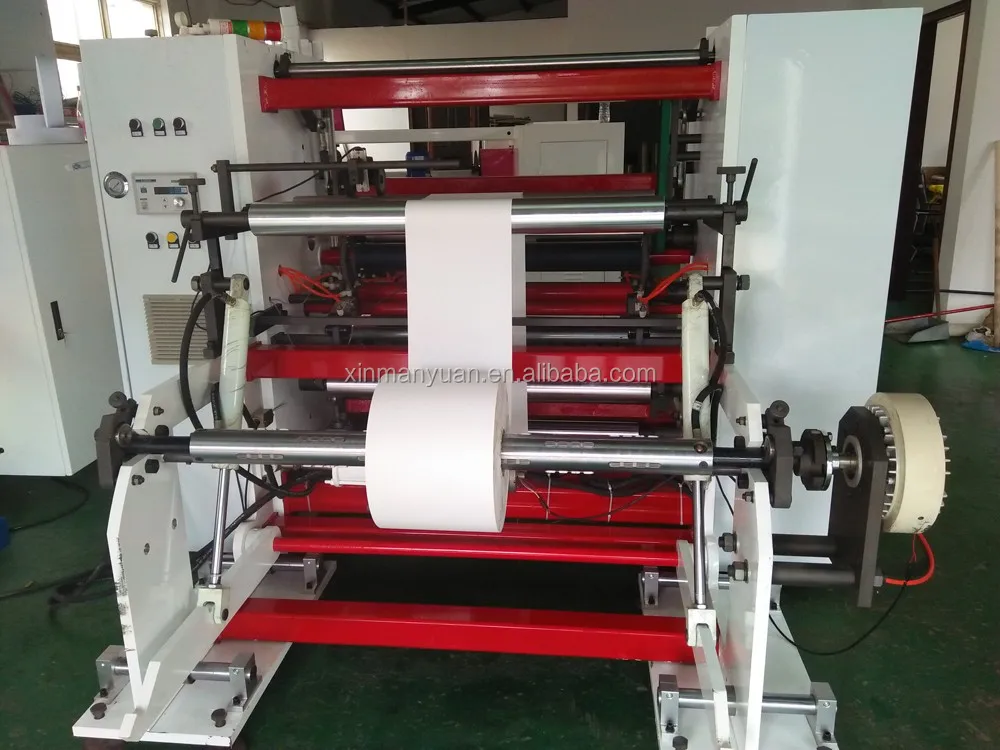

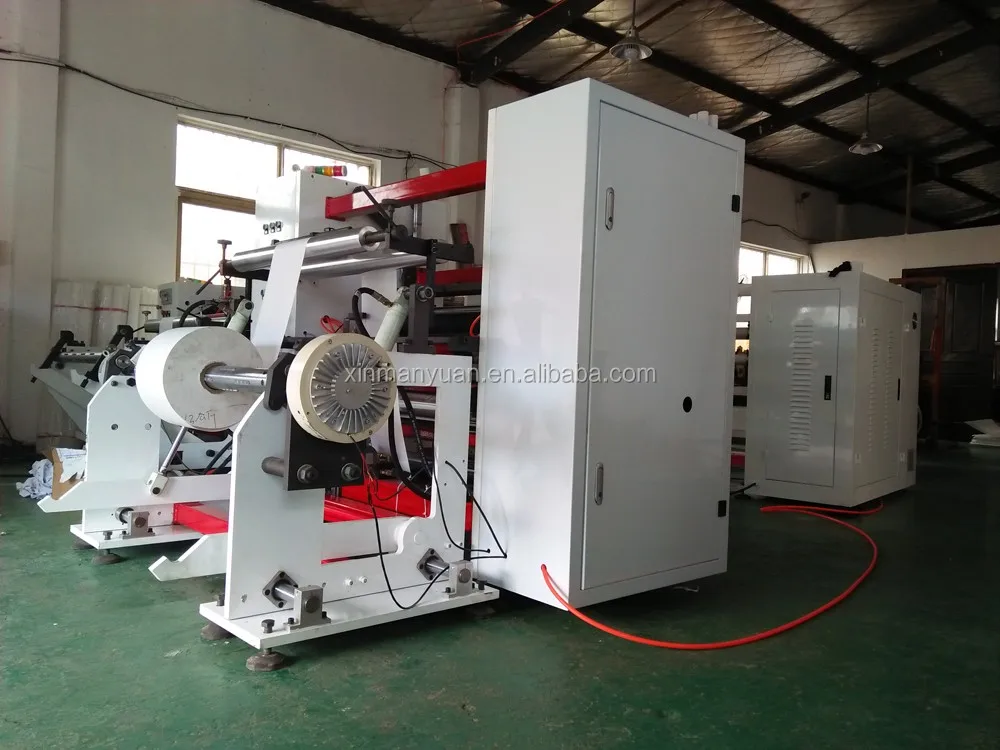

More photo:













Slitting samples:









Main Technical Parameter:

Max. Unwind Diameter	Φ1000mm
Max. Unwind Width	900mm-1100mm
Unwind Core Inner Diameter	Φ76mm(3”)
Max. Rewind Diameter	Φ200mm
Product Core Inner Diameter	0.5",1",1.5",2''
Min. Product Width	35mm
Max. Slitting Speed	150m/min
Main Power	4kw
Working Noise	≤85dB
Machine Weight	2000kg
Working Voltage	As request
Over All Dimension   [Length* Width*Height]	2000*1500*1500MM





Certification:



After-service:

1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.
