plasma cutting machine fabric cutting table cnc plasma cutting table
- Category: >>>
- Supplier: Xuzhou HaiBo CNC Technology Co. Ltd.
Share on (60126424680):
Product Overview
Description
plasma cutting machine fabric cutting table cnc plasma cutting table
Product Description
cut sheet machine advantages:
- low noise and high running accuracy
- occupies a small place
- operates with high efficiency
- cuts automatically with high precision and uses materials effectively
- It is of compacted design, light weight and is small in size
- It is easy to move, suitable for the site indoor or outdoor
- The control system is independently designed and developed with optimized programming, easy to learn and operate
- The operation interface, simple and clear, can store over 80 programs
- LCD screen of dynamic and static display of graphics can convert the CAD file to the programmed one in the computer and transmit it to the machine via a USB flash disk before automatic cutting performance which can also be made by inputting the simple instruction in the machine for programming cutting
cut sheet machine Main Technical Specifications and Parameters
Model and specification | CUT1020 | CUT1525 | CUT1530 | |||
power supply | 220V 50HZ 150W | |||||

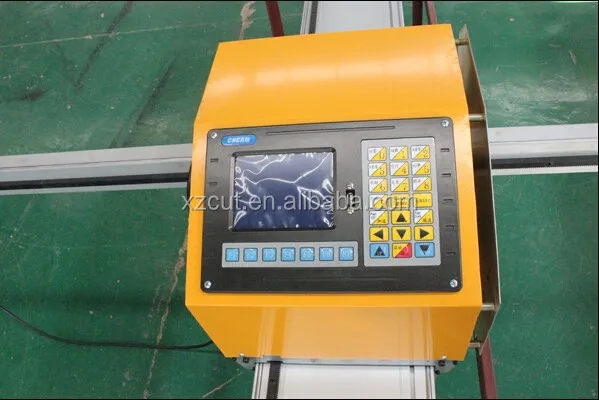

LCD Screen Specification
| 7 Inches colour Screen, White Numbers,Adjustably Bright | |||||
Effective Cutting RangeX*Y(mm) | 1000X2000 | 1200X2500 | 1500x3000 | |||
Length of Crossbar(mm) | 1500 | 2000 | 2000 | |||
Length of Longitudinal Guide(mm) | 2500 | 3000 | 3500 | |||
Cutting Rate(mm/min) | 500-6000 | |||||
Cutting Thickness(flame))(mm) | 6-200 | |||||
Cutting Thickness(plasma)(mm) | 1-30(Restricted by the plasma power supply) | |||||
Pressure of Gas(mpa) | 0.01-0.3 propane recommended | |||||
Pressure of Oxygen(mpa) | 0.2-0.8 | |||||
physical dimension (mm) | Host | 350X320X230(L × W × H) | ||||
Guide | 2500 | 3000 | 3500 | |||
Packaged Volume (mm) | Host | 520X420X380(L × W × H) | ||||
Guide | 3150X420X320(L × W × H) | |||||

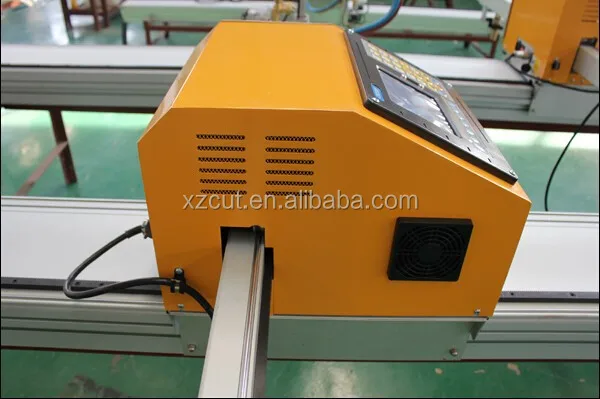

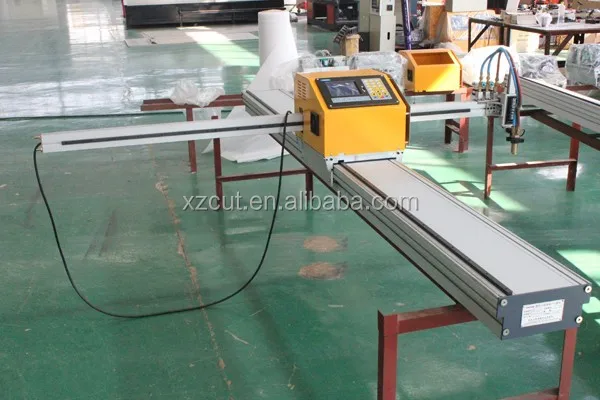

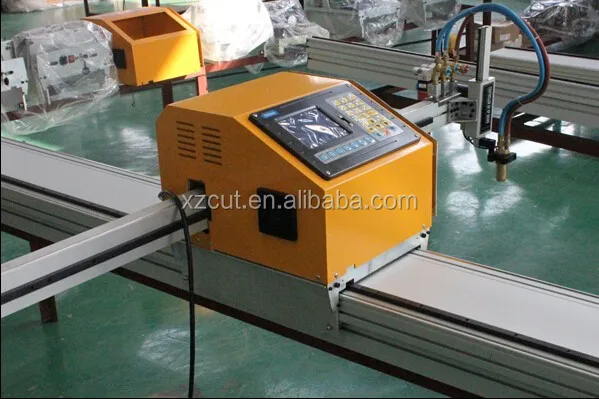

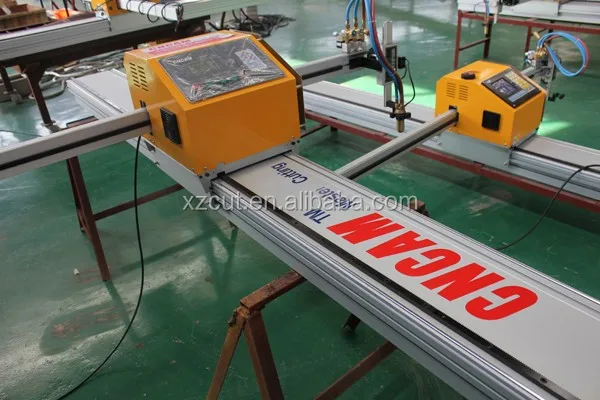

Step motor bilateral drive cut sheet machine photos:
Step motor bilateral drive cut sheet machine components:
Step motor bilateral drive cut sheet machine Cutting Samples
Packaging & Shipping
standard export wooden package
Our Services
12 limited months guarantee and 24 hours free technical after-sale service
