Product Overview
Description
General description of customized one axis analog voltage output angle accelerometer tilt sensor
ZCT110M-LQR-TLA is a single axis tilt sensor which researched and produced by Shanghai Zhichuan Electronic Tech Co.,Ltd. It is in one axis structure, horizontal mounting, measuring range from -10ºto 10º, analog voltage output.
Features of customized one axis analog voltage output angle accelerometer tilt sensor
Small volume, light weight,
Easy to integrate;
Industrial devices entirely,
High stability and reliable performance;
Shockproof, anti-vibration;
High cost performance.
Technical parameter of customized one axis analog voltage output angle accelerometer tilt sensor
| parameter | Test condition | Min value | Typical value | Max value | unit |
Operating specification | Supply voltage |
| 7.8 | 8 | 8.2 | V(DC) |
Quiescent Current | Without load |
| 10 |
| mA | |
Output impedance | Resistive load |
| 20 |
| KΩ | |
Captive load |
|
| 20 | nF | ||
Operating temperature |
| -25 |
| +85 | ℃ | |
Performance specification | Measuring range | One axis | -10 |
| +10 | ° |
Linearity range |
| -10 |
| +10 | ° | |
Zero output voltage |
| 3.96 | 4 | 4.04 | V | |
Non-linearity |
|
| ±0.2 |
| %/FS | |
Sensitivity
|
| 69 | 70 | 71 | mV/° | |
Sensitivity tolerance |
|
| ±1.4 |
| % | |
Zero temperature drift |
|
| ±0.5 |
| ° | |
Other parameter | Cable length |
|
| 15 |
| cm |
size |
|
| 52*52*30 |
| mm |

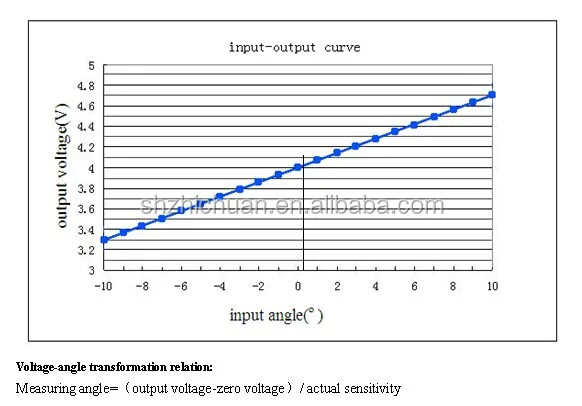

Input-output feature of customized one axis analog voltage output angle accelerometer tilt sensor

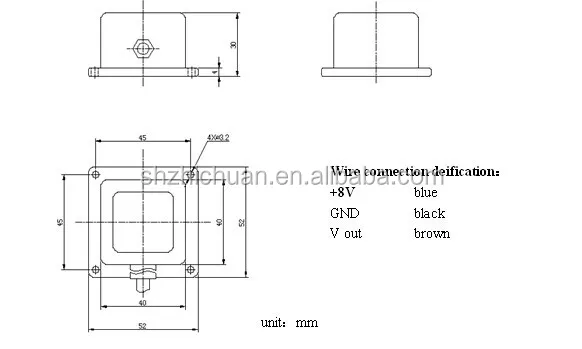

Module installation size and wire connection definition:
Module installation size:
