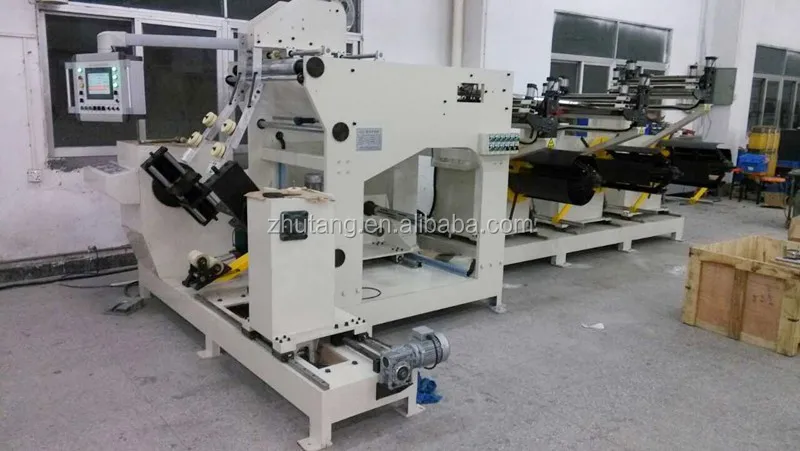

Автоматический зажимной станок для обмотки фольги реактора

Product Overview

Description

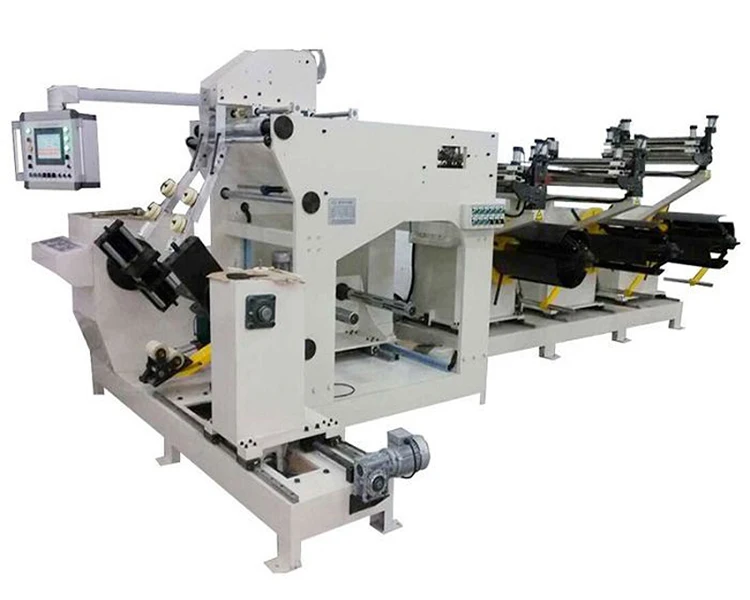

Automatic Core Clamping Type Reactor Foil Winding Machine



Introduction



Automatic Core Clamping Type Reactor Foil Winding Machine BRJ600-3 is a core-clamping type foil winding machine, adopts double mechanical chucks, and clamps the core through adjusting screw rod. This kind of foil winding machine adopts mechanical synchronous using gear, and can count winding turns with the counting range from 0 to 9999.9.



Main Components:



1. Main frame

2. Foil decoiler

3. Feeding pressing roller

4. Winding unit

5. Insulation paper decoiler unit

6. Correction unit

7. Pneumatic unit

8. Electrical Control System



Technical Parameters



Typical standard specifications of JJ-BRJ450 are shown below, however these can be easily modified in accordance to our customers’ specifications and needs.

Max. Axial Length:	600mm
Finished Coil Shape:	Round, rectangle, and oval, etc.
Conductor Decoiler Number:	3
Conductor Foil Material:	Copper or Aluminum
Foil Thickness Min. and Max. (Aluminum):	0.3 - 3.0 mm
Foil Thickness Min. and Max. (Copper):	0.2 - 2.0 mm
Foil Material OD.:	1000mm
Foil Material ID.:	400/500mm
Conductor Decoiler Length:	450mm
Conductor Decoiler Shaft:	Dia. adjustable range 400-520mm
Max Coil Weight:	800KG
Insulation Material OD.:	≤ 400mm
Insulation Material ID.:	76mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
Speed Regulation:	Variable frequency and stepless
Clamping Mode:	Double chucks
Electrical Control Cabinet:	1
Counting Turn Range:	0-9999.9
