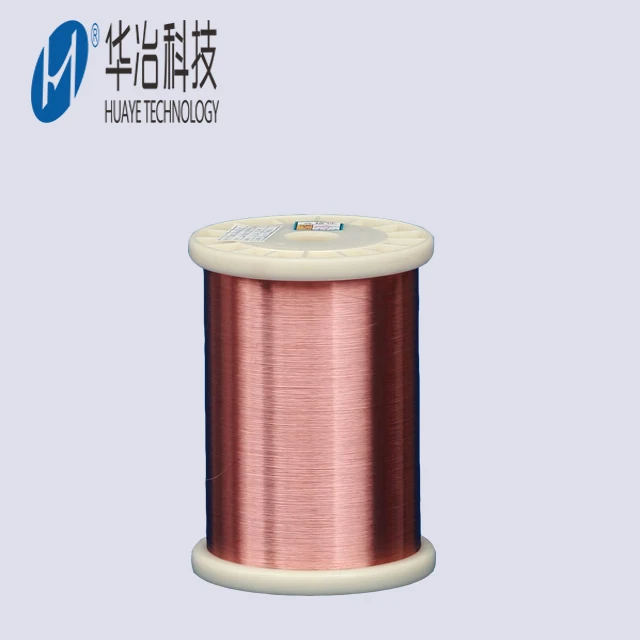

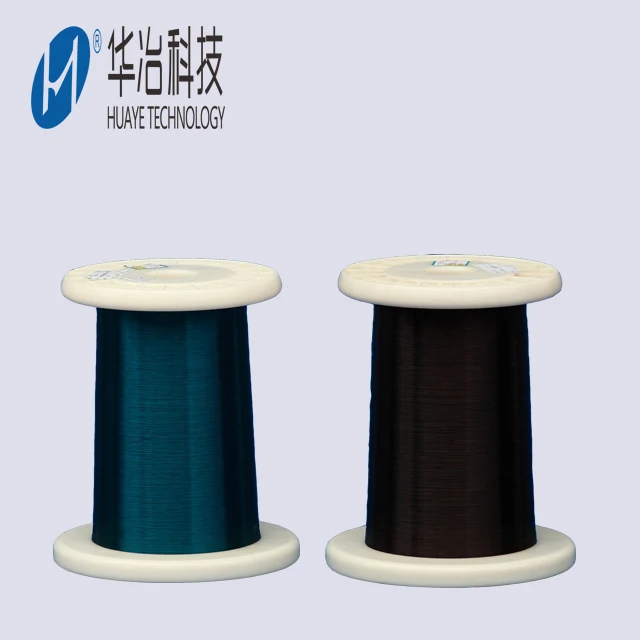

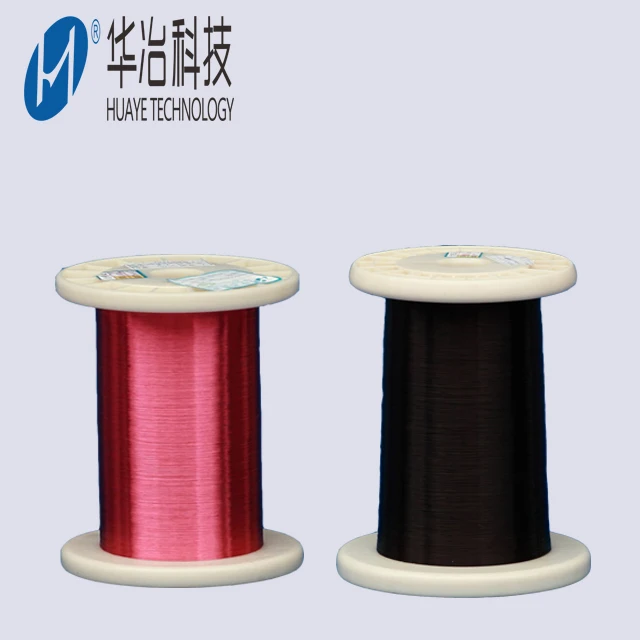

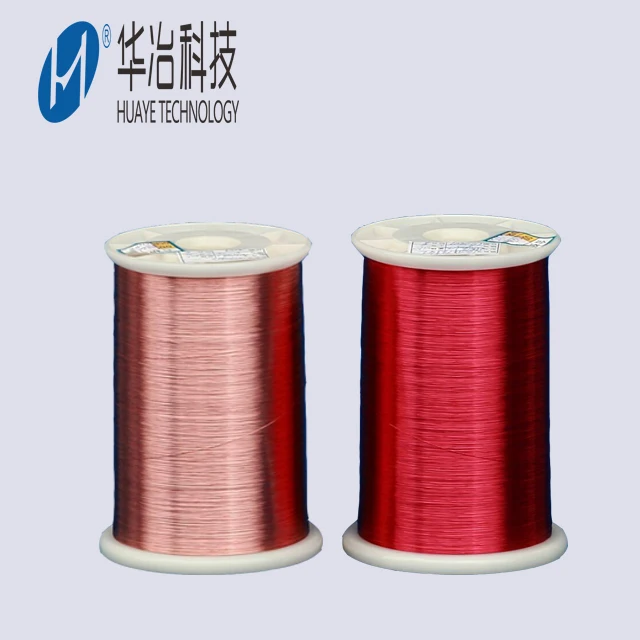

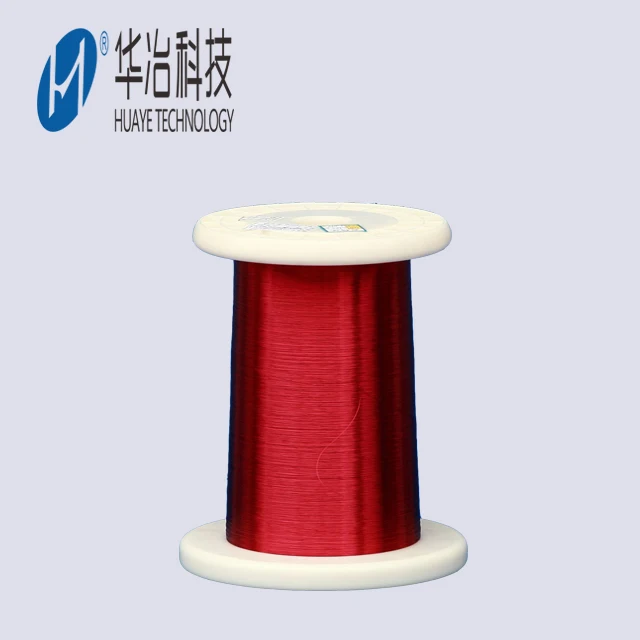

self bonding copper wire for motor winding
- Category: >>>
- Supplier: Dongguan Huaye Cables Technology Co. Ltd.
Share on (60126700563):
Product Overview
Description
Copper wire for winding,electrical enameled magnet wire,
self bonding,155 class,round,polyurethane
Product Description
Self bonding Copper wire for winding,electrical enameled magnet wire
Brand name | HUAYE | Specification Met | IEC 60317/ NEMA MW 131-C |
Material type | copper wire | Finish | adhesive Enamel |
Bare copper dia. | 0.018-0.70mm/AWG 21-46 | Insulation coat | Solderable polyurethane |
Thermal class | 155 Degrees celsius | Shape | Round |
Bond method |
solvent or heat bonding | Color | red copper |
Spool | PT-15,PT-10.PT-4,PL-2,PC-1 | Certification | UL,SGS,REACH,ROHS |
selfbonding enamel copper magnet wire engineering data:e.g 2lockcs0.10
| Test Certificate for Enamelled Wire | ||||||
| Product Name:P155 Self-bonding hot melting wire | ||||||
| Product Type:2LOCKCS0.10(N) | Bare Copper Diameter Nom.Φ: 0.10mm | |||||
| Enamel Type:mod.Polyurethane/P155 | Thermal class :F(155°C) | |||||
| Item | Tolerance | Test Values | ||||
| Unit | Min | Max | Min | x | Max | |
| Bare Dia. | mm | 0.098 | 0.102 | 0.099 | 0.1 | 0.101 |
| Thickness of Insulation | mm | 0.005 | 0.012 | 0.006 | 0.007 | 0.007 |
| Overall diameter | mm | 0.117 | 0.123 | 0.119 | 0.12 | 0.121 |
| Surface apperance | ok | ok | ||||
| Elongation | % | 19 | 23 | 24.5 | 26 | |
| Tens. Strength | N/mm² | 25 | 59 | 62 | 65 | |
| 1% yield | N/mm² | 20 | 53 | 57 | 60 | |
| Adh.& flex. | OK | OK | ||||
| Spooling | OK | OK | ||||
| D.C. Resistance(20°C) | Ω/m | 2.111 | 2.241 | 2.14 | 2.2 | 2.25 |
| BDV cyl. | V | 1300 | 1600 | 1725 | 1850 | |
| BDV cyl. V/μm | V/μm | 200 | 270 | 280 | 300 | |
| Pinholes 3%,12V | Faults/6m | 0 | 8 | 0 | 0 | 0 |
Certifications
ROHS,REACH,UL,SGS
Application:
selfbonding inductance coils:
Inductance coils of products such as toys, sensors,laser magnetic heads, chip inductors,
clocks, high frequency magnetic core transformers.
voice coils:
All kinds of trumpet voice coils
general motors coils:
Motor coils such as electric motors, servo motors, submersiblepump motors, draining
pump motors, brushless motors.
small motors coils:
Small vibration motors(flat,columnar) coils: telephone motors, toys motors, airplane model
motors, small household appliances motors.
contactless IC card coils:
13.56MHz contactless IC card coils, compatible with internal antenna of CPU.
smart card(ID)antenna coils:
Apply to all kinds of smart card antenna coils, rfid tags .
Low frequency 125 KHz, high frequency13.56MHz, ultrahigh frequency2.5GHz and
different shapes of card coils.
high-performance magnetic induction coils:
Apply to magnetic induction equipment of motors illumination, security, wireless
charging and so on, such as infrared induction floor, mobile wireless charging.
Properties:
Imported high quality copper and environmental protection enamel are adopted in the
series of the products to improve tensile strength and uniformity of the film.
It has various ways of bonding with uniform diameter, stable impedance, powerful
adhesive property and wonderful ejection capacity.
Wonderful effect of bonding and range, bright and clean surface are guaranteed.
Technology
Our Services
1.Quality assured, refund guarantee due to quality issue
2.Free sample
3.Factory direct price
4.Shipping on time
Packaging & Shipping

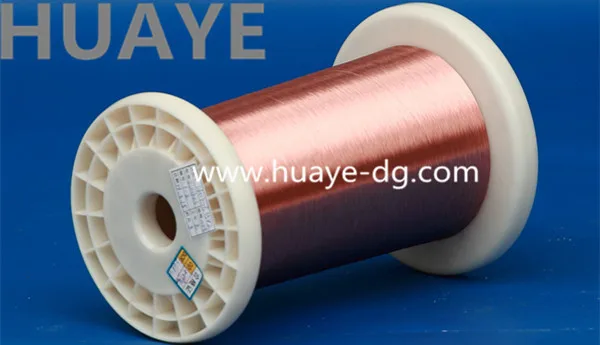

Packing: Inner packing: Plastic Spool of PT-15,PT-10.PT-4,PL-2,PC-1 according to wire size
Outer packing: Carton box and styrofoam or as customer required
Shipping: Sample time: Nearby 3-5days, distance 5-7days. Production time: 7-30days
FAQ
1.What kind of selfbonding copper wire do HUAYE produce?
We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.
2.What's diameters available of the selfbonding wire?
We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.
3.What's selfbonding copper wire?
Self-bonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.
This adhesive has a bonding feature, which is activated by heat or solvents.
Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.
The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications
as bobbins, tape, varnishing, or impregnation may be eliminated.
4. Is possible to get any sample of Self bonding Enamelled Copper Wire that you have in production?
Of course you can!
Company Information
Company Idea: Sincere Trust Unite Create Share
Dongguan Huaye Cables Technology Co.,Ltd was founded in 2003 .
We focus on research and development of self-bonding magnet round silver wire, fine
polyurethane magnet wire,litz silver wire and self-bonding silk covered wire.
Diameters available of our products is Φ0.018-0.50mm
Our annual production capacity reaches to 800-1200 tons.
Huaye insist that “Quality is the foundation of value and respect” .
We are confident that all clients’ requirements are guaranteed.
Copper wire for winding,electrical enameled magnet wire,self bonding,155 class,round,polyurethane
