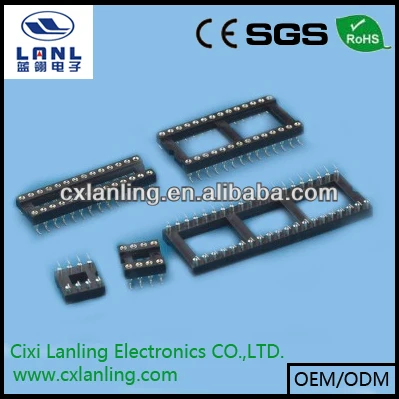

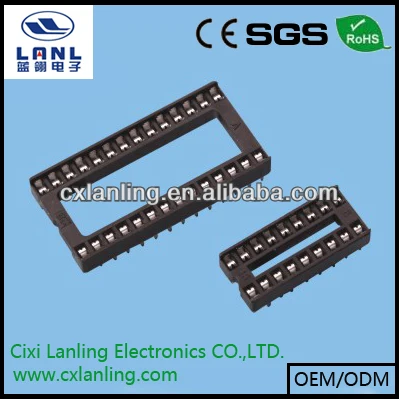

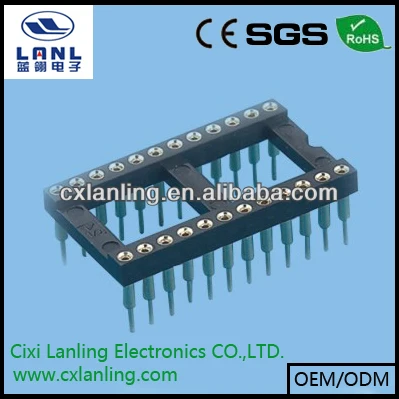

DIP IC SOCKET PITCH 2.54MM PIN LENGTH=11.5/14.3/17.8MM 4P,6P,8P,14P,16P,18P,20P,24P,28P,32P,40P,48P

Product Overview

Description

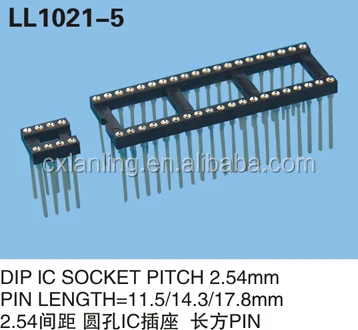

DIP IC SOCKET   PITCH 2.54MM  PIN LENGTH=11.5/14.3/17.8MM

We are manufacture of:





Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.





SIP IC SOCKET
Material:
Insulator:	thermoplastic(ul 94v-0).
Contact:	copper alloy.
Contact plated:	see ordering information.
Specification:
Storage Temperature:	-20-70°C.
Operating temperature:	0-85°C.
Contact resistance:	20mΩMax.(initial).
Insulation resistance:	1000mΩ Min.
Dielectric withstanding voltage:	AC 1000V.



Advantage

1.We are professional supplier.
2.We have its own factorie to ensure competitive prices.
3.Inspections:100%test before delivery.
4.Free samples for your test
5.Fast delivery
7.trail order&small order are acceptable
