Product Overview

Description

PVC coated polyester mesh for safety vests



Product Description



1000DX1000D, 9X9, 8 oz colorful PVC coated polyester mesh is made by High tenacity polyester yarn and reinforced by PVC coating. This vinyl coated mesh is rot resistant, tear resistantm flexible, breathable, and heat sealable. It can be used for satety vests.



Characteristic:



1. Waterproof
2. Mildew proof
3. Tear resistant
4. Acid resistant
5. Artic flexibility
6. UV treated
7. Fire retardant (B1, NPFA701 etc.)
8. Heat sealable







Specificaitons:









Yarn (Denier)	1000 Denier (Warp) 1000 Denier (Weft )
Count Warp Fill	9 ends/inch (Warp) 9 ends/inch (Weft )
Weight (oz./sq.yd.):	8 OZ
Tensile Strength:	(ASTM D-1682) Warp - 165 lbs. min. Fill - 125 lbs. min.
Mullen Burst Strength:	ASTM D-3786 Minimum 300 lbs/sq.in
Cold Crack:	Min. -20 degrees F, 1/8" mandrel
Caliper:	(Fabric thickness) - 45-50 mils
Specific Gravity:	0.6
Fire Retardancy:	Fed.Std.T-191 Method 5903 Modified 30 degree angle. Afterflame - 7 sec. Char length- 2 in.
Other:	Available in widths up to 126" Certain properties can be modified for special requirements.

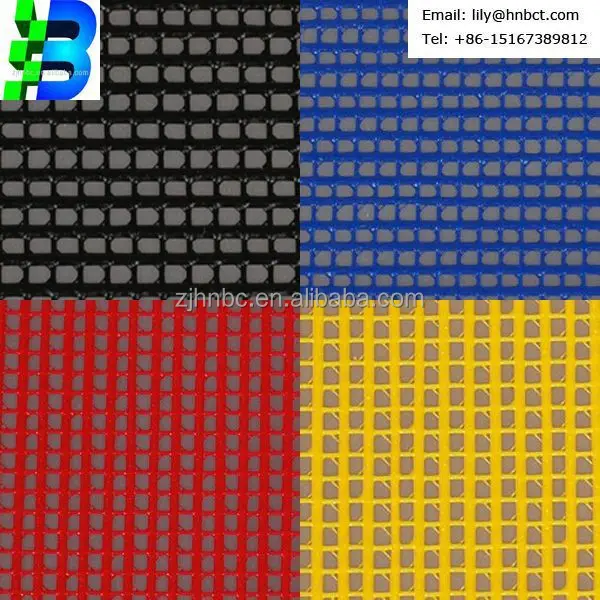

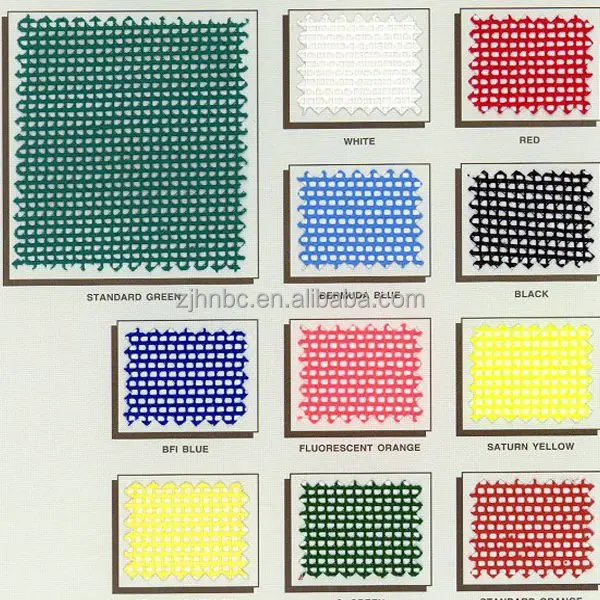

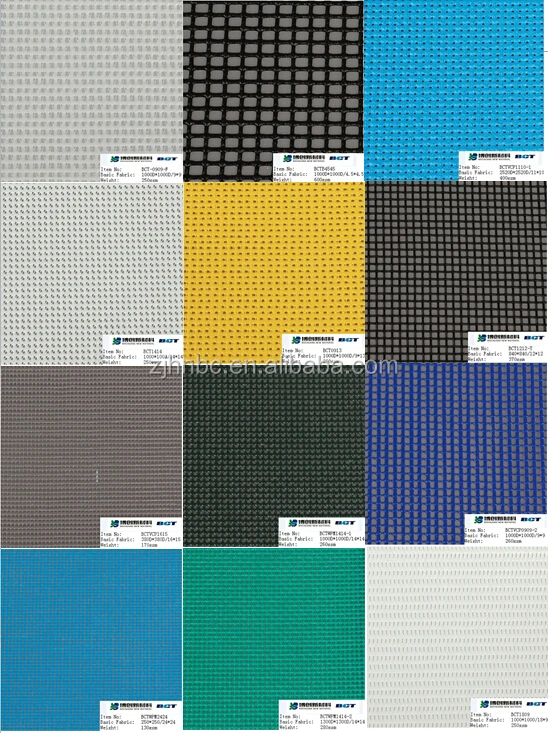

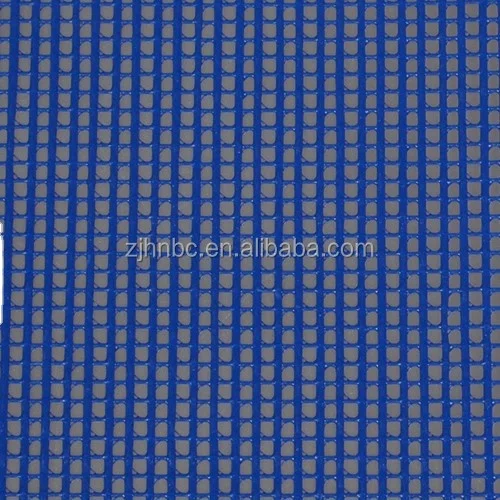

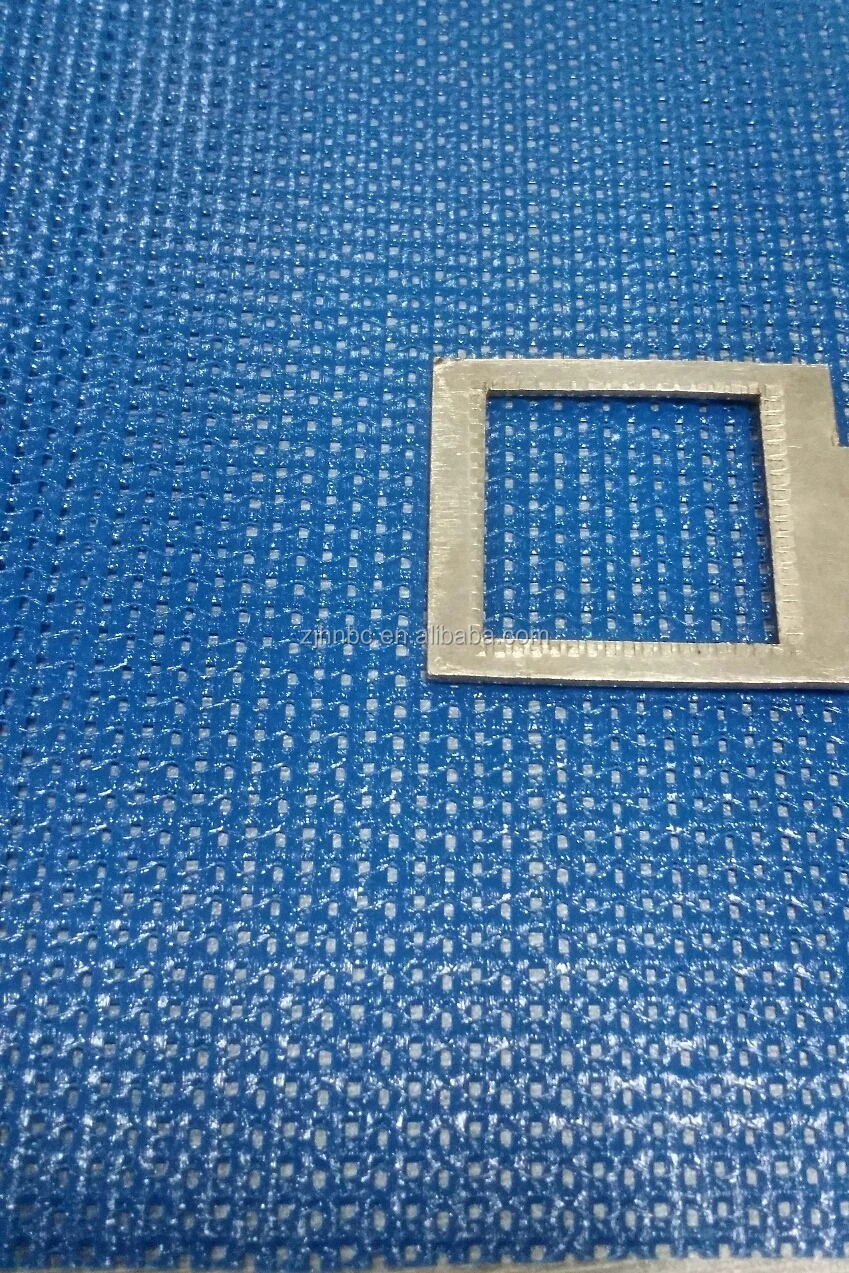

Products picture







Remarks:



Color, weight, width and softness can be customized per your requests.



(If you have any question please contact me .Free samples can be provided)







Package Details



1. Normal package: PE films+craft paper

2. Hard Tube: package: Normal package+Hard tube







Delivery Details



1.  Shipping type: by sea or by air

2. Delivery time: 20-35 days after signing the contract

3. Delivery port: SHANGHAI port









Contact information





Welcome to contact me (Ms. Lily Lu) at any time.
