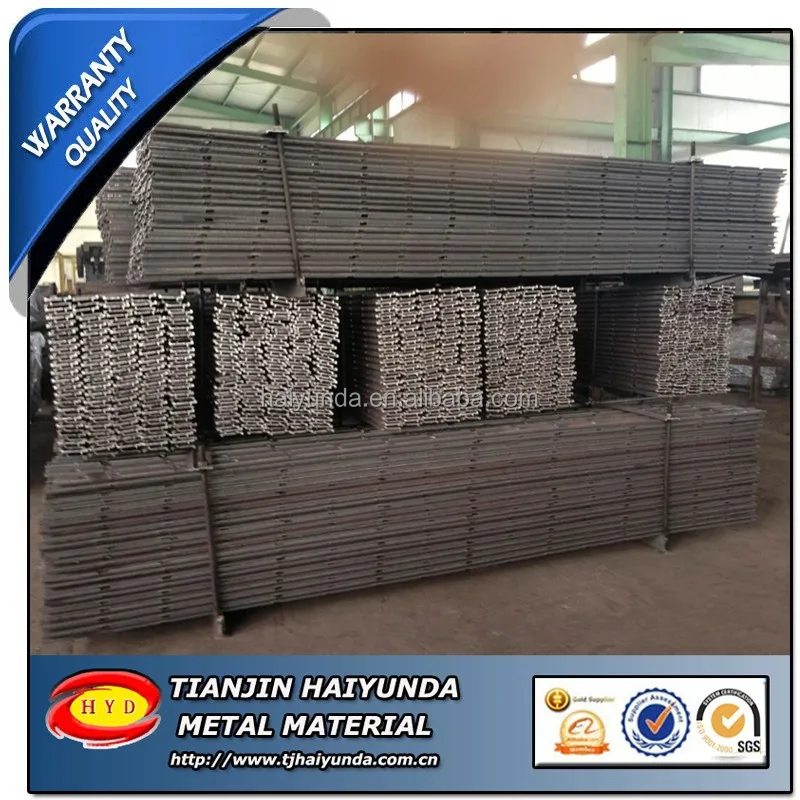

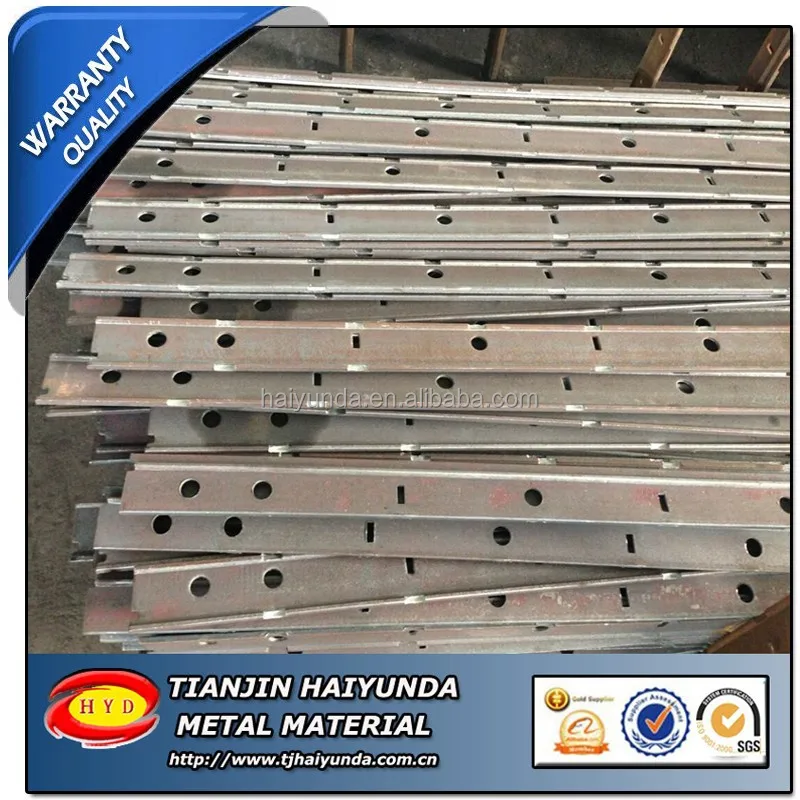

F Section Steel for Euro form, Euro Form Steel, F Profile Bar

Product Overview

Description

 F profile bar for concrete formwork

Specifications

1.Material:45# steel
2.Surface:F Type Flattening

 F profile bar for concrete formwork

Concrete Formwork System Steel Profile

1.Material:ASTM1045 or Q235   2.Shape: F Steel profile  3.Technical processing:hot rolled

CONCRETE FORMWORK SYSTEM



Production  Process :

Product	Remark
Steel frame	F profile bar material: ASTM 1045
Cross member	Size: 30mm×50mm×3mm 35mm×50mm×3mm 50mm×50mm×3mm
Plywood	Thickness=12mm

 F shape material :ASTM 1045

 welding technology



Power painted:



  Install the board:



 Packing:

construction site:



Related accessories:

The concrete form panels are kind of systemized formwork, easy to install and to dismantle for the reinforced concrete construction in any type. The structure of the panels is conveniently designed for various functions, enabling the panels to be reused repeatedly, helping save the costs on materials and reduce the times for work by simplifying and accelerating the process. Consequently it can cut down on the labor costs and expenses. Basic and standard products as well as various products for different types and sizes of constructions are available from manufacturing. Recycling the panel after its life-span can help reduce costs, because we can remove plywood, adjust the frame and the angle, get rid of the impurities, carry out coloring and finally attach the new plywood. The recycled forms still perform as good as the new ones, with substantially reduced costs. Other types of recycled panel are those who combine the recycled frames and the used plywood which is still in good condition.
