Pulp and Paper machinery low consistency ceramic cone cleaner

Product Overview

Description

Pulp and Paper machinery low consistency ceramic cone cleaner

Operating principle

Low density cleaners is based on the principle of the vortex centrifugal separation,a certain pressureslurry along the tangent direction into the inlet, with high-speed vortex running in the cone seperator body.Axial vortex near the separator wall in the directed toward the end of the cone,the heave impuriities in the slurry is thrown to the wall,along the spiral grooves that from the bottom reject the slags.Accepts run to the separator tube center become the main pulp flow,and come out from the upper accepts outlet,then come into the next process.

Technic datas

Pulp inlet capacity: 1800L/min

Pulp inlet pressure: 0.10-0.30 MPa

Pulp inlet consistency: 0.5-1.2%

Slurry temperature: <80 degree

Application

• For waste paper recycling.


• Remove minute rough granules,foams,plastics etc.

Advantages

1.Industrial factory for paper making process machinery parts.

2First-class engineers.

3.Cleaner efficiency.

4.Modular designs.

5.Easy installation and maintenance.

Characteristics

• Special abrasive resistance material ensures durable.


• Adopted advaced centrifugal clarification technology to make sure high accepts cleanness with high efficiency.


• Closed reject discharging system result in more clean operating environment.


• Easily to assembly and disassembly and change with fission construction.


• Compact conformation,cover small floor area.

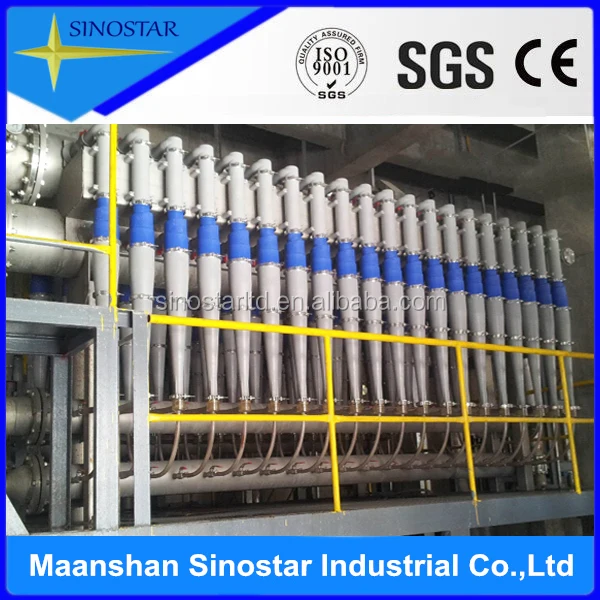

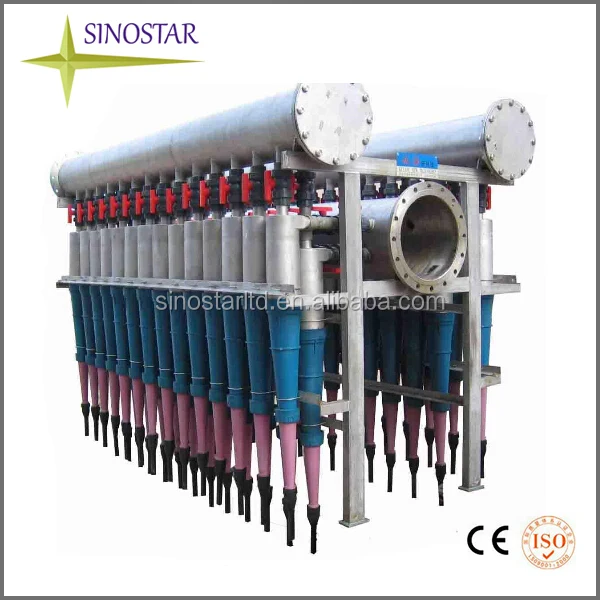

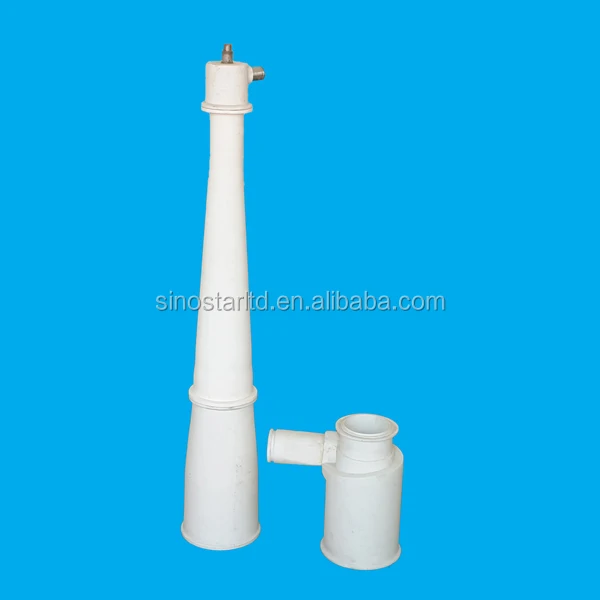

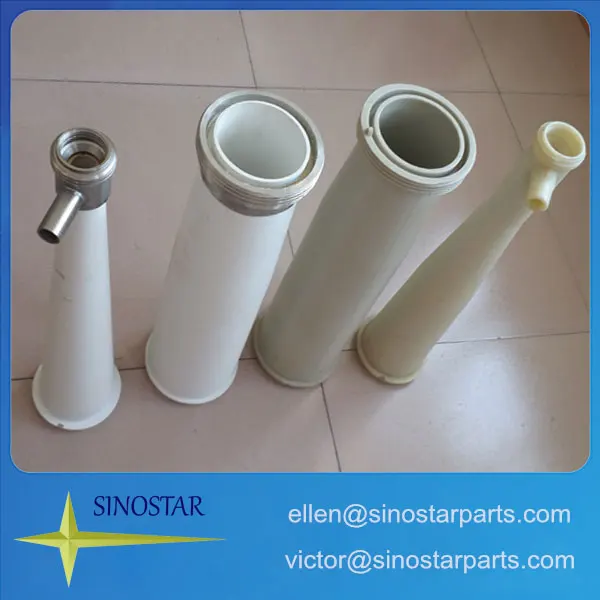

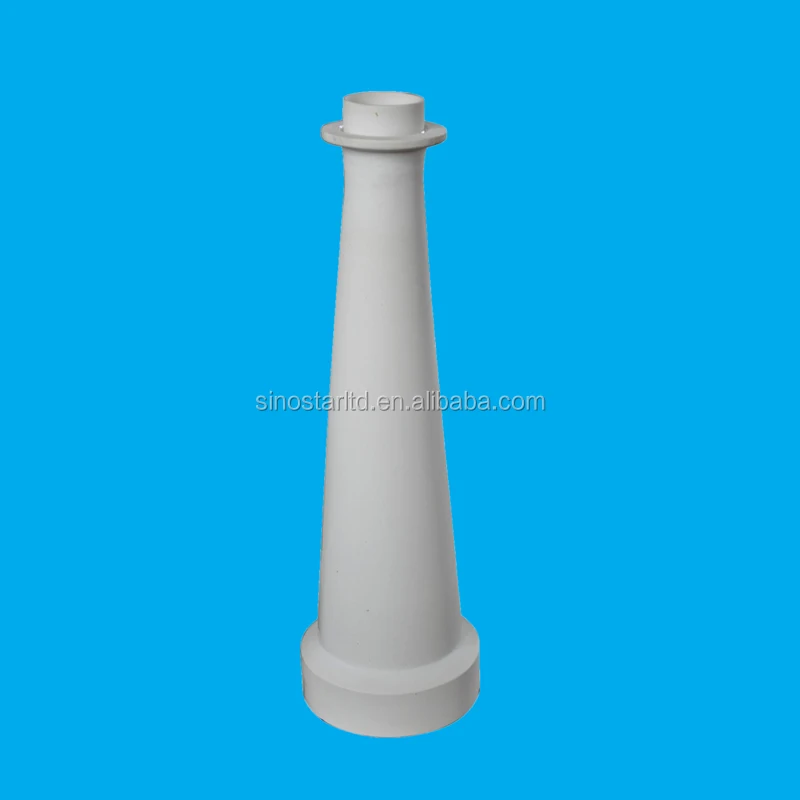

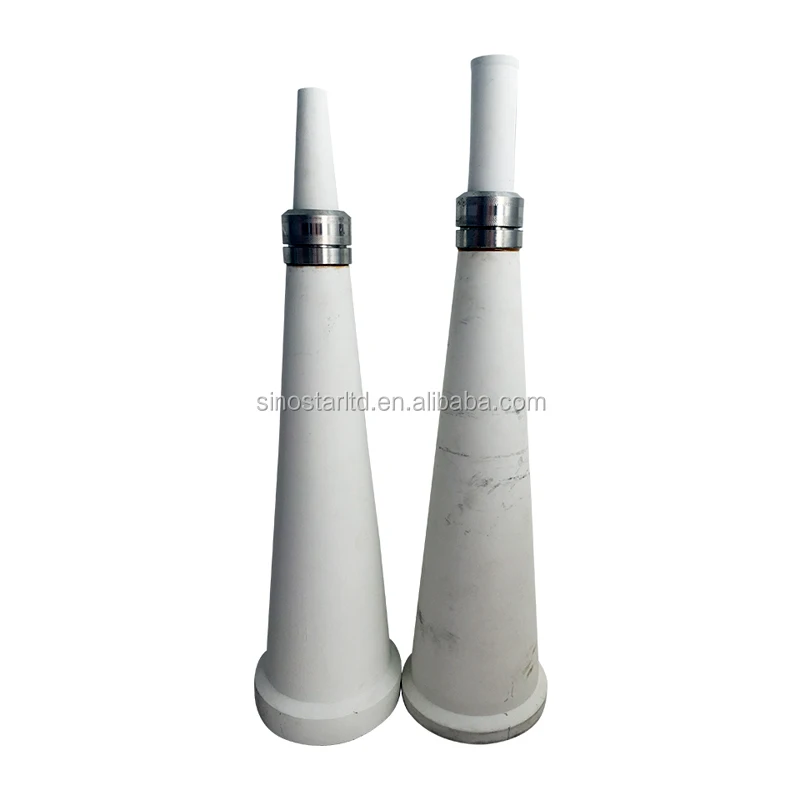

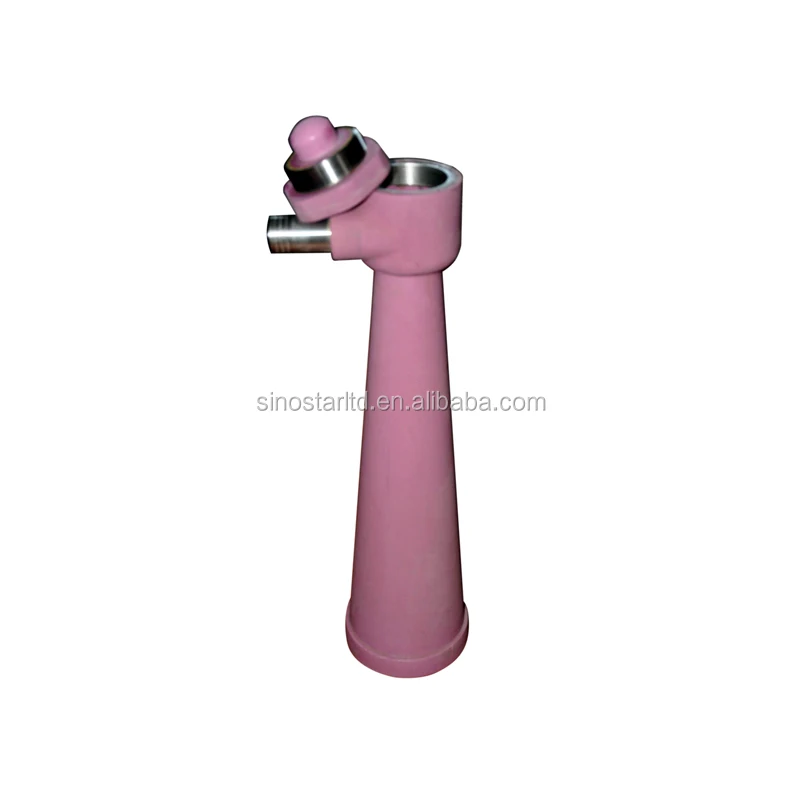

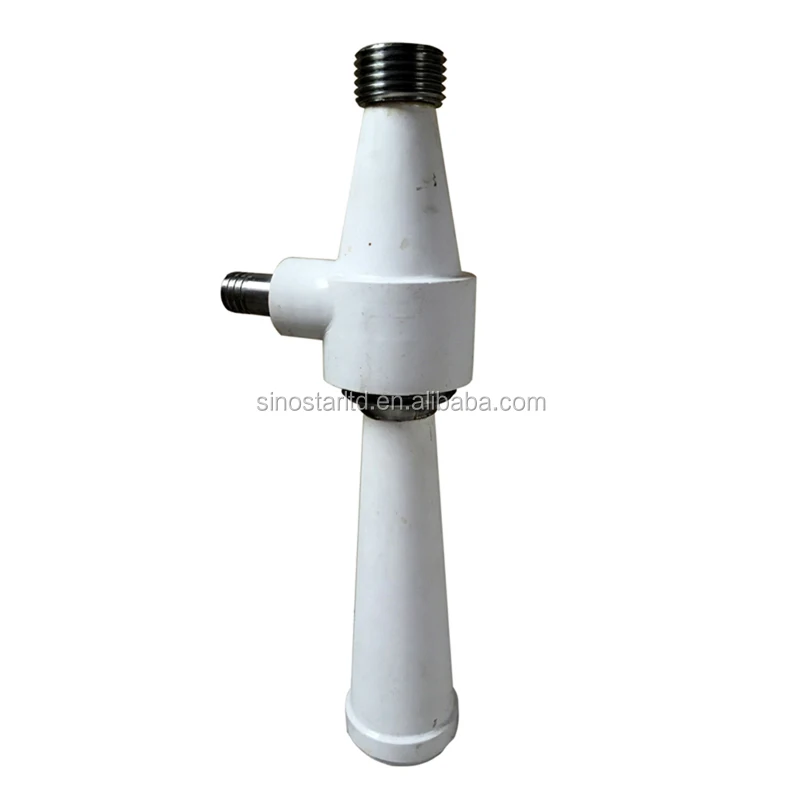

Product show
