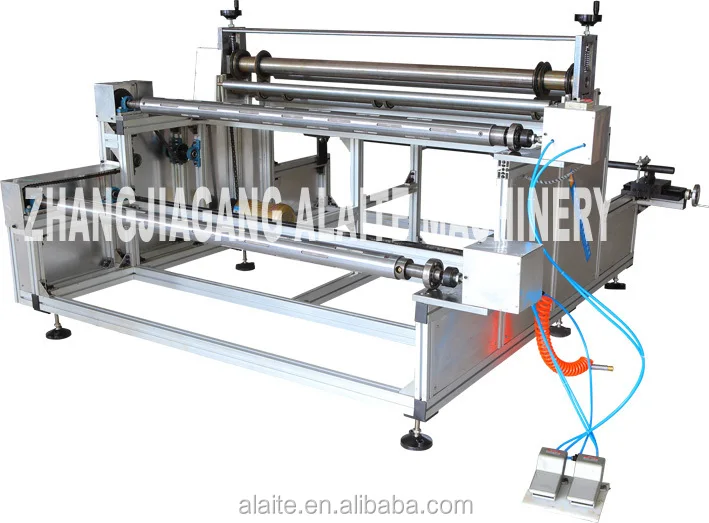

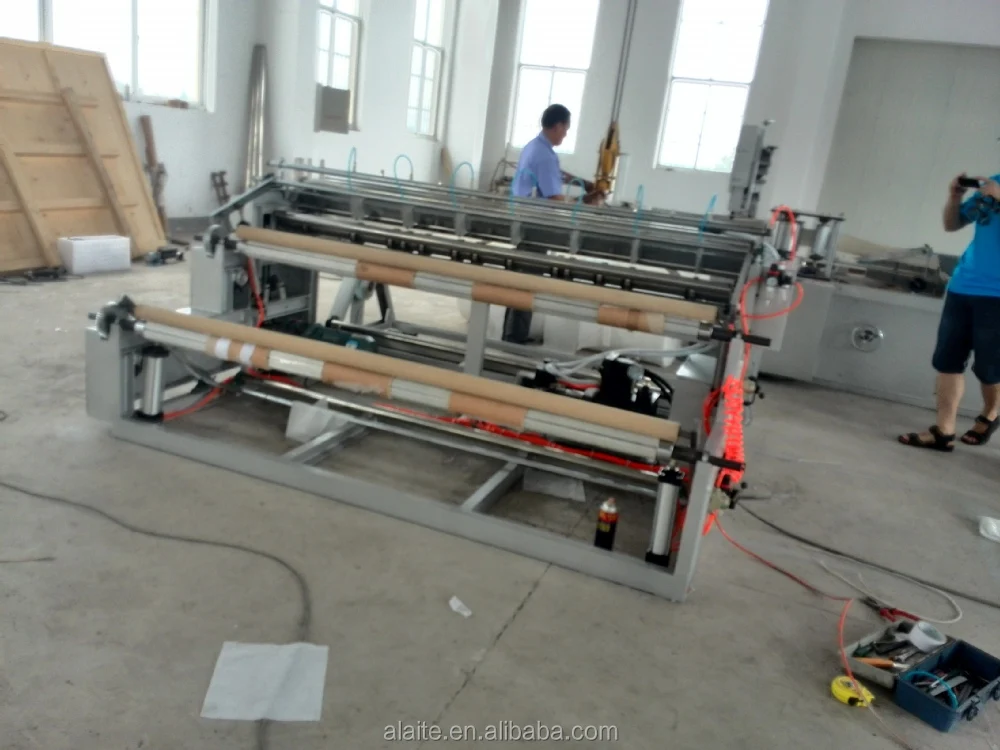

ALT 1600 CUTTING MACHINE

Product Overview

Description

PERFORMANCE CHARACTERISTICS:

This machine is available with slicing knife and circular knife. It can used for cutting many kinds of paper materials, non-woven fabric, toilet tissue and all kinds of plastic films. It can reel from up and sown synchronously to avoid phenomena such as overlapping of same axis, uneasiness to separate etc. Reeling and unreeling are by air shaft, so it is easy to operate.



CONFIGURATION INTRODUCE:

1. 1.     Frequency motor
2. 2.     unwind and rewind are by air shaft
3. 3.     rewind has one or two

a. cutting width between 30-50mm alternatively, suggest use two 2 rewind

b. cutting width above 50mm use 1 rewind

1. 4.     Pneumatic knife has 6 sets blade (another count charges beyond the standard blade)
2. 5.     With aluminum alloy rack, non-rusty and more beautiful appearance
3. 6.     Cutting machine width can be customized according to customer needs
4. 7.     Cutting Specifications are free to adjust,narrowest 30mm



SPECIFICATION:

Type	Power Supply	Power	Designed Speed	Dimension
ALT-1600	AC380V 50HZ	1.5kw	50m/min	2000*1500*1200mm

NW:900KG

GW:1000KG

Packing size:2000*1800*1520mm

Main technical parameters:

Maximum diameter of unwind: Φ1000mm

Unwindcorrective device(optional) deviation: ≤±1mm

Unwind paper core diameter:φ76mm(Or according to customer requirements)

Minimum slitting width: 30mm

Slitting speed: 0-60m/min

Slitting accuracy: ±1mm

Material gram: 10-150g/m2

Maximum diameter of rewind: 800mm

Rewind paper core diameter: Φ76mm(Or according to customer requirements) Device configuration instructions

Unwind and rewind roll: Inflatable tube (2pieces)

frequency conversion velocity modulation

Pneumatic knife:six sets

Correction device (optional)



configure

tool 1 set

Magnet powder Tension

inflated mouth 2 pieces



Quotation:ALT-1600 CUTTING MACHINE

 Payment: After 30% of the total value is paid in advance by (T/T), The left 70% should be paid by (T/T) after you check up the finished machine. And the cargo will be delivered after all the payment arrives at our account.

Delivered time: 45days after confirm the order

Warrant term: 1 year

Package: Wooden Packing

Installation and test: The buyer should pay the round tickets and our engineers $100 per day if you need our training and installation abroad.
