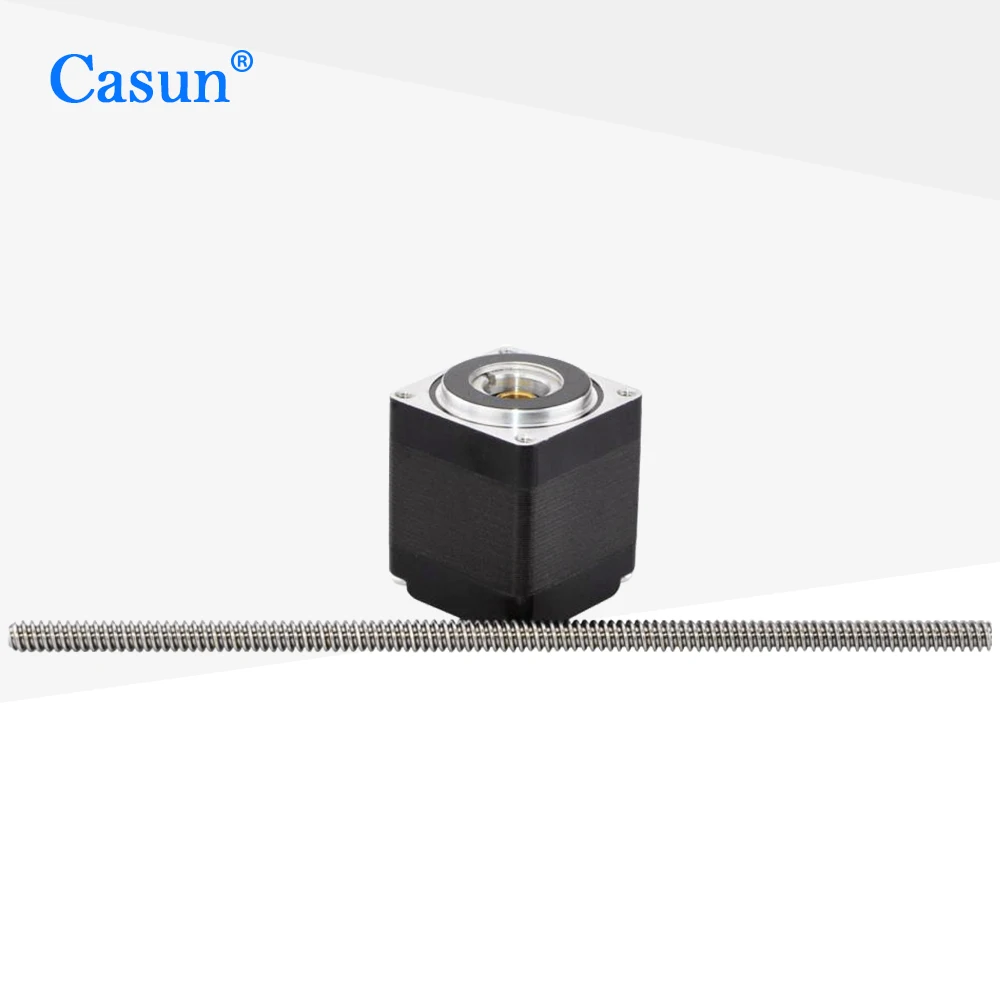

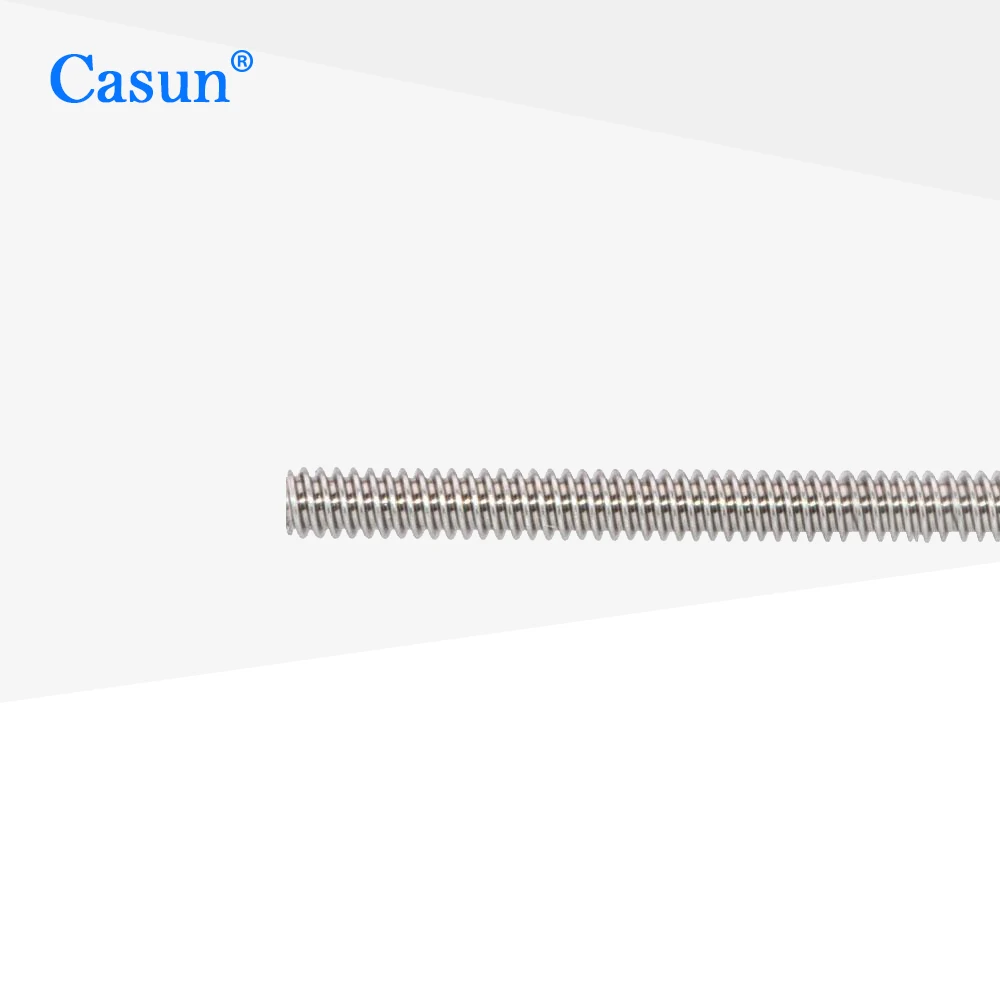

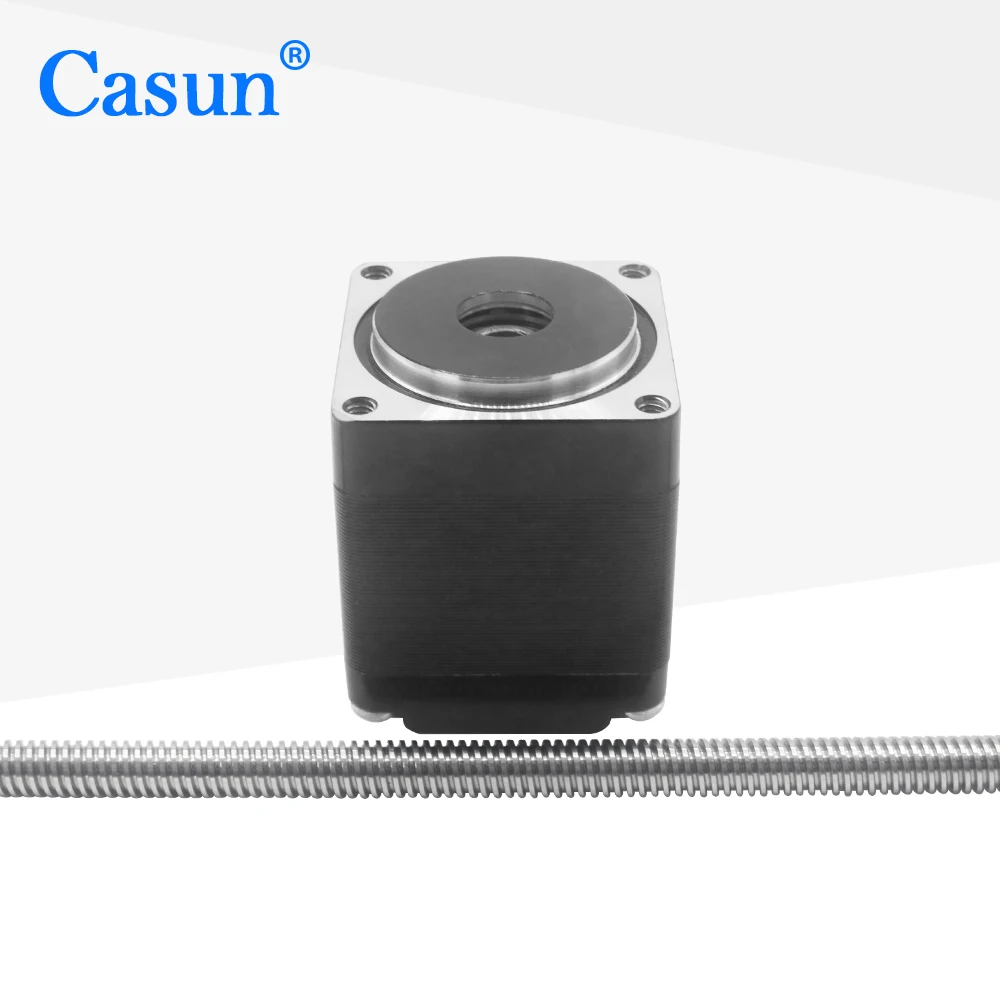

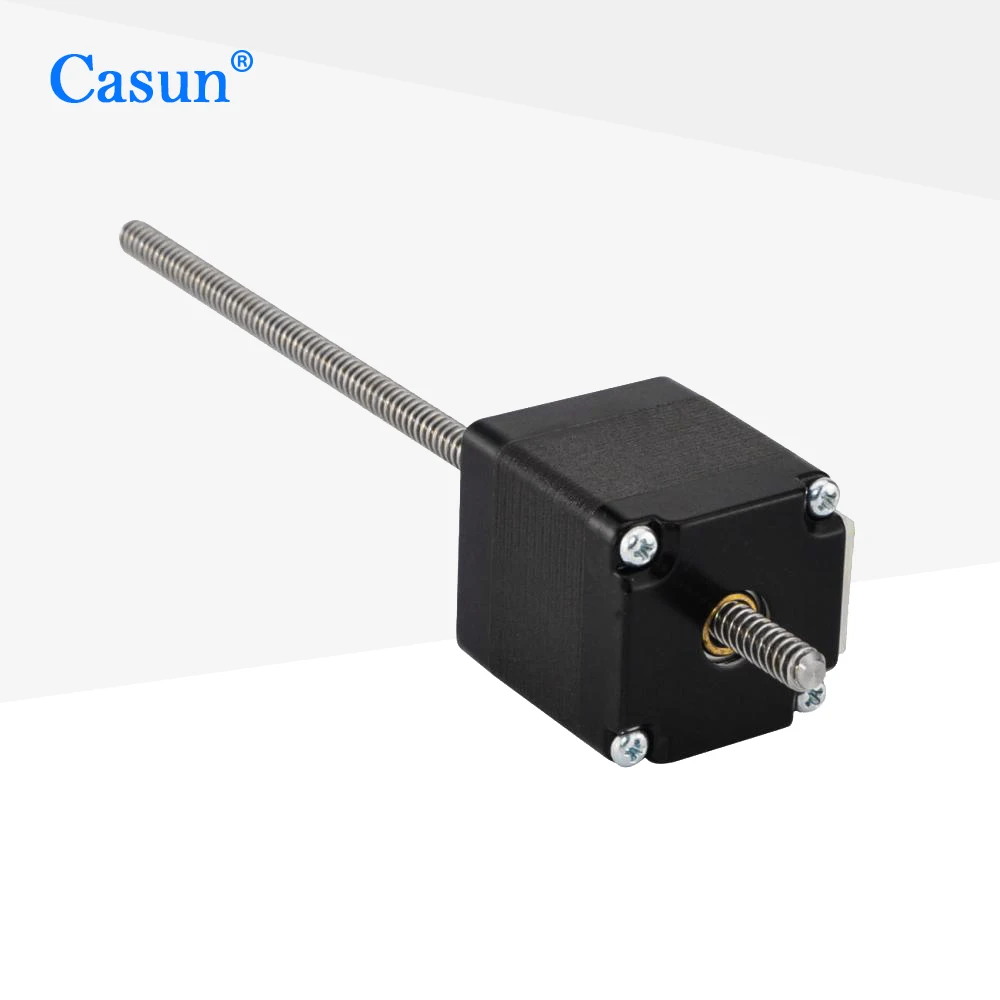

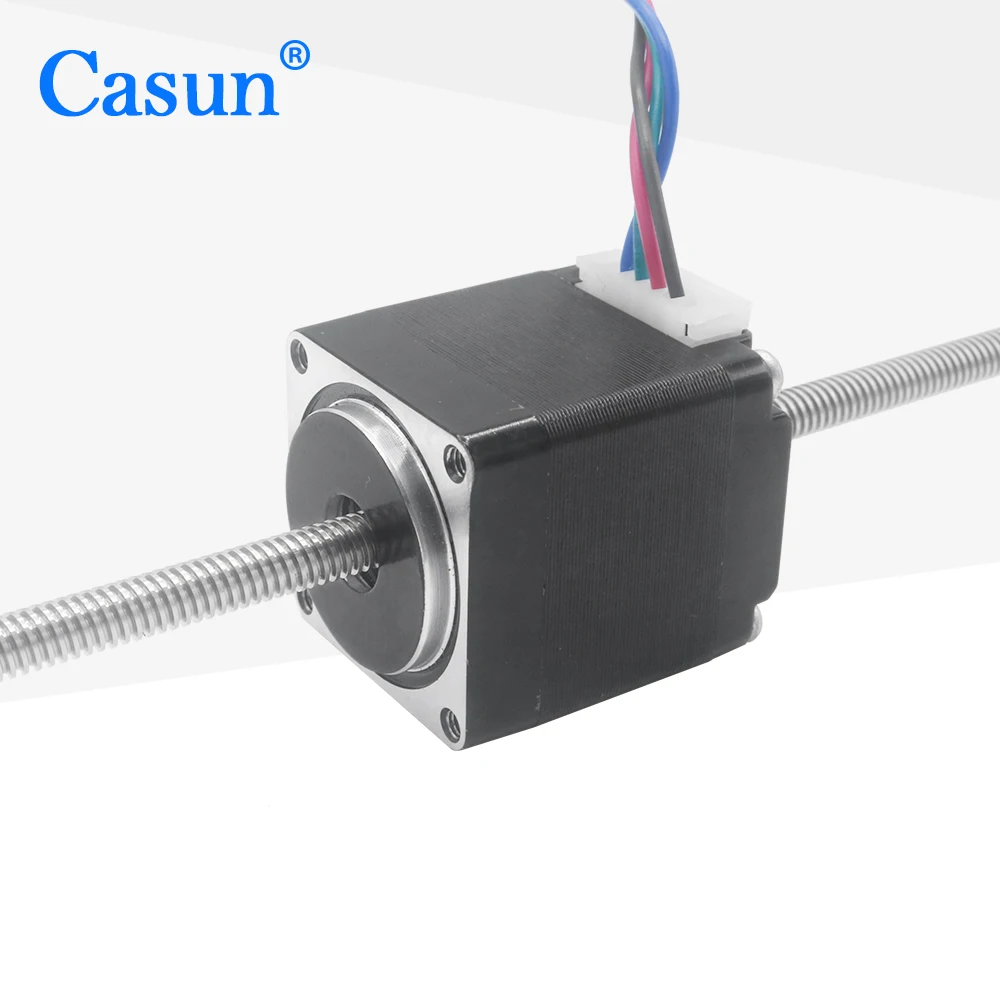

NEMA11 lead screw motor Amazing Price Tr5 non captive stepper motor nema 11 hollow shaft stepper motor for Medical equipment
- Category: Motors >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (60127785914):
Product Overview
Description
Related Products
Product Description
Product Name | 28SHD4202-03TL |
Step angle | 1.8° |
Number of phase | 2 |
Rated voltage | 3.75V DC |
Rated current | 0.67 Amp |
Holding torque | 50mN.m |
Detent torque | 5mN.m |
Resistance per phase | 5.6Ω±10% |
Inductance per phase | 3.9mH±20% |
Rotor inertia | 9g.cm² |
Motor Weight | 0.12kg |
Insulation Resistance | 100MΩmin.(500V DC) |
Insulation Class | Class B |
Product performance description
产品性能介绍说明
产品性能介绍说明
Features:
1.Uniform speed:high inner hole accuracy, stable and accurate speed in the working process without losing step
2.Stable structure: the motor rotor surface is coated with imported epoxy resin, the rotor is sealed as a whole,and cured at high temperature.The rotor is not easy to process residues such as iron pin after processing the outer circle.
3.Stable speed: the motor has high overall stability,even speed and low noise.
Company Introduction
Guangzhou Fude Electronic Technology Co., Ltd., established in 2011, engaged in stepper motor research , development, production and sales , are one of the hi-tech enterprises. After several years of technology researching and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and meet customer's requirements , we all try our best to customize the motor and provide solutions.
Our company has numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.
Our company has numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.
Certifications
Packing&Shipping
FAQ
Q: How to choose a motor to match my machine
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
Q: If I need a special motor , can you manufacture
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
Q: Can I order samples first
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please let us
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
Q: If I need a special motor , can you manufacture
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
Q: Can I order samples first
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please let us
