RTD Pt100 WZP 231

Product Overview

Description

1. Name :  PT100 Thermal Resistance  WZP-231



2. PT100 RTD Abstract



Usually and display meter, recording meter, electronic computer and other systems. Direct



measurement of all kinds of production in the process of -200 ° C to 500 ° C range of liquid,



steam and gas medium and solid surface temperature.





3.PT100 RTD  Thermal Response Time



1). Pt100 Thermal Resistance



2) Class A  Thread:1/2NPT



3) Temperature Range:-50-300C



4)Total Length:250mm



5)Insertion Length:150mm



6)Diameter:12mm



4.PT100 RTD Measuring Range and Tolerance





Type	Graduation	Measuring Range°C	Accuracy	Tolerance
WZP	Pt100	-200~+500	Class A	±(0.15+0.002) |t|
			Class B	±(0.30+0.005) |t|
WZC	Cu50 Cu100	-50~+100	—	±(0.30+0.005) |t|

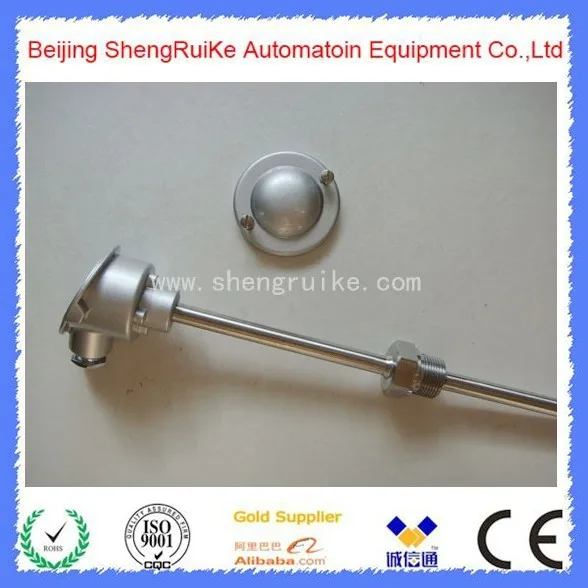

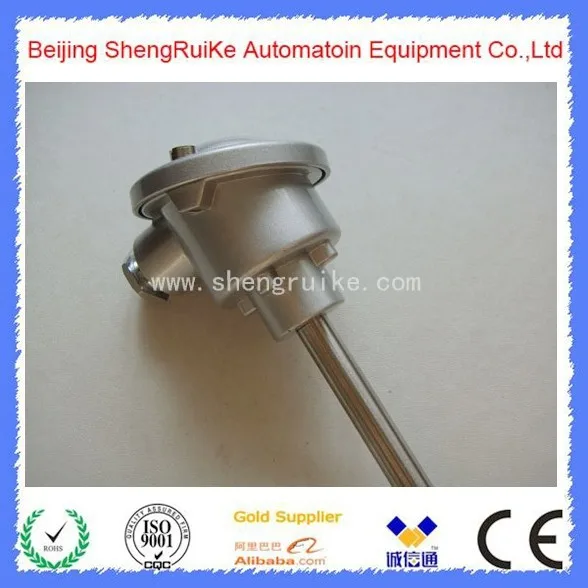

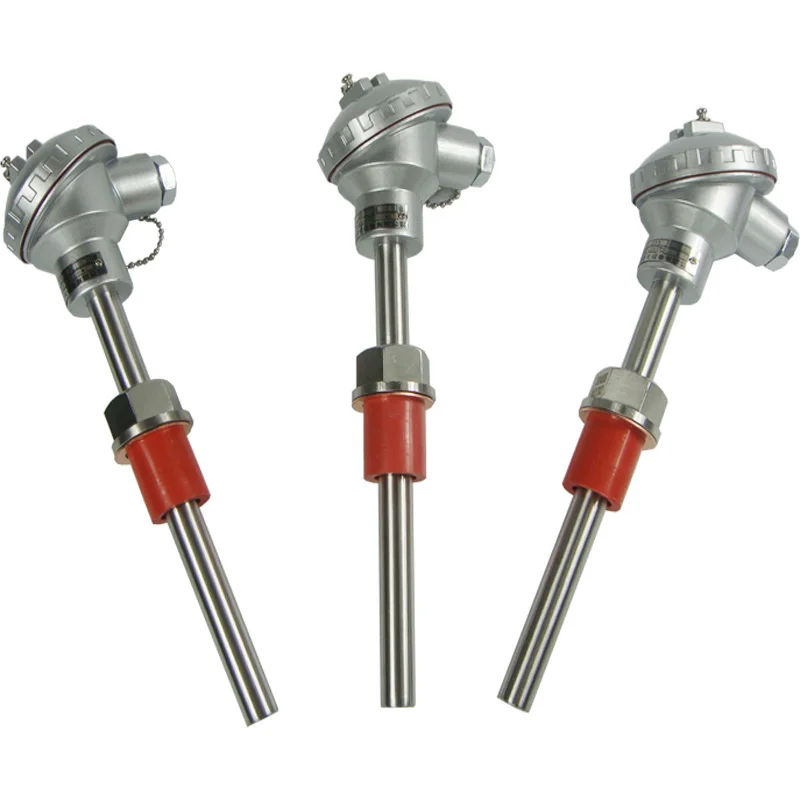

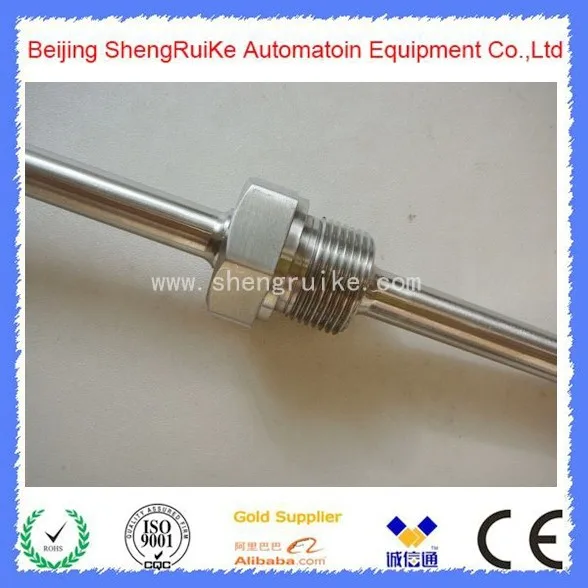

5. PT100 RTD show
