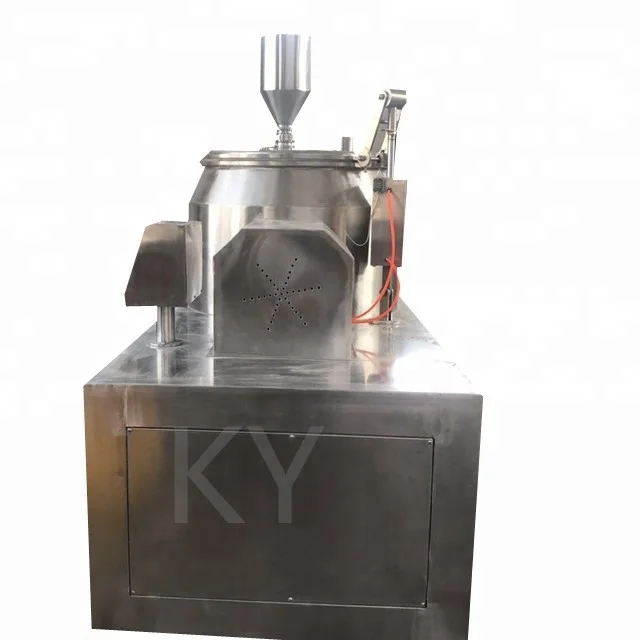

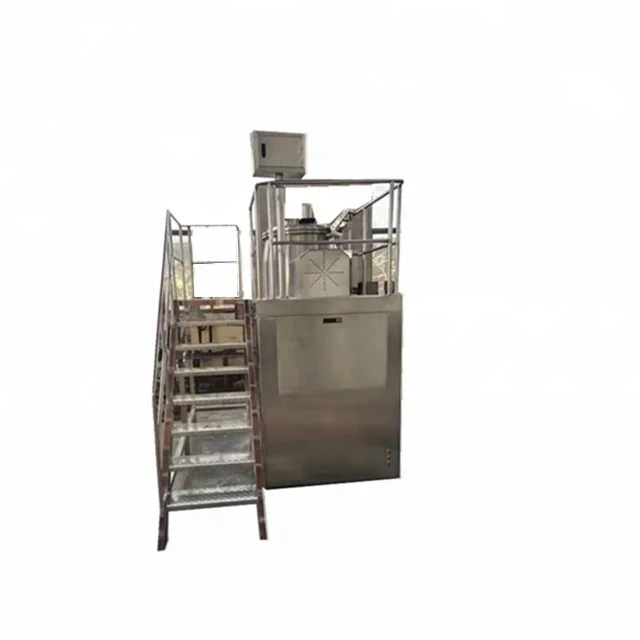

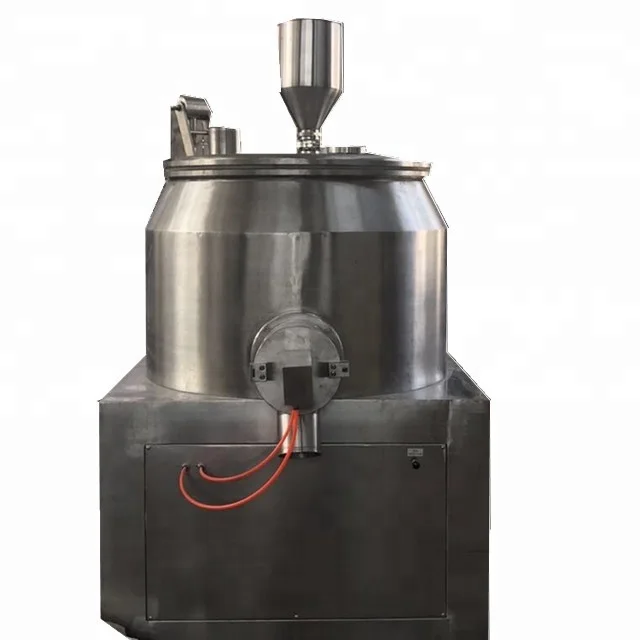

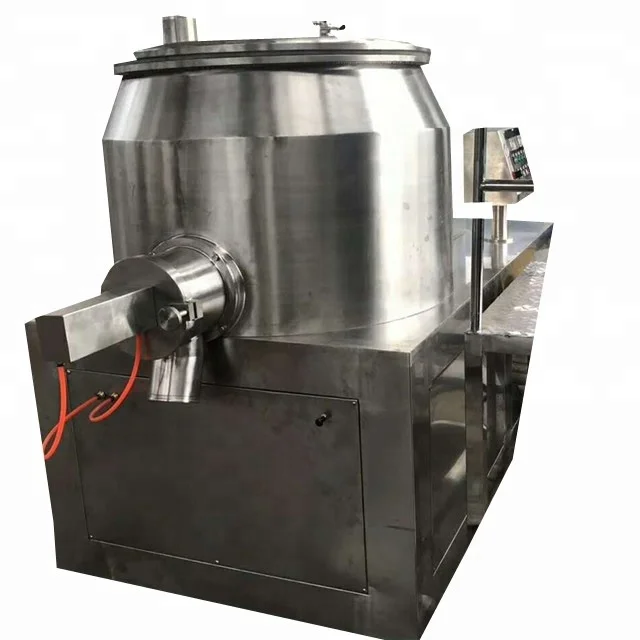

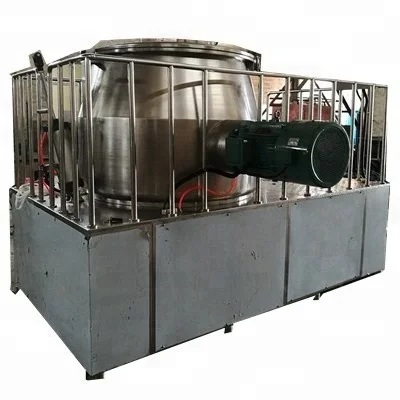

GHL Granulator for Wet type Powder

Share on (60128032140):


Price:

Quantity:


Product Overview

Description


                                  GHL high efficiency wet method and mixer pelletizer



Specifications



The mixing granulating machine is a high efficiency mixing granulating machine
The mixing granulating machine is to make the po

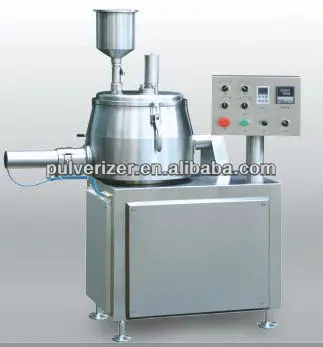

GHL Series High Speed Mixing Granulating Machine



Principle
The powder raw material and adhensive in a cylinder are mixed fully at the bottom to become a humid soft material. Then it is cut through high-speed crusher and become uniform granules



Features
The machine adapts horizontal cylinder structure. Its structure is reasonable;

Use air filled seal shaft to drive. When washing it can be changed to water;
Use fluidization to Granulate and the granule is near ball. Its flow is good;
Compared the traditional process, 25%of adhesive can be reduced and the daying time can be shorted;
The time of mixing in dry is 2 minutes and the time of granulating is 1~4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;
In the same sealed container, dry mixing, humidity mixing and granulating can be finished. It is in conformity with the requirements of GMP;
The whole operation has strict safe and protective measures.



Technical Parameter

item

specifcation

name

unit

10

50

150

200

250

300

400

600

capacity

L

10

50

150

200

250

300

400

600

output

kg/batch

3

15

50

80

100

130

200

280

admix speed

r.p.m

300/600

200/400

180/270

180/270

180/270

140/220

106/155

80/120

admix power

kw

1.5/2.2

4/5.5

6.5/8

9/11

9/11

13/16

18.5/22

22/30

incise speed

r.p.m

1500/3000

1500/3000

1500/3000

1500/3000

1500/3000

1500/3000

1500/3000

1500/3000

incise power

kw

0.85/1.1

1.3/1.8

2.4/3

4.5/5.5

4.5/5.5

4.5/5.5

6.5/8

9/11

overall dimension

m

1.35*
0.7*
1.15

1.65*
0.85*
1.35

1.8*
0.8*
1.4

2.1*
0.85*
1.5

2.05*
0.85*
1.5

2.2*
0.9*
1.55

2.35*
1.05*
1.55

2.4*
1.05*
1.65

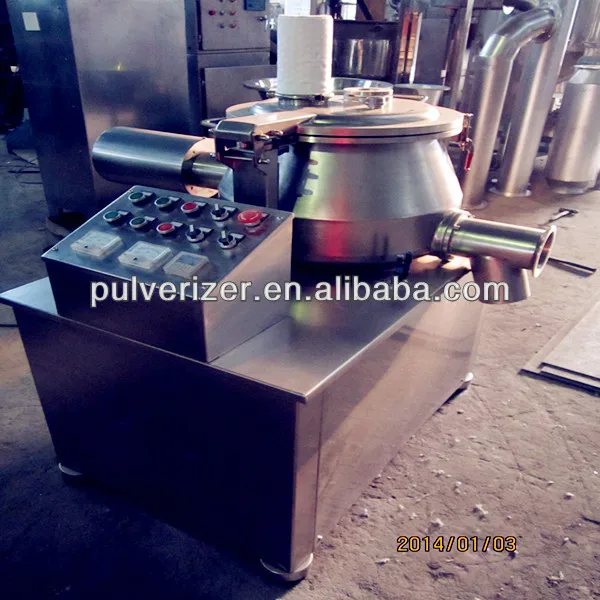

IMG_5512_

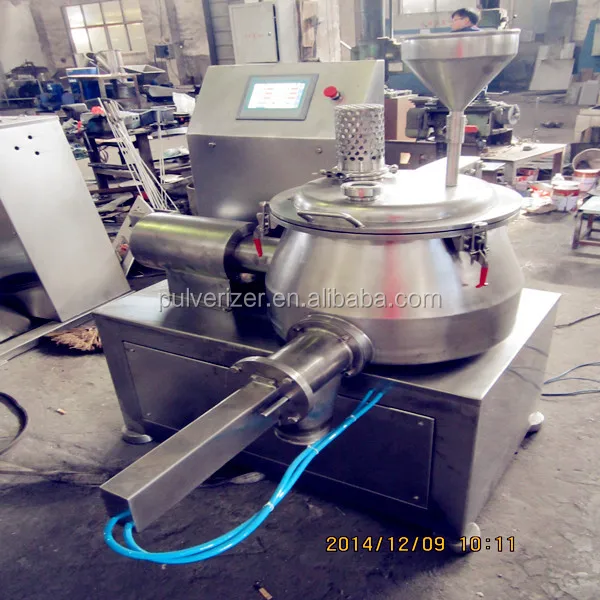

IMG_0044 (102)_.jpg





Warranty

One year



Buyer Feedback

skype_









Packing transport:











The workshop show:





IMG_4481_





Company Information

  Jiangyin kaiyue Machinery Manufacturing Co., Ltd. (Jiangyin zhutang Kaida Machine Manufactory), located in the hundred counties (beautiful southern town - Zhu Town, Jiangyin City). east to Shanghai, south to Wuxi, north to fourth in the world, first in Asia, The Jiangyin Yangtze River Bridge, Located in Suxichang "golden channel", is the Shanghai-Nanjing and Xicheng Expressway Interchange, Port traffic is very convenient land and water, with its unique geographical advantage is a good place for guests to visit. The existing factory covers an area of 13.5 thousand square meters,Construction area of 5800 square meters, Fixed assets of more than 500 million. Science and technology is strong in manufacturing machinery equipped with modern testing equipment. Production of main products are: series of pharmaceutical machinery, food machinery series, three categories of chemicals and machinery products. Crushing, sieving flour, mixing, granulating, packing, transportation, filling, washing and other series of machines. There are the tunnel oven, RXH-A Oven, RXH-B glass baking series, SZG double cone rotary Vacuum Dryer, boiling dryers, YZG round, FZG a square drying machines and other 16 kinds of products. Advanced manufacturing technology, reliable quality assurance, product specification is complete, Selling more than 20 provinces and cities nationwide, in the users enjoy a high reputation. Our promise is: quality of survival, in order to benefit development, reputation and customers. We sincerely welcome customers come to our factory to visit the guidance. Create a better future!
