Product Overview
Description
Aluminum Alloy Frames using in screen printing
Product Description
Introductinon:
PSF series aluminum frames are designed for international customers basically, especially for textile screen printing industry of North American and West Europe markets. It's the best choice for using on automatic textile screen printing machine or manual carousel.
All frames are welded by MILLER welding machine imported from U.S.A.
Specifications

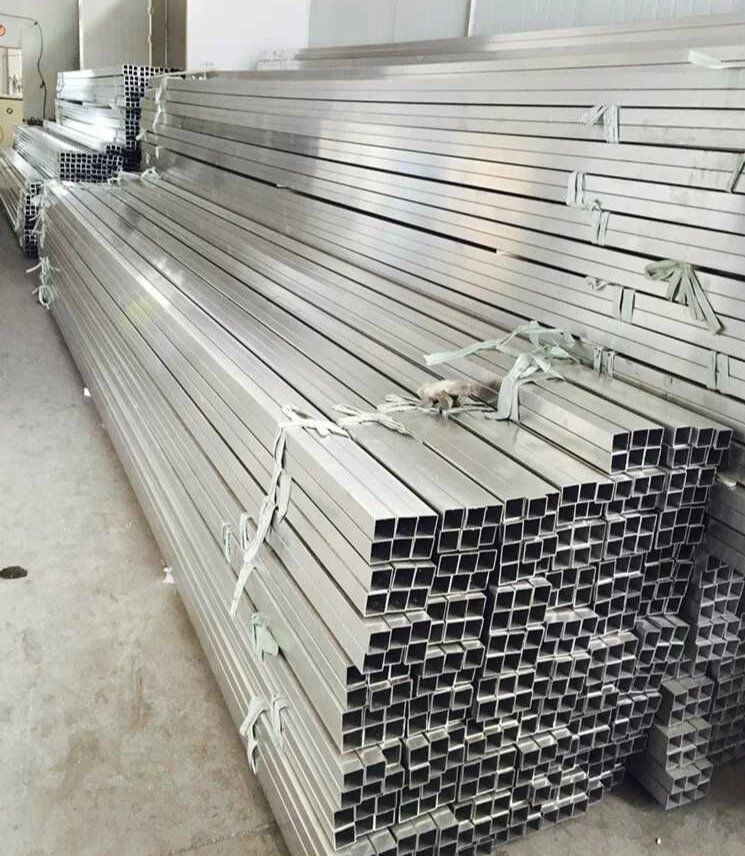

- Square tube profile from 35x35 to 40x40 mm;
- Square tube thickness from 1,4 to 2,5 mm;
- Tube hardness is more than 14 HRC;
- For textile screen printing mainly;

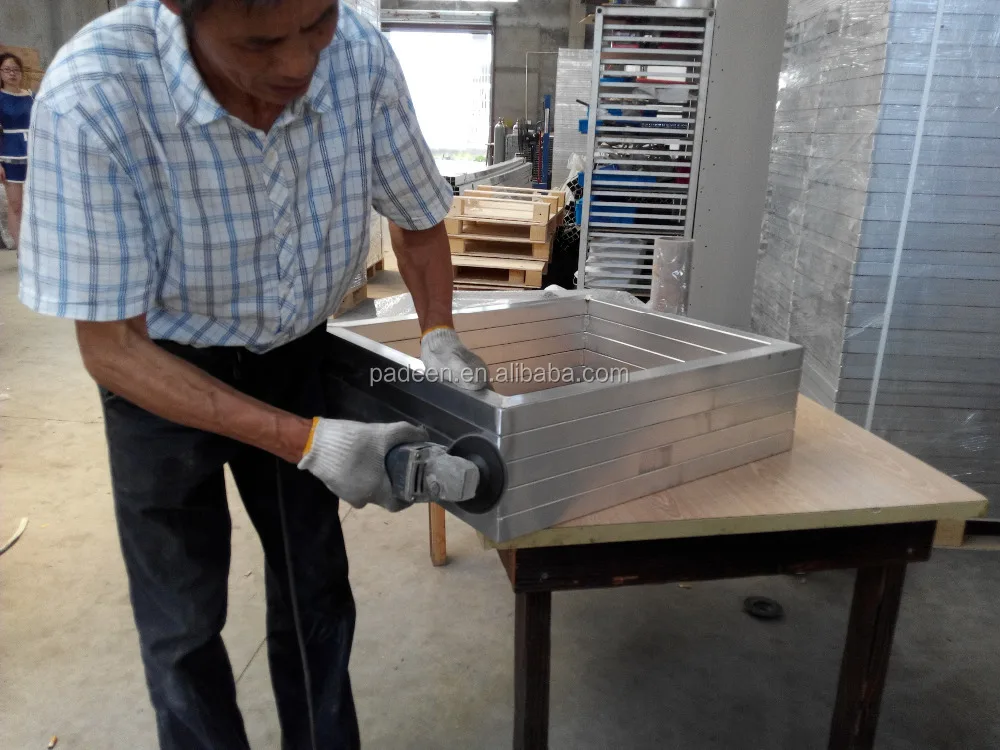

- Sandblasting or grinding on mesh side;
- export to USA, Canada and Europe markets;
Characteristics:
PSF series aluminum frames can fulfill customers' demands and welded for great mesh adhesion. All corners are completely sealed to prevent ink/water from leaking. One side is specially prepared to make fabric adhesion fast and easy. Optional corner reinforcement is available for any frame size. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability.
Technical Datas:
* Outer dimensions: +/-0.04"
* Square angle: <2
* Flatness: not exceeding 0.02"
* Distortion: not exceeding 0.08" at standard tension with standard frames' size
* Finish: grinded or sandblaste
Aluminum Screen Printing Frame Specification:
| Tube’s Profile | Outer Dimension |
| 1,0"x1,5"x.63" | 20" x 24" |
| 1,375"x1,375"x.63" | 20" x 24" |
| 1,0"x1,5"x.78" | 23" x 31" |
| 1,5"x1,5"x.63" | 23" x 31" |
| 1,5"x1,5"x.63" | 25" x 36" |
| 1,5"x1,5"x.70" | 25" x 36" |
| 1,0"x1,5"x.70" | 30" x 40" |
| 1,0"x1,5"x.78" | 30" x 40" |

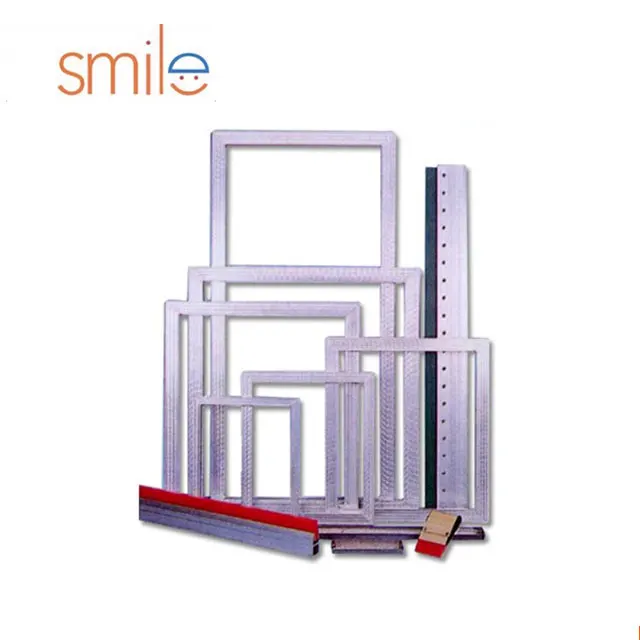

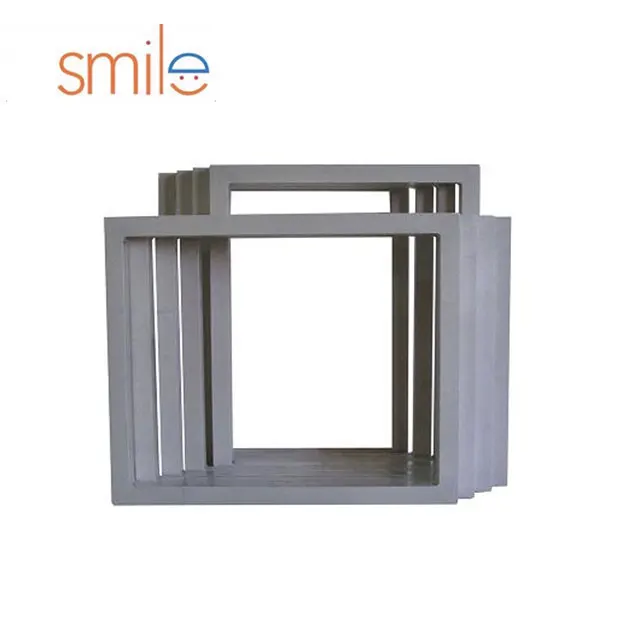

Finished Products:
Package and Loading
