IY Types Of Oil Pumps/oil pump use/oil field pumping units
Product Description
Product Information:
IY Types Of Oil Pumps/oil pump use/oil field pumping units is single suction, single-stage, cantilever centrifugal pumps, used to transport water or non-corrosive liquids. The highest temperature is 80 degrees centigrade, the working pressure (inlet pressure + maximum lift) is 1.6MPa, according to users’ requirements we can also provide a pump working pressure greater than 1.6MPa. So this pump is ideal for a more high inlet pressure (such as air conditioning, heating and other closed cycle) occasions. Pump seals are with soft packing seal and mechanical seal. Materials: pump body, pump cover: ordinary cast iron or ductile iron; impeller: cast iron or bronze; shaft: carbon steel or stainless steel.
Structure chart:
Technical data:
Structure: single stage Material: cast iron
Flow: 2.7-75 m3/h Head: 3.2-127 m
Temperature: up to 80℃
Application:
IY Types Of Oil Pumps/oil pump use/oil field pumping units is suitable for conveying non-corrosive oil and oil products containing no solid particles, and viscosity of less than 12 mm stroke, the medium temperature is 20 ℃ ~ 80 ℃, the inlet allowed pressure is 0.3 MPa.
Model description:
IY50-32-125A
IY ----------- Single stage single suction centrifugal oil pump
50 ---------- Inlet diameter 50 mm
32 ---------- Outlet diameter 32 mm
125 -------- Diameter of the impeller 125 mm
A ----------- A,B,C refer to the first, the second, the third trim after the impeller respectively
Performance parameter:
For other models information, please CLICK HERE >>>>>>

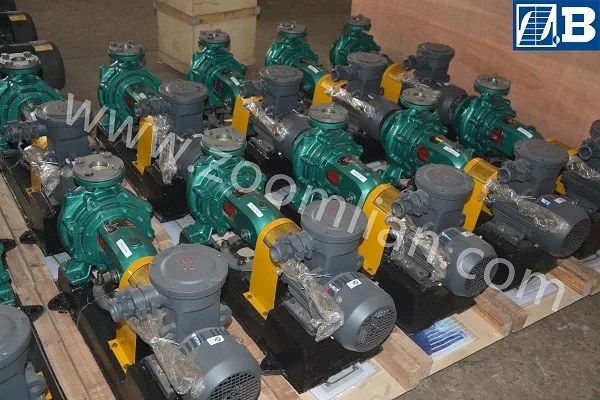

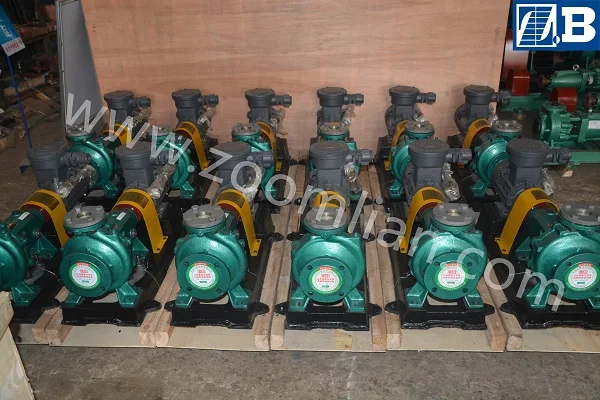

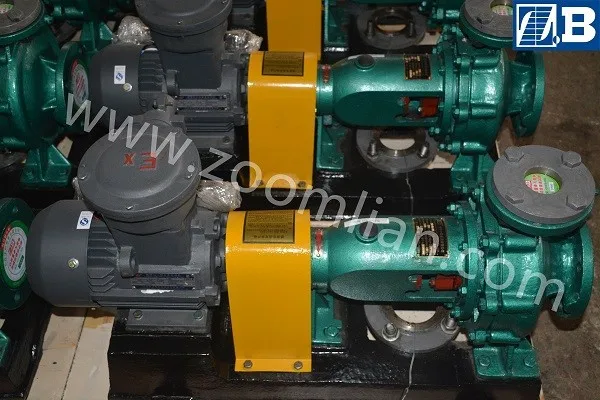

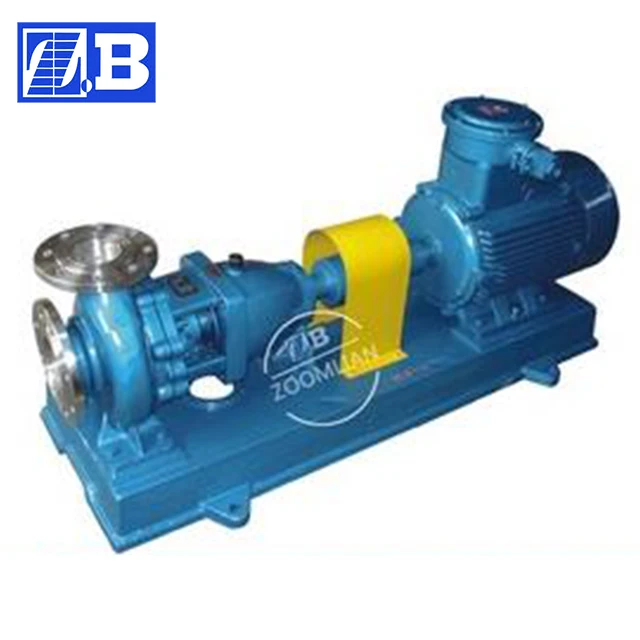

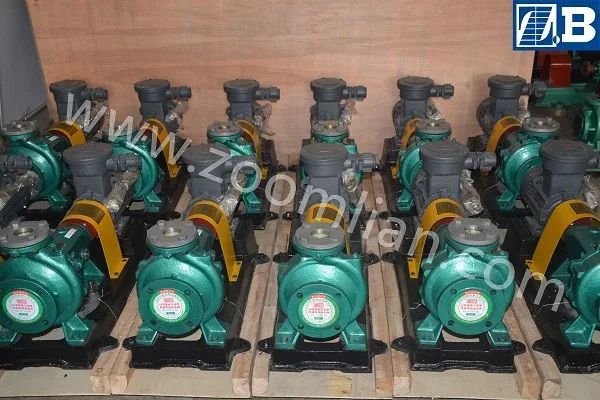

Product pictures:
Company Information
Company Introduction:
Changsha Zoomlian Pump Co., Ltd, established in 1989, is an enterprise which engages in the production and sales of multistage pumps, centrifugal pumps, single stage pumps, inline pumps, split case pumps, sewage pumps, submersible pumps, fire pumps, oil pumps, irrigation pumps, chemical pumps, boiler feed pumps etc. Our products have a good reputation in the domestic and foreign markets covering the fields of energy, mining, metallurgy, petroleum, chemical industry, building materials, textiles, food, marine development, national defence construction, urban construction etc.
25 years of engineering expertise
ISO 9001:2008 certification
7200 Square meters of company area equipped with the latest machinery
Production capacity exceeding 5 thousands per annum
More than 300 varieties of water pumps to choose from
Fully mechanized and automated foundry with high technology
“High-technology Enterprise” in Hunan Province & “Energy-saving Promotion Unit”
Company Picture:
Certifications:
Production Process:
Packaging & Shipping
Packed in standard wooden case
Our Services
We are committed to providing the highest level of customer service, competitive price, speedy delivery and a comprehensive, cutting-edge product. Your satisfaction is our ultimate goal.
FAQ
Q1: What is your product range?
We supply all kinds of centrifugal water pumps driven by electric or dirsel engine including single stage pumps, multistage pumps, inline pumps, split case pumps, sewage pumps, submersible pumps, deep well pumps, fire pumps, jockey pumps, booster pumps, oil pumps, irrigation pumps, chemical pumps(industrial pumps), circulation pumps, RO water pumps, boiler feed pumps, condensate pumps, mixed flow pumps, axial flow pumps, gear pumps, etc.
Q2: Are you a manufacturer or trading company?
We are manufacturer, and we export our water pumps by ourselves.
Q3: What information shall I provide you when I need your offer?
Normally, please send me your flow, total head, medium, medium temperature, pump material, voltage, frequency, etc so that we can quote you exactly what you need.
Q4: Can the pumps be shipped by air if I need them urgently?
Yes, of course we can deliver them by air. But I have to remind you that the freight costs will be very expensive.
Q5: Do you sell other brands water pumps? And do you accept OEM?
No, we don’t sell other brands pumps, but you may send me your detailed specification requirement if our brand is ok for you. And we accept OEM.
Q6: The specification requirements of our pumps are different with what you give out,can you customize them as my data?
Yes, we can. Please send me your detailed specification requirement then we will choose the suitable pumps to quote you.
