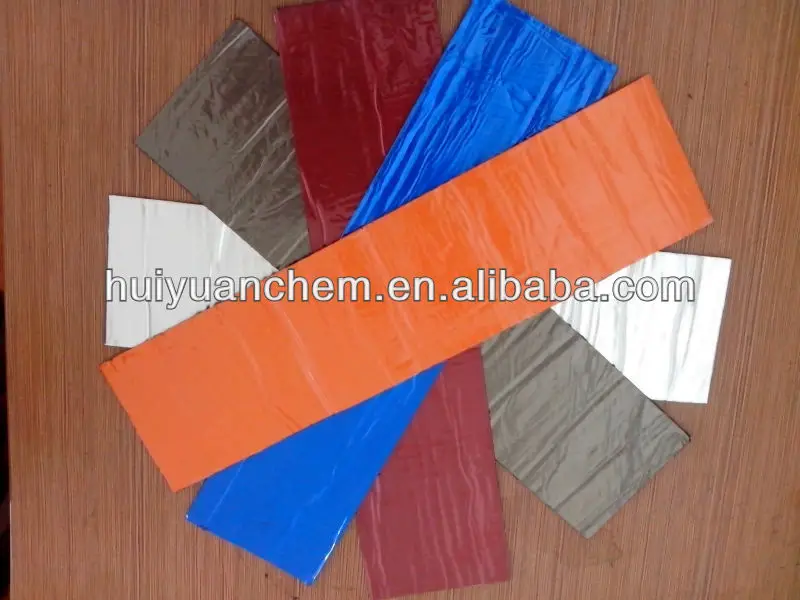

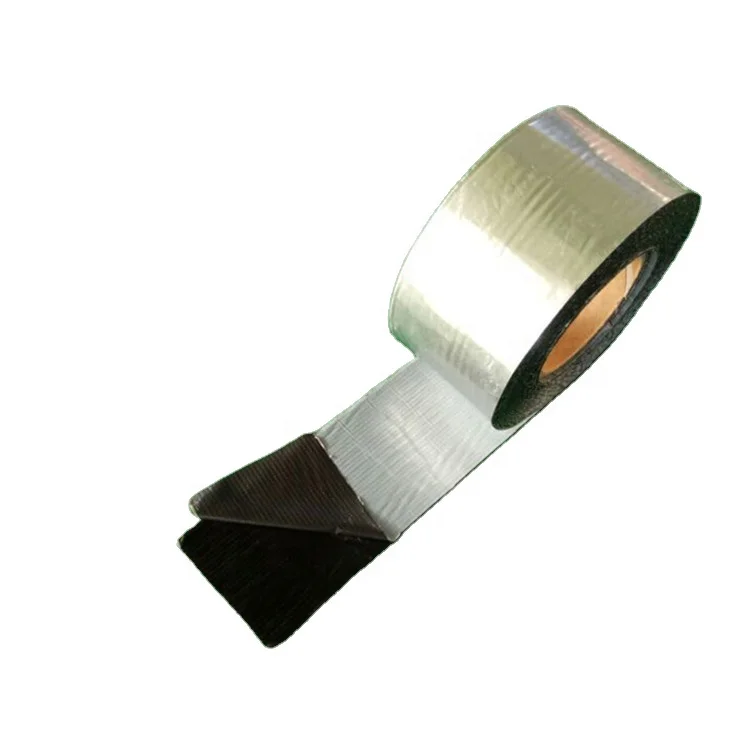

self adhesive asphalt/ bitumen waterproofing sealing tape, aluminium flashing roofing, construction building material membrane
This products can be used for general flashing applications, sealing glazing bars, sealing leaks in gutters, valleys, down pipes, capping, caravan seams and various corrugated and flat roofs. Also suitable for sealing roof lights and repairs to cracked glass.
a. instant waterproof seal, even in famp conditions.
b.quick and easy to apply, no specialist tools required.
c.4 layers or protection: lacquer foil, membrane and bitumen adhesive
d.superior temperature resistance from -20℃ to +100℃ -easily moulds to contours.
e.long lasting protection, at least 15 years
f.available in a wide range of sizes.
Storage Life: 12 months stored between 5 ℃ and 25℃ in original containers
1. Product description:
The product is a kind of polymer modified asphalt materials, using polyester carpet or glass mat for the matrix, the surface covered with polyethylene film, aluminum foil or fine sand, the base covered with a release sheet,keep the self-adhesive flexible waterproof. The product has a good self-adhesive and bending properties.
2. Application:
Construction is simple, clean, and can be widely used in roofing, basement, bathroom, etc. waterproofing works, and for legislation to pave and stick and pipe wall (except heat pipes), bridges , and other complex environment, especially in open flame is prohibited, covert fire waterproofing works.
Cut flashing to the required length, remove the release film and press down the adhesive bitumen to the previously prepared surface.
Ensure full contact by smoothing down with a cloth, taking care to eliminate air bubbles.
Final rolling down of the edges with a wallpaper roller will ensure a good edge seal.
All overlaps should be a minimum of 25mm and well rolled down.
Note: In cold weather adhesion will be imporved by storing the roll in a warm room for 12 hours or more before use, or by gently warming the strip during application.Do not apply below 5 ℃.
Product profile:

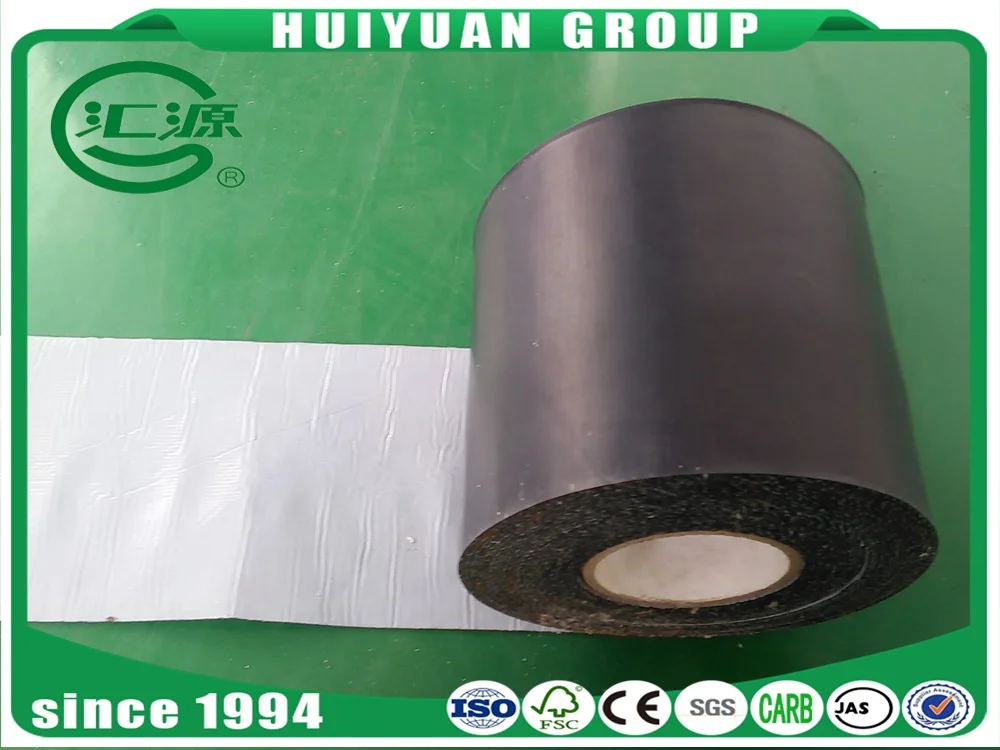

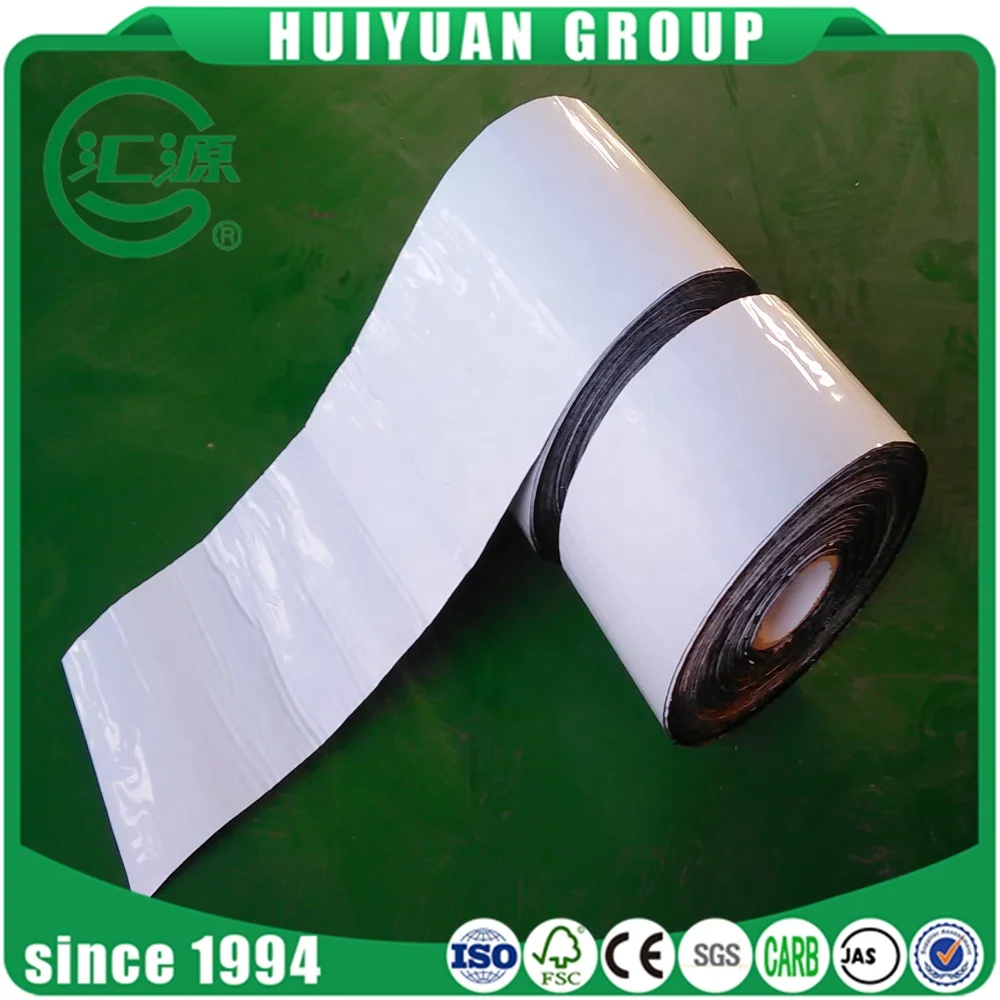

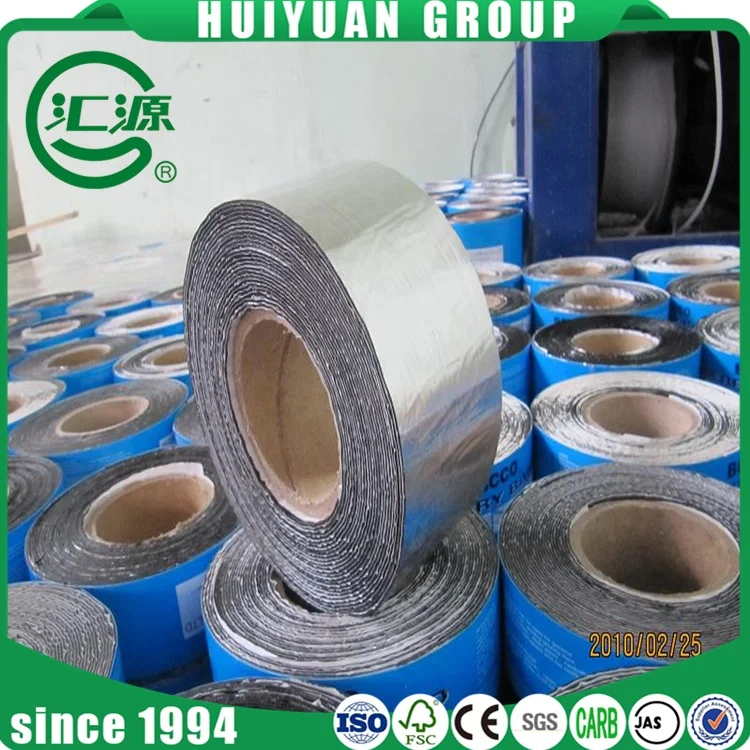

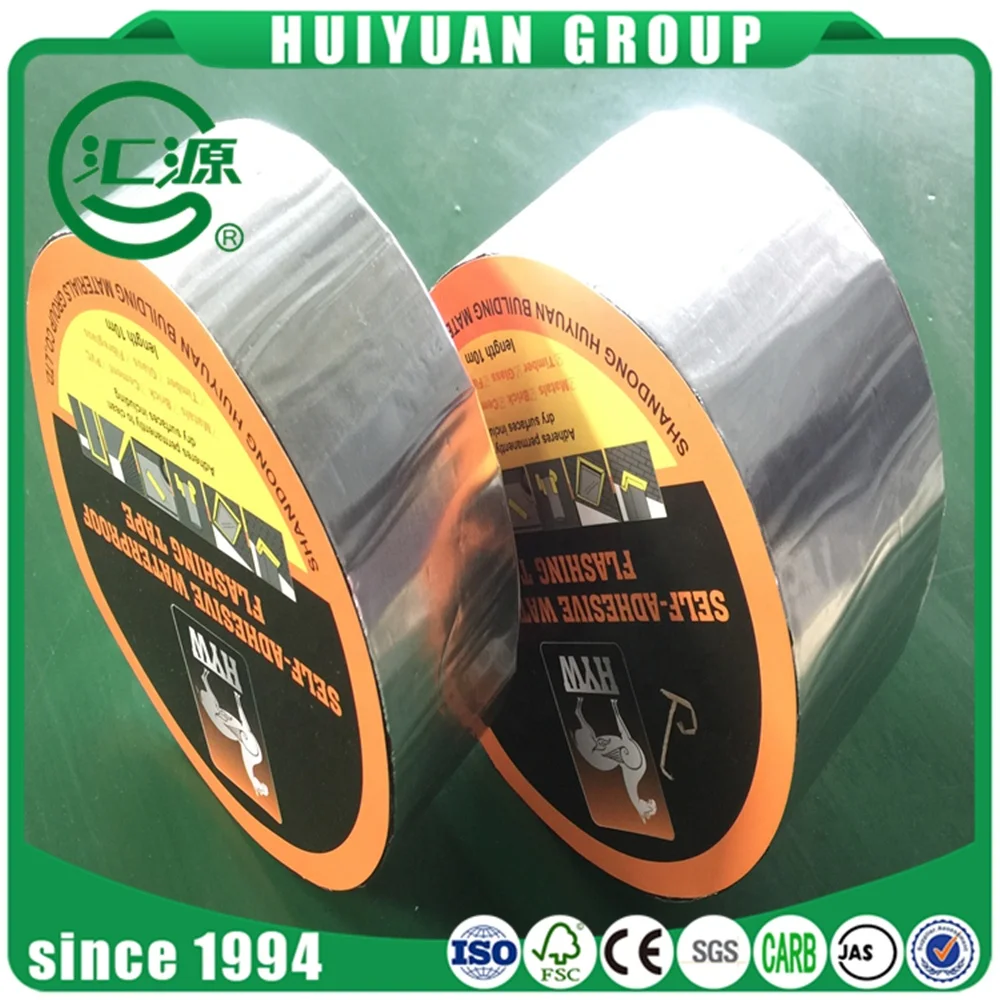

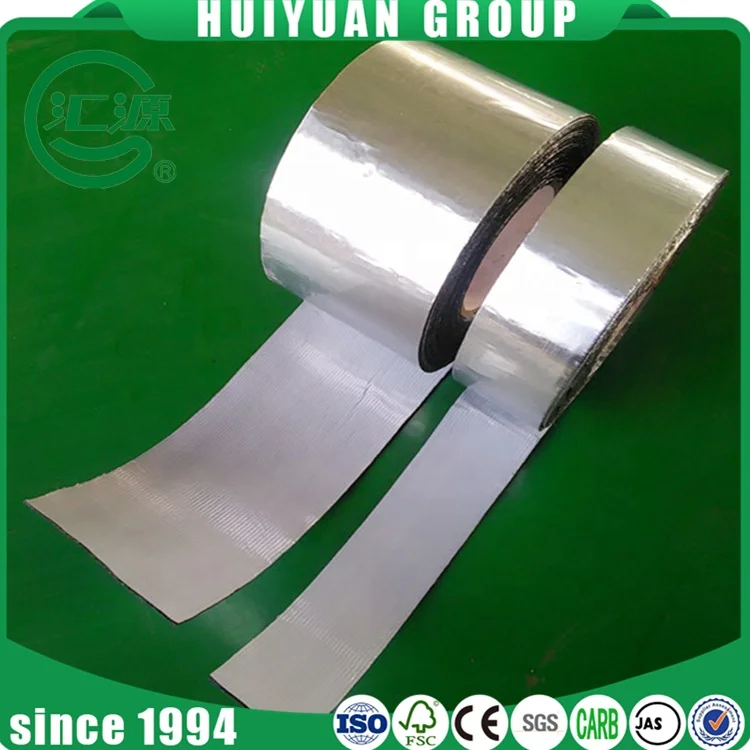

HUIYUAN Self-adhesive flashing tape is a modified bitumen waterproof membrane which use SBS rubber as basic material,PET film/PE film/Aluminum foil film as upper surface material.Isolation layer as down surface material.
Product specification and kinds:
thick
1.2mm,1.5mm,2.0mm,3.0mm,4.0mm;
width
2.5cm to 1m;
length
2m to 20m;
upper surface material
PE/PET/Aluminum foil/Double self-adhesive
Middle layer material
No felt/ Polyester felt
Remark
Our specification can be customized as required
Product features:
1)Don't need fire,donlt need adhesve glue,environment-friendly;
2)Excellent adhesive property.it can make waterproof layer be a whole body;
Store the rolls horizontally between +5°C and 25°C in dry conditions in original packing.
Shelf-life approximately 12 months
Use scope:
-Non-exposed roof,underground project;
-Channel,swimming pool;
-metro project;
-Some project which can not be used fire;
-It's anti-cold property is very suitable for cold area.

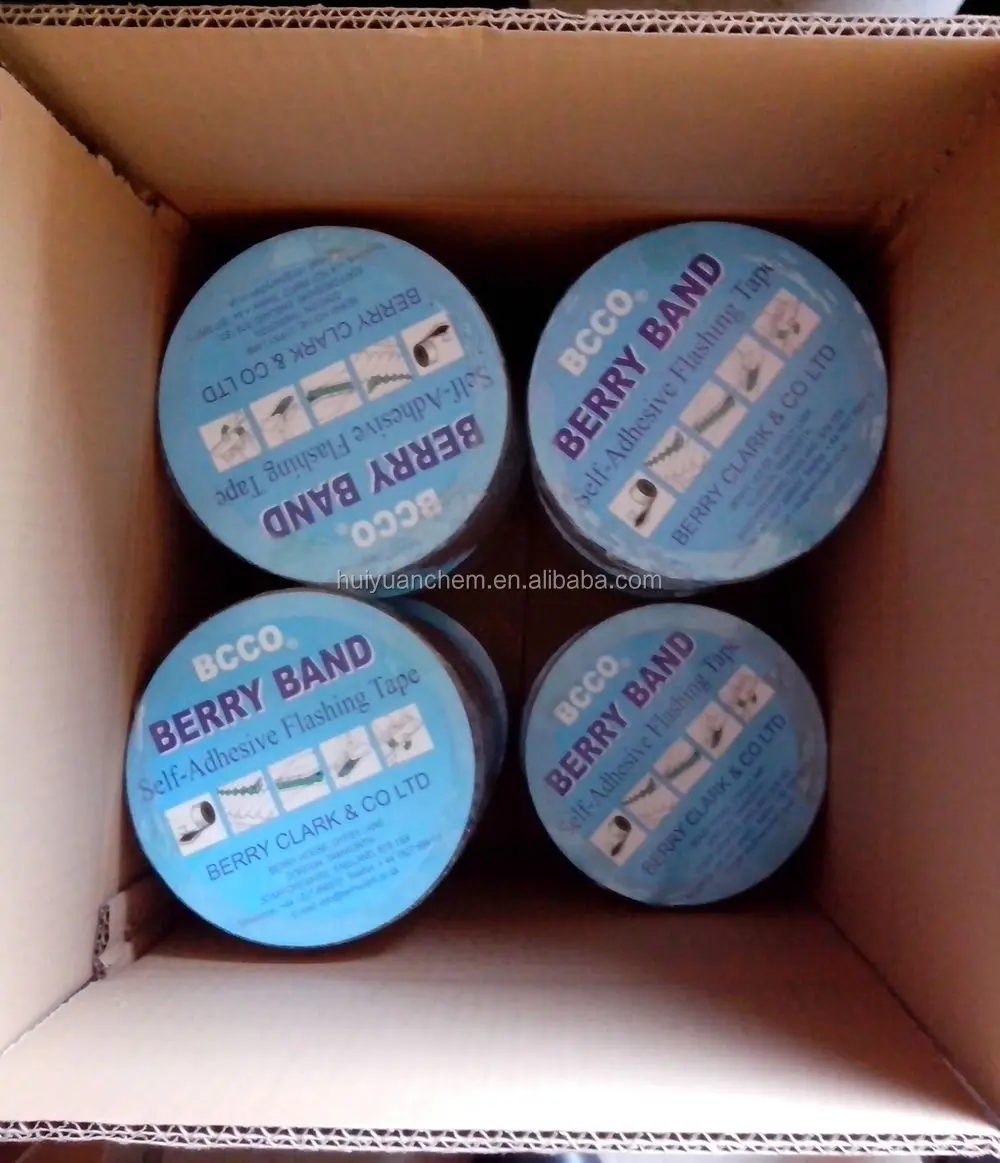

Package: Carton
Packaging & Shipping
Our Services
Sample is free of charge.
Reasonable Price, Excellent Quality & Attentive Service
The delivery time is about 15-20 days after receiving the deposit.
We offer not just excellent products but service and market solutions.
Welcome to visit our homepage or contact with us for more information. Thank you.
Why buy HUIYUN bitumen tape?

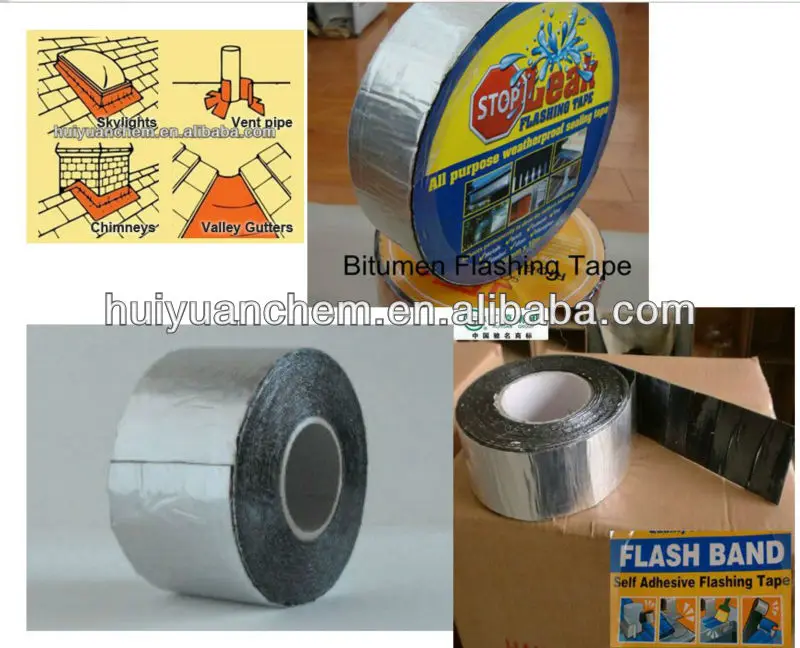

The strength of the facing gives resistance to puncturing and the bitumen gives flexibility and adhesion but without the problems of slump.Designed for use as flashing on flat and pitched roofs, roof valleys, parapets and chimney stacks.Also ideal for sealing around RSJ's, flues, concrete columns, roof-lights, guttering and extractor vents.
* Replacement of worn Lead Flashing * Lead coloured - blends with existing lead * Crease resistant * Easy to apply
Suitable for many uses and can be used on:-

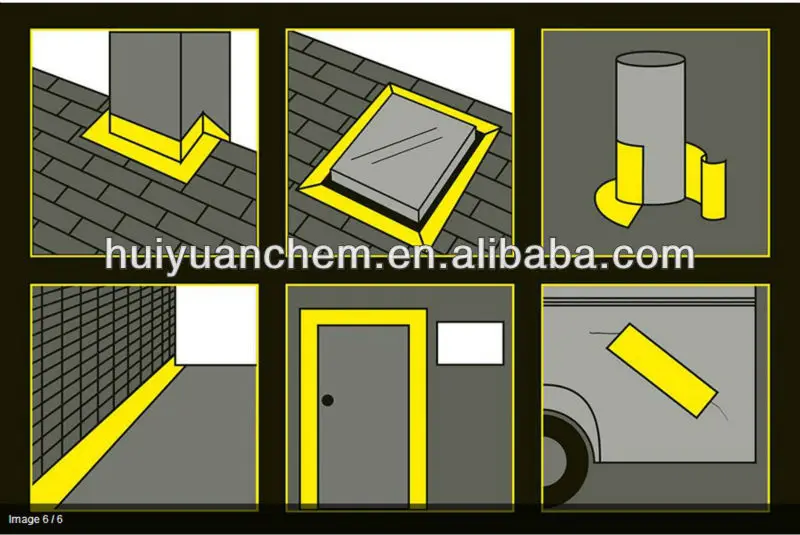

* Replacement or repair of flashing * Guttering, down pipes, skylights * Extensions, porches & chimneys * Caravans & Conservatories * Sealing parapets, valley gutters * Seals capping bolts & roof ridges * Roof repair of portable buildings
Note: - In cold temperatures the tape will be harder to work with and not appear to stick as well as when warm or warmed.
Storage
Store in a cool, dry place.(+5 dg C AND 25 dg C)
Overpainting
HUIYUAN Flashing tape can be overpainted with conventional decorative paints, though a little staining many occur at the edges.

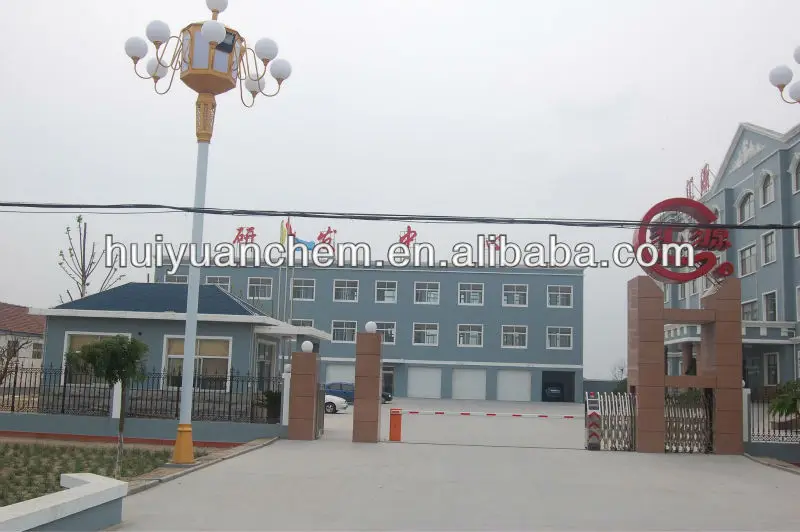

Company Information
Some brief guidelines for Huiyuan bitumen tape...
Ensure all surfaces are clean, dry and dust-free. Remove any loose particles and any rust with a wire brush & soft broom.
The use of gloves is recommended.
Rough, porous or friable surfaces (such as wood, cement boards, course brickwork, breeze blocks etc..) should be primed with a bituminous primer and allowed to dry in order to improve bonding strength. (we sell primer in 1ltr 2.5ltr and 5litre tins)
Roll out the flashing strip then cut to the required measured length
Remove the backing paper (peel back 150mm) and place the adhesive side to the previously prepared surface
To ensure a tight contact - smooth the tape down with a dry cloth, removing all the air bubbles
Press the tape to the surface firmly once in position
Repeat the steps 2-4 in 300mm to 600mm sections until the area is covered
If the tape is joined ensure all overlaps are greater than 25mm
Smooth flat all edges with a wallpaper roller or trowel
After use reseal pack and store upright in cool, dry condition
Specification of bitumen tape
Thickness
Width:
Roll Length:
Coverage:
0.8mm,
1.0mm,
1.2mm,
1.5mm,
2.0mm
50mm
10 / 3metres
0.5 / 0.15m2
75mm
10 / 3metres
0.75 / 0.225m2
100mm
10 / 3metres
1 / 0.3m2
150mm
10 / 3metres
1.5 / 0.45m2
225mm
10 /3metres
2.25 / 0.675m2
Technical property:
Item: Both sides Self-adhesive Bitumen Waterproof Membrane
No.
Test Item
Test Standards
Test Results
Vertification
1
Water tightness
Mpa
≥0.3
No leakage
Pass
holding time (min)
≥120
2
TensionN/50mm
2.0mm
350
358
Pass
3.0mm
450
480
Pass
4.0mm
450
498
Pass
3
Enlongation at break, %
≥30
39
Pass
4
Heat resistance
70°C,no glide no flow, no drop
no glide no flow, no drop
Pass
5
Cold flexible
. -20°C,No cracking
No cracking
Pass
Conclusion
All test are qualited based on the Ref Standards:GB23441-2009's conventional items and instruction .
Remarks
Procedures
Installation preparation → Substrate treatment → coat related substrate primer → detail additional waterproof layer installation → set datum line → main selfadhesive membrane installation → exhaustion of air and surface rolling (steel wheel) → overlaps compaction and edges sealing → vertical membrane terminals fix and sealing by membrane sealant inspection → installation of protection and insulation layer
