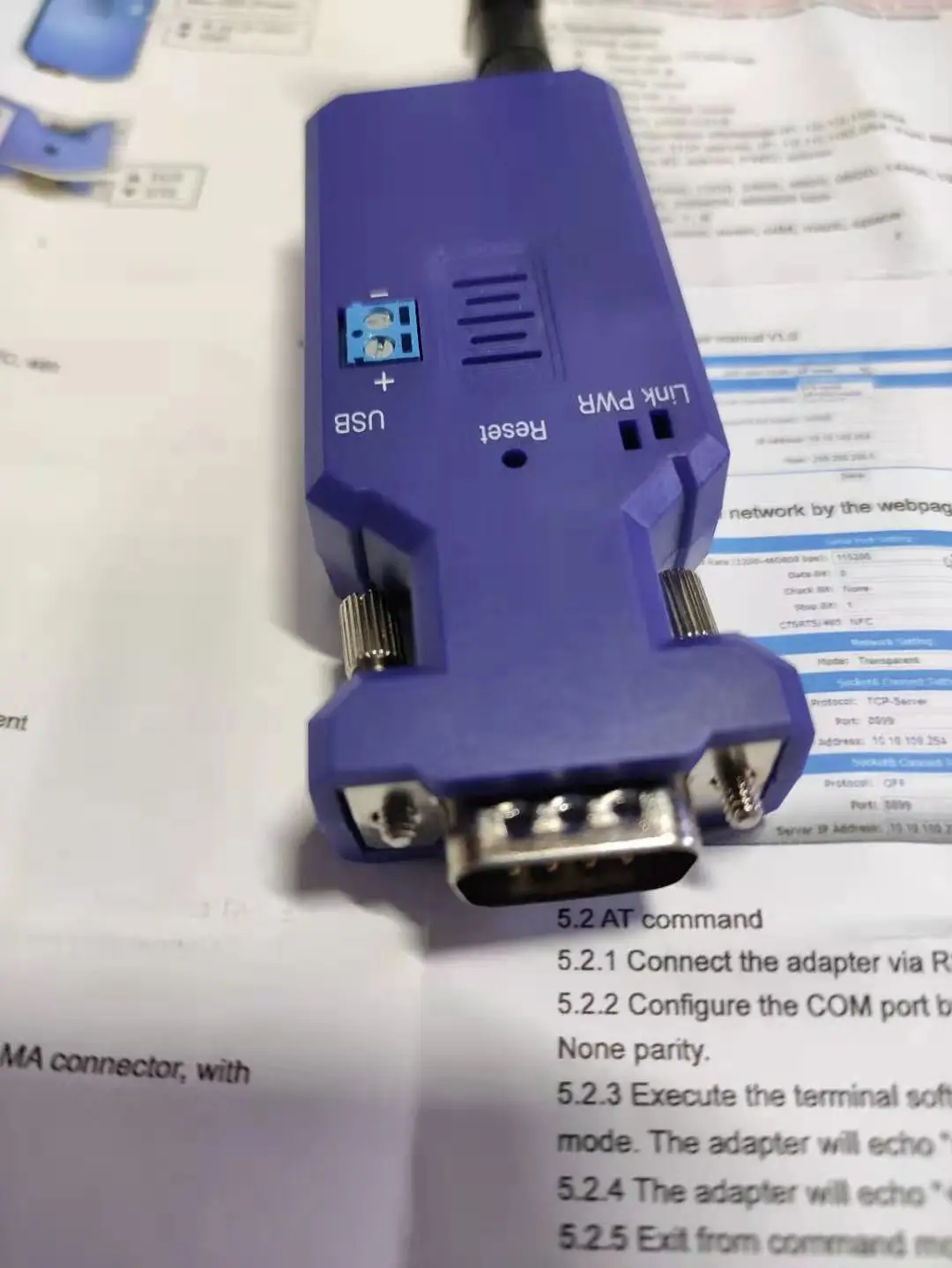

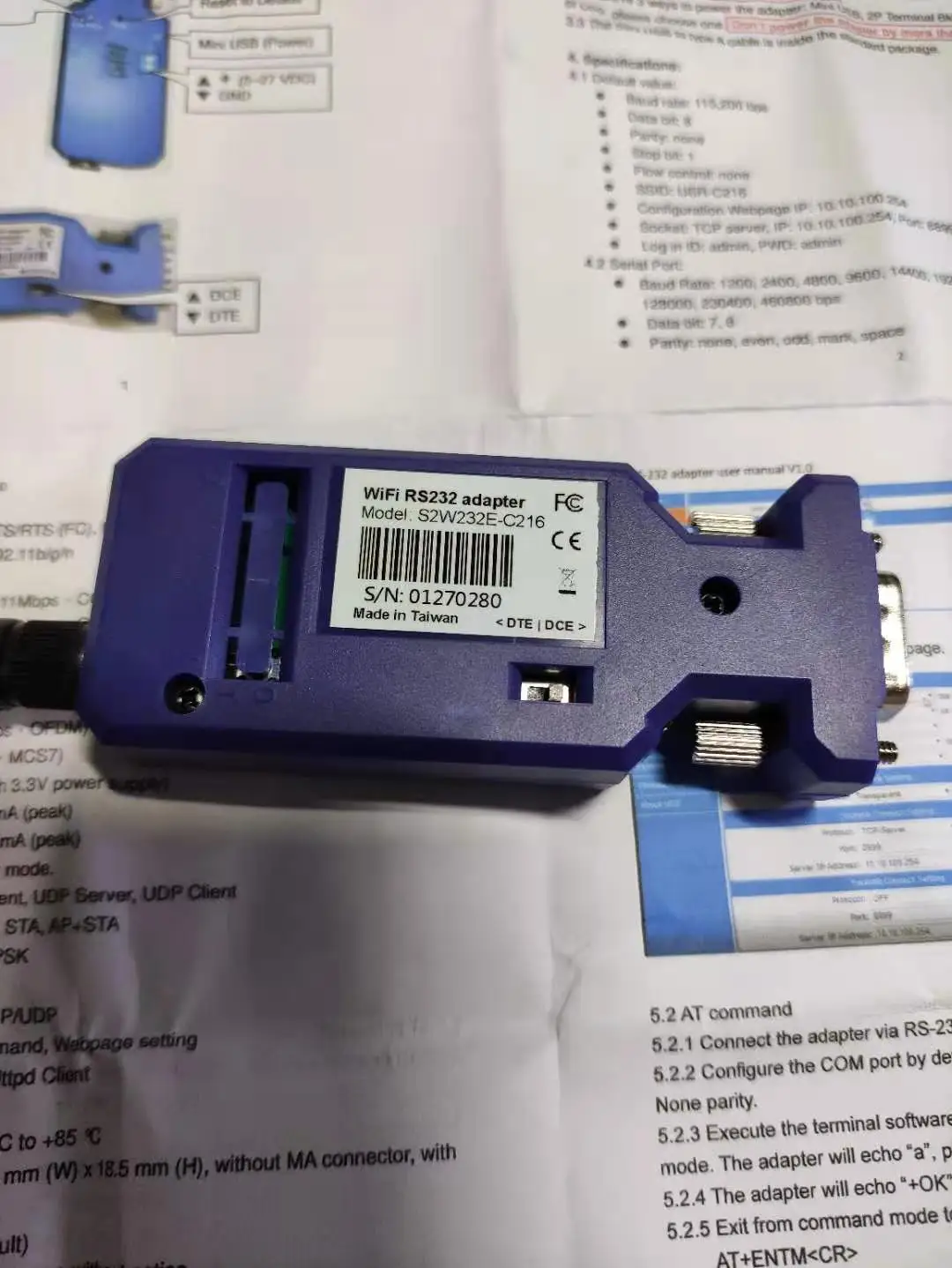

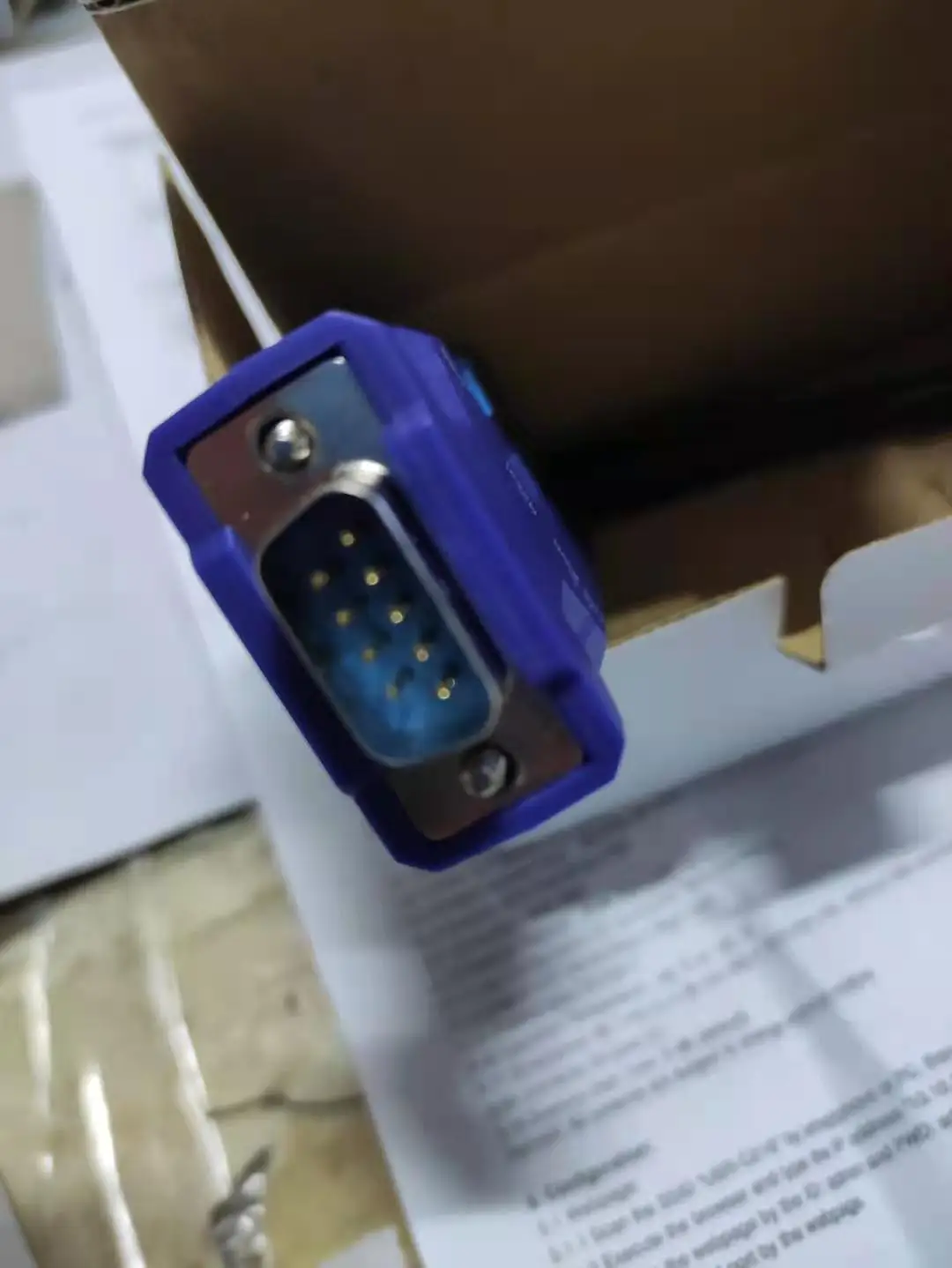

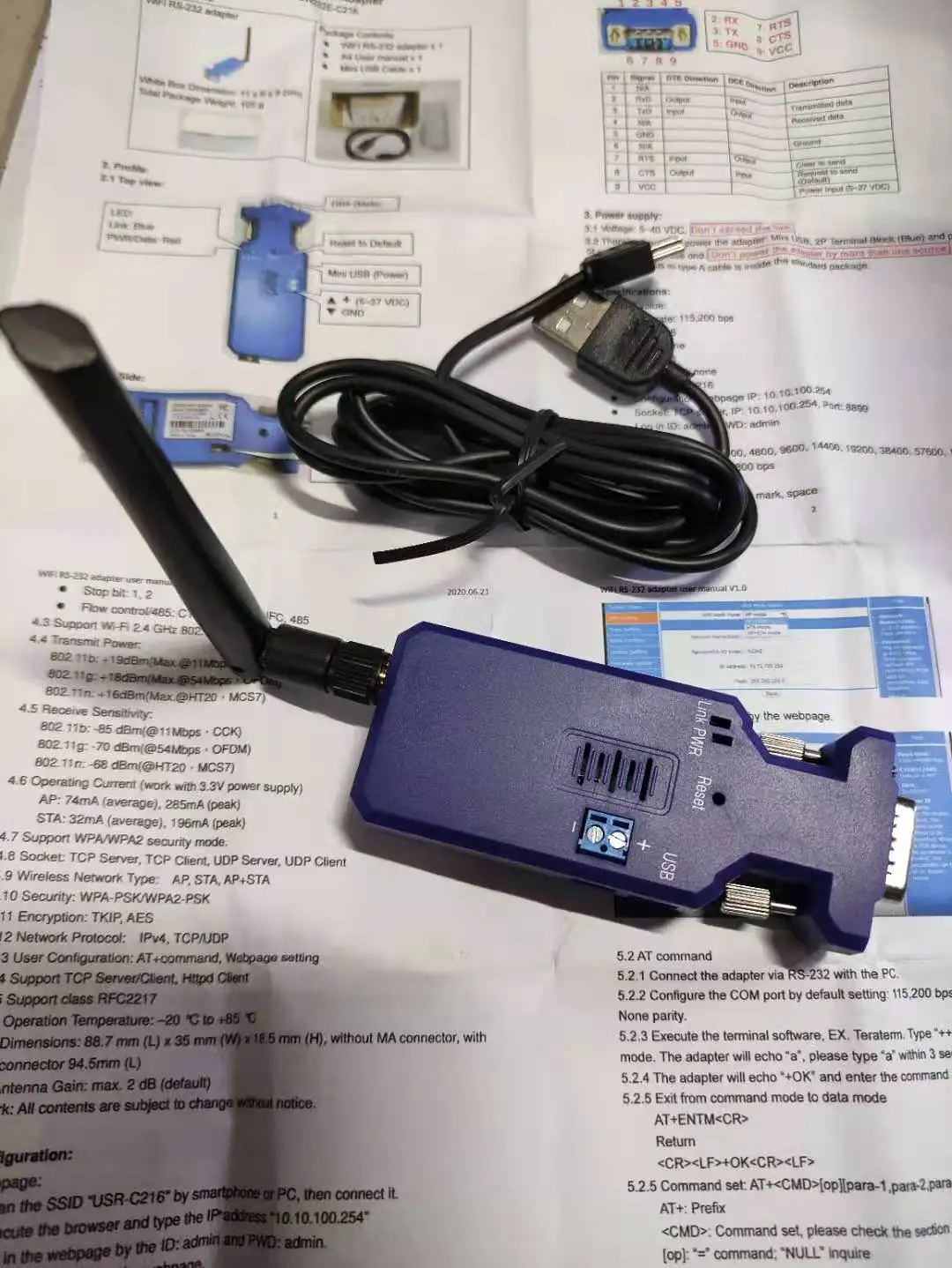

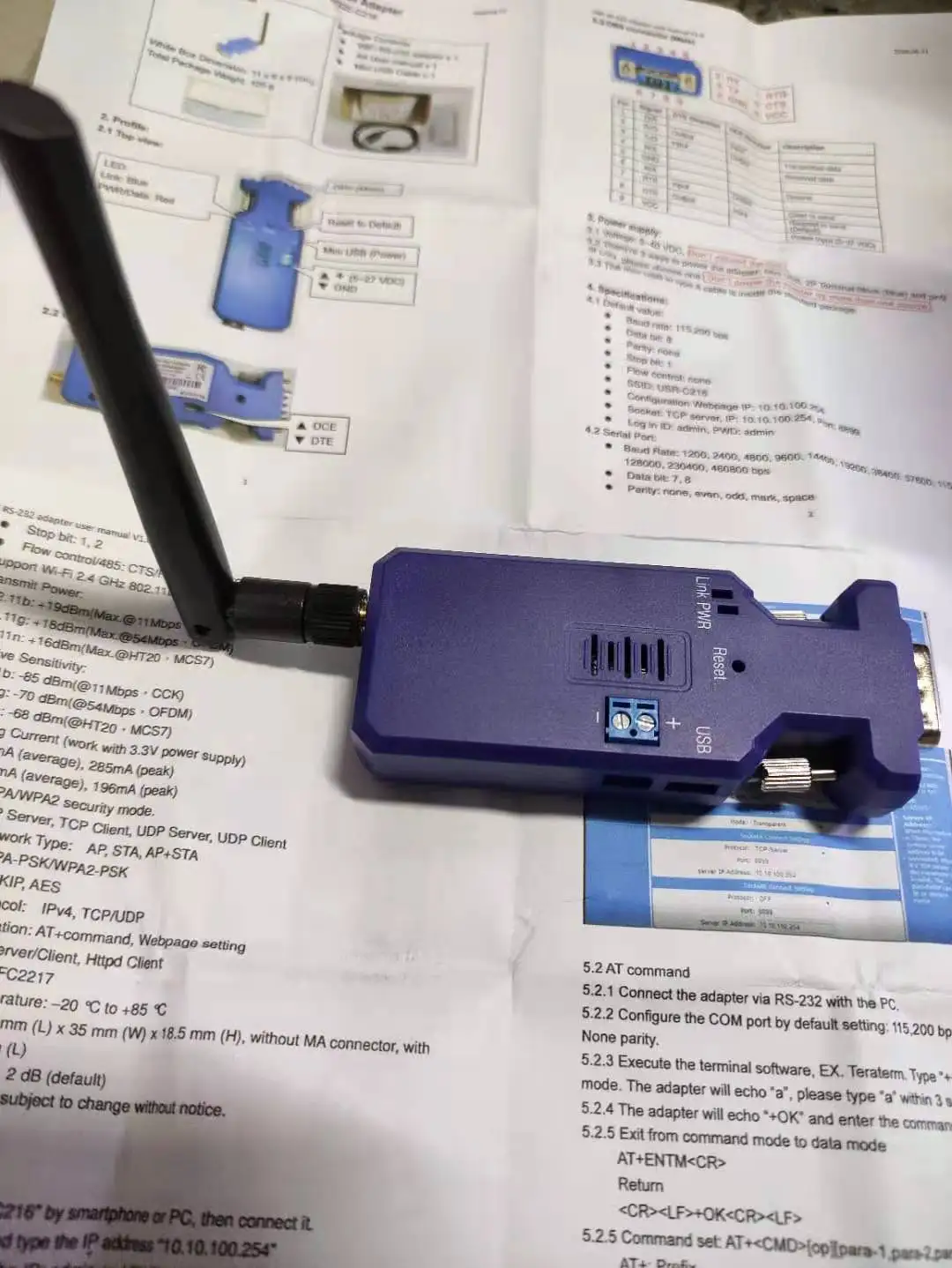

Wifi serial rs232 adapter with male db9 connector

Product Overview

Description



Wifi RS232 serial adapter



Specifications:



4.1 Default value:

l  Baud rate: 115,200 bps

l  Data bit: 8

l  Parity: none

l  Stop bit: 1

l  Flow control: none

l  SSID: USR-C216

l  Configuration Webpage IP: 10.10.100.254

l  Socket: TCP server, IP: 10.10.100.254, Port: 8899

l  Log in ID: admin, PWD: admin

4.2 Serial Port:

l  Baud Rate: 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400, 460800 bps

l   Data bit: 7, 8

l   Parity: none, even, odd, mark, space

l   Stop bit: 1, 2

l   Flow control/485: CTS/RTS (FC), NFC, 485

4.3 Support Wi-Fi 2.4 GHz 802.11b/g/n

4.4 Transmit Power:

802.11b: +19dBm(Max.@11Mbps,CCK)

802.11g: +18dBm(Max.@54Mbps,OFDM)

802.11n: +16dBm(Max.@HT20,MCS7)

4.5 Receive Sensitivity:

802.11b: -85 dBm(@11Mbps,CCK)

802.11g: -70 dBm(@54Mbps,OFDM)

802.11n: -68 dBm(@HT20,MCS7)

4.6 Operating Current (work with 3.3V power supply)

     AP: 74mA (average), 285mA (peak)

     STA: 32mA (average), 196mA (peak)

4.7 Support WPA/WPA2 security mode.

4.8 Socket: TCP Server, TCP Client, UDP Server, UDP Client

4.9 Wireless Network Type:  AP, STA, AP+STA

4.10 Security: WPA-PSK/WPA2-PSK

4.11 Encryption: TKIP, AES

4.12 Network Protocol:  IPv4, TCP/UDP

4.13 User Configuration: AT+command, Webpage setting

4.14 Support TCP Server/Client, Httpd Client

4.15 Support class RFC2217

4.16 Operation Temperature: –20 °C to +85 °C

4.17 Dimensions: 88.7 mm (L) x 35 mm (W) x 18.5 mm (H), without MA connector, with SMA connector 94.5mm (L)
4.18 Antenna Gain: max. 2 dB (default)
