BT 232B E RS232 adapter with External Dipole Antenna

Product Overview

Description

 RS-232 adapter BT-232B-E (External Dipole Antenna)





Features:
1.EDR, Class 1 (100m), Serial Port Profile (SPP)
2. Configure RS-232 parameters via COM port
3. Internal Chip Antenna (Model: BT-232B)
4. External Dipole antenna (Model: BT-232B-E)
5. Easy Switching between Data Mode and Command mode











Specifications:
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8/921.6 Kbps
2. Coverage: Up to 100 m
3. Connection: Point-to-point (pico net)
4. Signal: TxD, RxD, GND, CTS/RTS

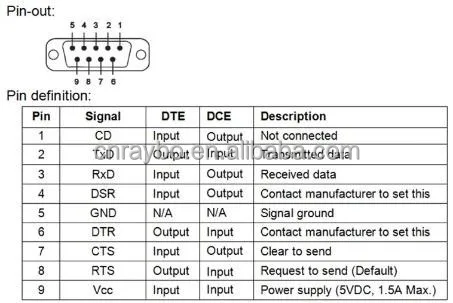

5. RS-232 Interface: D_SUB 9-pin female
6. Standard: specification version 2.0+EDR
7. Profiles: Serial Port Profile
8. Data Bit: 8 bit
9. Frequency: 2.400 to 2.4835 GHz
10. Hopping: 1,600/sec, 1MHz channel space
11. Modulation: GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps
12. Tx. Power: Max. 18 dBm (Class 1)
13. Rx. Sensitivity: -86 dBm typical
14. Antenna: Chip antenna or SMA female + external antenna
15. Antenna Gain: Chip antenna max. 1 to 2 dBi
16. Power Supply: +5 to +6 V DC
17. Current Consumption: Max. 90 mA
18. Operation Temperature: -20 to +75 Centigrade Degrees
19. Dimensions: 35 mm (W) x 45 mm (H) x 15 mm (D)











Applications:
1. Cable replacement
2. Automation, Remote control, SCADA system
3. CNC machine DNC transmission (Trial version download from the right side)
4. Robot, unmanned carrier
5. PDA, POS, receipt printer, bar code reader, RFID, IC card reader, MSR
card reader
