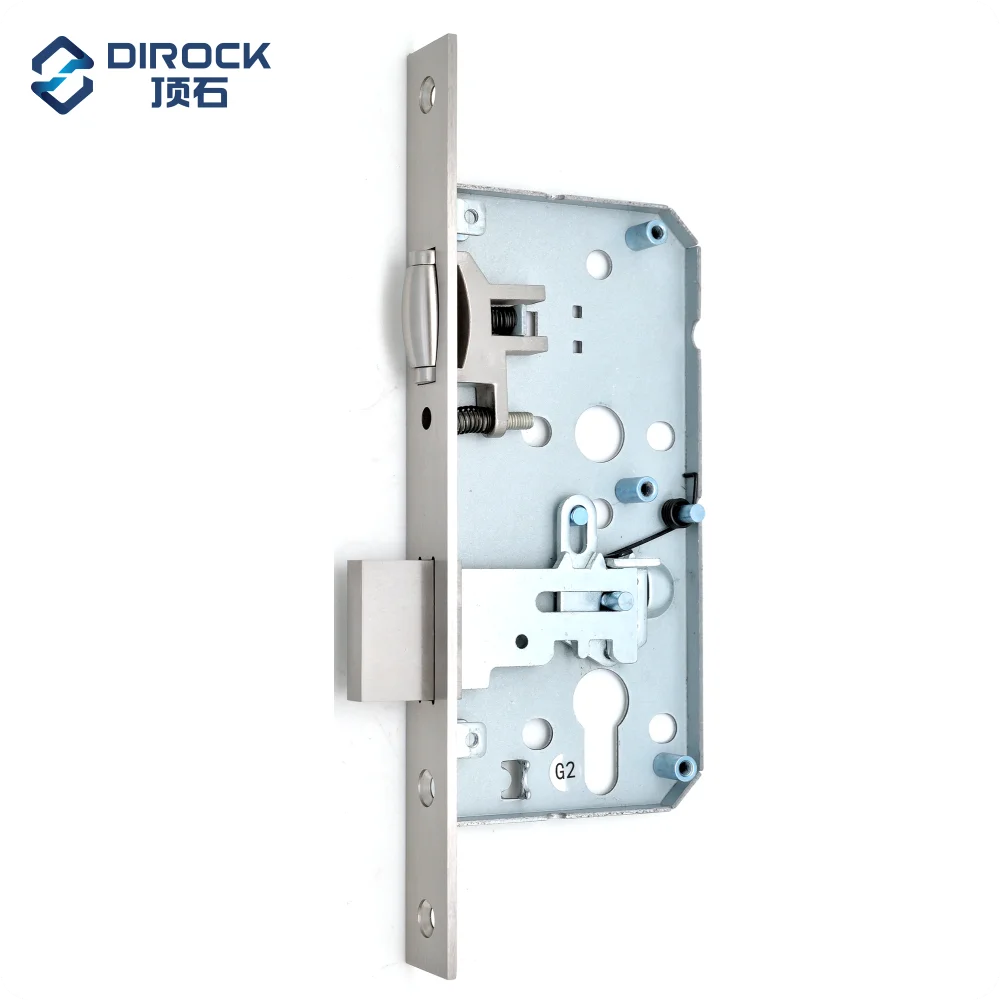

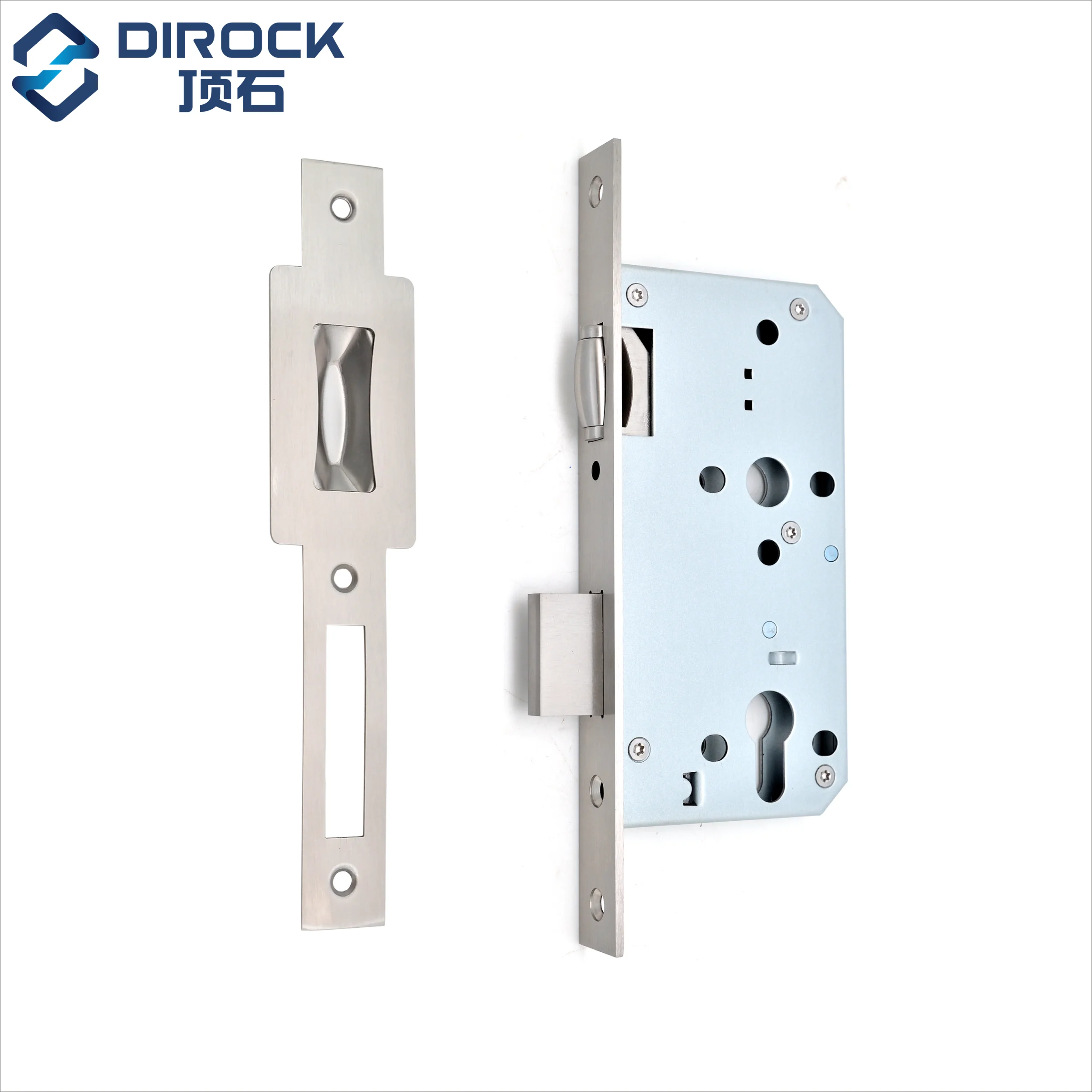

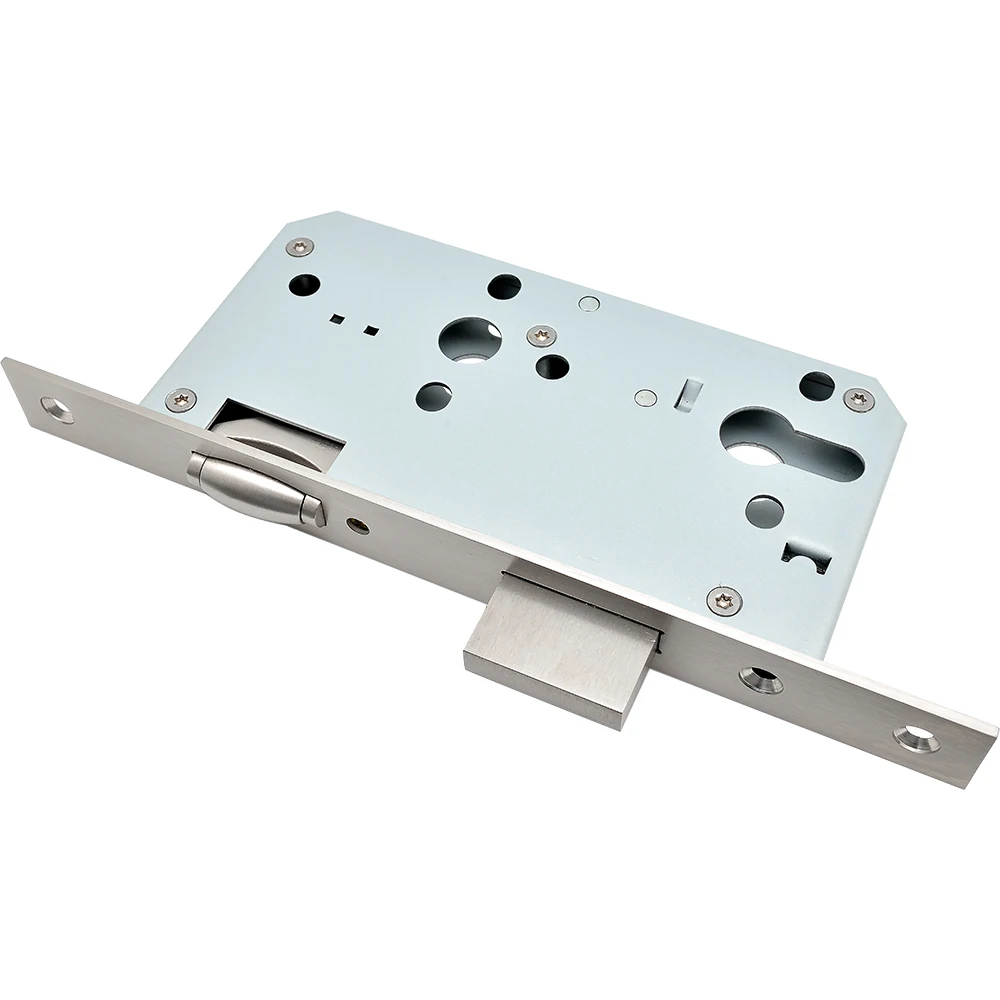

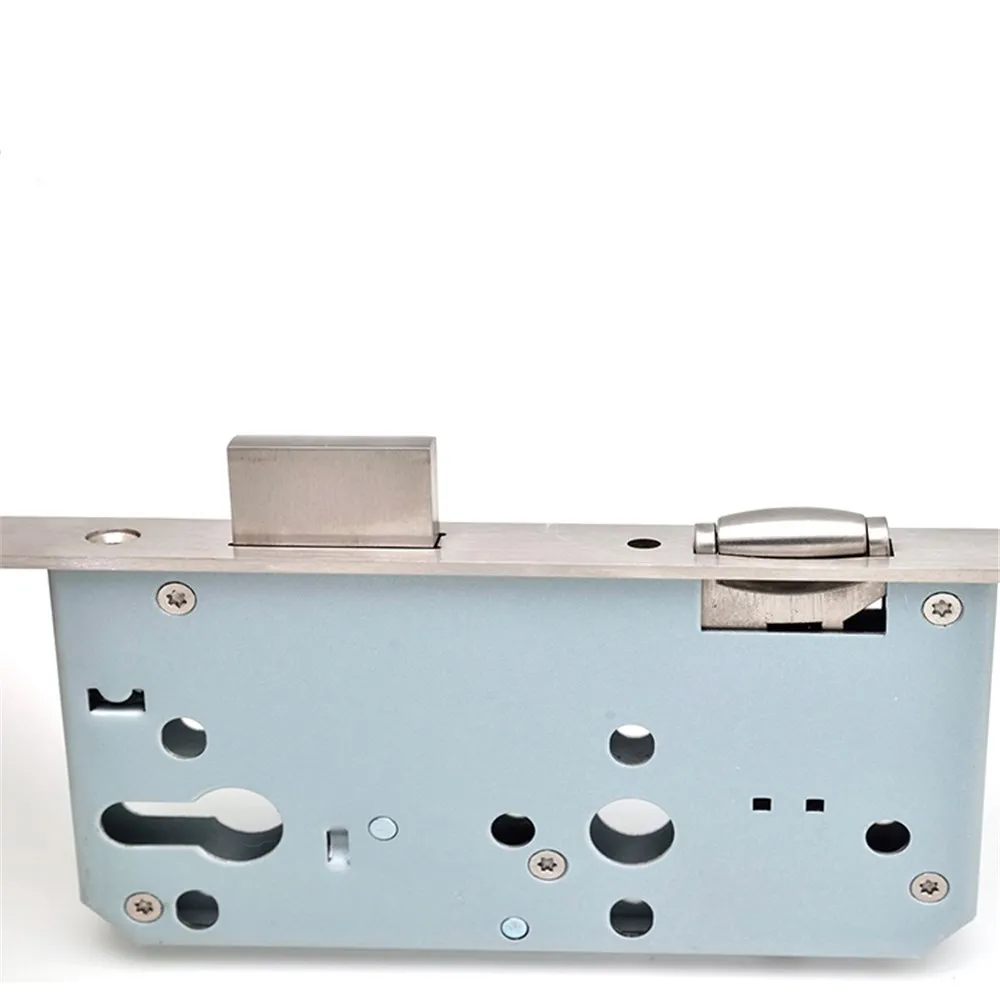

DIN18251 Stainless Steel roller bolt Mortise Door Lock Body for hospital/airport/mall/school
- Category: >>>
- Supplier: Hebei Jianhua Lock Industry Co. Ltd.
Share on (60128632865):
Product Overview
Description
Product Description
EN12209 Sash lock 5572ZR
5572ZR | Paramenter |
Backset | 55mm |
Center distance | 72mm |
Dead bolt | 50,000 test cycles |

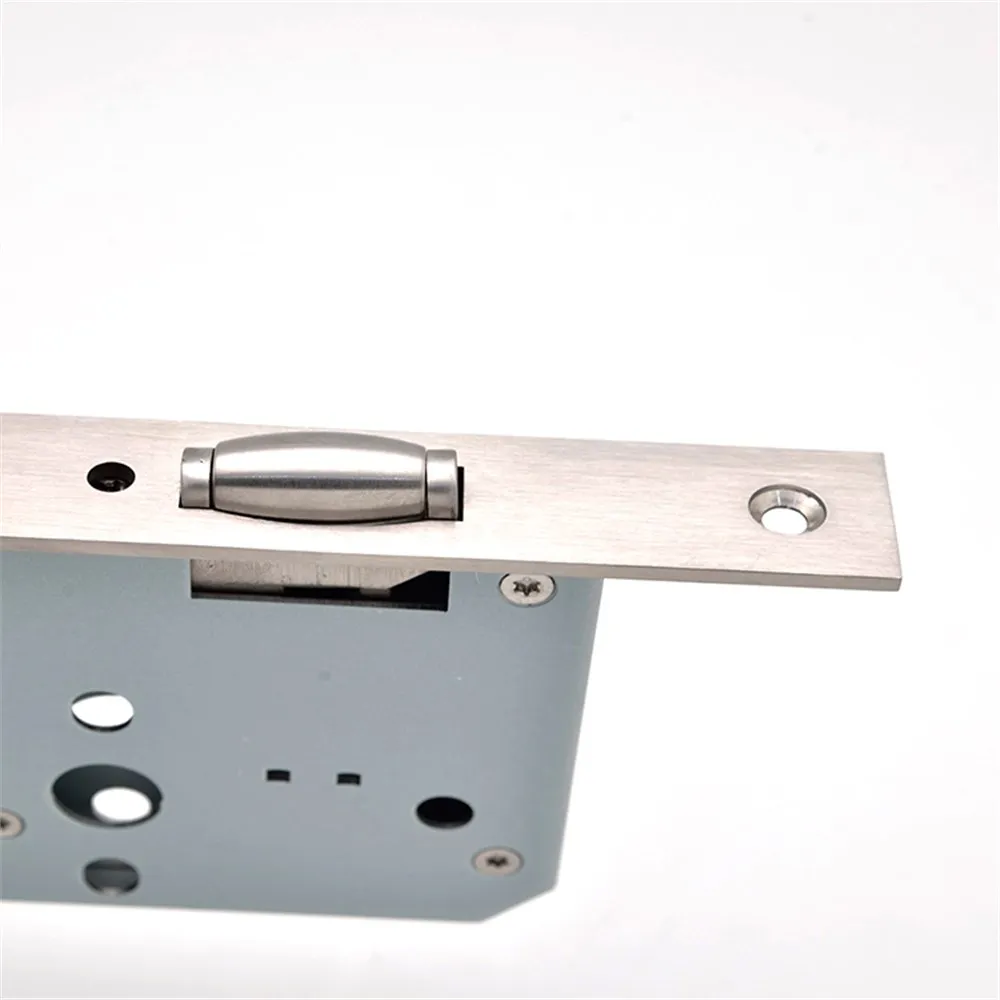

Roller | SS304 |
EN 12209 | DIN 18251 |
Product Information
Intended use | Yes/No | Comments | Reference |
On hinged doors | Yes | Locks are tested for side force and end force | EN12209:2016 |
Supported lock application | Yes | Tested in accordance with 5.5.1 and 5.11.3 using the fixture 20 or 29 and/or 5.11.5 using fixture 32 with support | |
Suitability for use on smoke control / fire resistance doorset | Yes | See manufacturers declaration referring to a test according to EN 1634–1 or declaration of melting point of the relevant latching parts and if applicable the duration of the proven smoke control and/or fire resistance | |
Lock for use with unsprung handle | Yes | The lock shall conform to 5.4.6, minimum follower restoring torque of 0,8 Nm |

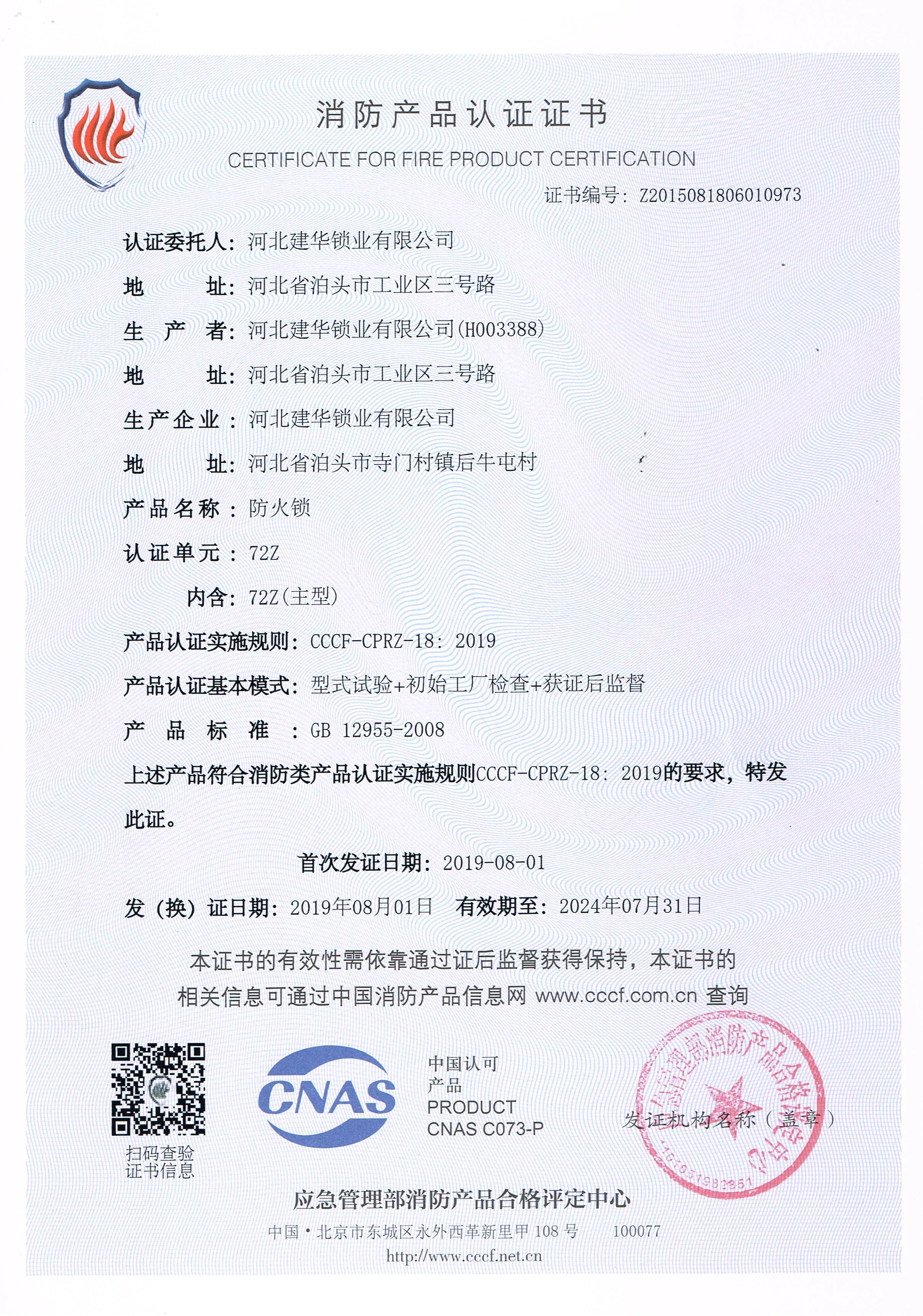

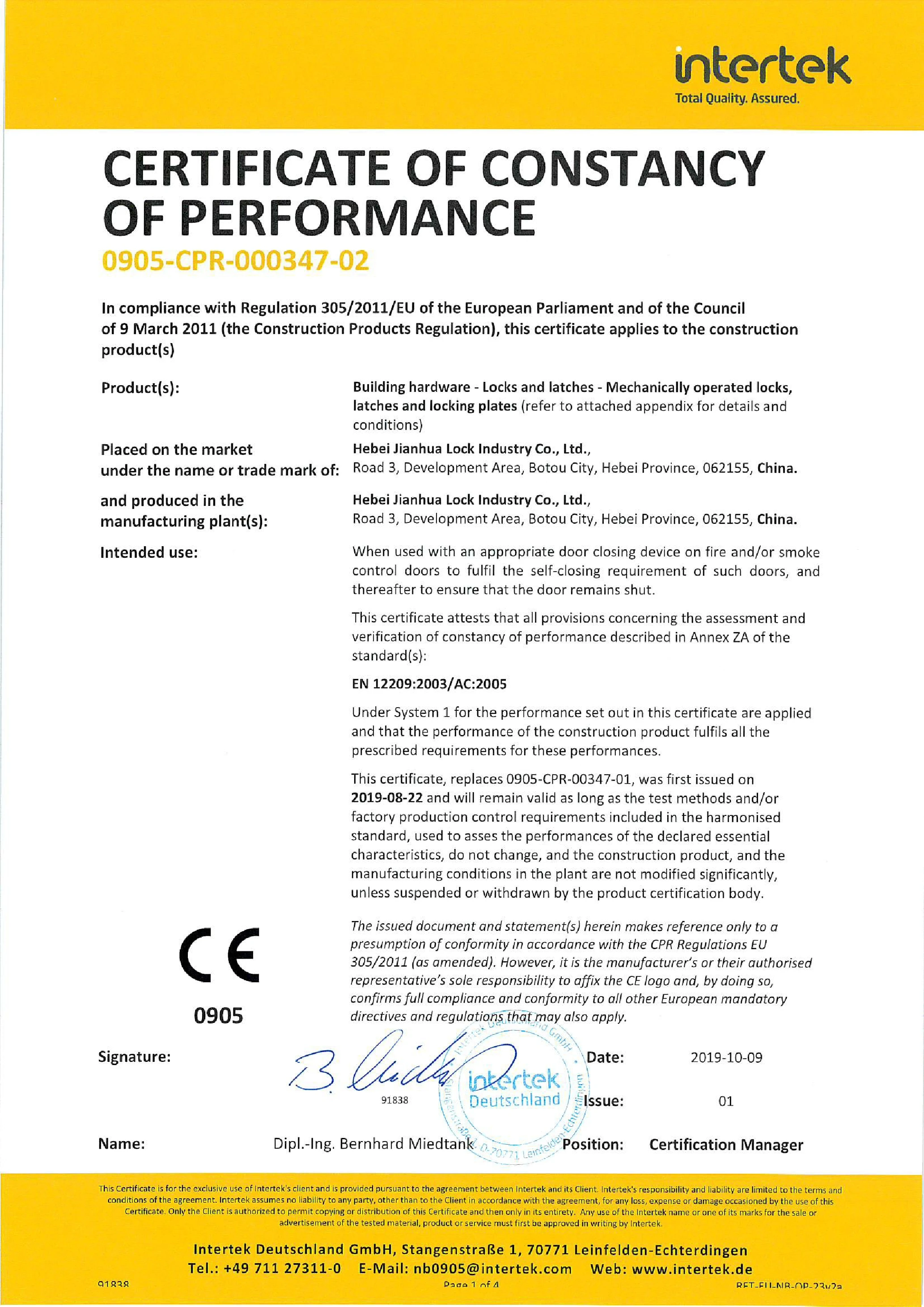

CE Certification

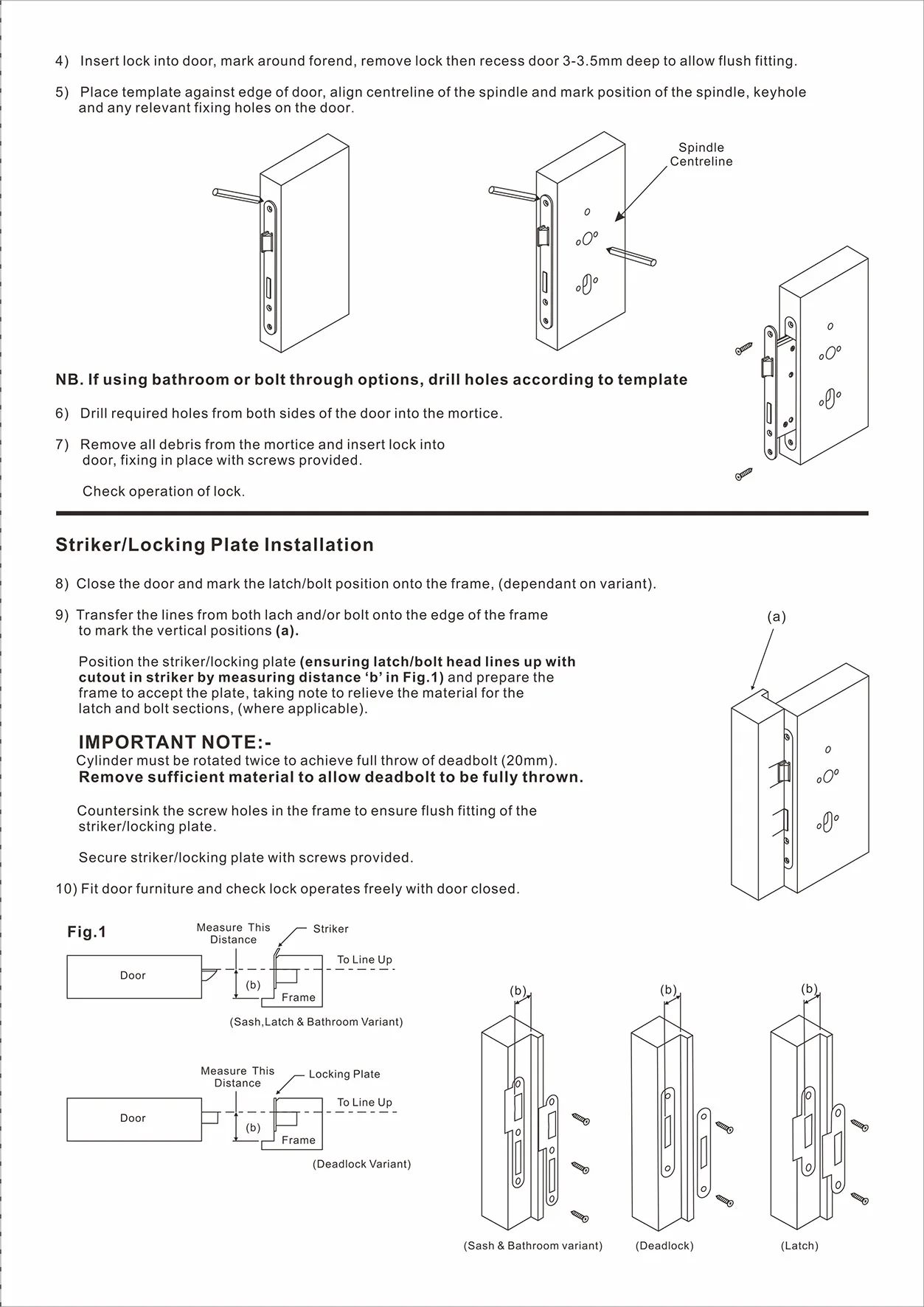

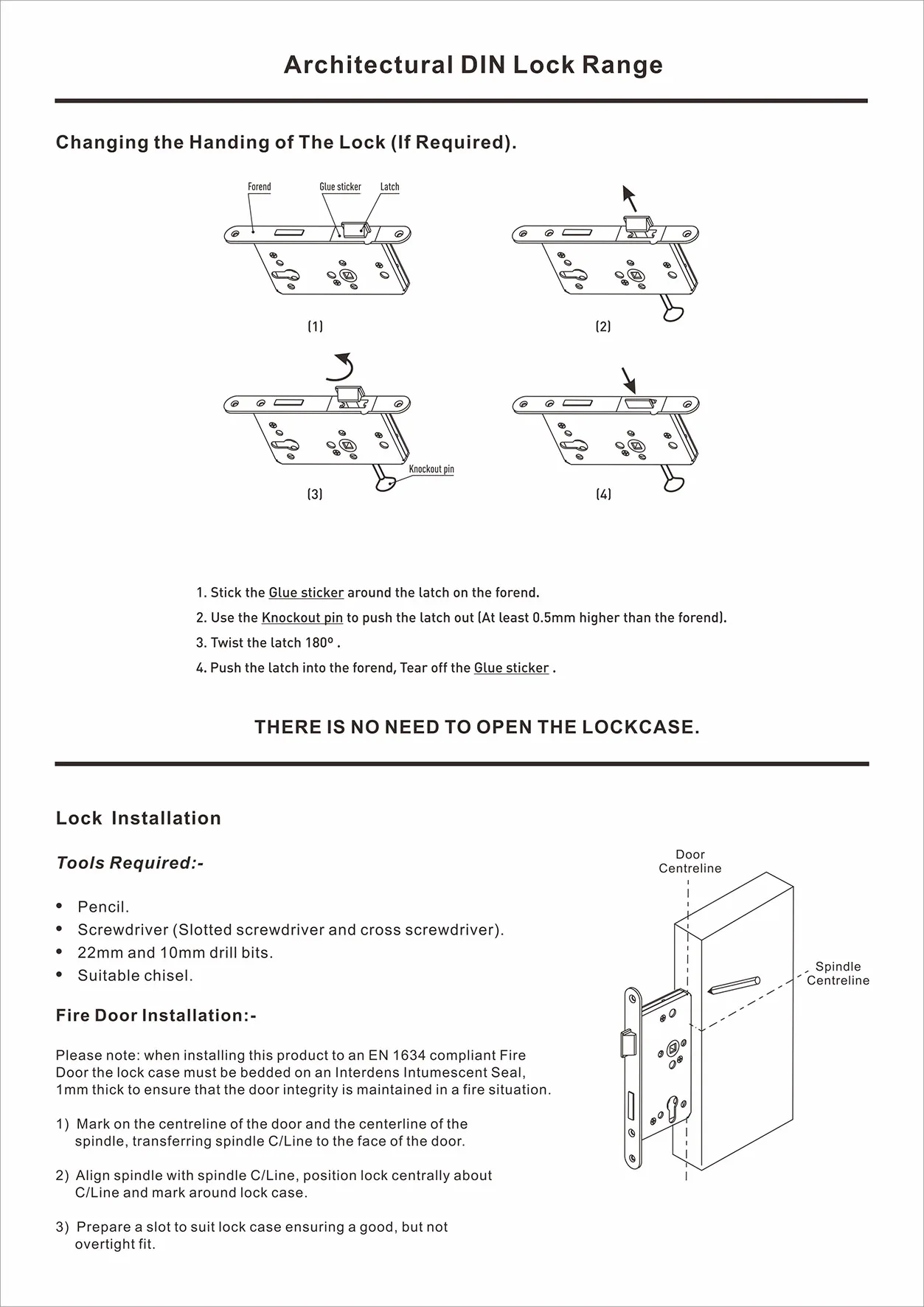

Installation Instructions
Packing&Shipping
1PC/BOX, 20PCS/CTN, 1000PCS/PALLET
Product testing
Durability test (Hinge)
Durability test (Mortise lock)
Test Temperature
Durability test(Cylinder)
Durability test (Handle)
Corrosion resistance
Company Introduction

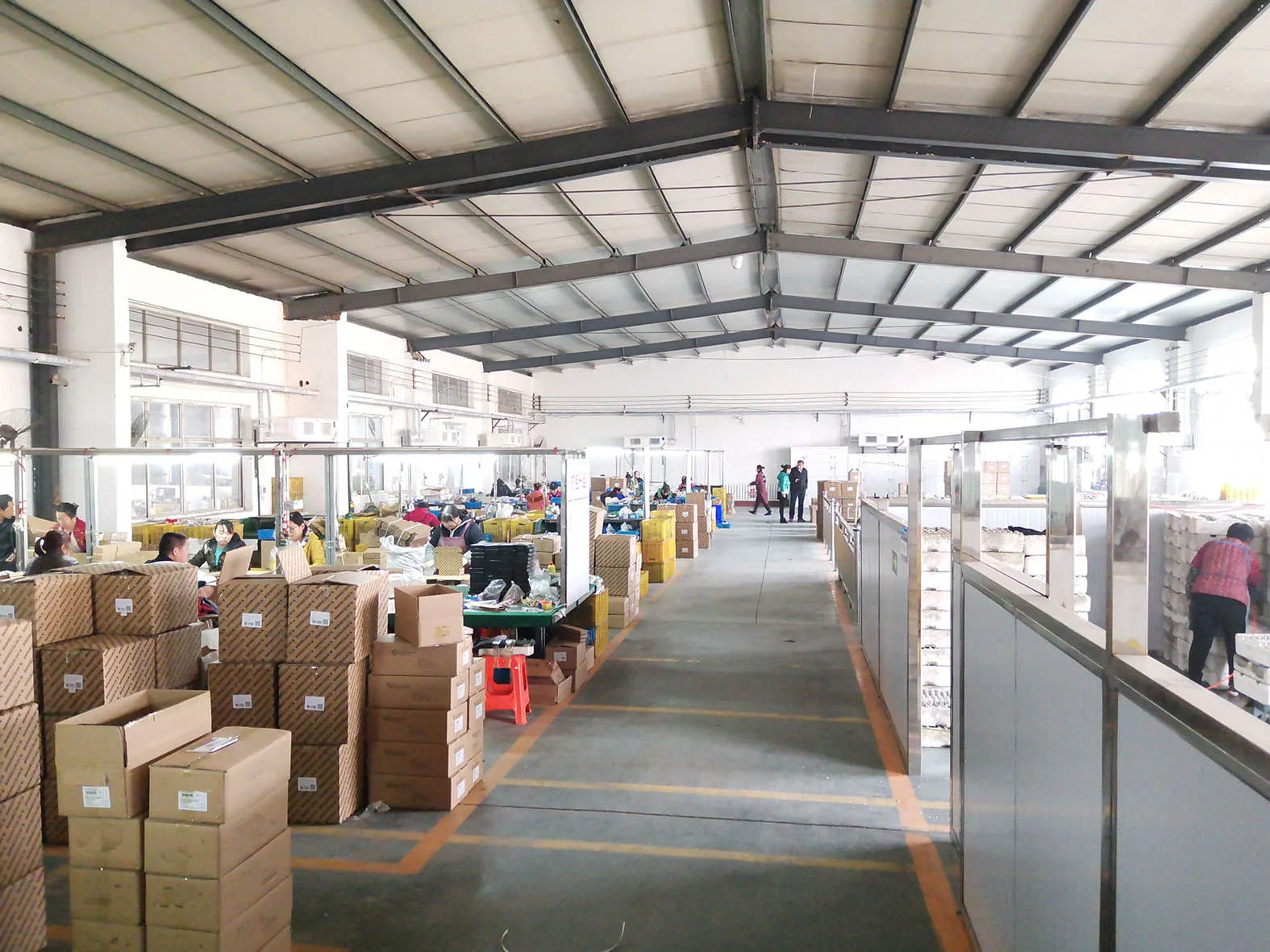

JIANHUA Group has 900 workers which covers 133,000 square meters (33 acres), specialize in Architectural hardware for doors (Rim lock / Mortise lock / Lever handle / Profile cylinder / Hinge).
We have 3 items,
(1) Rim lock to West Africa which outputs $20 million,
(2) Rim lock to North Africa / South America / Middle East which outputs $15 million,
(3) Mortise lock & lever handle & Hinge & Profile cylinder for fire rated door which outputs $10 million.
We have passed Quality Management System: ISO9001:2015; Fire rated Products have got relevant CE certification \\ Fire test and Performance certification.
Mortise lock have CE certification according to EN12209 and EN1634-1
Hinge have CE certification according to EN1935 and EN1634-1
Brass profile cylinder has been verified according to EN1303
Lever handle has been verified according to EN1906
We have our own workshops \\ own funds and stable production & management team.
To realize Manufacture and Creation, we continue to improve equipment automation.
VALUES:
Concentration, Innovation, Passion, Perfection
