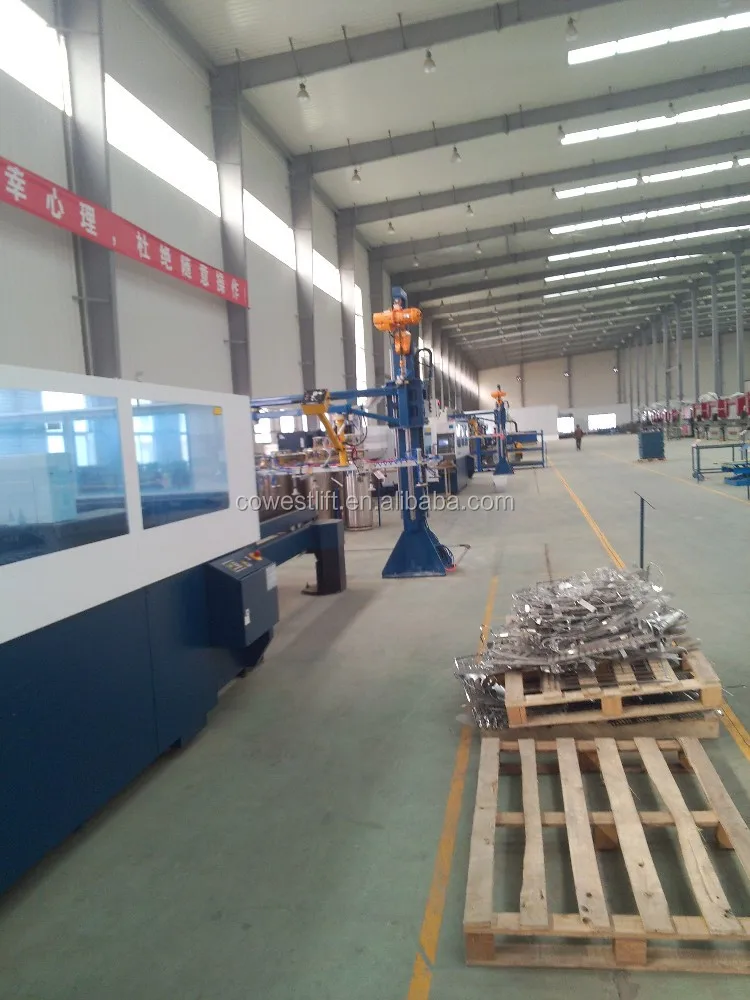

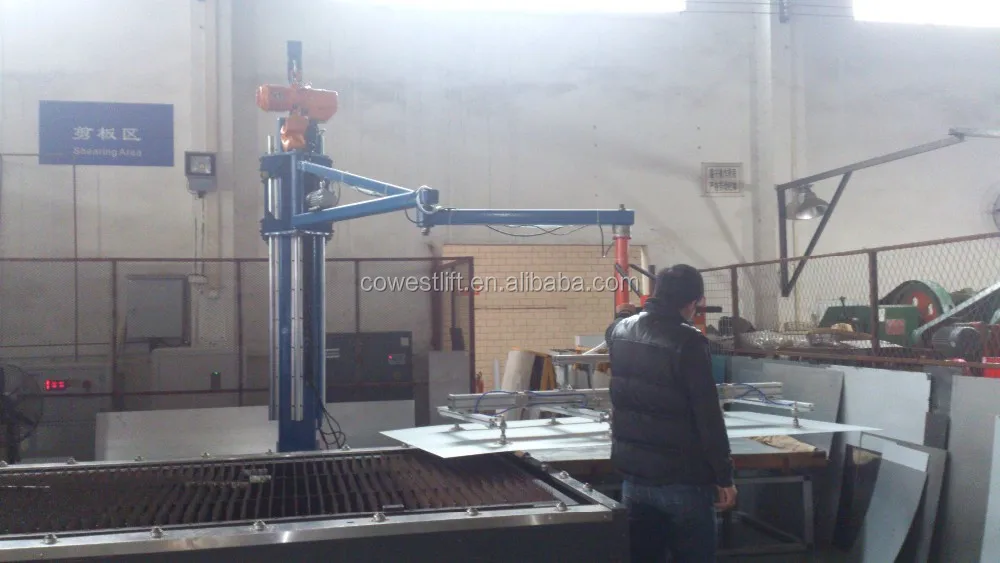

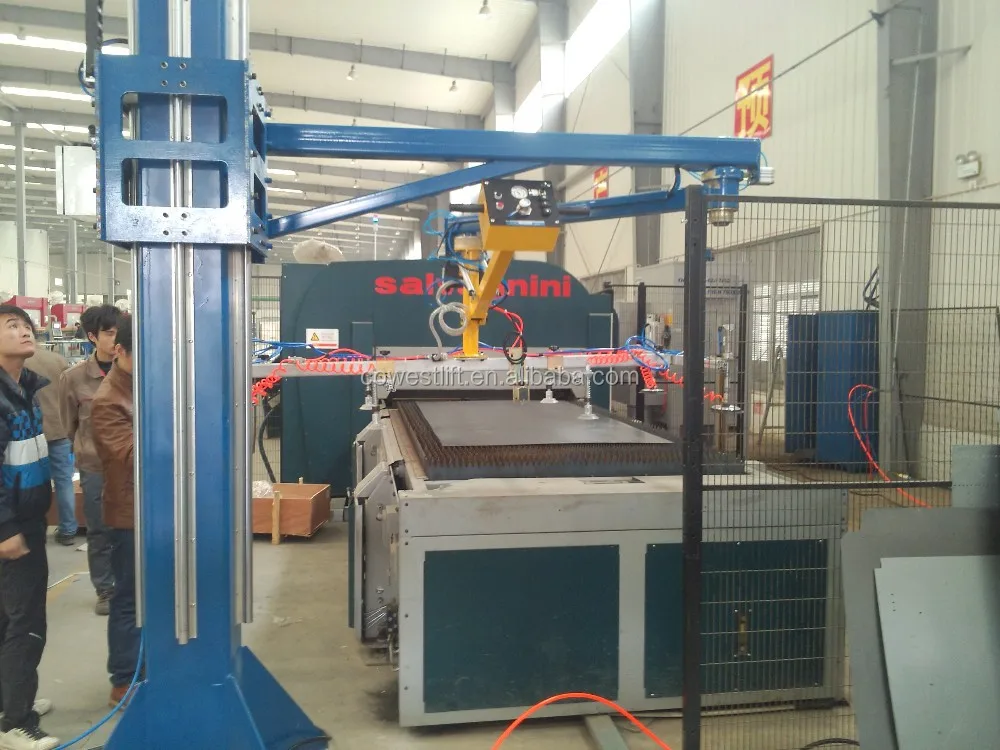

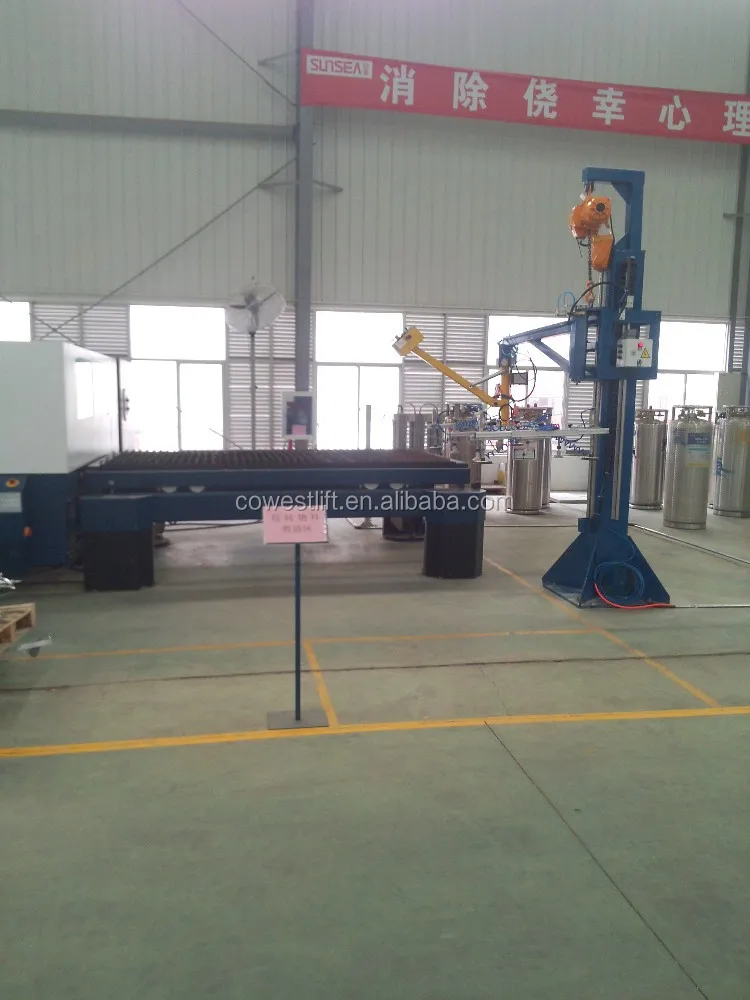

sheet metal vacuum lifting device, vacuum lifter for sale

Product Overview

Description





 Features:

1.  AC powered for pump uninterrupted running, which insure handling safer and more stable


2.  6 or 8 suction pads in cross shape to prevent the sheets from deflections


3.  dual suspension booms turnable make the handling work always in easy way and move smoothly


4. suction pads could be adjustable for all size sheets


5. hoist lifting with two of guide shaft for up and down stable without warped


6. light and accustic warning.


7. manual release valve with safety spring nob to prevent the accident from fault operations during the working process


8. safety keeping time more than 5 minutes while power lost, which fully conformed with  EU CE 13155 regulations


9.  2.0 safety factors conformed to   EU CE 13155 regulations


10.  imported high-quanlity pumps and valves offered stable working


11. various option and customized design available for request



Speicifications:

1. Maximum loads: 300kg

2. suction pads:8 of dia.100mm for 150kg or 8 of dia.160mm for 300kg , the pads would be with spring buffer

3. cardanic retainer for uneven surface on each suction pad

4.  whole booms length:3000mm, the first boom 1800mm,the second boom 1200mm

5. integrated safety tank for long time safety keep in case power lost.

6. Low-pressure and power lost warning with light and sight

7.column: 250*250 square pipe, whole height 3500mm

8.degree-adjustable guide lever between up and dwon

9.special sheets adhesion prevent unit for options
