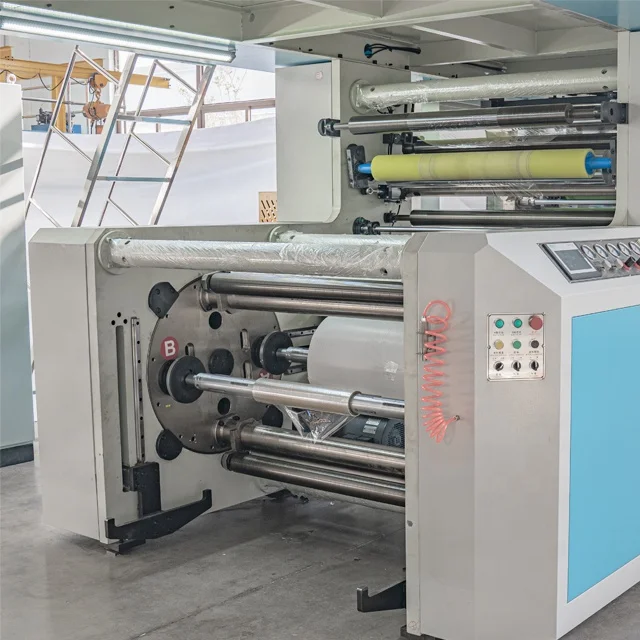

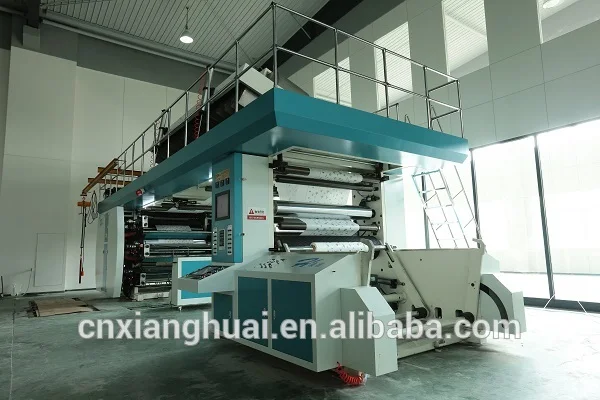

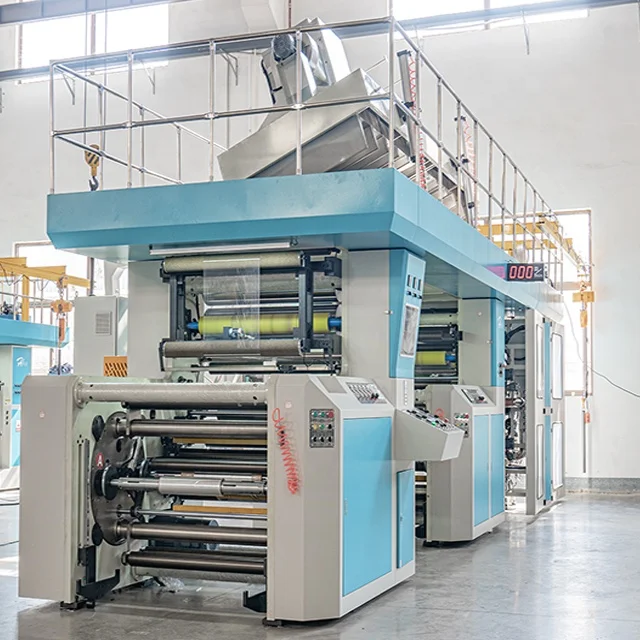

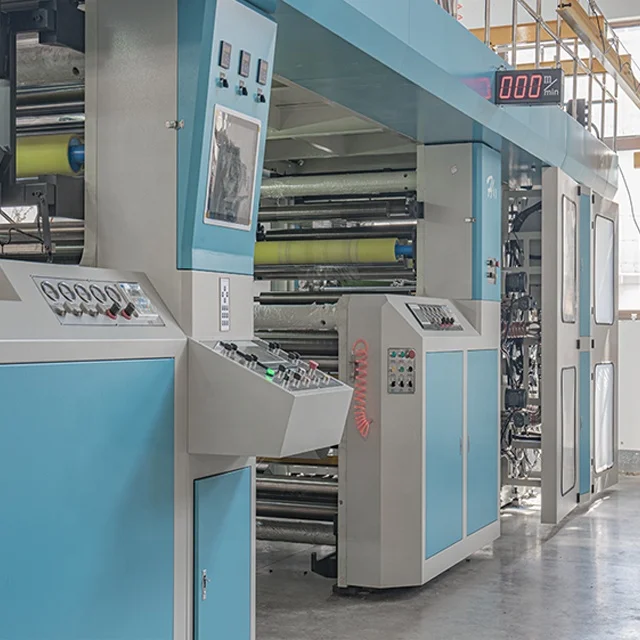

CI Type Central Drum PE Breathable Film Flexo Printing Machine PP PE films roll Flexo Press

Product Overview

Description



CI Type Central Drum PE Breathable Film Flexo Printing Machine Paper Bag Shopping Bag Flexo Press



- High Speed, High Precision

- Factory Price, LongLife Service

Using for Kraft Paper/PE,PP Film/(Non)Woven/PP Fabrics Rolls,etc..

  Print Samples:







I.Parameters:



Model	XHCI-E-61200mm
Material width	1200mm
Printing width	1160mm
Printing length	320-860mm
Roller diameter	800mm
Paper core diameter	3"
Machine speed	50-220m/min
Printing speed	50-200m/min (Depend on the materials)
Register precision	±0.15mm
Register type	By computer
Printing colors	6 colors
(Heating drying system)	Electrical heating system   (optional steam, hot oil, gas heating)
Weight	About:14T
Dimension	8.6m*2.5m*4m(L*W*H)
Voltage	3phase 380V 50HZ



II. Material (CI flexo printing machine)

BOPP, PVC, PE, Breathable PE, NY,   Paper,Non-woven fabric  and so on. It will be printed with multicolor continuous well.



III.Feature

1. Prompt print for production once printing plate mounted& color registered, no need to adjust plates again, improved production yield.

2. Changing a set of new plate roller, it just need 30 minutes to print again.

3. The first loading printing plate, the use of electric positioning system to quickly registering,  within two minutes to complete the vertical register.

4. Max printing speed can get 160m/min, register precision +-0.15mm, the registering accuracy does not fluctuate during speed up and down.

5.Substrate’s tension is held during machine paused, avoids substrate shifted.

6. The whole production line from the reel to put the finished product can achieve non-stop continuous production to maximize production efficiency.

7. Precise structure, simple operation, convenient maintenance & high automation, only one worker needed in machine operation.

• Good quality machines with one year warrantee, life-long maintenance   service;


• Undertake various of non-standard machinery, solve the customer's requirements



welcome to visit our factory to test run the machine!

Contatc me please if you want more details!
