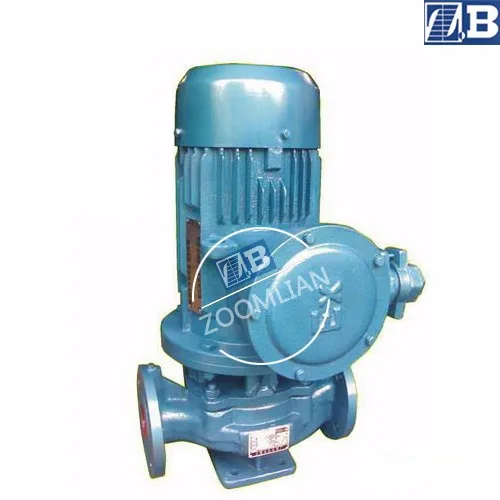

YG 3 Phase Booster Pump/vertical booster pump/ebara vertical pump
Product Description
YG vertical centrifugal anti-explosion inline oil pump
Product information:
YG 3 Phase Booster Pump/vertical booster pump/ebara vertical pump are produced strictly according to the relevant requirements, so they have a stable quality and reliable performance and are the brand-new ones instead of model IS horizontal pump, model DL pump etc. ordinary pump.
Features:
1. Compact structure. These series pumps have an integrally vertical structure, beautiful appearance and less area of occupied land, which, comparing with the ordinary ones, is reduced by 30%.
2. Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.
3. No leakage. Mechanical seal of corrosive-proof hard metal alloy is used for the shaft sealing so as to get rid of serious leakage of the filings of centrifugal pumps and ensure the operating place clean and neat.
4. Convenient service. Service can be easily done without removing any pipeline because of the back-door structure.
5. Viewing from the inlet of the pump, the outlet of it can be mounted in vertically upward.

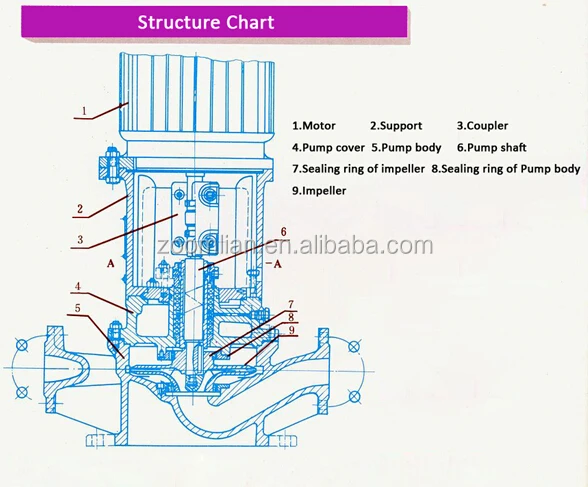

Structure chart:
Technical data:
Structure: single stage Material: stainless steel
Flow: 1.1-2000 m3/h Head: 7-153 m
Temperature: up to 105℃
Application:
YG 3 Phase Booster Pump/vertical booster pump/ebara vertical pump can transport the oil, coal oil, diesel oil solvent and edible oil. The medium temperature: -20~120. It is widely used in the oil storeroom, dock, ship, chemical, fibred, environment protect enterprises.
Model description:
YG50-160(I)A(B)
YG ----------------- Vertical inline centrifugal oil pump
50 ------------------ Inlet/Outlet nominal diameter 50 mm
160 ---------------- Impeller nominal diameter 160 mm
I -------------------- Flow sort
A ------------------- Impeller cutting for the first time

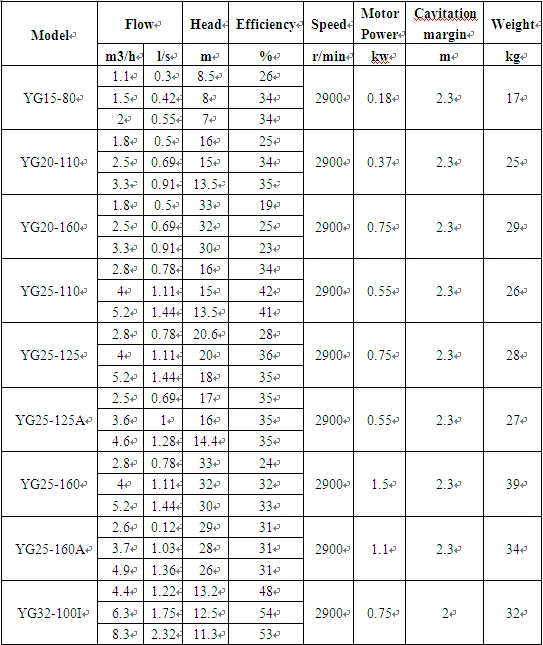

Performance parameter:
For other models information, please CLICK HERE >>>>>>

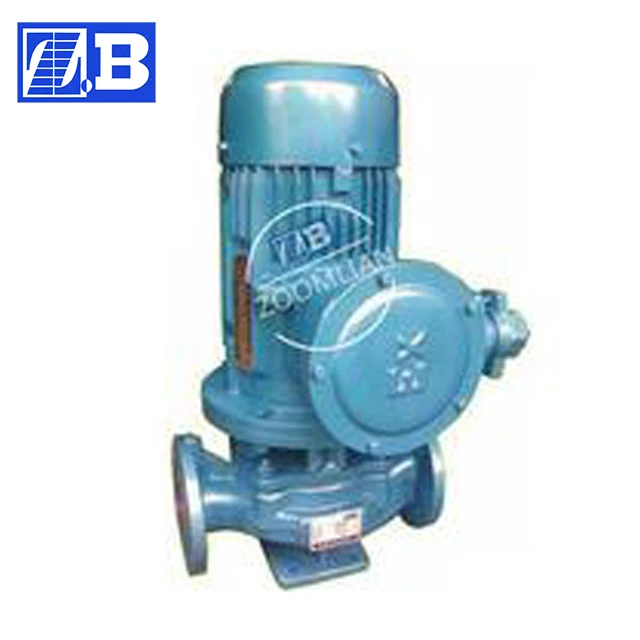

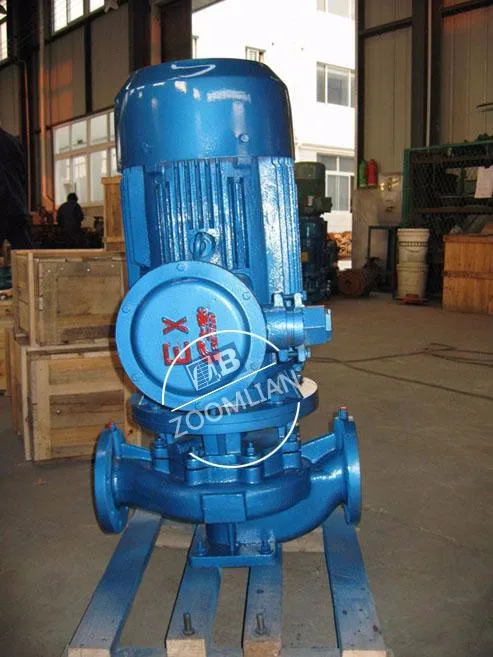

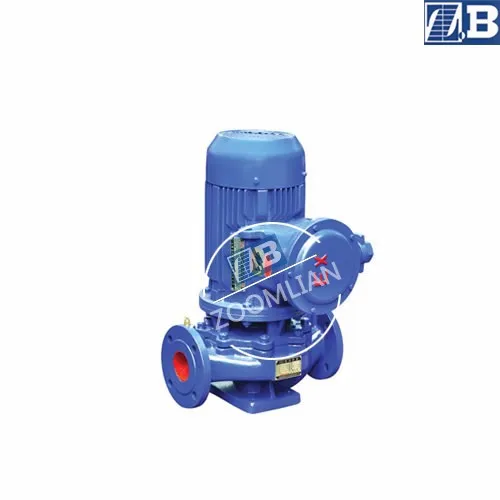

Product pictures:
Company Information
Company Introduction:
Changsha Zoomlian Pump Co., Ltd, established in 1989, is an enterprise which engages in the production and sales of multistage pumps, centrifugal pumps, single stage pumps, inline pumps, split case pumps, sewage pumps, submersible pumps, fire pumps, oil pumps, irrigation pumps, chemical pumps, boiler feed pumps etc. Our products have a good reputation in the domestic and foreign markets covering the fields of energy, mining, metallurgy, petroleum, chemical industry, building materials, textiles, food, marine development, national defence construction, urban construction etc.
Over 25 years of engineering expertise
ISO 9001:2015 certification
7200 Square meters of company area equipped with the latest machinery
Production capacity exceeding 5 thousands per annum
More than 300 varieties of water pumps to choose from
Fully mechanized and automated foundry with high technology
“High-technology Enterprise” in Hunan Province & “Energy-saving Promotion Unit”
Company Picture:
Certifications:
Production Process:
Packaging & Shipping
Packed in standard wooden case
Our Services
We are committed to providing the highest level of customer service, competitive price, speedy delivery and a comprehensive, cutting-edge product. Your satisfaction is our ultimate goal.
Contact Us
FAQ
Q1. What is your product range?
- Multistage pumps, centrifugal pumps, single stage pumps, inline pumps, split case pumps, sewage pumps, submersible pumps, fire pumps, oil pumps, irrigation pumps, chemical pumps, boiler feed pumps etc.
Q2. Are you a manufacturer?
- Yes, we have been in manufacturing and marketing industry centrifugal pump over 25 years.
Q3. What information should I let you know if I want to get a quotation?
- Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also
provide the pump model you are using now, price will be calculated as per the pump model, if not, we will
recommend relevant product for reference.
Q4. Do you impact the finished product?
- Yes, each batch of production and finished product will be quality checked strictly before delivering.
Q5. How do you ship the finished product?
- By sea.
