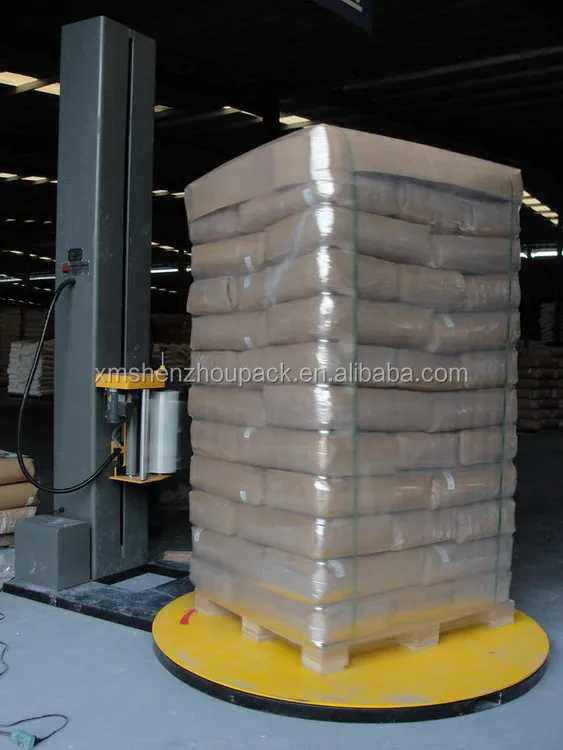

Automatic Pre stretch Pallet Stretch Wrapping Machine With M Type Forklift Access

Share on (60129332102):


Price:

Quantity:


Product Overview

Description






Features
Control
  1. OMRON PLC programmable control system
  2. Photocell for automatic pallet height detection
  3. Electronical panel
  4. 0-9 separate top, bottom & up-down wrap count selectors
  5. 3-12RPM variable turntable speed by frequency changer
  6. Separate start, reset and emergency stop buttons
  7. Reinforce wrap allow more wraps on same location
  8. Photocell sensing delay
  9. Film Tension Control adjustment on the panel
  10. Separate variable carriage up/down speed
  11. Cycle pause capability
  12. Manual carriage up/down switch
  13. Turntable jog button
  14. Hinged mast to fold the machine for easy transport
  15. Rear Forklift transportable



Turntable

  1. Pallet loaded and unloaded by forklift
  2. Forklift access by 90°, 180°, 270°
  3. 1650mm Diameter structural steel plate
  4. Soft start/ Soft stop
  5. Heavy duty chain drive
  6. Turntable position alignment, always stop at prefix position



Film Carriage

  1. Film delivery variable speed by separate DC Drive Motor
  2. Film dancer-bar with variable speed output
  3. Heavy duty double-chain carriage lift, calm and safety
  4. Powered pre-stretch ratio up to 250% to min film consumption
  5. Quick- change carriage offers effortless roll change and thread film



Options



Ramp

Top press plate

Max. pallet height up to 2400 MM

Max. turntable load up to 3000 KGS



Technical Data



Load Size

Max. L 550-1100 MM

Max. W 500-1100 MM

Max. H 800-1800 MM

Turntable Diameter

1650 MM

Turntable Height

118 MM

Turntable Load Capacity

Max. 1200 KGS

Turntable Speed

Max. 12 RPM

Machine Weight

720 KGS

Power Supply

220V 50HZ 1Phase

Power Consumption

1.5 KW

Machine Dimension

L 2745 x W 1650 x H 2270 MM

Shipping Dimension

L 2300 x W 1900 x H 1000 MM

Packing Efficiency

20-40 Loads per Hour Based on pallet size and weight







Samples

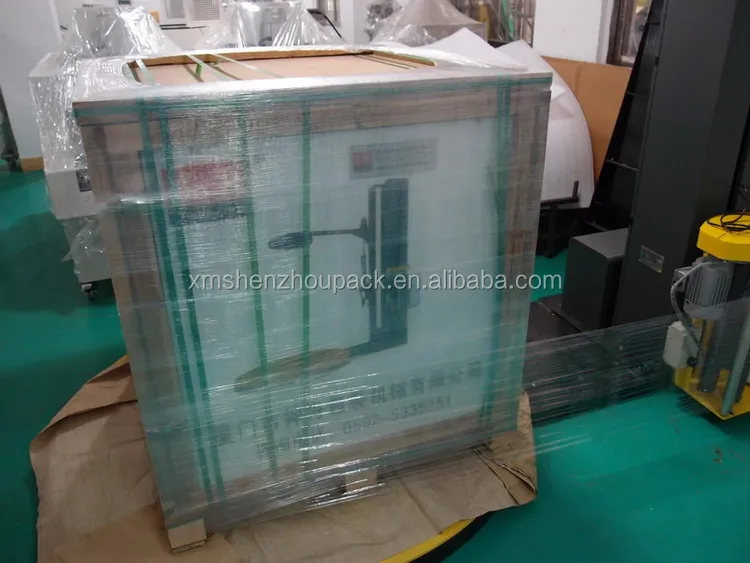

Stretch Wrapping Sample 1

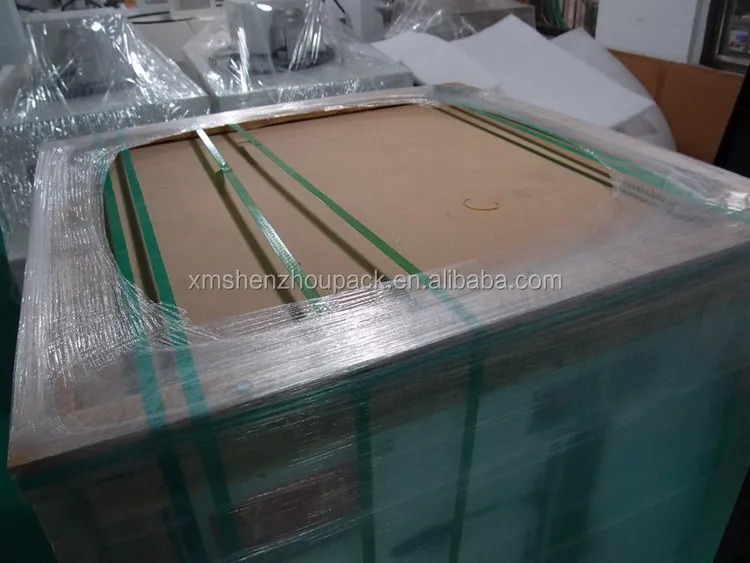

Stretch Wrapping Sample 3

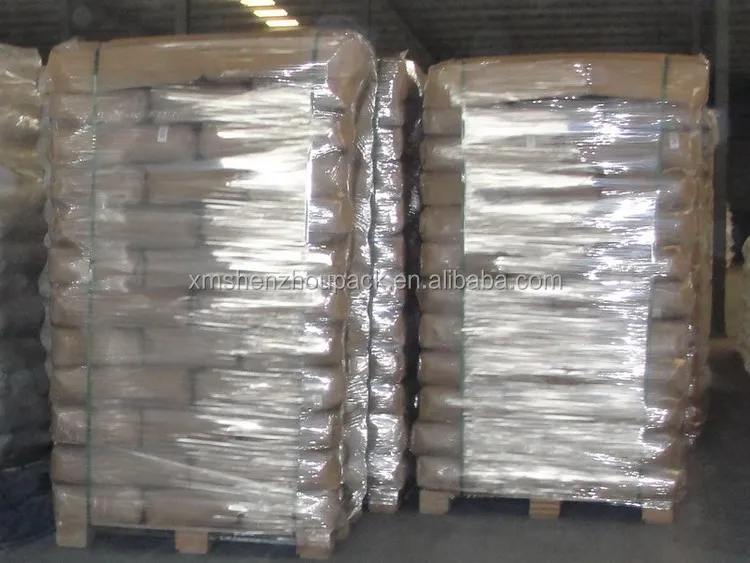

Stretch Wrapping Sample 2

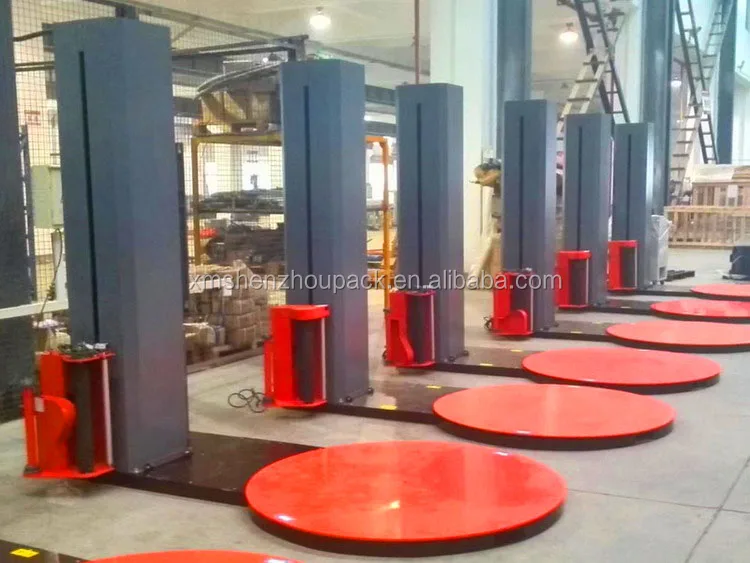

Stretch Wrapping Machine 3
