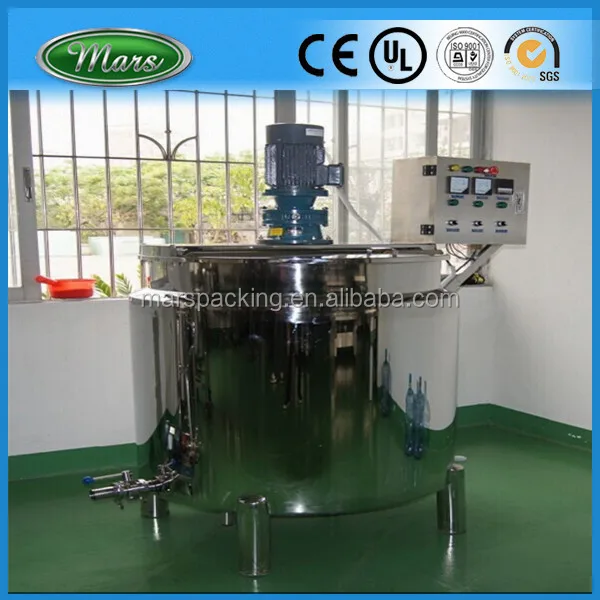

Stainless Steel Heating and Mixing Tank with Stirrer Agitator

Product Overview

Description

Electric Heating and Mixing Tank for Cosmetics price(CE certificate)



Application:

It is used for mixing all kinds of liquid products in pharmaceutical, food, chemial and biological fields.

We have different kinds of agitators:

v       Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc...

v       Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc....

v       Emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....

Two agitator can be installed in one tank if it needed.



Description

Product technical description

Specification: 50L~50,000L even larger.

Material: SS316L or SS304

Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.

Pressure: ATM or pressure vessel (-0.1~1Mpa)

Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

Jacket type: dimple jacket, full jacket, or coil jacket

Insulation material: rock wool

Components can be equipped as request:

standard components: manhole or handhole, sight glass, cleaning ball

optional components:

vent filter with Pall cartridge or china brand cartridge

temp. gauge, display on the gauge directly on the vessel

temp sensor pt100, digital display on the control cabinet by instrument

temp sensor with control for heating and cooling

level gauge with digital display on the control cabinet by instrument

load cell

valves



Manufacture standard for pressure vessel: GB150-1998,or PED/23/EC with CE mark



Working volume	Inner diameter	Outer diameter	Vessel height	Total volume
50L	400mm	500mm	600mm	69L
100L	500mm	600mm	650mm	130L
200L	600mm	700mm	1000mm	250L
300L	700mm	800mm	1250mm	370L
500L	900mm	1050mm	1150mm	650L
1000L	1100mm	1250mm	1480mm	1260L
1500L	1200mm	1350nmm	1700mm	1780L
2000L	1300mm	1500mm	1980mm	2200L
3000L	1500mm	1700mm	2150mm	3400L
4000L	1600mm	1750mm	2630mm	4000L
8000L	1900mm	2100mm	3200mm	8300L
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement.



Product show
