Huicheng Seamless Underwear Knitting Machine

Product Overview

Description

High Lights Of  Computer Controlled Huicheng Seamless Underwear Knitting Machine

6 shafts E-positive yarn feeding system: Set the yarn feeding parameters through PC touch screen (equipped with the servo motors from Tai Wan)

4~6 guide bars EL: Pattern processes can be input through USB, active and saved with PLC (equipped with the servo motors from Japanese brands)

Double needle bar 12-18 lath needles (optional)

Main motor frequency conversion, CVT

Two sets of sinker device

Valid working width: 660 mm X 2

Standard: Q/HCZZ001-2007

Suitable products: The scarf that made with Jacquard Weave technology





Technical Specification Of Computer Controlled Huicheng Seamless Underwear Knitting Machine

Needle-type: Latch needle

Machine gauge: E9 E12 E18

Products width allowance: 660 mm X 2

Number of guide bars: 4-6

Method of warp let-off: E-positive, customized beaming parameters (EBC)

Beam size: 14”

Flange Diameter: φ356

Shaft Diameter: φ102

Aperture: φ70

Beam Width: 356 mm

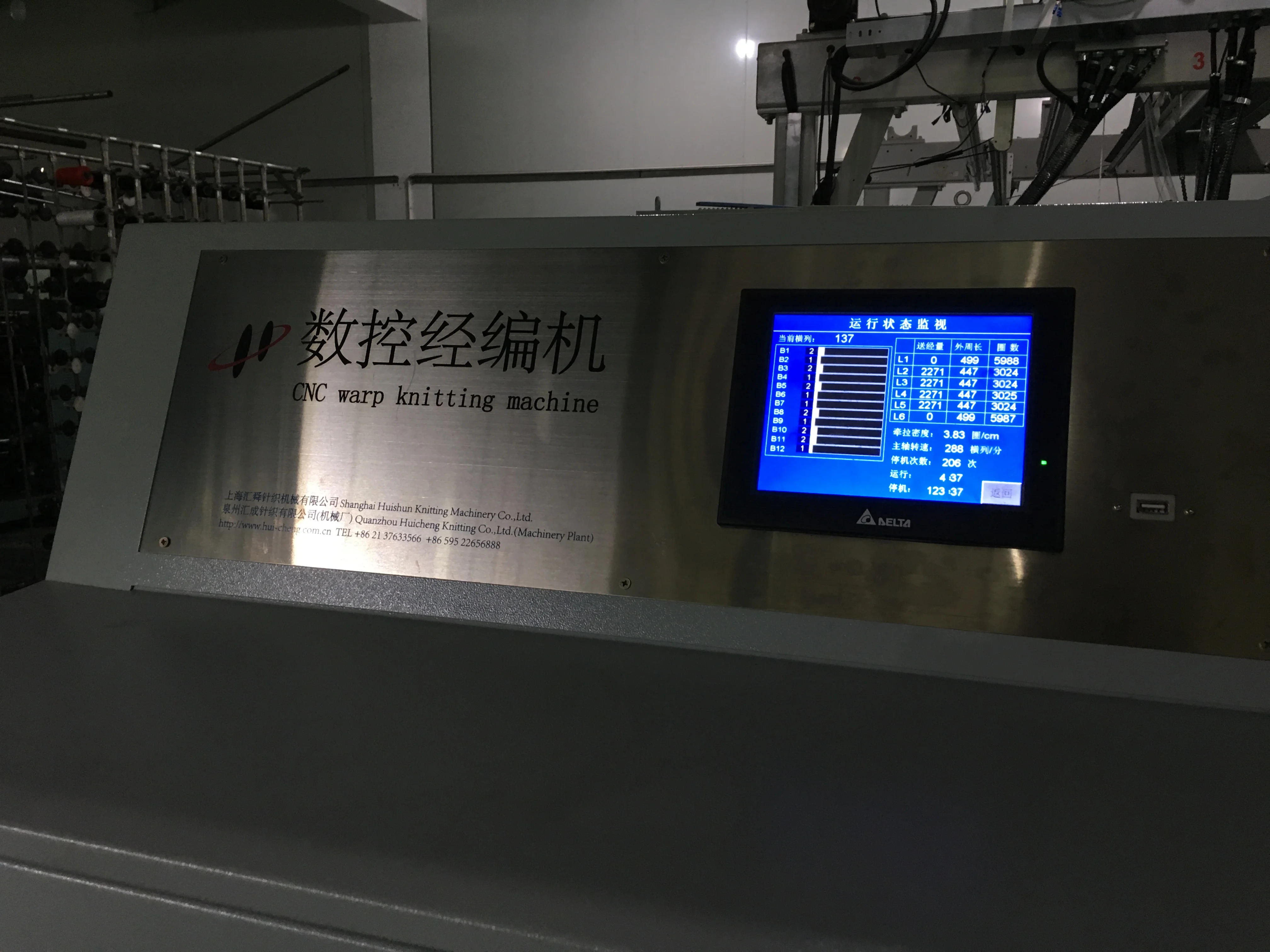

Density tuning method: Digital controlled, PC touch screen operation (EBA)

Braiding method: EL, Jacquard dropper pins

Main shaft speed: 0-200 RPM (frequency control)

Main motor: 2.2 KW

Yarn feeding motor: 0.5 KW × 2 pieces

Shogging motor: 0.75 KW × 4 pieces

Outline dimension: 2700mm (Length) x 1900 mm (wide) x 2600mm (height)

Total weight: 3500 kg
