SM8S15A TVS DIODE TRANSIL DIODE
- Category: >>>
- Supplier: Shenzhen Luguang Electronic Technology Co. Ltd.
Share on (60130239310):
Product Overview
Description
SM8S10 thru SM8S43A Automotive Transient Voltage Suppressors Diodes

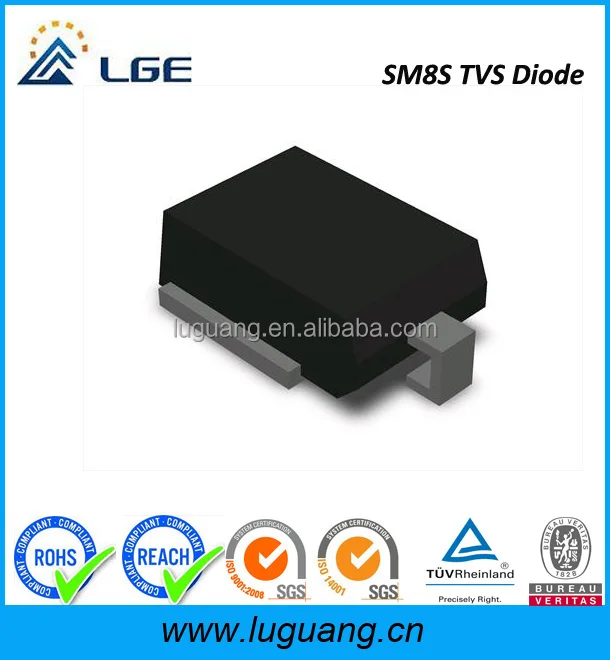

Products picture:
Features:
Available in uni-directional polarity only
Low leakage current
Low forward voltage drop
High surge capability
Meets ISO7637-2 surge specification (varied by
test condition)
Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C
Component in accordance to RoHS 2002/95/EC
TYPICAL APPLICATIONS:
Use in sensitive electronics protection against
voltage transients induced by inductive load switching
and lighting, especially for automotive load dump
protection application.
MECHANICAL DATA:

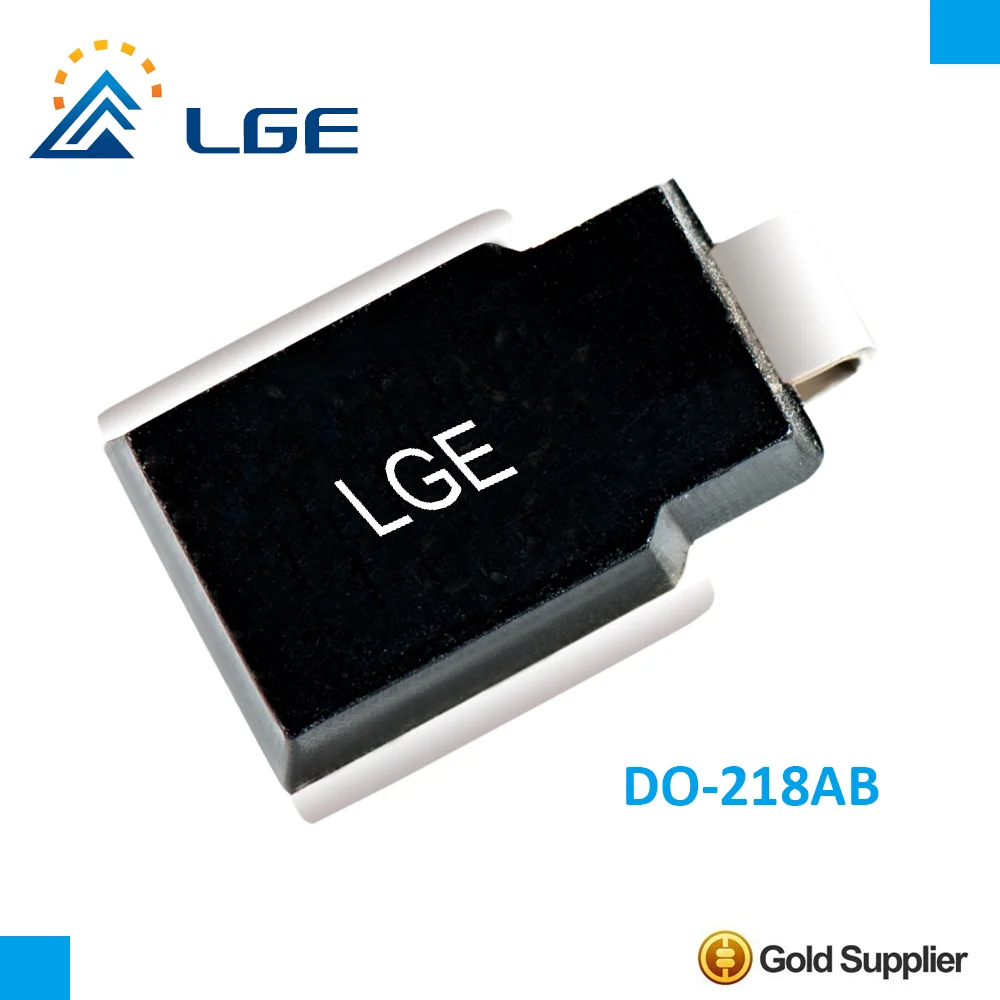

Case: DO-218AB
Molding compound meets UL 94 V-0 flammability
rating
Base P/NHE3 - RoHS compliant, high reliability/
automotive grade (AEC Q101 qualified)
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
HE3 suffix meets JESD 201 class 2 whisker test
Polarity: Heatsink is anode
Peak pulse power dissipation:6600W with 10/1000 μs waveform;5200W with 10/10 000 μs waveform
Power dissipation on infinite heatsink:8.0W
Peak forward surge current 8.3 ms single half sine-wave:700A
TEST CURRENT:5.0A
STAND OFF VOLTAGE:10V-43V
