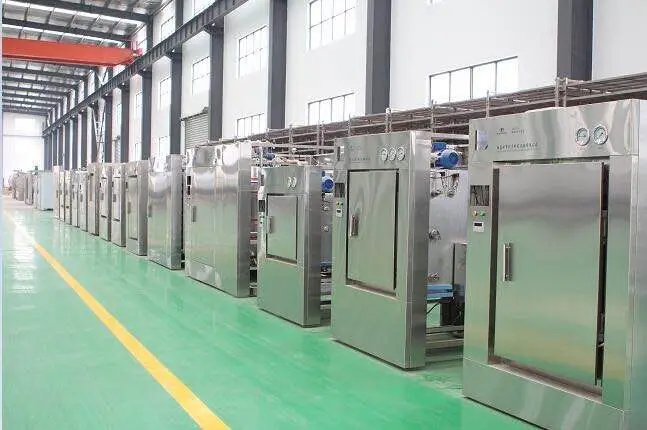

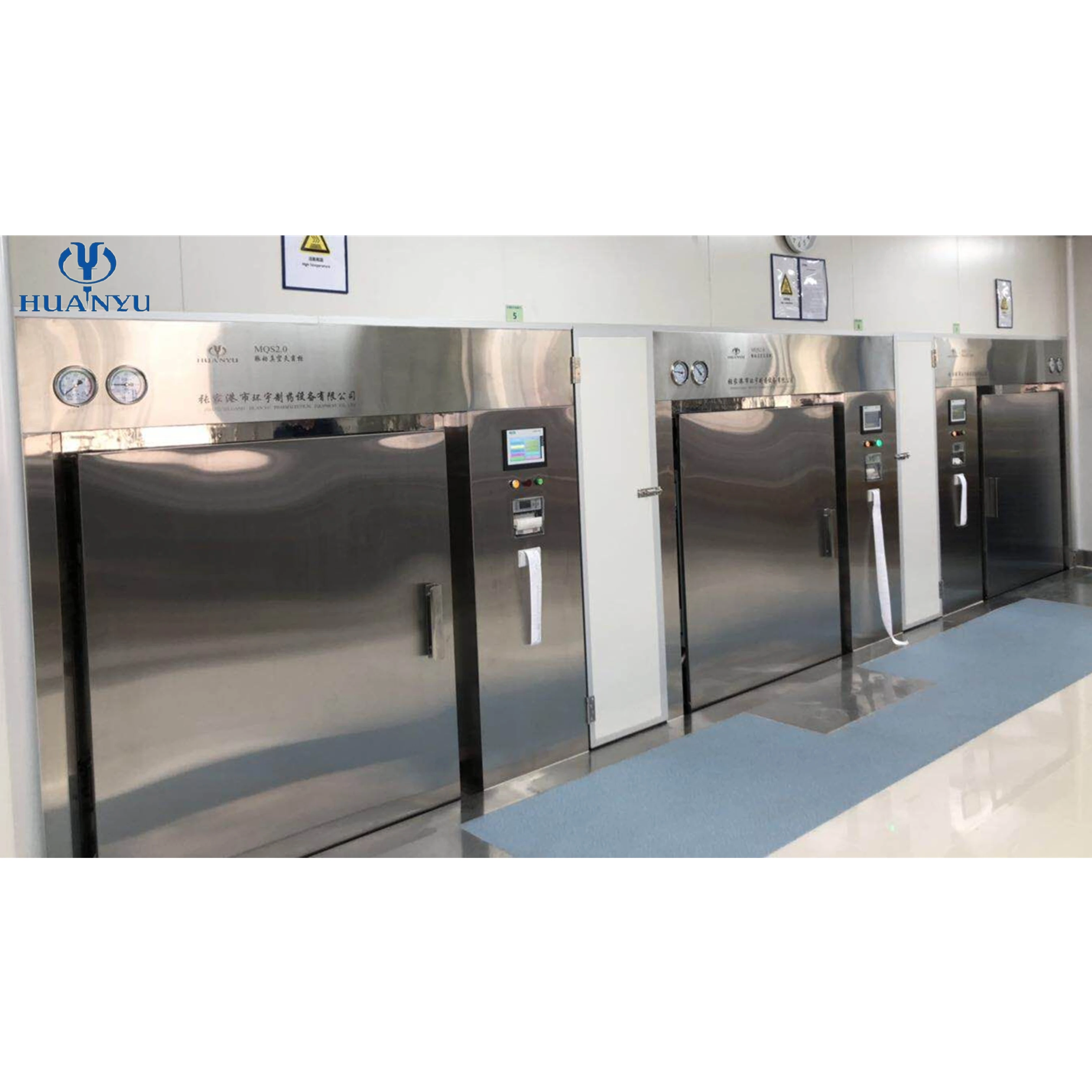

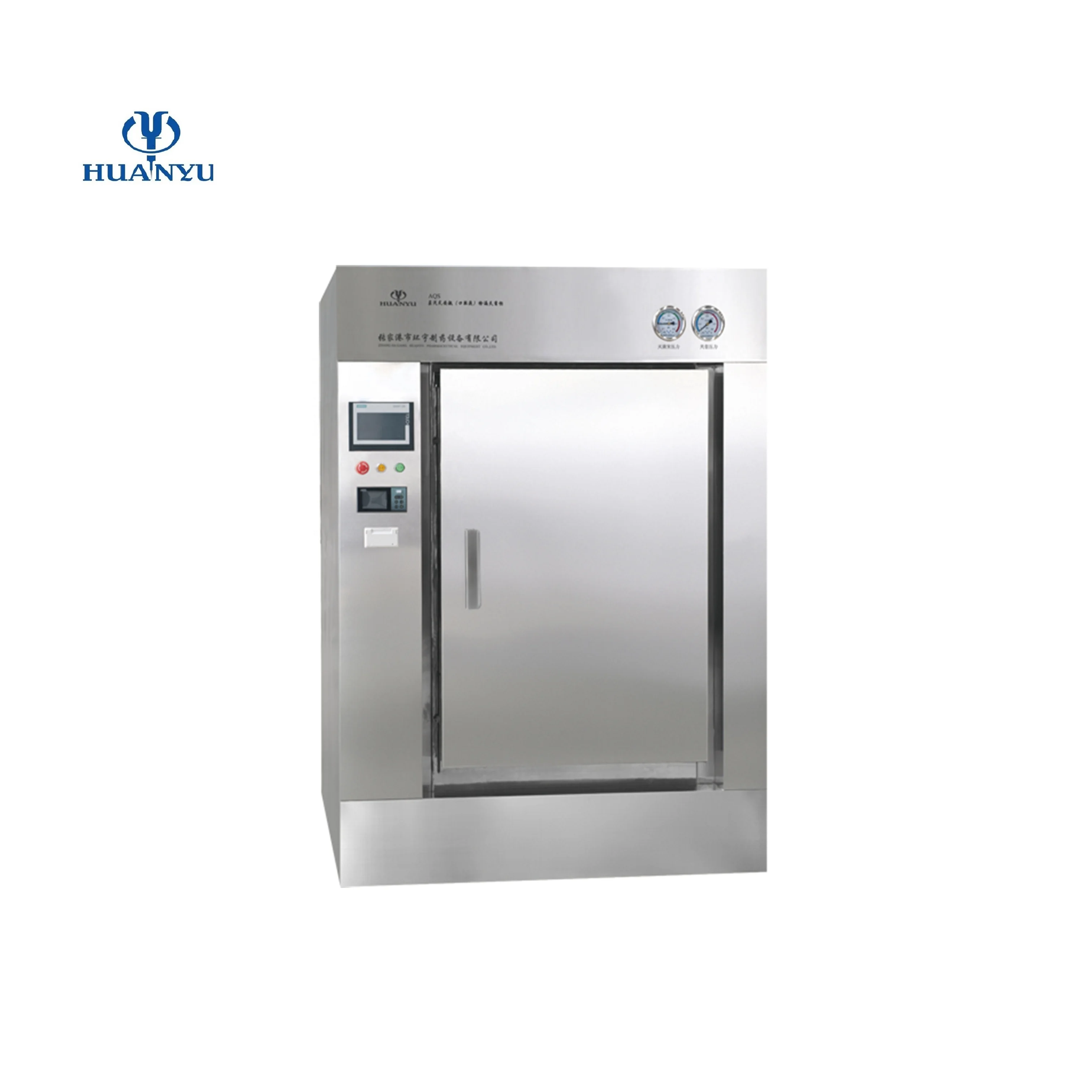

AQS 2000L steam ampoule leak test autoclave
AQS 2000L steam ampoule leak test autoclave
AQS 2000L steam ampoule leak test autoclave
AQS 2000L steam ampoule leak test autoclave
AQS 2000L steam ampoule leak test autoclave

AQS 2000L steam ampoule leak test autoclave

Share on (60130567254):


Price:

Quantity:


Product Overview

Description



Products Description


This series of autoclave is strictly manufactured according to GMP standard, and is mainly used for the sterilization of ampoule, penicillin bottle, injection, oral liquid and etc. with leak test and cleaning disposal.
It adopts pre-vacuum method to eliminate the cold air, so as to ensure temperature homogeneity, the combination of vacuum and color water, ensure 100% waste test result, and double door interlock structure is good to realize the isolation of clean area to the polluted area.


Main Parameter Table of AQS Series Steam Ampoule ( Oral Liquid )Inspection Sterilizer
Model
Volume
Inner size
Out size
Steam consumer
Cleaning water
Power
Weight
AQS1.2S
1.2m³
1500*750*1050
1790*2000*1900
80kg
600kg
4kw
2200kg
AQS1.5S
1.5m³
1900*750*1050
2190*2000*1900
100kg
700kg
5.5kw
2400kg
AQS2.OS
2.0m³
1700*1000*1200
2000*2400*2200
120kg
1000kg
6.5kw
2800kg
AQS2.5S
2.5m³
2100*1000*1200
2400*2400*2200
140kg
1300kg
6.5kw
3500kg
AQS5.OS
5.0m³
2500*1000*1200
3650*2400*2200
280kg
2500kg
9kw
4800kg


Loading System Selection


Floor loading structure
The floor loading autoclave adopts floor embedded structure that allows the loading cart to load into the chamber directly without the trolley.
Loading cart & trolley structure
The standard autoclave is equipped with trolley and loading cart, which do not require to open pit for the autoclave, the loading carts are transported by the trolleys.

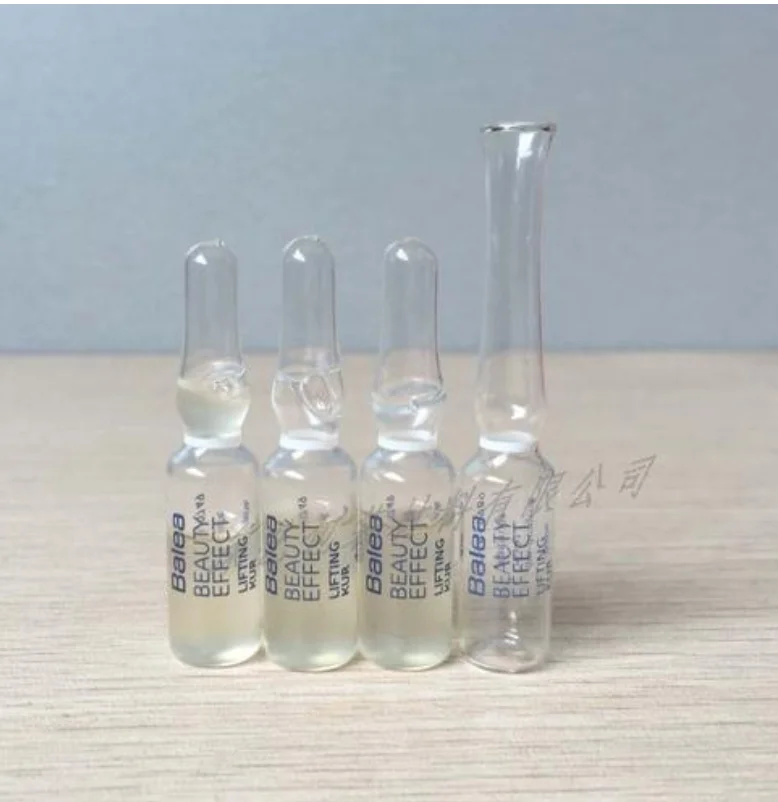

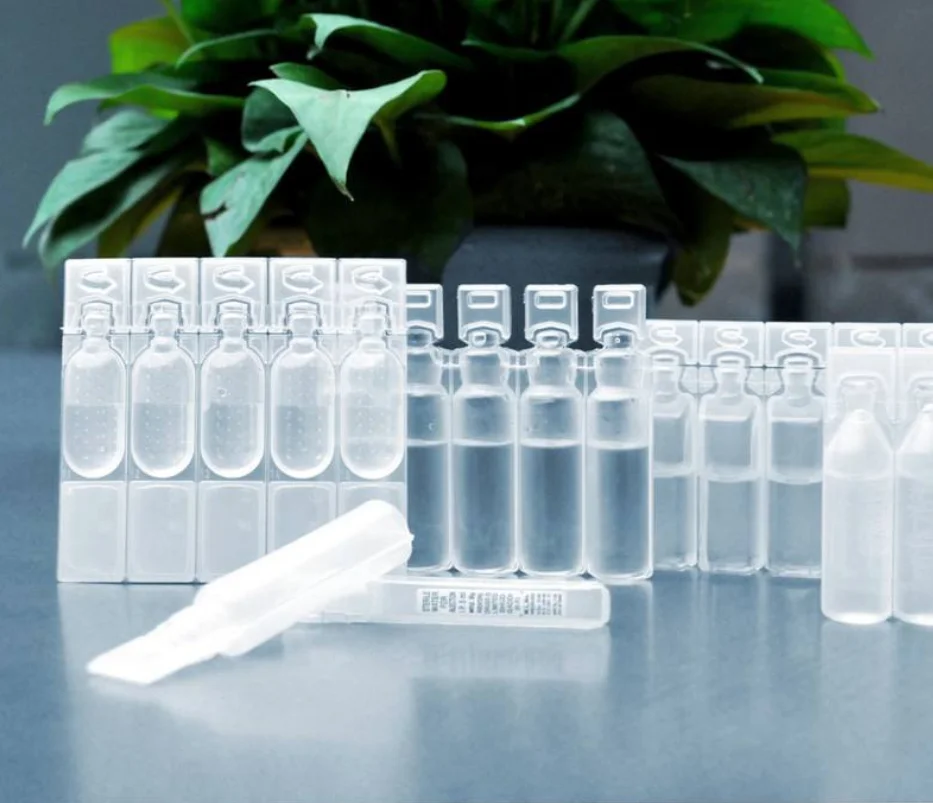

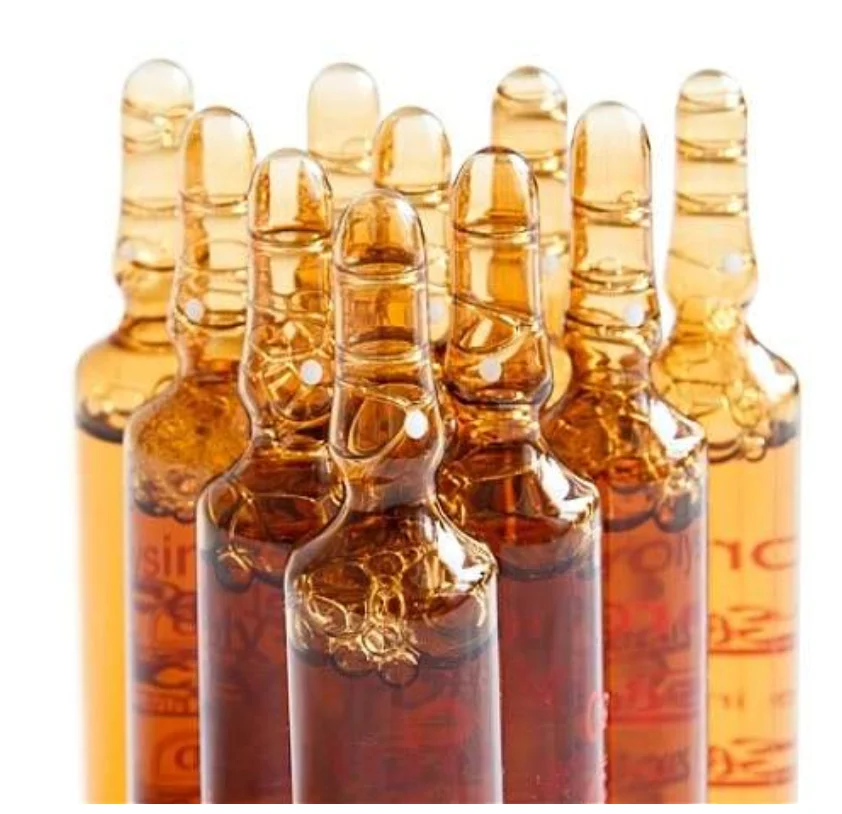

Application

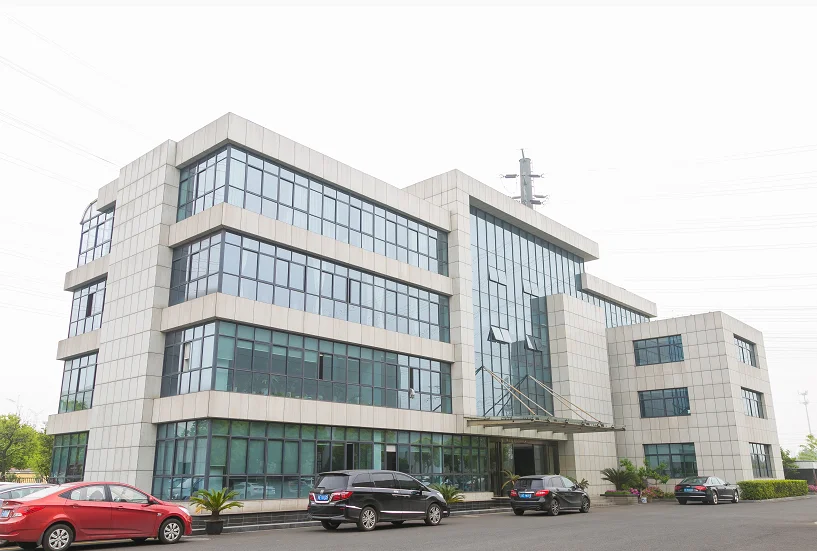

Company Profile

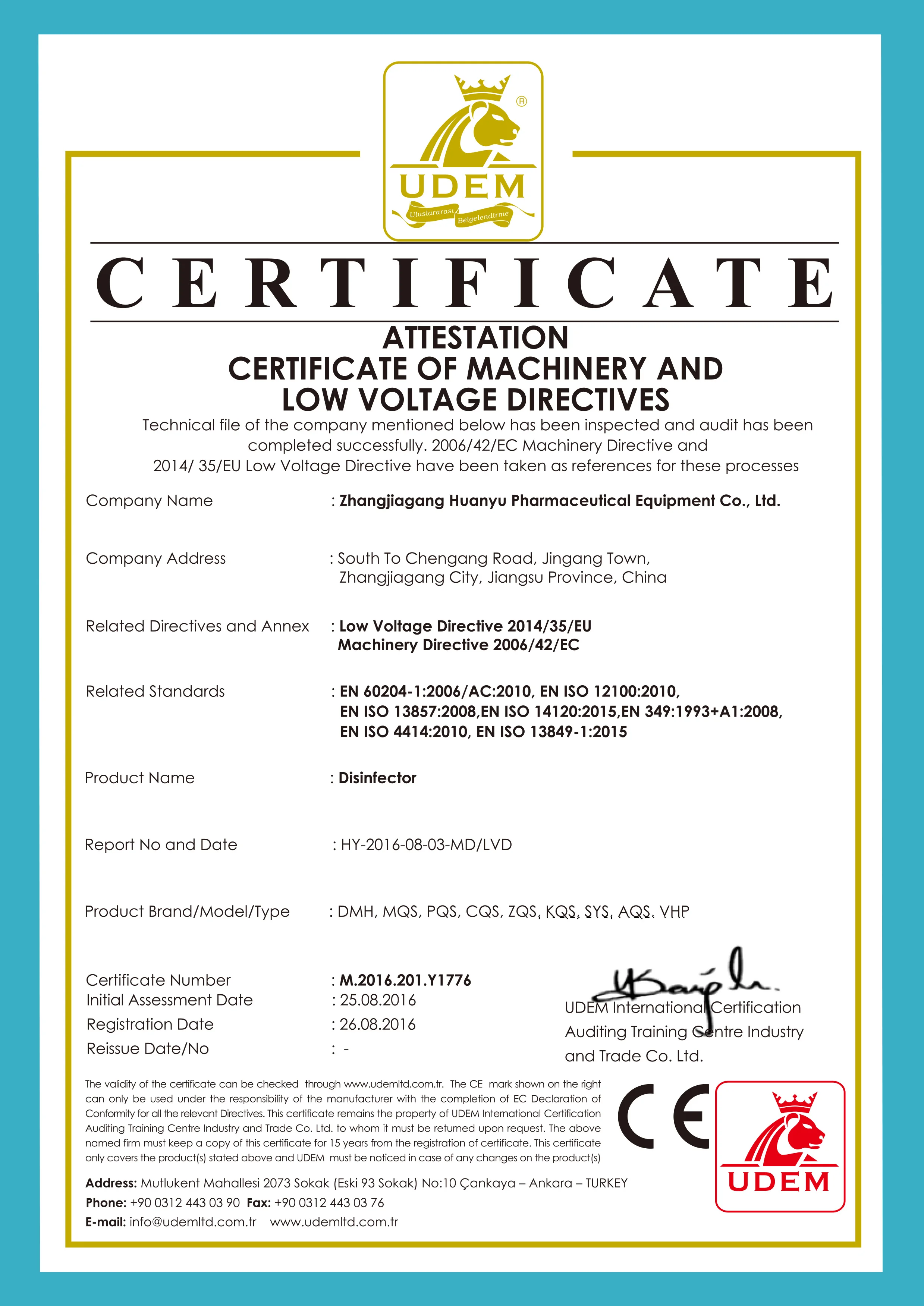

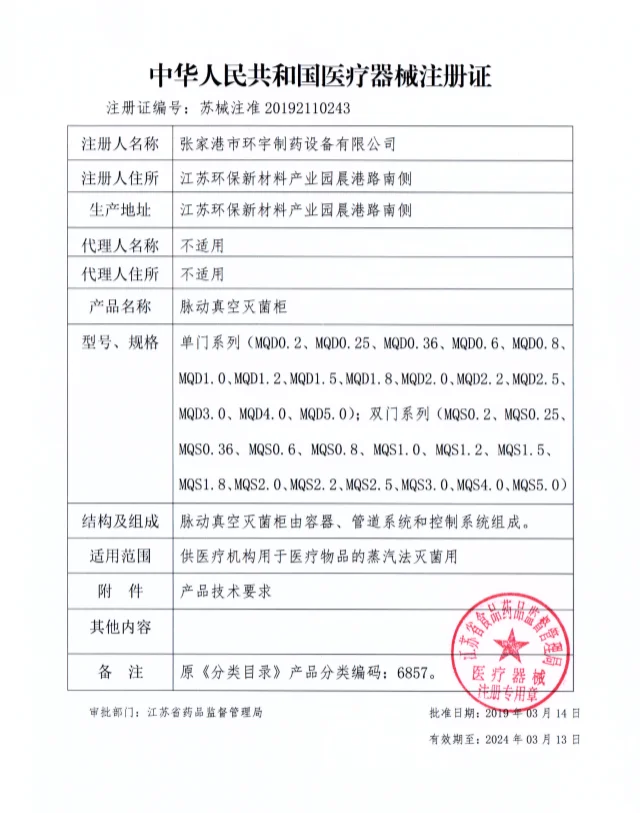

Certifications
