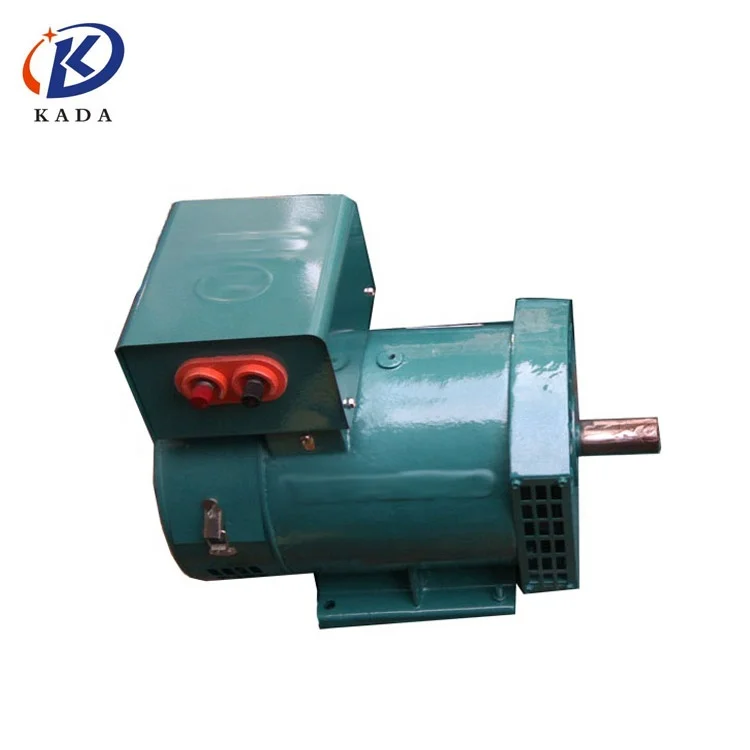

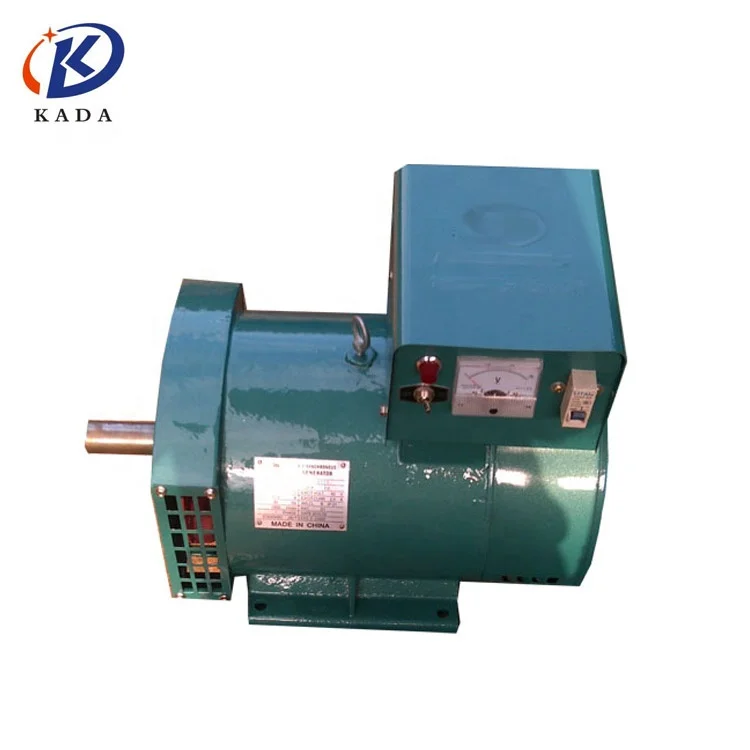

Small ac alternator 1 kw 1500 rpm alternators coupling



Description

       The ST STC series A.C. Synchronous generator are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also be used as reserved power source for emergent case using. The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
     The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
     They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.



Technical Data

Single or Three phase synchronous alternator

Voltage: 400V/380V/240V/230V/220V

Output: 1KW

Speed: 1500rpm

Frequency: 50Hz

AVR regular

Single/Double bearing

Insulation: Class B

IP21

100% copper wire



Operation Conditions
Under the following environment conditions,the generator could run normally and continuously:

1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ~40 ).
3. Relative air humidity: Not exceed 90%.

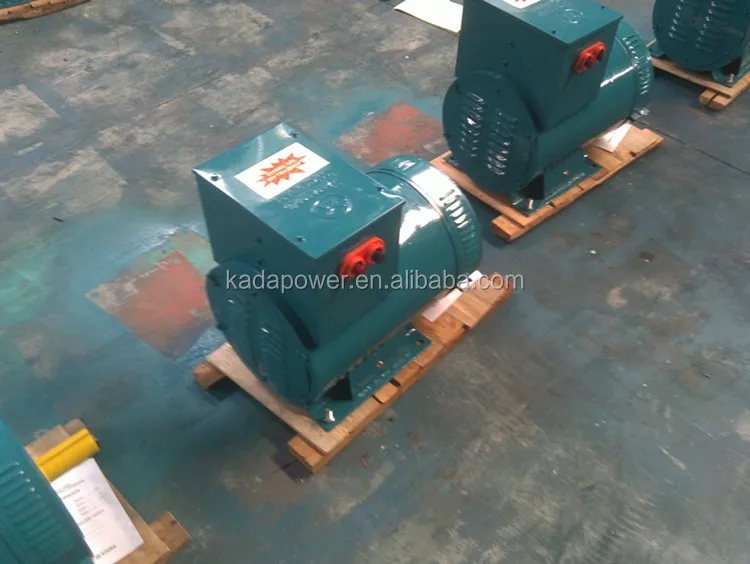

Product show

Kinds of colors for you!



FAQ



Q: Do you offer OEM service?

A: Yes



Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy or irrevocable L/C.



Q: What is your lead time?

A: About 25 days after receiving deposit or original L/C.



Q: What certificate do you have?

A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc



Packing

We use Plywood Case/Standard Export Packing to ensure that the products are in good condition.



Spare parts

We use advanced technology to ensure the high quality of products .

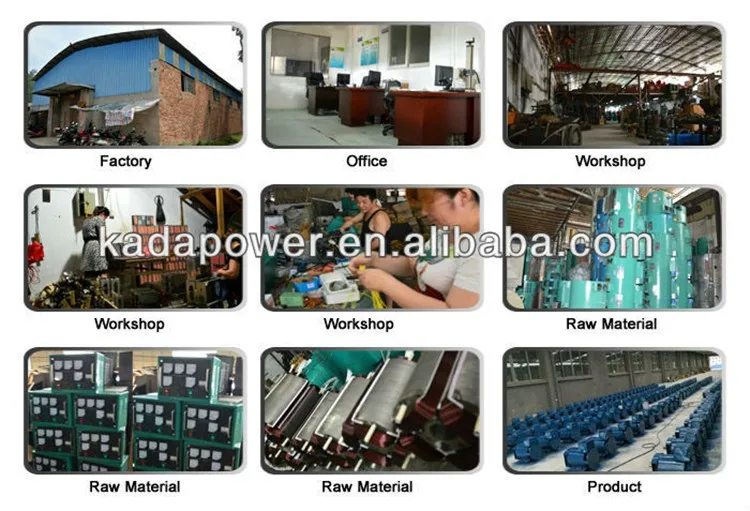

Our factory

We use the best technical people make the best products



About KADA

         Established in 1993, Ningde KADA Co., Ltd. specializes in the scientific research, production, import and export of generators. Our main products include diesel generator sets, gasoline generator sets, prime alternators, electric motors and water pumps. Our company has strong technology capabilities, advanced production lines and inspection equipment.

      Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001:2000, CE and Soncap. We keep seeking, researching and producing new variety of products. We employ professional technical members and can offer GF and GFS series single-phase/triphase diesel generator sets (power range of 3kw-1000kw), which are very popular both at home and abroad.

     Adhering to the spirit of “scientific development and undergoing training”, we also stick to the guideline of “higher, more advanced and more powerful”. We encourage the participation of all staff members to rely on quality, development, creation and good credit.

     We are looking forward to cooperating with overseas customers based on mutual benefits. Please feel free to contact us for more details.





Certification



Welcome to inquiry and we will do our best!
