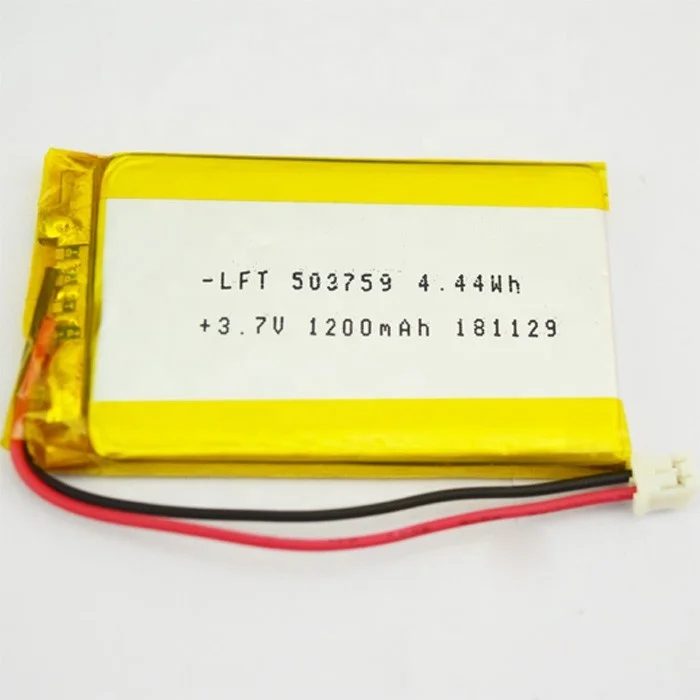

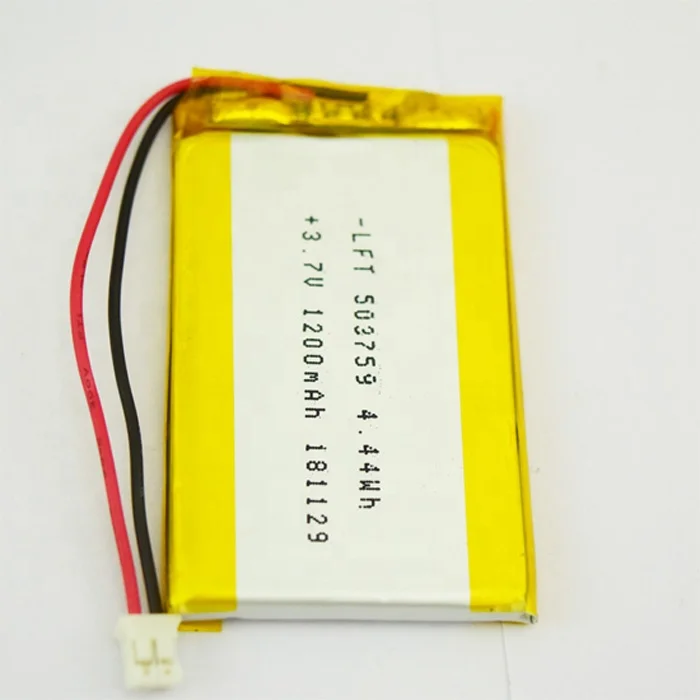

Литий ионный полимерный литиевый аккумулятор 503759 3,7 в 1200 мАч для беспроводного телефона

Product Overview

Description

pl503759 3.7v 1200mah li ion polymer lithium battery for cordless phone

Product Description

Battery Quality:

1. Cells: A grade cells to make sure batteries in high and full capacity

2. Protection: Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload

3. Compose Type: Injection Technology to make battery more stable

4. Certifications: CE, UL, FCC, RoHS, ISO9001

5. Long life cycly, No memory, environment friendly

Advantages:

1, High energy density

2, High working voltage for single battery cells

3, Pollution-free

4, Long cycle life

5, No memory effect

6, Capacity, resistance, Voltage, platform time consistency is good

7, With short-circuit production function, safe and reliable

8, Factory price& High quality

9, Good consistency, low self discharge

10, Light weight, small size

Features:

1, Longer storage life than NiMH Batteries

2, Light weight and higher energy density than any rechargeable battery

3, Installed IC chip will prevent the battery pack from over charge and over discharge. It helps protect battery chemistry integrity and prolongs battery life.

4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah

5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power

6, Supply which requires compact size and lighter weight

7, The battery module is wrap by PVC

Others:

1, OEM orders are available

2, Superior quality and cost-performance ratio

3, Tags, plugs and connectors are available

4, We could design and produce the battery pack with plastic shell and assembly procession for customized

configurations is available (we could design and develop Li-ion battery according to your product work

performance & structure apprearance)

Applications:

MP3/MP4,electronic cigarettes,PMP,bluetooth headsets,learning machine,PDA,notebooks,mobile DVD,

digital camera.

Model	503759
Nominal voltage	3.7V
Nominal capacity	1200mAh
Size	thickness × width × length (mm)
	5.0±0.2×37.0±0.5×59.0±0.5mm
Advantage	High energy density Safety and reliable(with PCM) Long cycle life no memory Never explosion,stable performance,environment friendly capacity and size could be customized
Max charge current	1C
Charging method	charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C
Max discharge current	2C
Discharge cut-off voltage	3v, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife (100% Prime Capacity) :	>300times
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.



Battery Cell Performance Criteria

Electrical Characteristics

1)Standard Charge---->Charing the cell initially with constant current at 0.5C andthen with

constant voltage at 4.2v till charge current declines to 0.05C.

Criteria----> N.A

2)Rated Capacity-------->The capacity means the discharge capacity of the cell, which is measured

with discharge current of 0.2C with 2.75V cut-off voltage after standard charge.

Criteria----->≥1200mAh

3)Cycle Life----------------->Test Condition:

Charge:0.5C to 4.2v

Discharge:0.5C to 2.75v

60%or more of 1st cyle capacity at 0.5C discharge of operation

Criteria------>≥500

4)Self-discharge----------->After the standard charging,storied the cells under the condition as No.4.4

for 30days,then measured the capacity with 0.2C till 2.75v

Criteria------>Residual Capacity>90%

5)Initial impedance------>Internal resistance measured at AC 1KHz after 50%charge

Criteria------->≤80mΩ

6)Cell Voltage------------->As of shipment

Criteria------->3.6v-3.9v

7)Temperature Characteristics------->1.According to item 4.1.1,at 23±5°C.

2.Capacity comparison at each temperature,measured with constant

discharge current 0.2C with 2.75v cut-off.Percentage as an index the

capacity compared with 100%at 23°C

Criteria-------->-20°C:≥65%

23°C:≥100%

60°C:≥96%

8)Storage Characteristics-------------->1.According to item 4.1.1,at 23±5°C.

2.The battery shall be stored at 60±5°C for 7days and rested at room

temperature for 1hour then measured with constant discharge current

0.2C with 2.75V cut-off

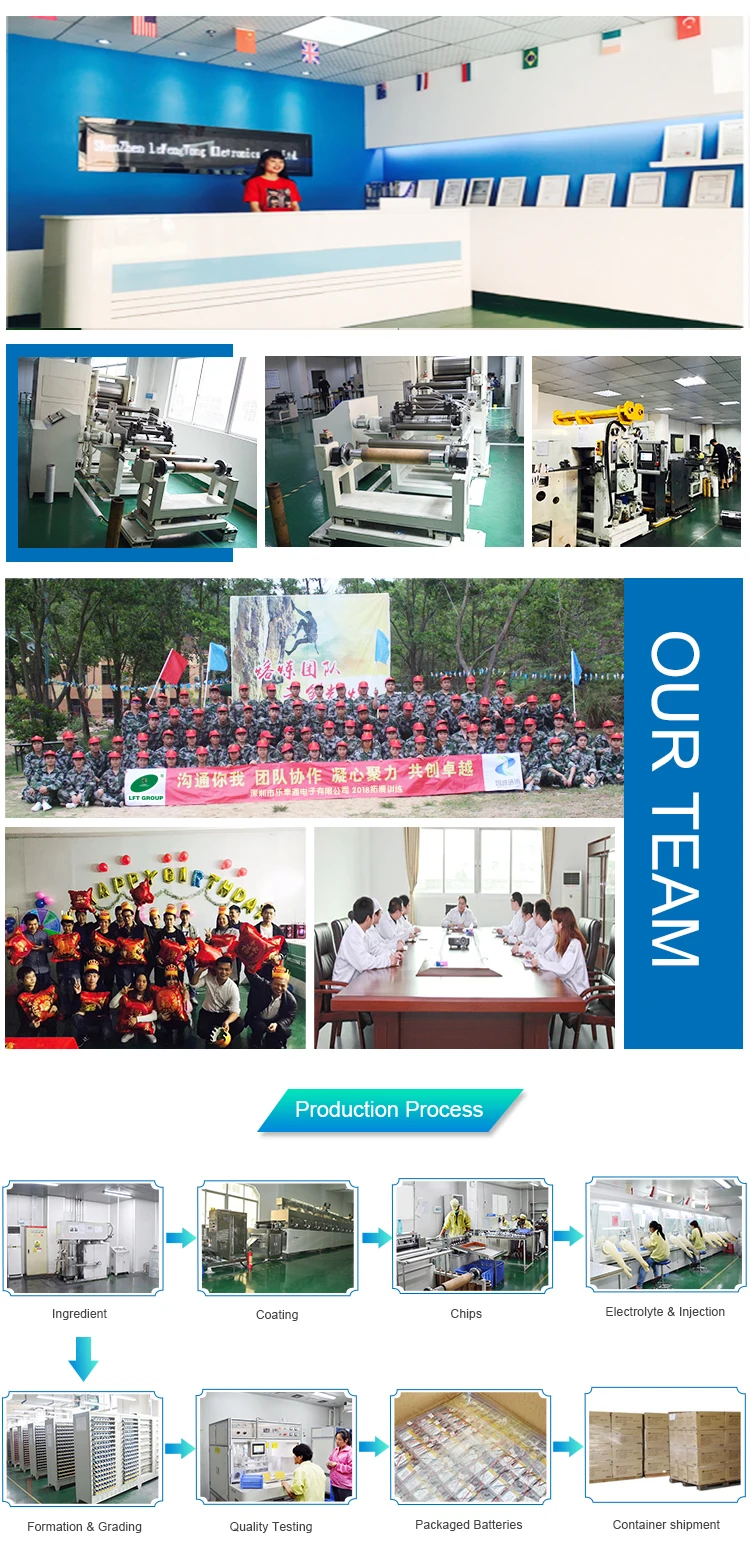

Factory and Workshop Photos

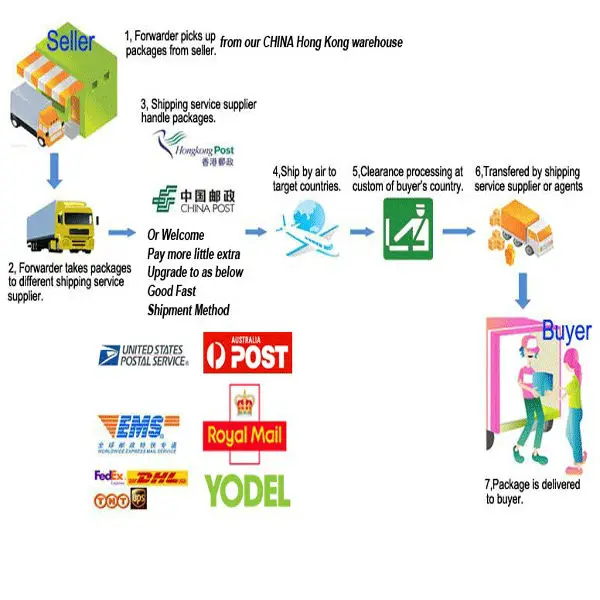

Express

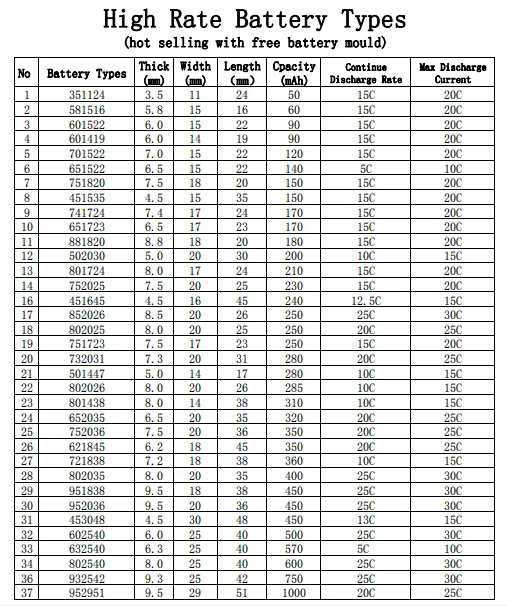

High Rate Lipo battery Mode Reference
