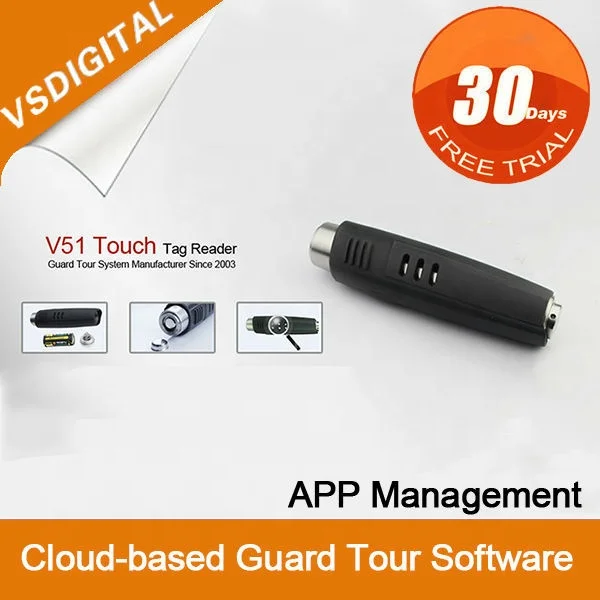

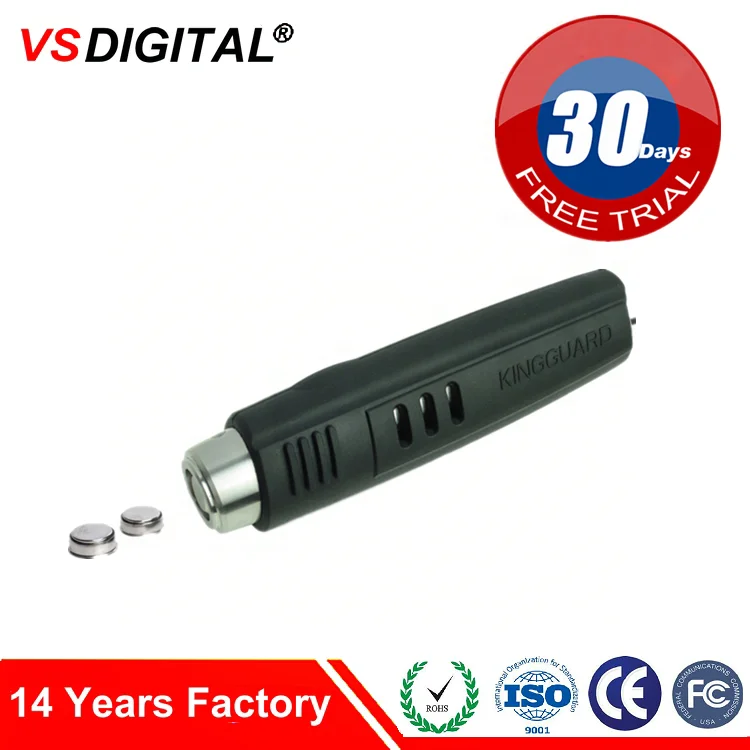

rugged waterproof ibutton guard tour reader
- Category: Access Control Systems & Products >>>
- Supplier: Shenyang VS Digital Technology Co. Ltd.
Share on (60130842280):
Product Overview
Description
usb ibutton reader
Product Description
features
Anti- vandal
1 shockproof : works well after a drop from 15m height and produce drop record at the same time.
2 drop record:(admin can know who damage the reader on purpose)
3 staticproof
4 completely waterproof .
5 Read head short circuit
6 super durable (stainless steel body, rubber out shell, PCB completely sealed box )
Anti-spamming
1 disassemble batteries record automatically
2 store up to 120,000 records
specifiction of V51
Probe | Ibutton |
Storage Capacity | 120,000 pieces records |
Material | Stainless steel and rubber |
Data safety | Data can keep ten years without power |
Read tags indication | Blue & Vibration |
Charge Indication | Red Light |
Battery used | AAA alkaline |
Protection Grade | Based on IP65 design |
Shockproof | durable enough to withstand a drop from 15m height |
Waterproof | Work well in the rainy day |
Operate temperature range | -40°C— +85°C |
Dimension | 149*37*35mm |
Weight | 300g |
internal instructure
shockproof

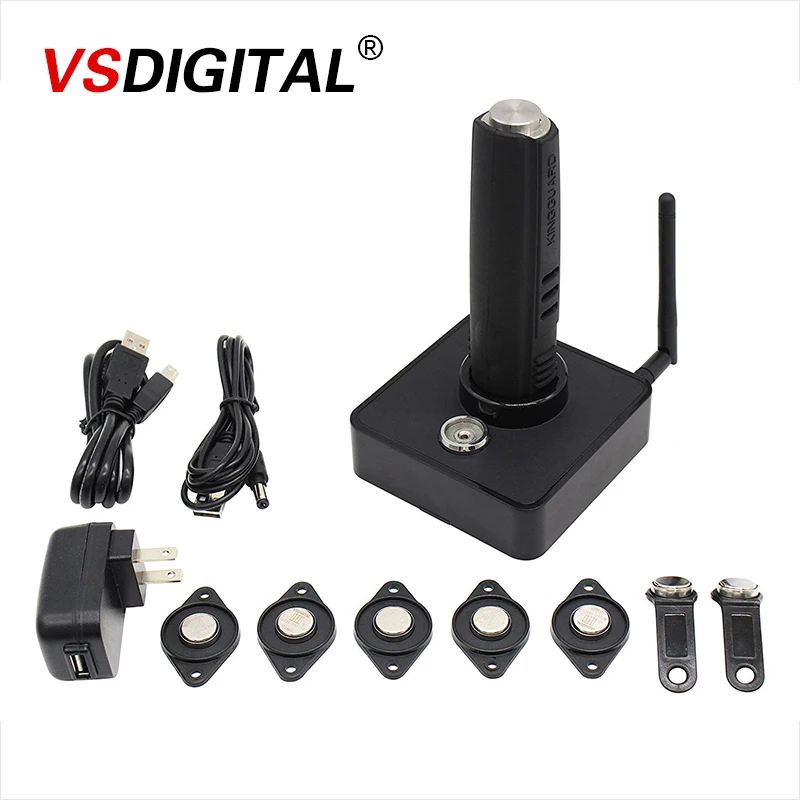

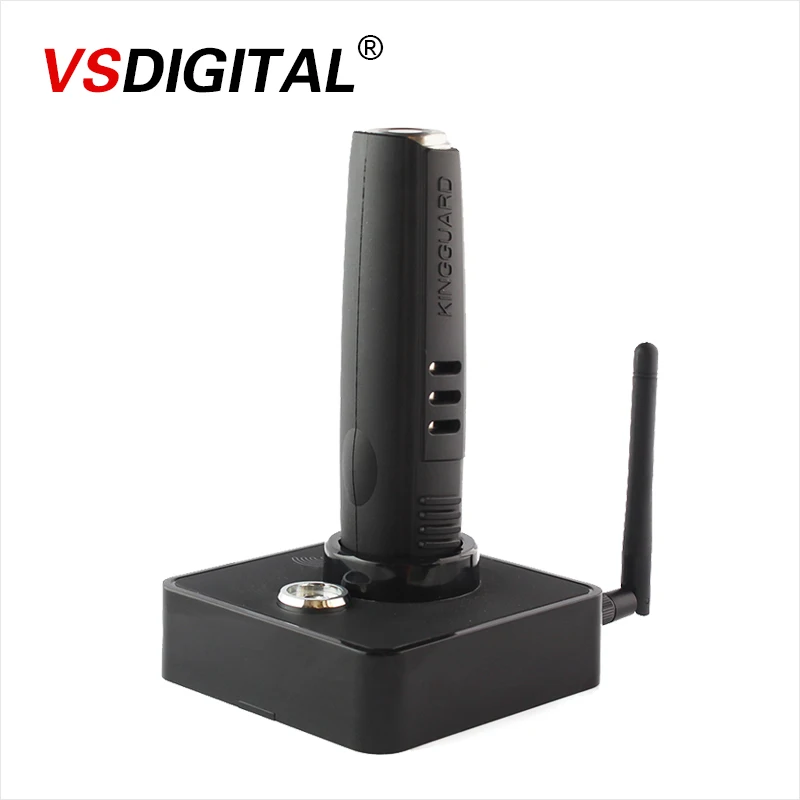

IP Downloader
Simple operation process
1. obtain patrol data-- touch tag with V51
2.Two ways to transmit data
we have two combination to transmit data with V51, choose the one you like.
(1) ecnomic combination: V51+ VT51 USB Downloader (local transfer )
V51 is connected with PC via VT51 USB downloader and at the same the data will be transmited to the software.
(2) standard combination: V51+GPRS downloader /RJ45 downloader (remote transfer)
V51 also can transfer data through via GPRS or Rj45 IP downloader. it is an ideal solution for some
big companies wishing to manage their guards' work at different cities at HQ.
GPRS IP-Downloader can work well with a 2G SIM card inside and it can transmit data from a remote
place.
advantage of IP-downloader
No need computer
Patrol data is downloaded into IP downloader then is transferred to software by GPRS.
Operate easily
Operator just needs insert reader into IP Downloader,then IP Downloader reads patrol records
automatically and transfer patrol data to software, if meet the signal is busy or broken,
IP Downloader will detect the server constantly until upload sucessfully.
No Maintenance
IP downloader uses embedded design, so hardware program won’t be affected virus like PC.
Reliable storage
IP Downloader uses Flash memory, so the patrol data can be kept more than 10 years after power off.
Download patrol data movably
If IP Downloader uses standard mobile power , it can download and upload patrol data movably.
Recognize reader automatically
IP Downloader can recognize V1, V5, V51 and downloads patrol data automatically.
48 groups alarm clock
Read ibutton, RFID tag function
Update firmware remotely
Software
advantages of online software
1.it can realize "check at any time, anyplace" via mobile phone, Ipad or PC by typing in www.onlineguardpatrol.com.
2.it has 8 kinds of report, such as impact report, low power report ,flow report and so on.
3.it can be sent to someone you wanted via Email, PDF and CSV (which can be checked by Excel)
4.it can set daily plan, week plan ,month plan and customized plan.
5.it will have the APP function in the near future.

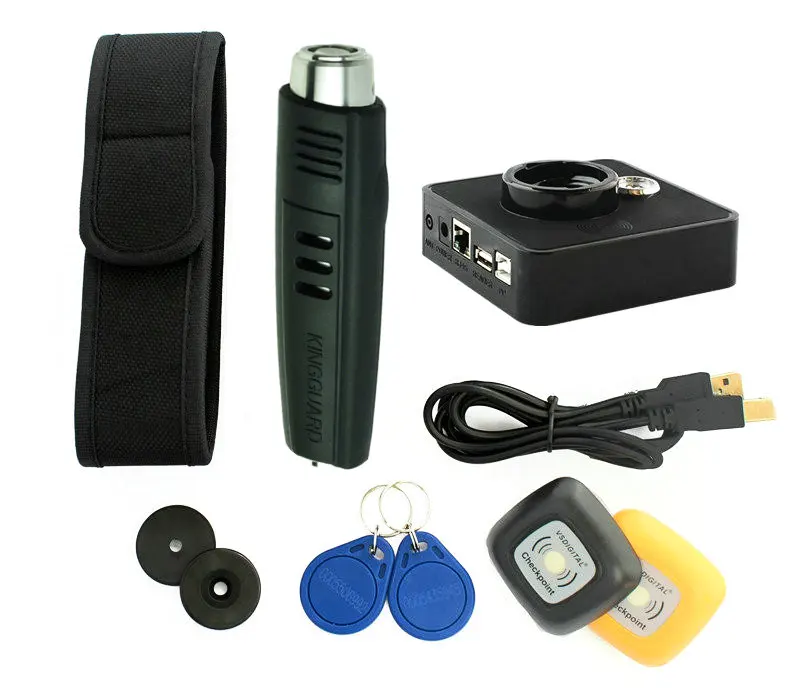

One Set includes
Production Flow
Company Information
Why you choose us?
1.We are the guard tour scanner manufacturer since 2003 and have our own R&D department.
2.our products have CE and ROHS certifications.
3.OEM and ODM avaliable.
4.5 years warranty.
5. Money back policy---when you received the goods ,and think our products can’t meet you needs,
you can send them back to us and we will return your money.
6.Online software-the only online software in China, it can be checked at anytime anyplace via
mobile phone, Ipad and PC by typing in the website:www.onlineguardpatrol.com.
7. after sale services:
1) online remote assistance.
2) tested stricly and packed well before our profucts are sent.
8. payment: you can pay via: T/T ,West union, Escrow and Paypal.
Exhibition
Packaging & Shipping
small box:21*15*7cm big box:60*38*55cm
