Контроллер к температуре и влажности/датчики (TDK0348LA,THC 202,CN 202)
- Category: >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60130913473):
Product Overview
Description

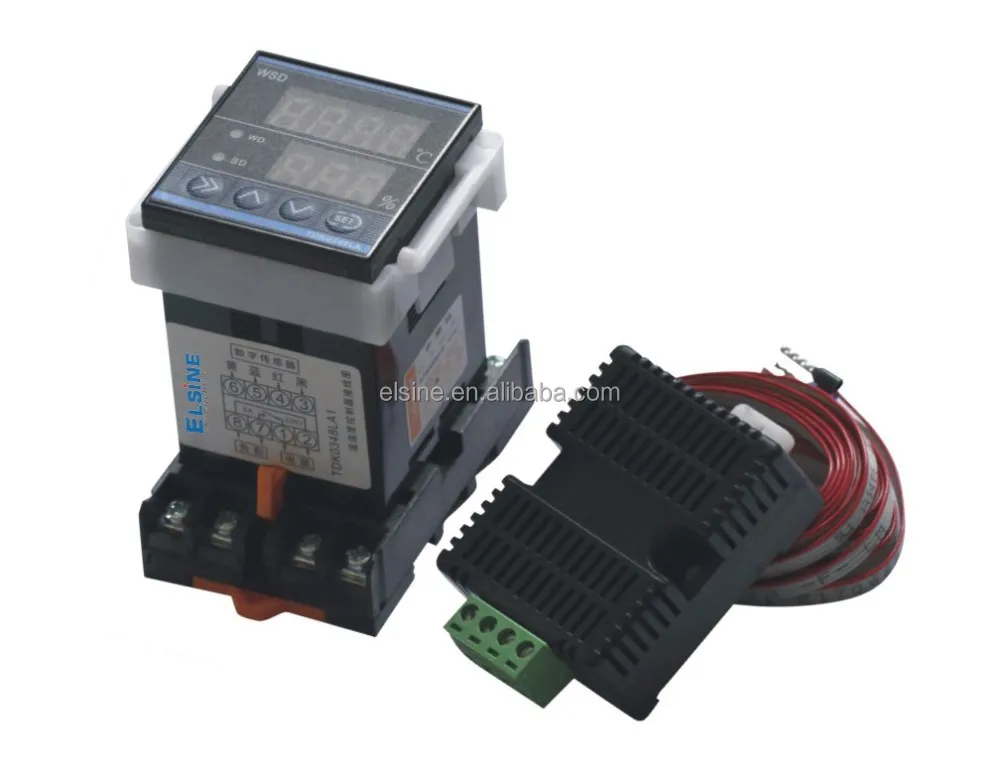

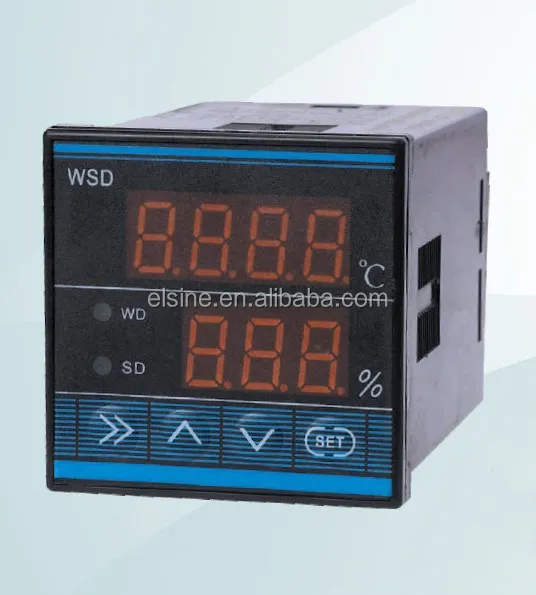

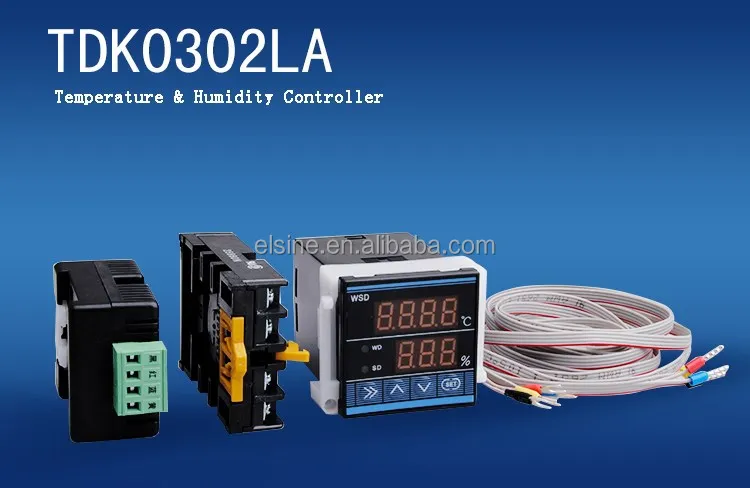

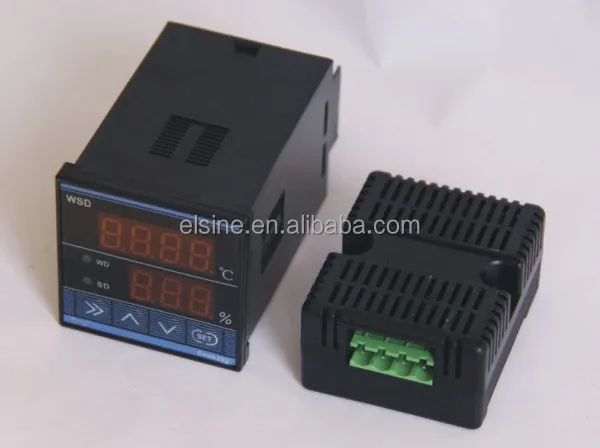

Digital Temperature & Humidity Controller/sensors
For industrial switchgear textile industry application
The temperature and humidity controller has been managed to meet the demand of environmental terperature and humidity.
Product Description
For outdoor terminal box, automatic heating and dehumidification distribution box, preventing the terminal of various creepage caused by misoperation accident, such as relay protection terminal box etc.
Also used in the operation mechanism of indoor high voltage distribution device and high voltage switch cabinet. It can automatically heat under low temperature environment, preventing insulation creepage caused by misoperation cause and mechanism under low temperature environment.
Suitable for switching the mechanism box, handcart type switch cabinet and online monitoring box transformer substation equipment such as the box moisture-proof, low temperature of a plurality of components.
It can also be used for curing barn, grain depot, warehouse, computer room, aquaculture,textile industry and other needs of automatic dehumidification or heating and automatic exhaust temperature or heating place.
Technical Data
- Working voltage: 85-260VAC/DC
- Power consumption: Less than 2W
- Switching output: 5A/250VAC (Resistive)
- Display device: LED
- Setting temperature: -30 ℃ ~ +120℃ (Degrees centigrade)
- Setting humidity: 11~ 99%RH
- Ambient temperature: -20~+70℃ (Degrees centigrade), 45-85%RH
- Return difference range: Temperature 0.1~19.9 ℃ Degrees Centigrade; Humidity: 1~50%RH
- Resolution: 0.1
- Temperature accuracy: ±0.5%
- Humidity accuracy: ±4.5%
- Error correction: Temperature ±0.1~ 2℃ Degrees Centigrade; Humidity: ±1~20RH
- Mechanical life: 3000,000Times
- Dimension: 48*48*81/72*72*81/48*96*102mm
Dimension
Wiring Diagram:
