Polycarbonate Clear Roof Double Wall Sheeting Standard Sizes
US $1.17-$10.78
Share on (60131677241):
raw material roofing sheet plastic diamond plate sheets
| The Details for plastic diamond plate sheets : | ||||
| Thickness: | 2.5mm-10mm | |||
| Sheet Size: | 1220/1820/1560/2100*5800mm(Width*Length) | |||
| or 1220/1820/1560/2100*11800mm(Width*Length) | ||||
| Color: | Clear/Opal/Light Green/Green/Blue/Lake Blue/Red/Yellow and so on. | |||
| Weight: | From 2.625kg/m2 to 10.5kg/m2 | |||
| Lead Time: | 5 days one container | |||
| MOQ: | 500 square meter for each thickness | |||
| Packing Details: | protective film on both sides of sheet+waterproof tape | |||
| Plastic diamond plate sheets Loading details: | ||||
| Thickness(mm) | Sheet size(mm) | Quantity (1*20'GP) | Sheet size(mm) | Quantity (1*40'HQ) |
| 4 | 2100*5800 | 550 pcs | 2100*6000 | 1300 pcs |
| 6 | 2100*5800 | 380 pcs | 2100*6000 | 880 pc |
| 8 | 2100*5800 | 290 pcs | 2100*6000 | 670 pcs |
| 10 | 2100*5800 | 235 pcs | 2100*6000 | 535 pcs |
| Material Characteristics of plastic diamond plate sheets : | ||||
| No. | Characteristics | Unit | Data | |
| 1 | Impact Strength | J/m | 850 | |
| 2 | Light Transmission | % | 85 | |
| 3 | Specific Gravity | g/cm3 | 1.2 | |
| 4 | Coefficient of Thermal | mm/m °c | 0.065 | |
| 5 | Service Temperature | °c | -40 to +120 | |
| 6 | Heat Conductivity | W/m2°c | 2.3-3.9 | |
| 7 | Tensile Strength | N/mm2 | >60 | |
| 8 | Flexural Strength | N/mm2 | 100 | |
| 9 | Modulus of Elasticity | MPa | 2400 | |
| 10 | Tensile Stress at Break | MPa | >65 | |
| 11 | Elongation at Break | % | 100 | |
| 12 | Specific Heat | kj/Kgk | 1.17 | |
| 13 | Heat Deflection Temperature | °c | 140 | |
| 14 | Effect of Soundproof | dB | -20 | |
| Applications of plastic diamond plate sheets: | ||||
| 1) Telephone booths | ||||
| 2) Road signs and advertisements | ||||
| 3) Billboards on lamp boxes | ||||
| 4) Lighting and partition walls for banks, hospitals and stations | ||||
| 5) Greenhouses for vegetables, zoos, aquatic products | ||||
| 6) Sound and heat insulation for expressways | ||||

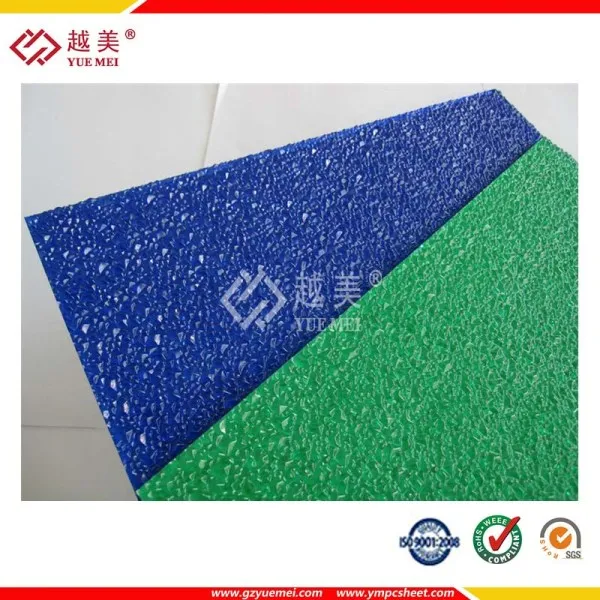

Plastic diamond plate sheets for your reference:

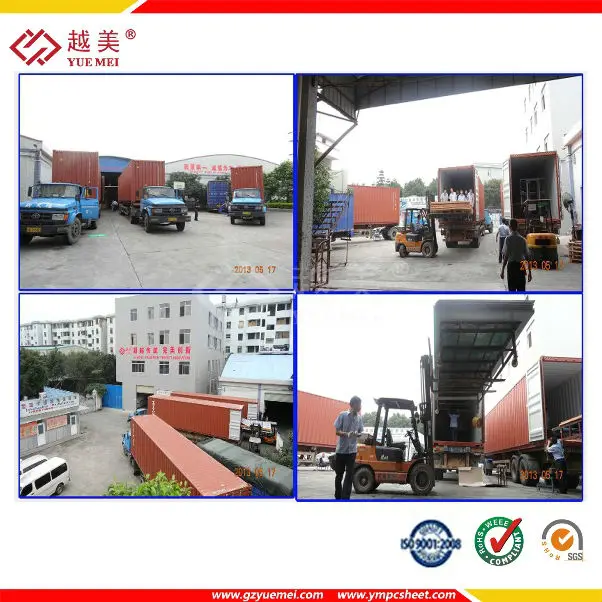

Our factory views:


♥ Warmly welcome to inquiry the pc sheet from Emmy!
♥ Your satisfaction is our goal.
♥ Colin Tel: 0086-13822298758
